1970 Plymouth RoadRunner Wiring

Cermak426

Member
Local time
8:31 AM
Joined
Jul 16, 2018
Messages
5
Reaction score
5
Location
Iowa City, IA

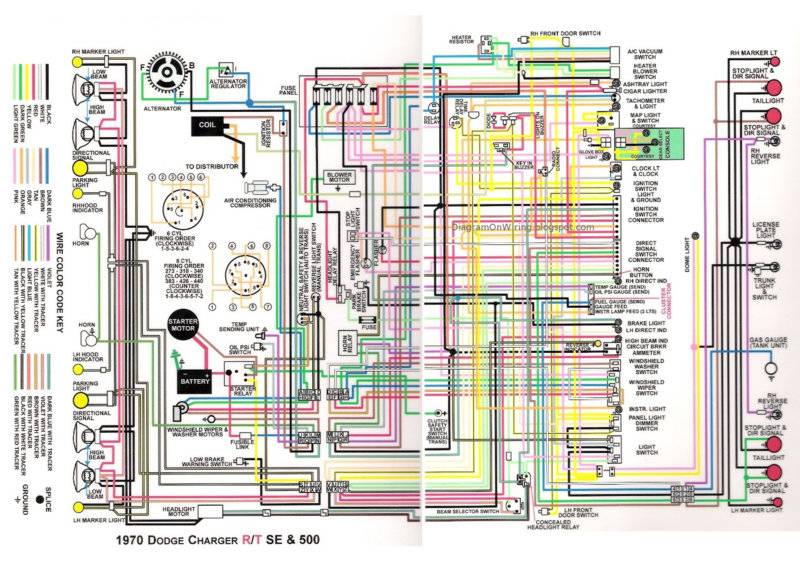

I printed out and colored in some wiring diagrams that I found for my 1970 Roadrunner.

Front End Lighting


Engine Compartment - Except Hemi


Power Window


Body


Instrument Cluster (had to use a charger diagram)


Instrument cluster accessory


Entire Diagram (had to use a 1970 charger diagram and it’s basically the same)


I hope you guys can find everything you need in here.

Keywords:
Rallye Dash B-Body B Body Wiring Diagram Headlight side marker turn signal parking lights tail lights brake lights accessory gauge

I just recieved a laminated , color coded wiring diagram, two sizes available . I got the larger 18" X 24" Very high quality and easy to read. $39 shipped. WWW.classic car wiring.com..888 606 5319. .......................MO
