74 Rear Fender Lip

[jamr]

Would someone be willing to post a few pictures of the rear outside fender well closest to the door? I want to see how the lip finishes out as it nears the bottom of the car. Also a picture of of the inside of the fender well in the same location. I'm fabricating this outside lip due to rust and there wasn't anything left to create a pattern. Thanks in advance.



[Coronet 14]

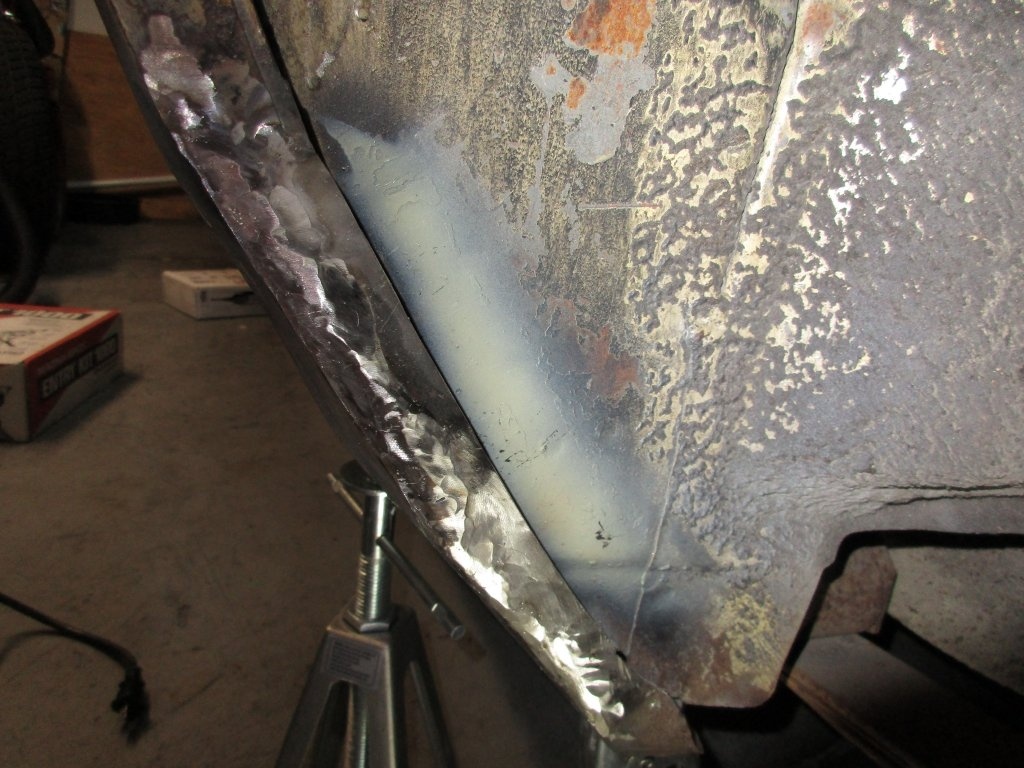

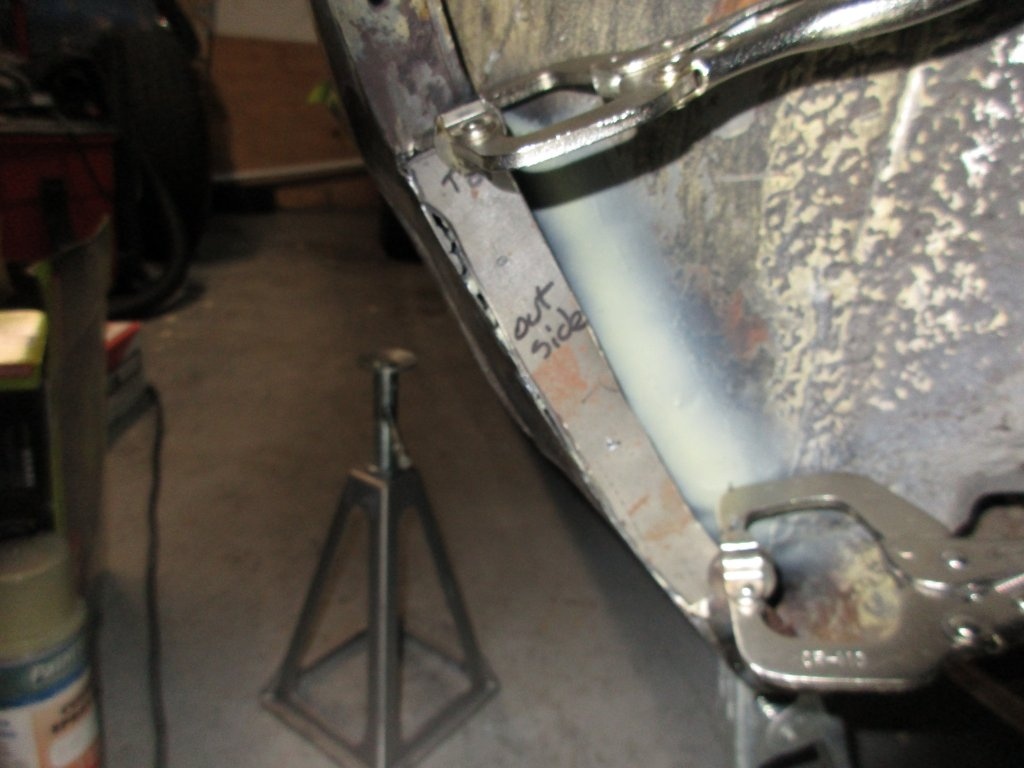

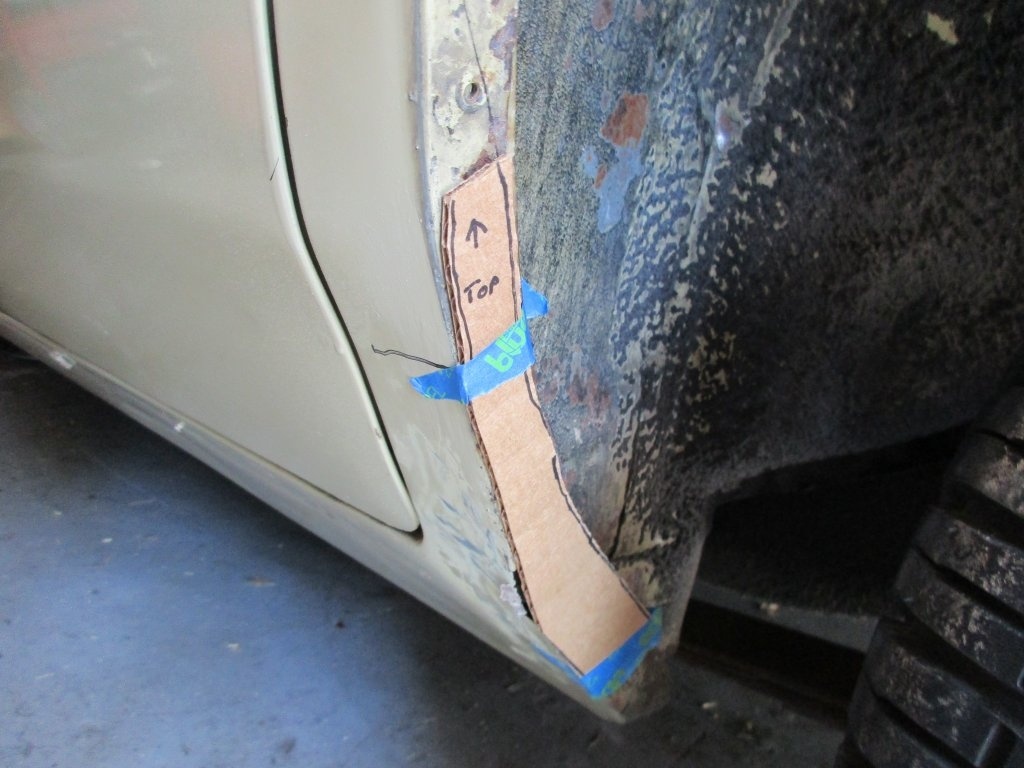

Here are some pics of how I did the lip on my 72 Coronet. Hope these help



[Coronet 14]

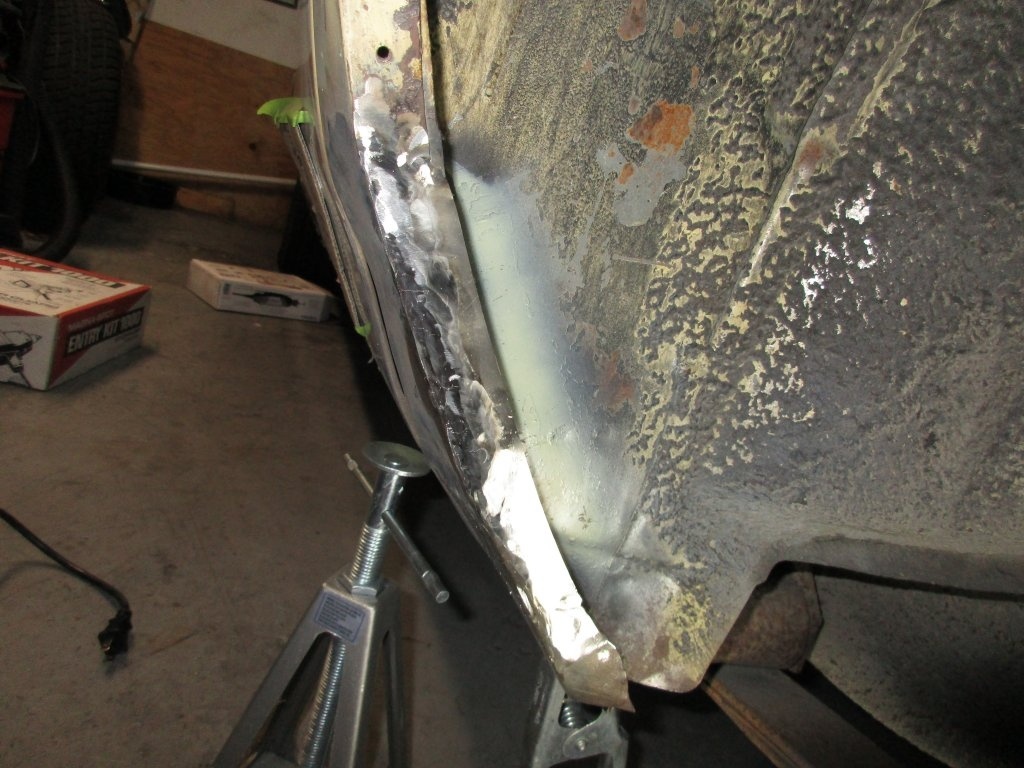

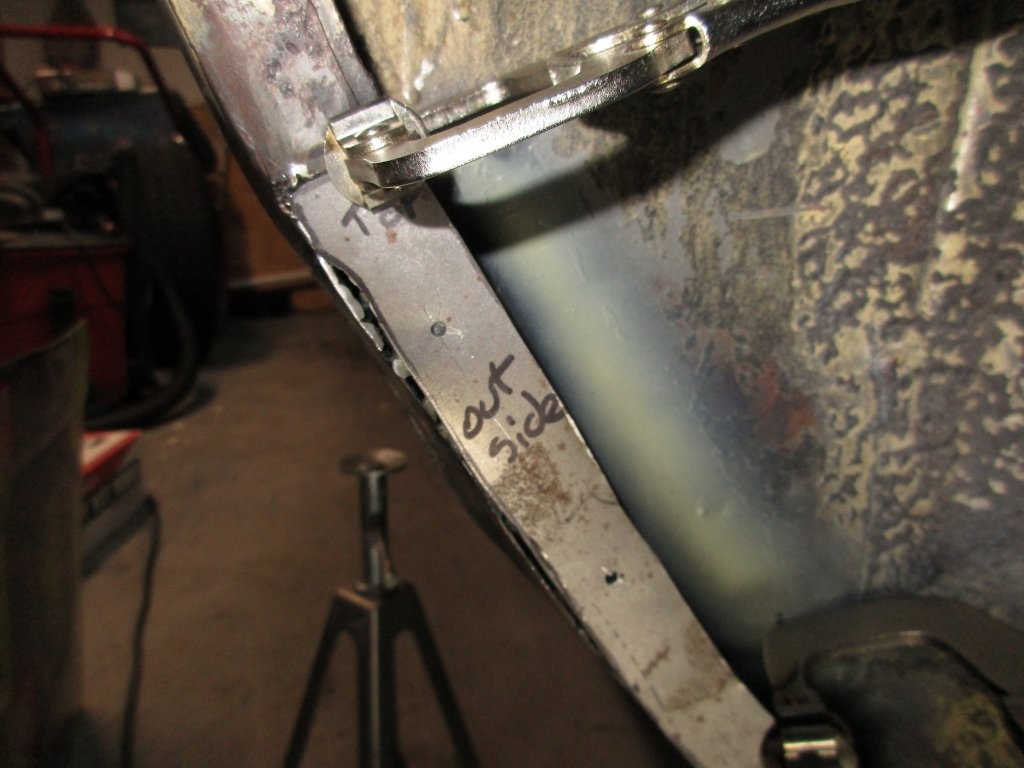

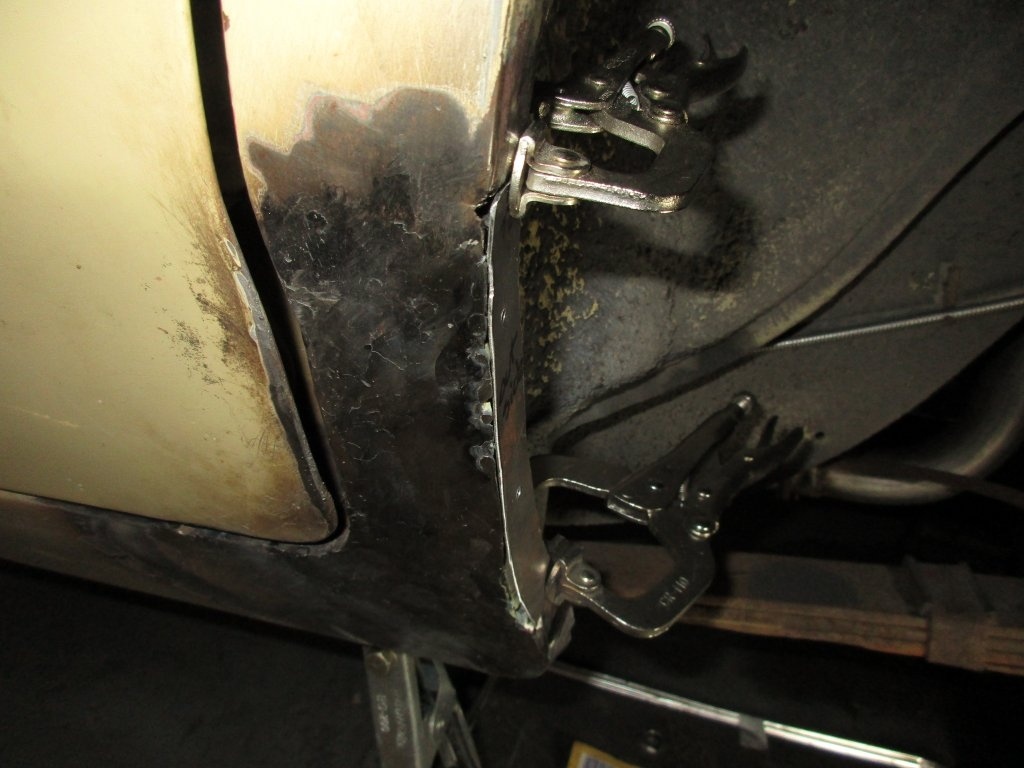

A couple more



[YY1]

74 what?



[jamr]

74 what?

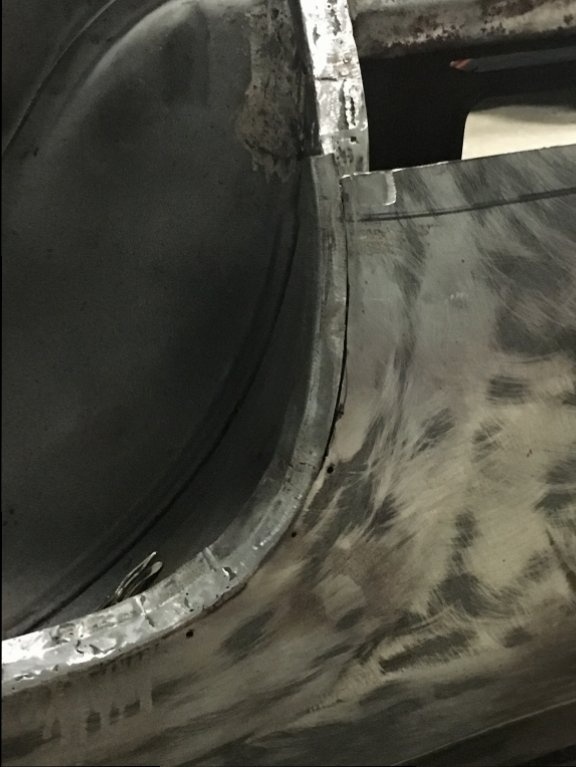

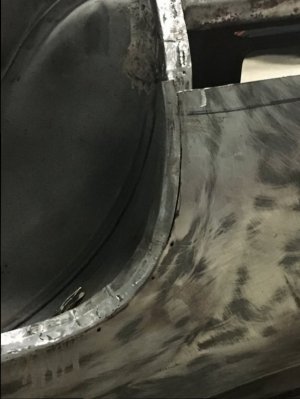

Good question. It is a Roadrunner. I need help with whether the outside bevel follows the fender well to the bottom. Attached is where I am at. Car is obviously in this picture upside down



[YY1]

I'll try to get pics of mine.
