Aftermarket wiring harness to original ignition switch

[__Larsson____]

Hi guys! Maybe someone can help me with a question about what cabel goes were.

On a 1970 Charger 500

I have from the new harness
1 Red cabel (+) from battery
1 White that should go to IGN 1 at the ignition switch.
1 Purple is for the out going to starter solenoid.
1 Black/Red that should go to Ignition ACC
1 Brown should go to IGN 2 if the switch has a connector.

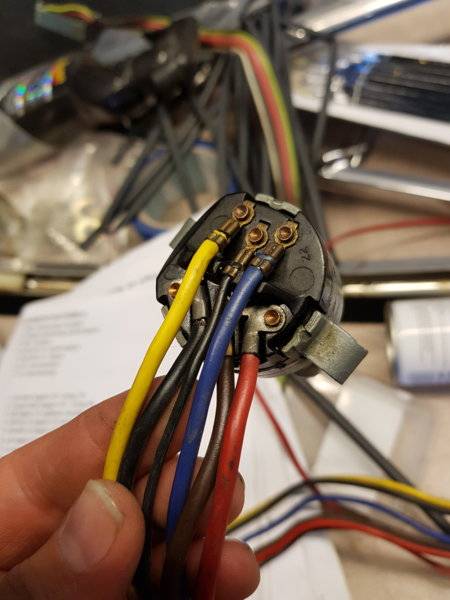

I dont know what cabel on the switch is BAT, IGN, starter or ACC.

I hope you can help me.



[miller]

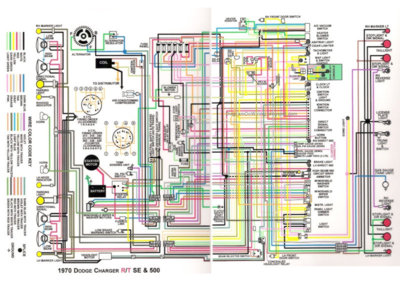

Wiring diagram is too small to read, even enlarged.

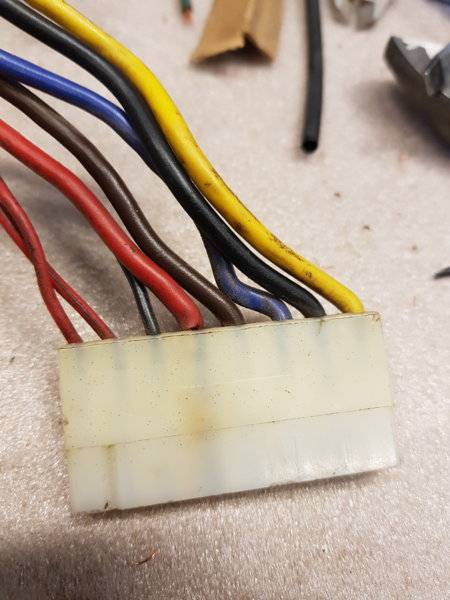

But, suggest, going by your diagram, locate the ignition switch, and the 8 wire straight block, in your pics. Once found, trace each wire to see where they should go, and verify each one.

You'll get it figured out!
