    LOL don't get the better half upset! I kinda remember them going up over the threads also.

  2. moparnation74

    moparnation74 FBBO Gold Member FBBO Gold Member

    Messages:
    3,148
    Likes Received:
    4179
    Joined:
    Mar 27, 2014
    Location:
    Texas
    Local Time:
    11:32 AM
    Old bee,

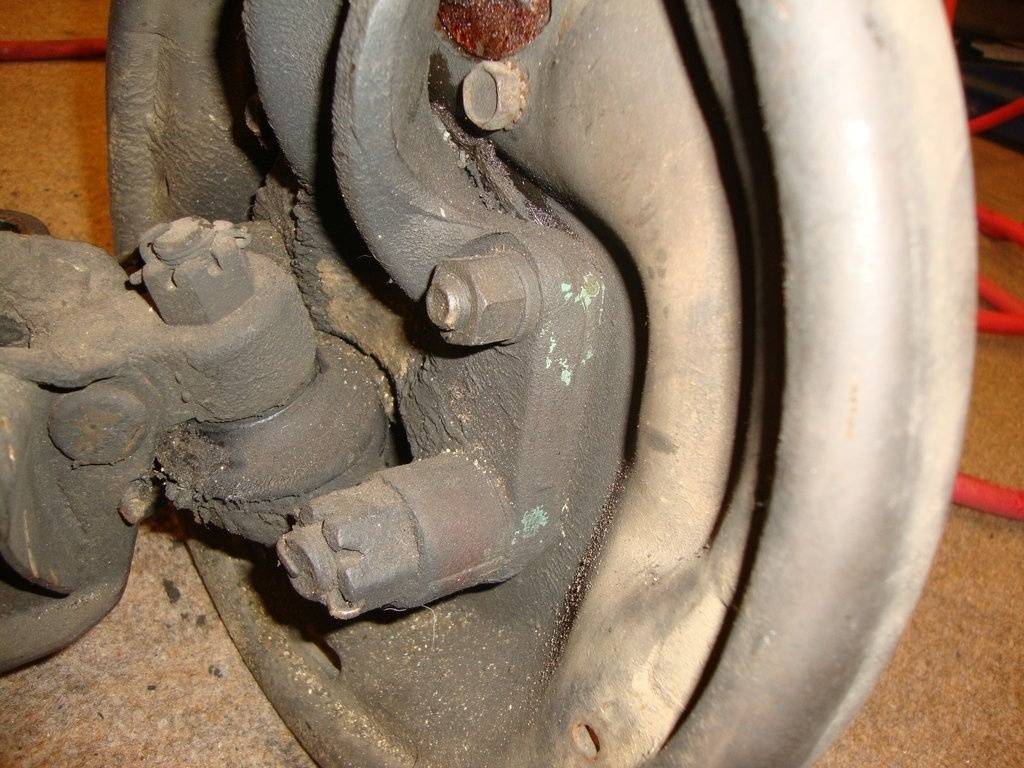

    Here are the pics of the cotter pins installed....The ones I have seen on survivors and from the X were all done this way.
    cotter pin.jpg IMG_2026.JPG IMG_2027.JPG

    • Like Like x 1
    • Thanks! Thanks! x 1
    • moparnation74

      moparnation74 FBBO Gold Member FBBO Gold Member

      Messages:
      3,148
      Likes Received:
      4179
      Joined:
      Mar 27, 2014
      Location:
      Texas
      Local Time:
      11:32 AM

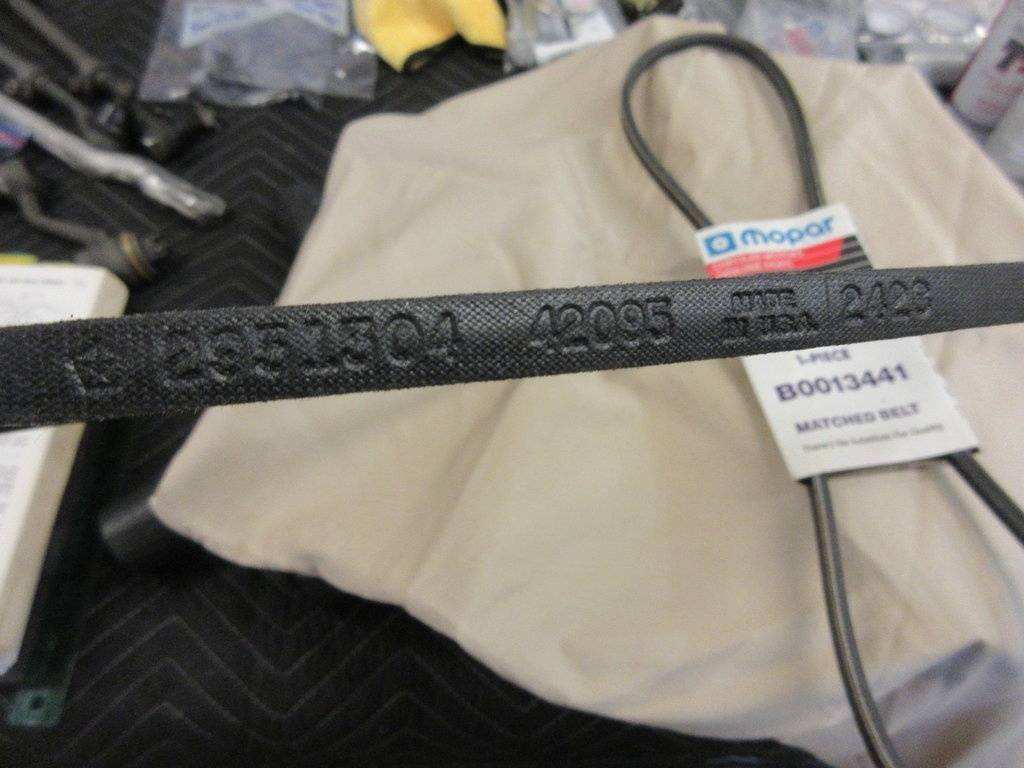

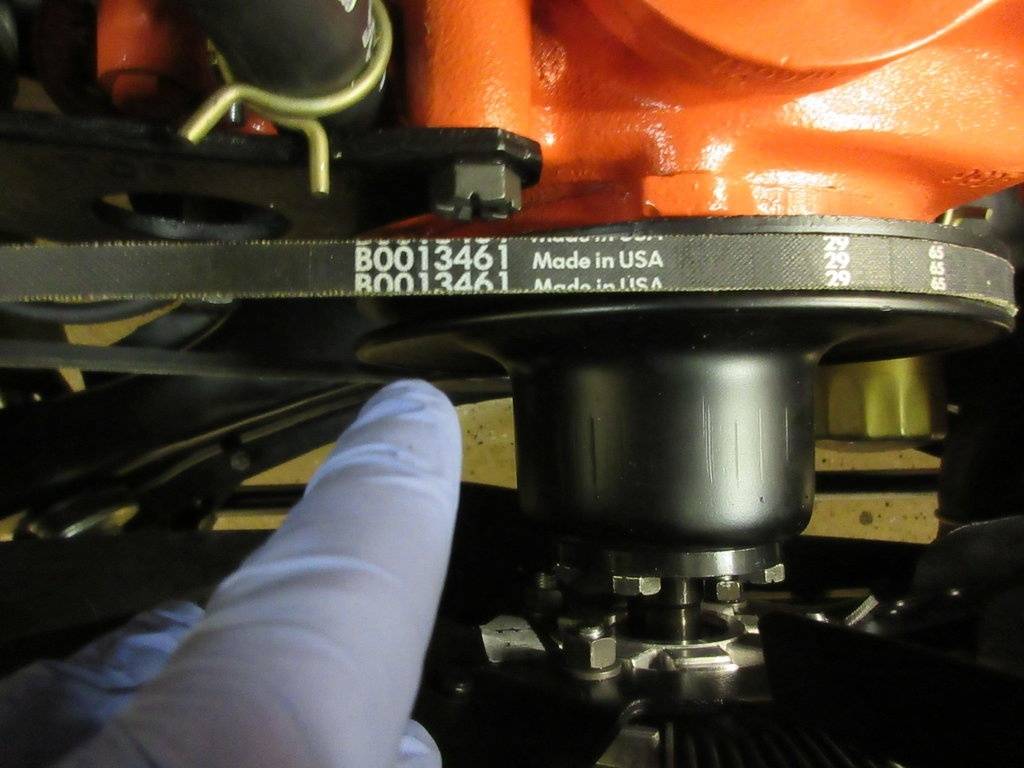

      One of the few parts I have not been able to acquire is an NOS fan belt.....I have a Quanta repro one shown in the first pic but will not use it. They are not made of the correct material and is basically a thick rubber band. They flip on the pulleys and at certain RPM's your temp gauge will skyrocket, lol...DO NOT USE THESE!

      I was able to acquire an older no longer available Mopar belt. These are even hard to find and are very good belts....

      • Like Like x 1
      • moparnation74

        moparnation74 FBBO Gold Member FBBO Gold Member

        Messages:
        3,148
        Likes Received:
        4179
        Joined:
        Mar 27, 2014
        Location:
        Texas
        Local Time:
        11:32 AM

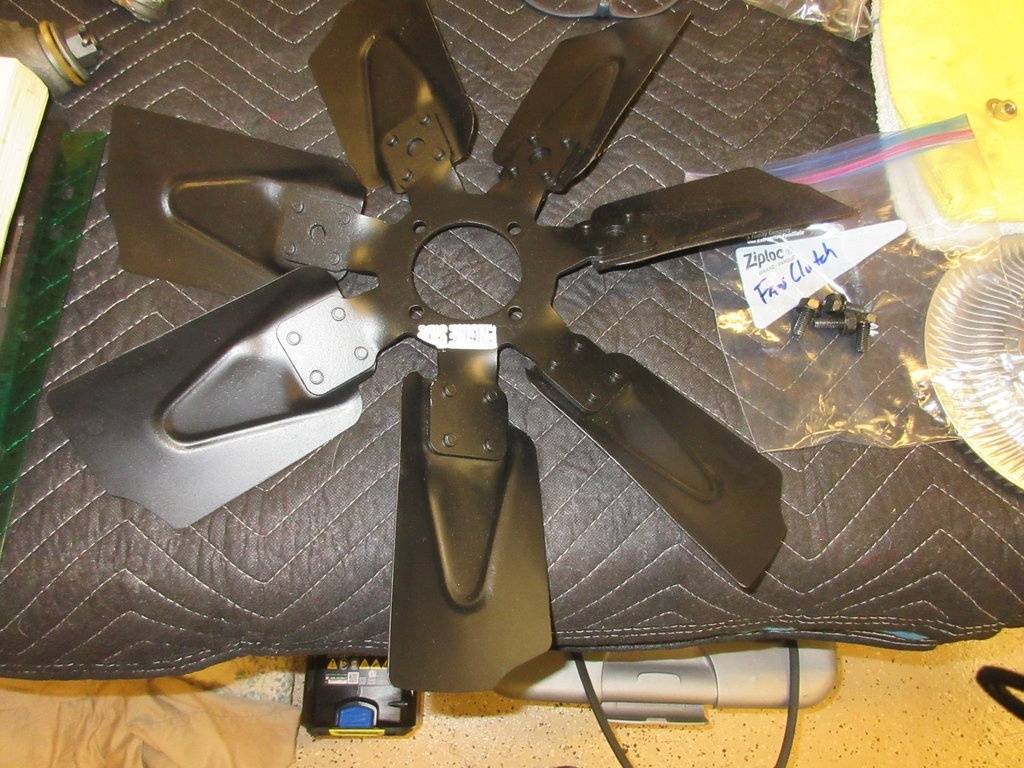

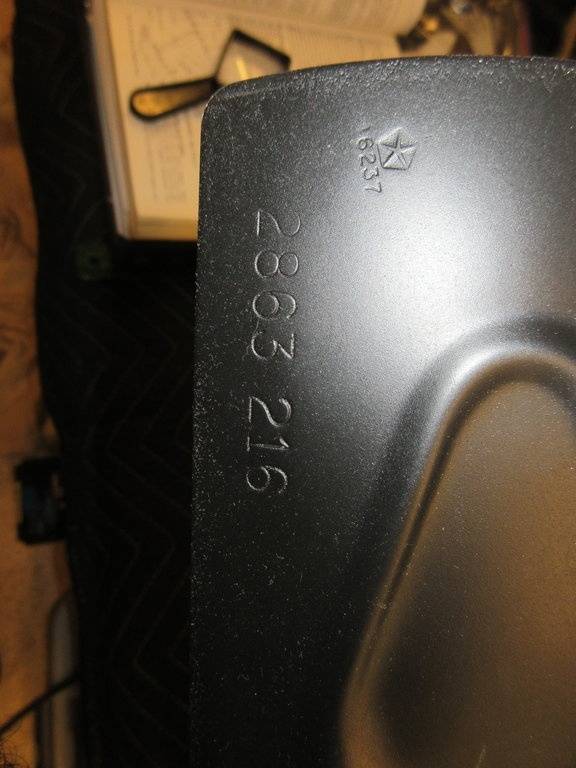

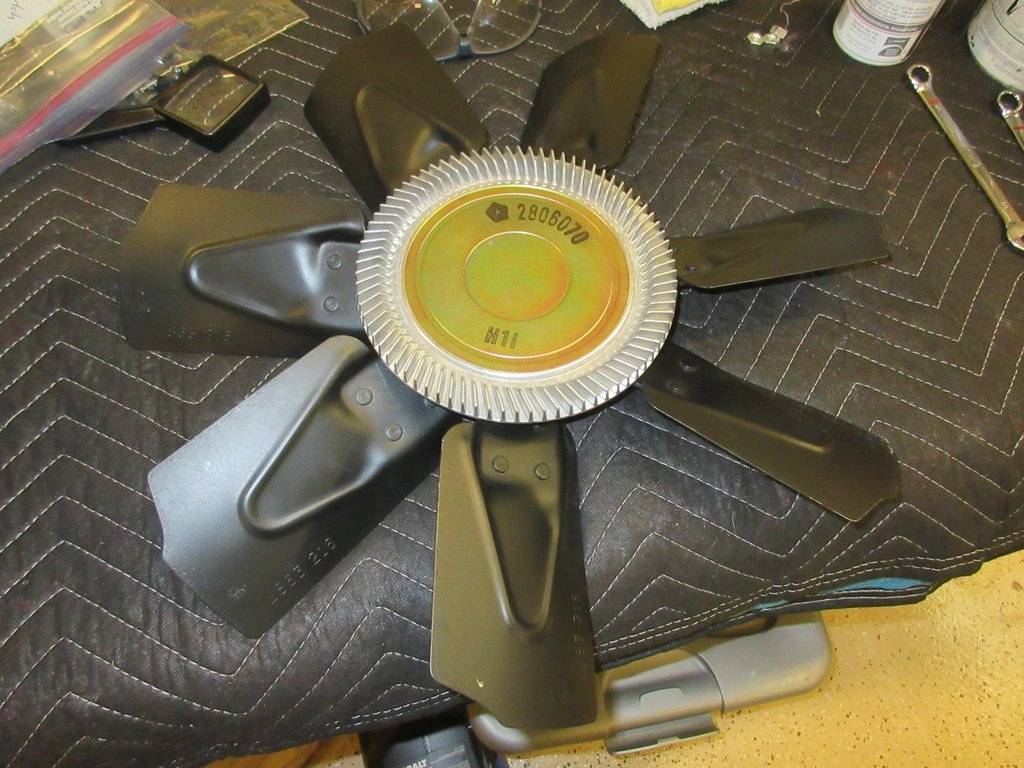

        My original 7 blade fan had some ding and scratches and had to be replaced. Sylvain G...up in Canada sold me this beauty painted and stamped.
        https://sylvainmopar.com Super nice guy and great parts and stamps....

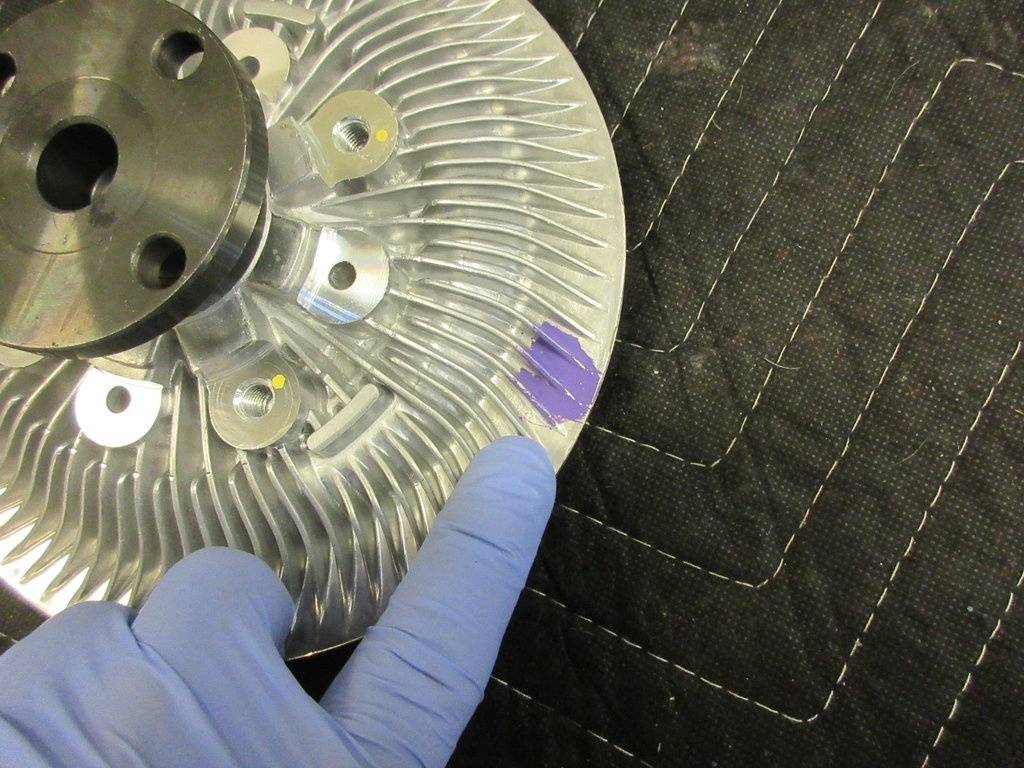

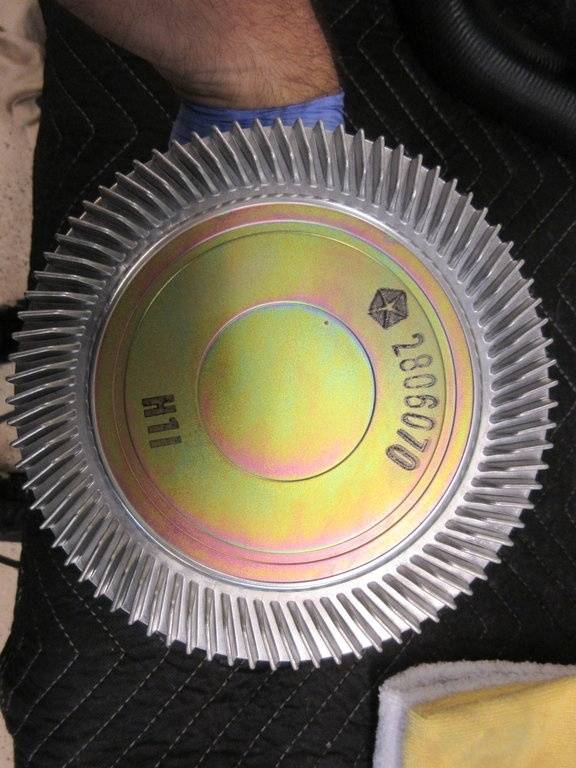

        Now let us talk about the fan clutch....Special thanks to Tony D. for getting a perfect part reproduced! Tony takes the time, the money and the due diligence to get a correct part made! Not an easy process and all his other Oe like parts available are the same quality. Plus, he is a great guy to learn from and to deal with!

        You da man Tony!

        http://www.tonysparts.com/newproductsB.htm

        With that being said he will also stamp the correct pn and date code on the clutch face for a little extra....The other clutch unit below is the original unit from the X. On the back side there was a purple mark and I applied that to the new unit. I got the original nuts and conical washers restored and used them but Tony's unit comes with the stud, washers and nuts....
        IMG_1951.JPG IMG_1952.JPG DSC03992.JPG DSC03993.JPG IMG_1958.JPG IMG_1959.JPG IMG_1960.JPG IMG_1961.JPG IMG_1988.JPG IMG_1989.JPG

        • Like Like x 2
        • Thanks! Thanks! x 1
        • moparnation74

          moparnation74 FBBO Gold Member FBBO Gold Member

          Messages:
          3,148
          Likes Received:
          4179
          Joined:
          Mar 27, 2014
          Location:
          Texas
          Local Time:
          11:32 AM
          • Thanks! Thanks! x 1
          • moparnation74

            moparnation74 FBBO Gold Member FBBO Gold Member

            Messages:
            3,148
            Likes Received:
            4179
            Joined:
            Mar 27, 2014
            Location:
            Texas
            Local Time:
            11:32 AM

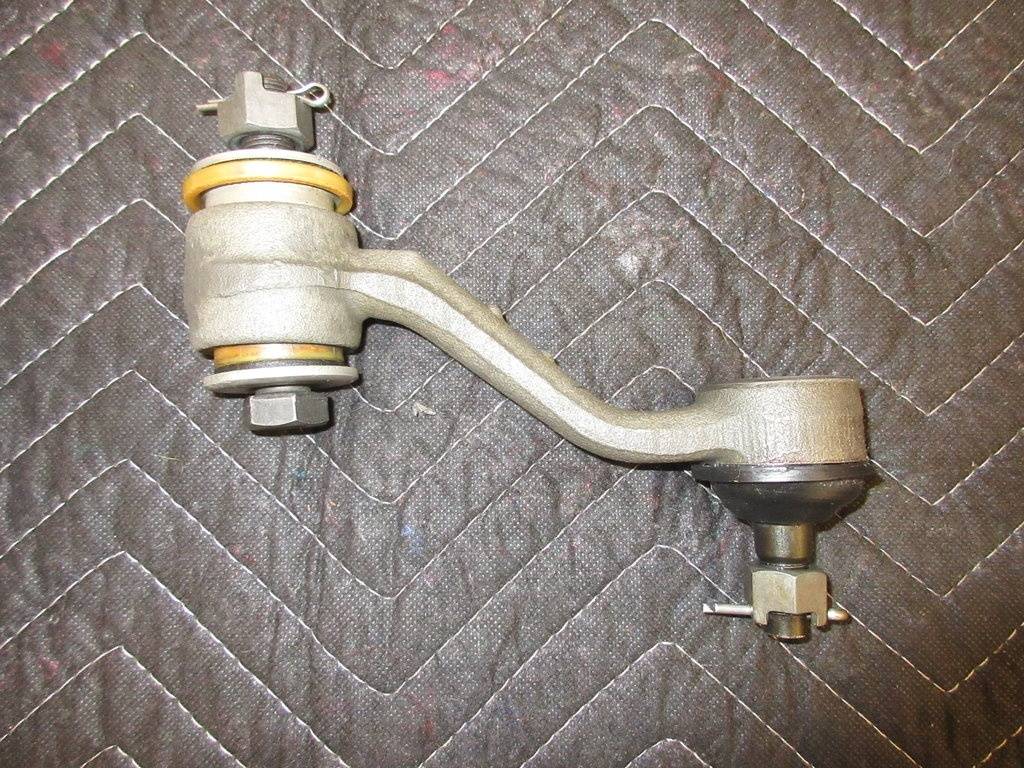

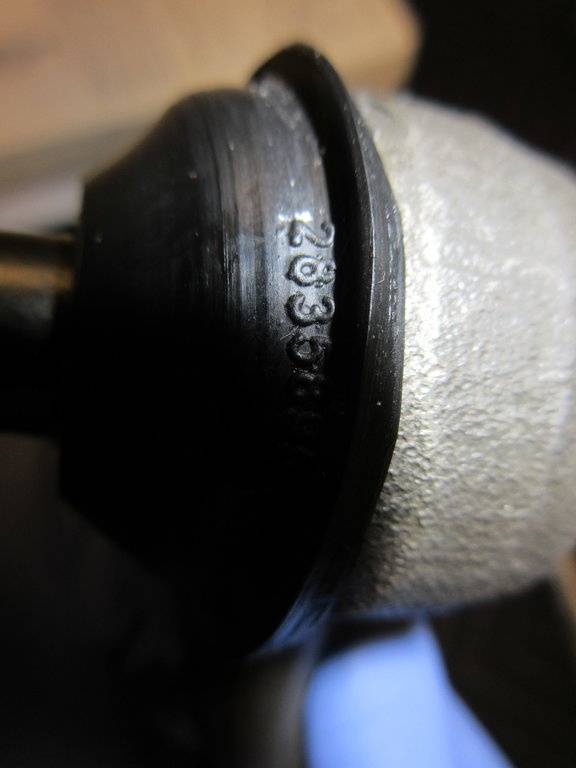

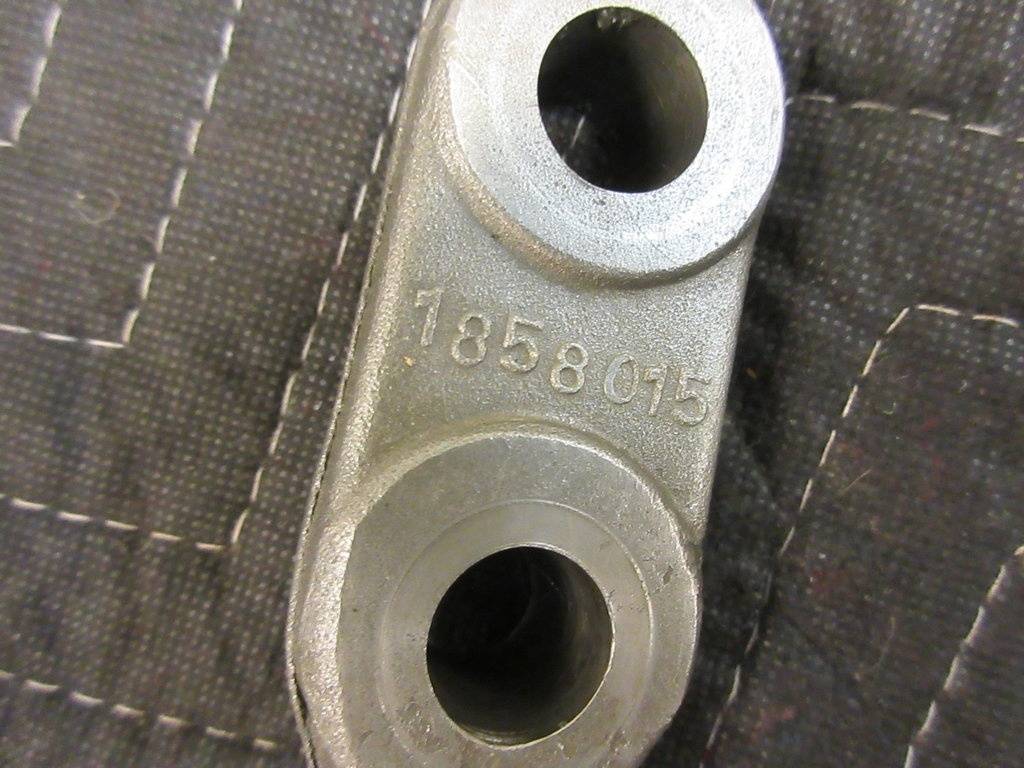

            Pitnam and Idler arms....

            Idler arm is an original used part. I searched through many and I found 2 and this is the better of the 2. They have very distinct features and the most noticeable is the 2 bumps. Next is the ribs that run down the side. Originals did not have grease fittings on the k frame end nor the center link end. On the center link end the top has a dimple in the center.

            New grease cup has the PN and logo on it...From Frank Badlason they come as a full kit of grease cups...

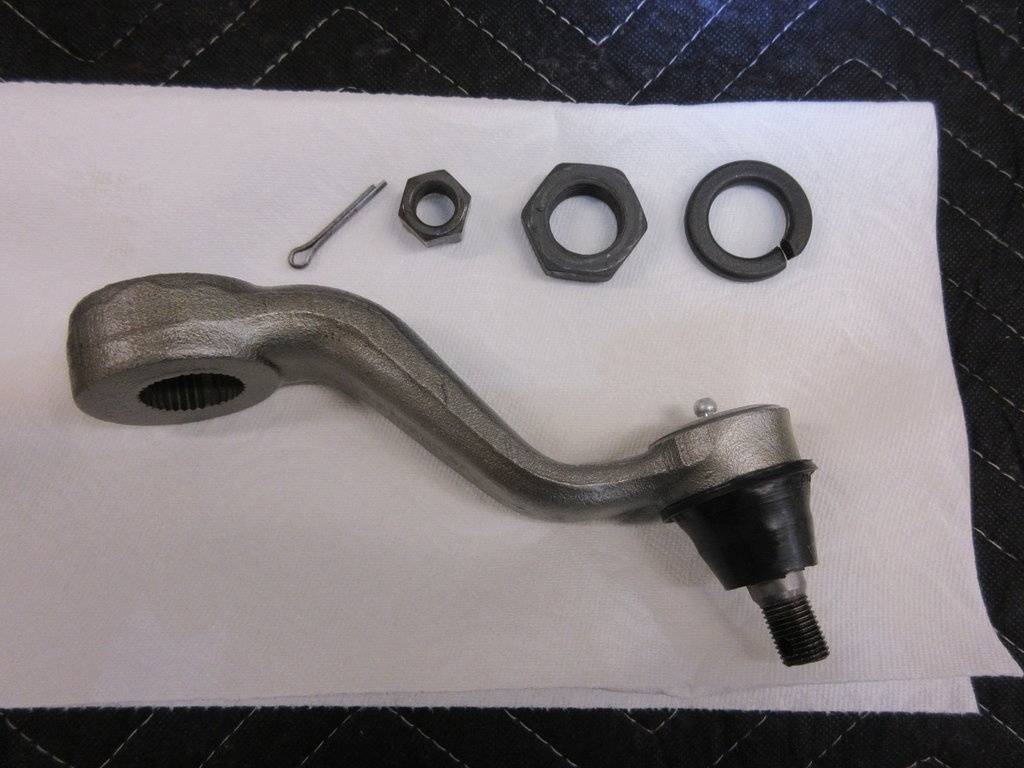

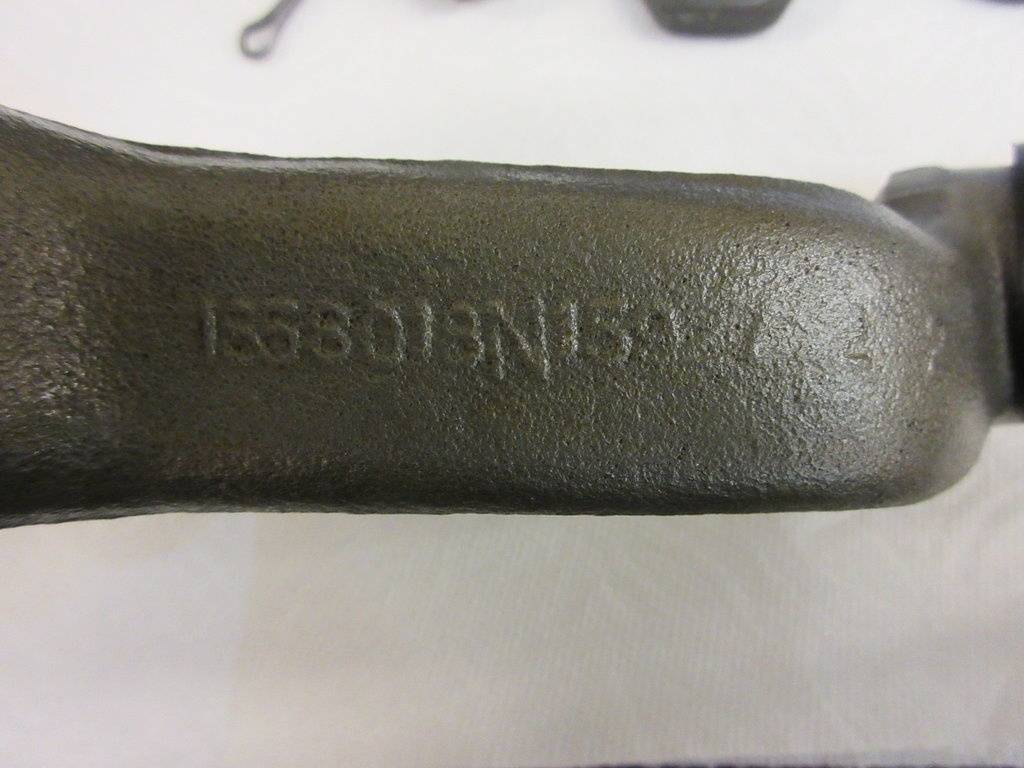

            Pitnam arm was a debacle....These are rare to find and my original one was perfect. So when I sent my unit to steer and gear I specifically put in the letter several things and one was to reuse my original pitman arm. Good used ones can fetch up to 300 bones to the right buyer. So after some time my rebuilt manual box came back and low and behold guess what was not there? My original pitman arm but a nice Chinese junk one was in the box. So without wasting time I called them up and told them I had pictures of my unit with the arm packaged to them. I also included a letter, which I had a copy of stating what I said earlier. On top of that I marked it as well with a punch. My exact words I want a tracking number by tomorrow with my arm with the casting number in the pic below back to me, period! Phone call later and Wallah they found it and got a tracking number.

            These bring good money so word to the wise take pictures, provide letters and make marks...
            IMG_1998.JPG IMG_1999.JPG IMG_2000.JPG IMG_2001.JPG IMG_2002.JPG IMG_2003.JPG IMG_2006.JPG

            • Like Like x 3
            • Agree Agree x 1
            • moparnation74

              moparnation74 FBBO Gold Member FBBO Gold Member

              Messages:
              3,148
              Likes Received:
              4179
              Joined:
              Mar 27, 2014
              Location:
              Texas
              Local Time:
              11:32 AM

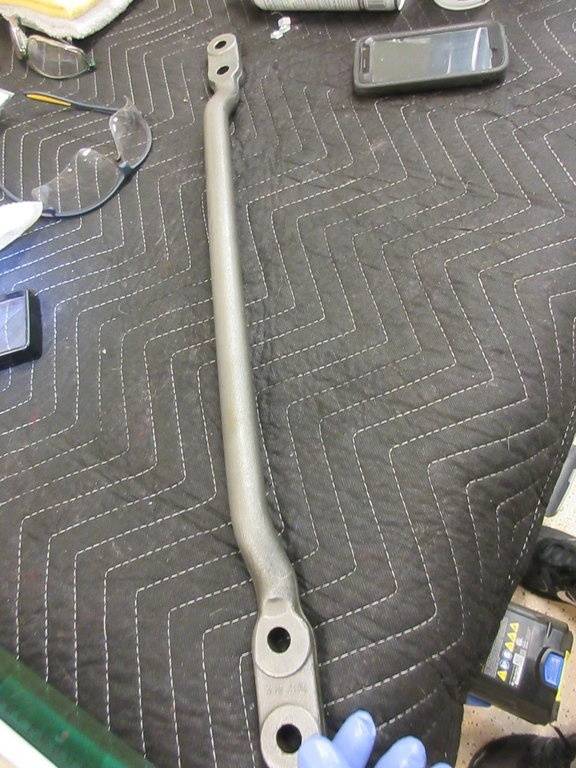

              Original center was cleaned up and treated...

              Remnant of black paint on the drivers side near the pitman arm..
              IMG_2007.JPG IMG_2008.JPG IMG_2009.JPG IMG_2010.JPG IMG_2011.JPG IMG_2012.JPG

              • Like Like x 1
              • moparnation74

                moparnation74 FBBO Gold Member FBBO Gold Member

                Messages:
                3,148
                Likes Received:
                4179
                Joined:
                Mar 27, 2014
                Location:
                Texas
                Local Time:
                11:32 AM

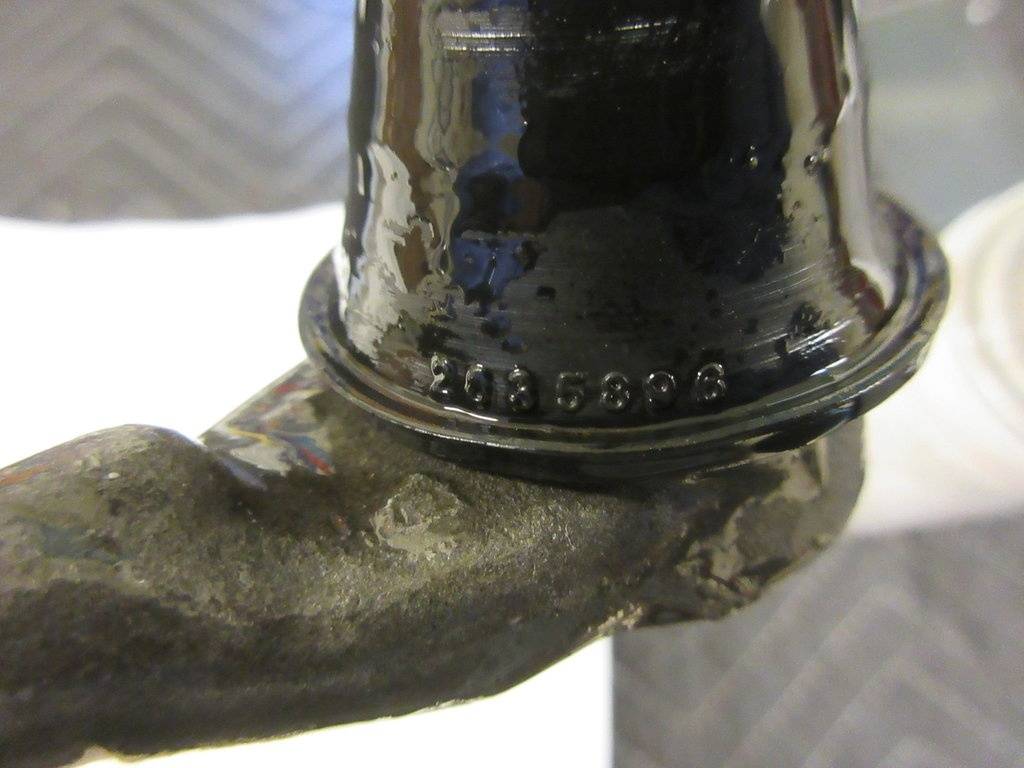

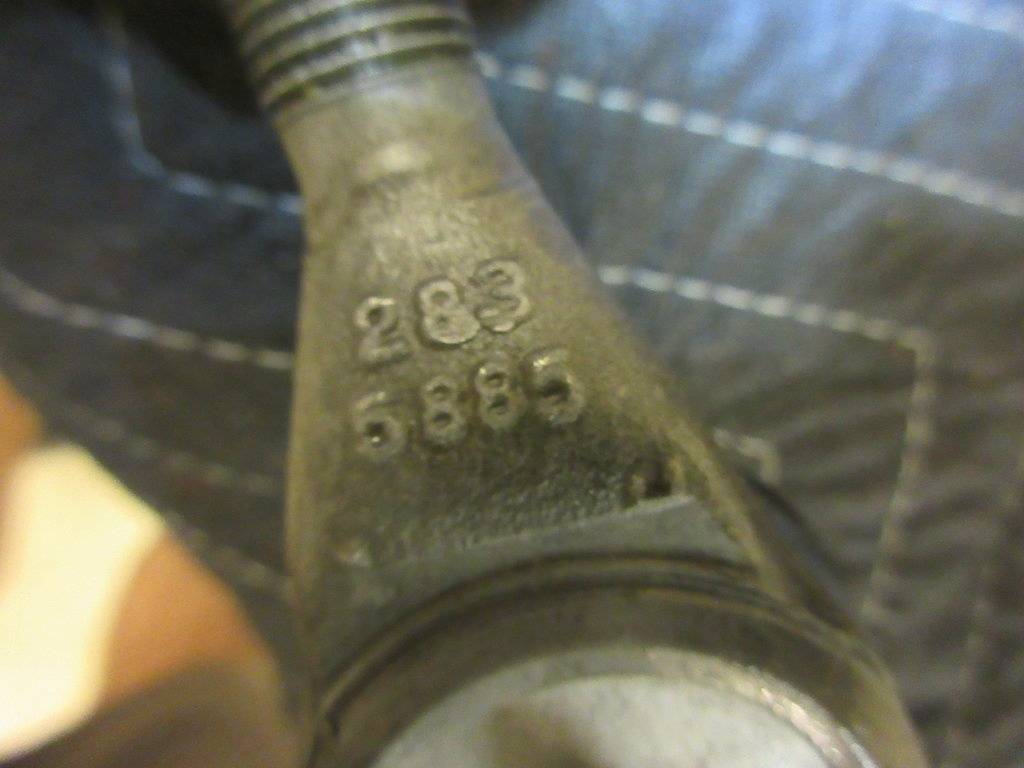

                Tie rods and sleeves. The original sleeves were degreased and coated with boeshield. Thats is the original factory finish. Most of the nuts have the red locking material in place and is a key feature of original nuts. I will take a better pic of that tomorrow...

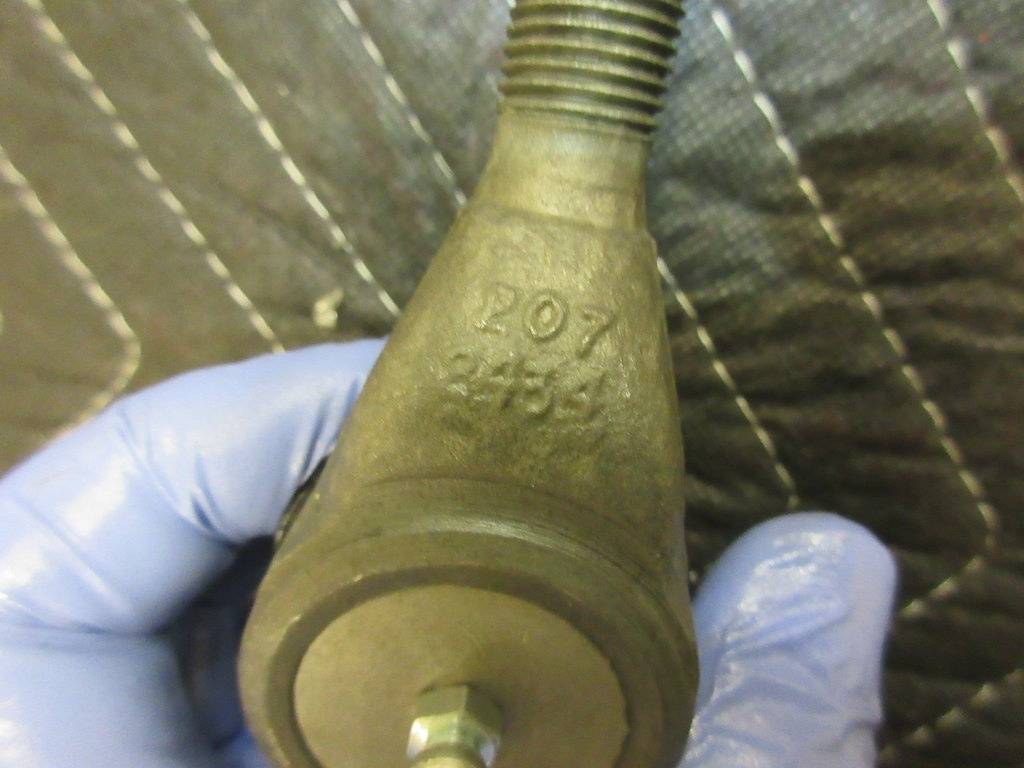

                The tie rod end are the correct castings numbers. The originals were shot and NOS forget it. So I had to find four good used ones....I probably searched through a 100 or more, no kidding but I did acquire 4 perfect ones...

                The breakaway zero fittings came from Frank Badalson

                2072434 is the inner
                2835885 is the outer

                IMG_2013.JPG IMG_2014.JPG IMG_2015.JPG IMG_2016.JPG IMG_2017.JPG IMG_2018.JPG IMG_2020.JPG

                • Like Like x 2
                • moparnation74

                  moparnation74 FBBO Gold Member FBBO Gold Member

                  Messages:
                  3,148
                  Likes Received:
                  4179
                  Joined:
                  Mar 27, 2014
                  Location:
                  Texas
                  Local Time:
                  11:32 AM

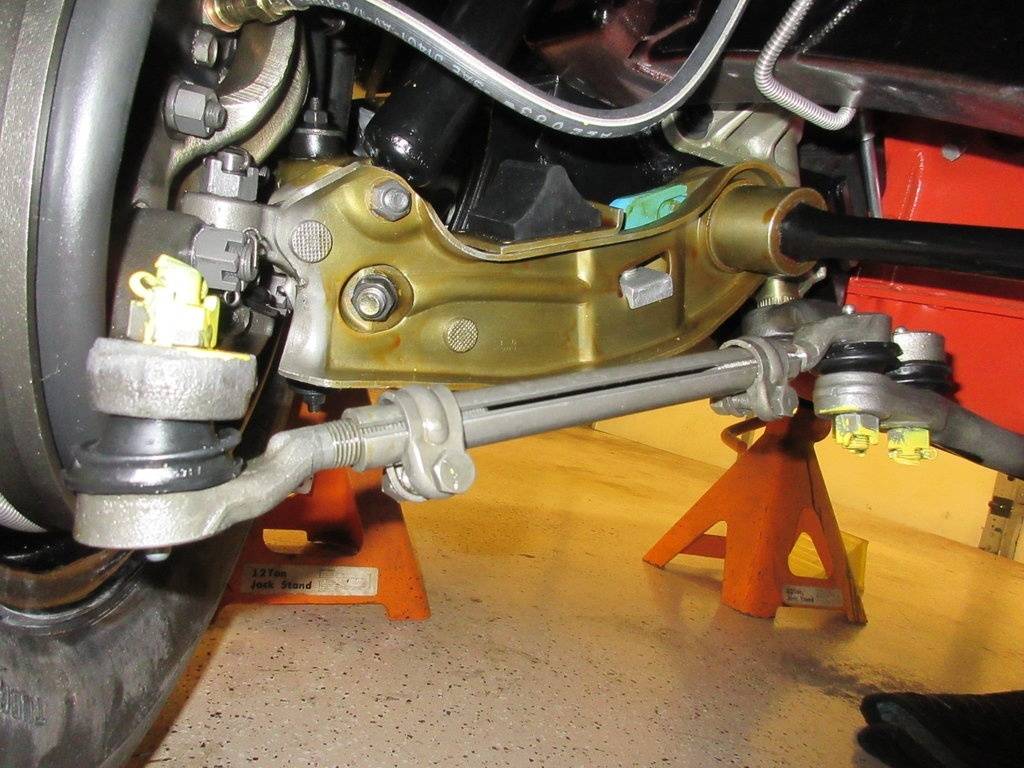

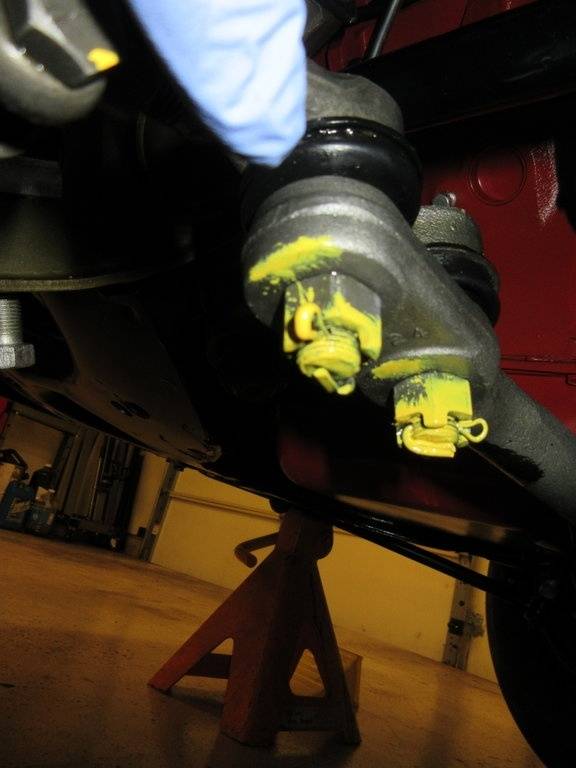

                  Tie rods, idler, pitman arm and centerlink installed.....Getting excited because I am getting close to work on the interior!
                  IMG_2028.JPG IMG_2029.JPG IMG_2030.JPG

                  Last edited: Jul 20, 2017 at 12:21 PM
                  • Like Like x 1
                  • moparnation74

                    moparnation74 FBBO Gold Member FBBO Gold Member

                    Messages:
                    3,148
                    Likes Received:
                    4179
                    Joined:
                    Mar 27, 2014
                    Location:
                    Texas
                    Local Time:
                    11:32 AM

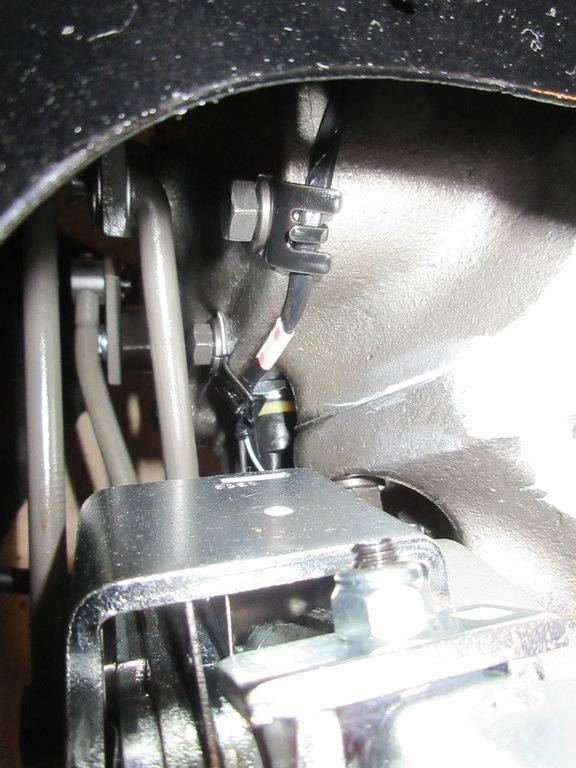

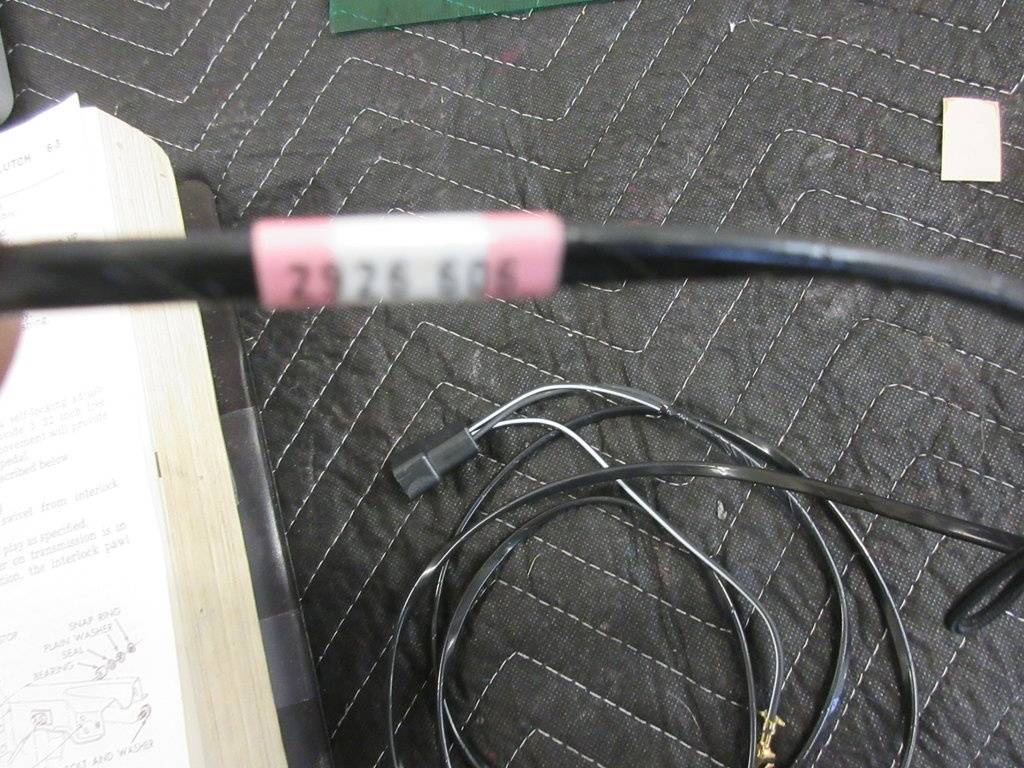

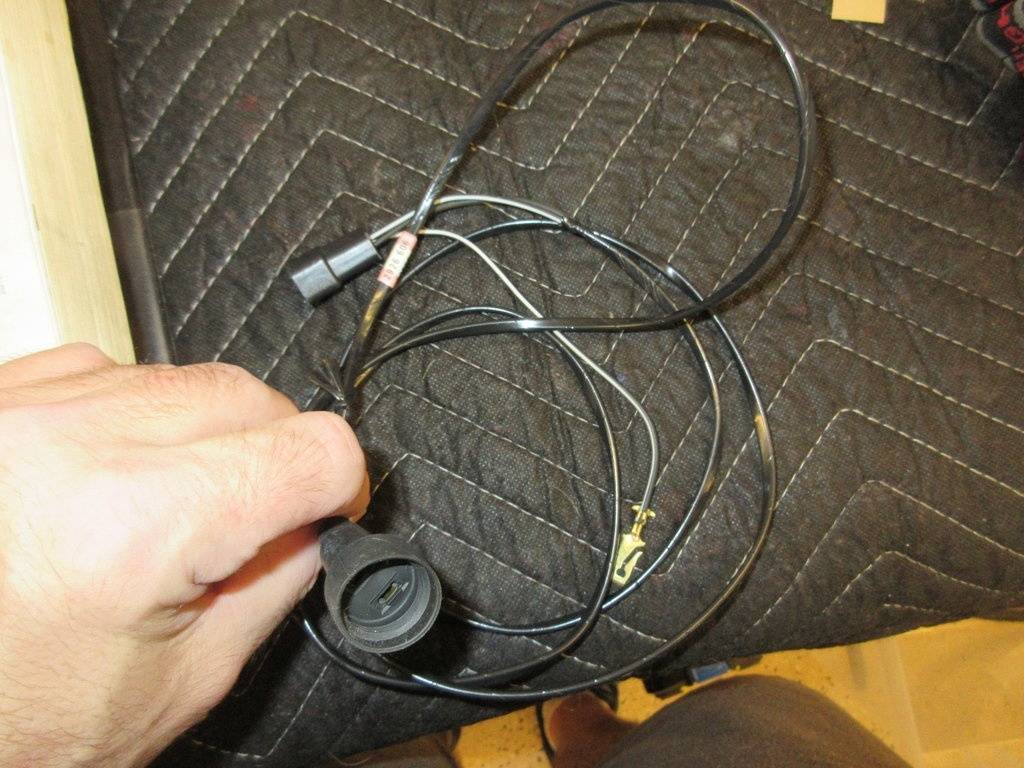

                    Reverse light/NS harness is a new unit with an ECS part number tag placed on it. My original worked but was in sad shape...
                    IMG_2021.JPG IMG_2024.JPG IMG_2025.JPG

                    • Like Like x 1
                    • moparnation74

                      moparnation74 FBBO Gold Member FBBO Gold Member

                      Messages:
                      3,148
                      Likes Received:
                      4179
                      Joined:
                      Mar 27, 2014
                      Location:
                      Texas
                      Local Time:
                      11:32 AM

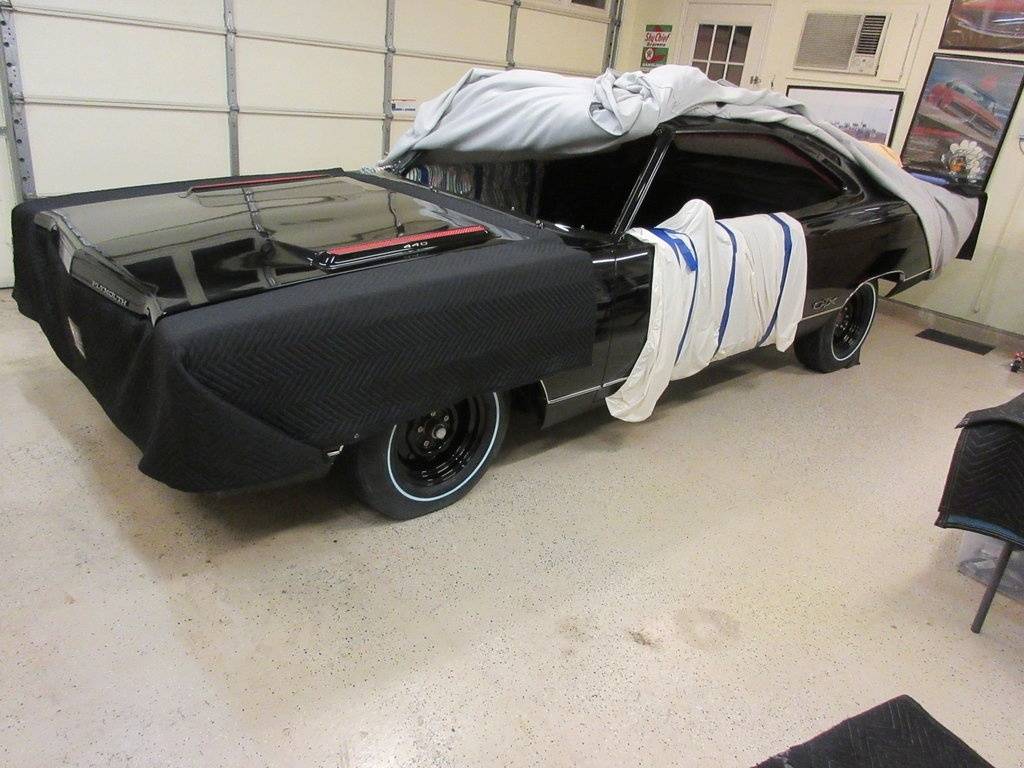

                      I couldn't resist planting it on all fours.....With no torsion adjustment it looks like a funny car but that will be dealt with when the X gets an alignment.

                      IMG_1991.JPG IMG_1992.JPG IMG_1993.JPG

                      Last edited: Jul 16, 2017
                      • Like Like x 6
                      • themechanic

                        themechanic Well-Known Member

                        My Photo Garage
                        Messages:
                        4,134
                        Likes Received:
                        3150
                        Joined:
                        Nov 11, 2012
                        Location:
                        Moore, Oklahoma
                        Local Time:
                        11:32 AM
                        I worked the summer of 78 with my Uncle who was a front end mechanic at Jack Clark Dodge. Frank always bent the long side of the cotter pins over the studs leaving the short side straight like the unrestored photo above.

                        Last edited: Jul 16, 2017
                        • Agree Agree x 2
                        • moparnation74

                          moparnation74 FBBO Gold Member FBBO Gold Member

                          Messages:
                          3,148
                          Likes Received:
                          4179
                          Joined:
                          Mar 27, 2014
                          Location:
                          Texas
                          Local Time:
                          11:32 AM
                          Same way the factory did...It was easy, effective and quick....Also easier to remove if needed...

                        • moparnation74

                          moparnation74 FBBO Gold Member FBBO Gold Member

                          Messages:
                          3,148
                          Likes Received:
                          4179
                          Joined:
                          Mar 27, 2014
                          Location:
                          Texas
                          Local Time:
                          11:32 AM

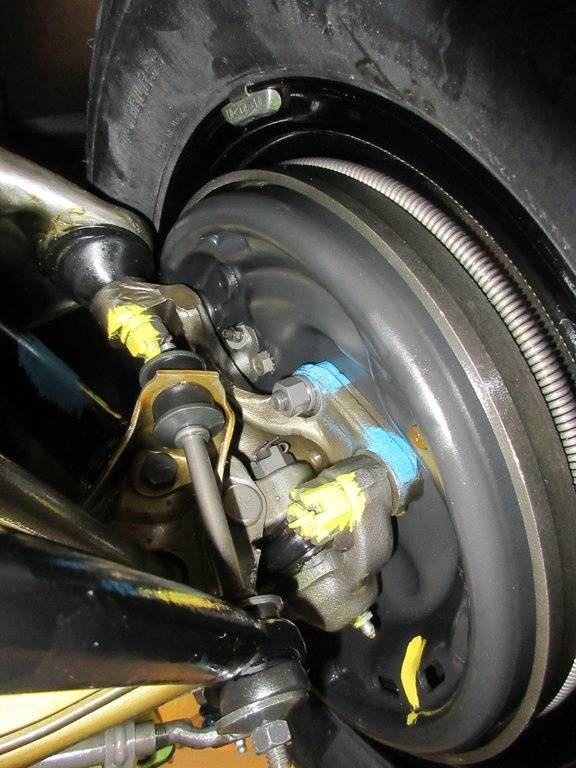

                          More suspension pics....

                          The last pic shows the correct tie rod sleeve clamp nuts. The originals have a red locking material in the nut.

                          IMG_2031.JPG IMG_2032.JPG IMG_2033.JPG IMG_2034.JPG IMG_2035.JPG

                          • Like Like x 2
                          • moparnation74

                            moparnation74 FBBO Gold Member FBBO Gold Member

                            Messages:
                            3,148
                            Likes Received:
                            4179
                            Joined:
                            Mar 27, 2014
                            Location:
                            Texas
                            Local Time:
                            11:32 AM
                            Finally, got a chance to fill the trans...This is the fluid recommended by Brewers to use.........I have never experienced any problems using this fluid in other builds.

                            Did a little moving today and gearing up to start on the interior...Hooked up the wire harnesses in the engine bay, hooked up the throttle cable. Basically, a bunch of odds and ends...Next on the agenda is the front and rear bumpers/bumper guards....Then comes the interior...

                            I am so ecstatic!

                            IMG_2036.JPG IMG_2037.JPG

                            • Like Like x 4
                            • moparnation74

                              moparnation74 FBBO Gold Member FBBO Gold Member

                              Messages:
                              3,148
                              Likes Received:
                              4179
                              Joined:
                              Mar 27, 2014
                              Location:
                              Texas
                              Local Time:
                              11:32 AM

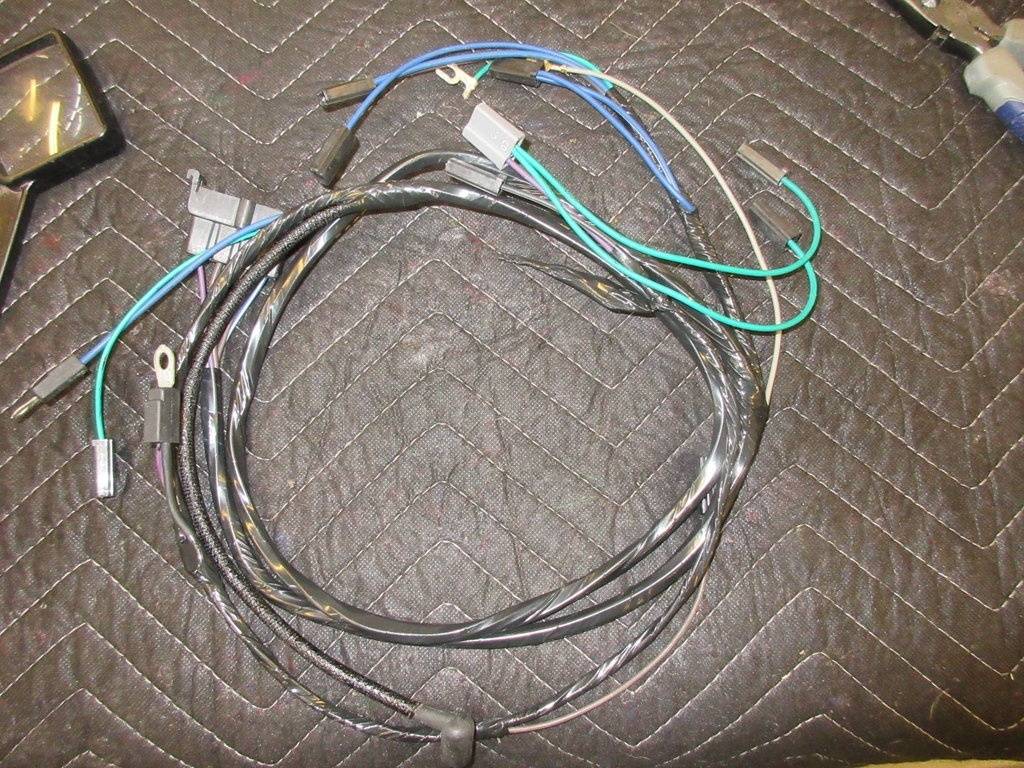

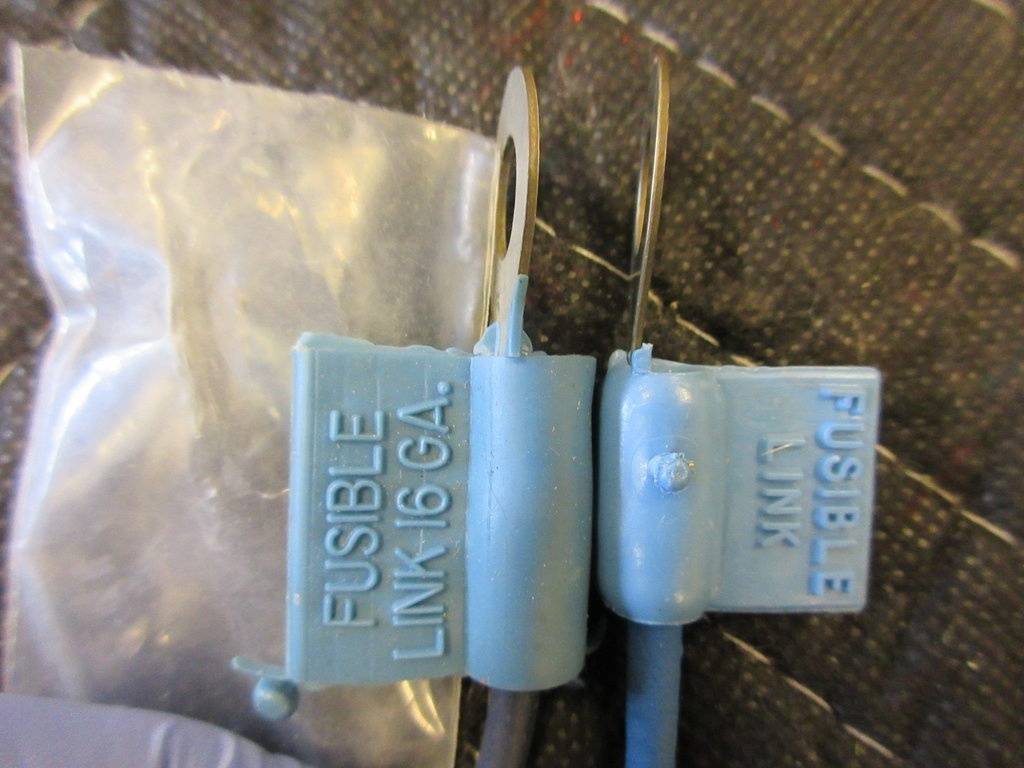

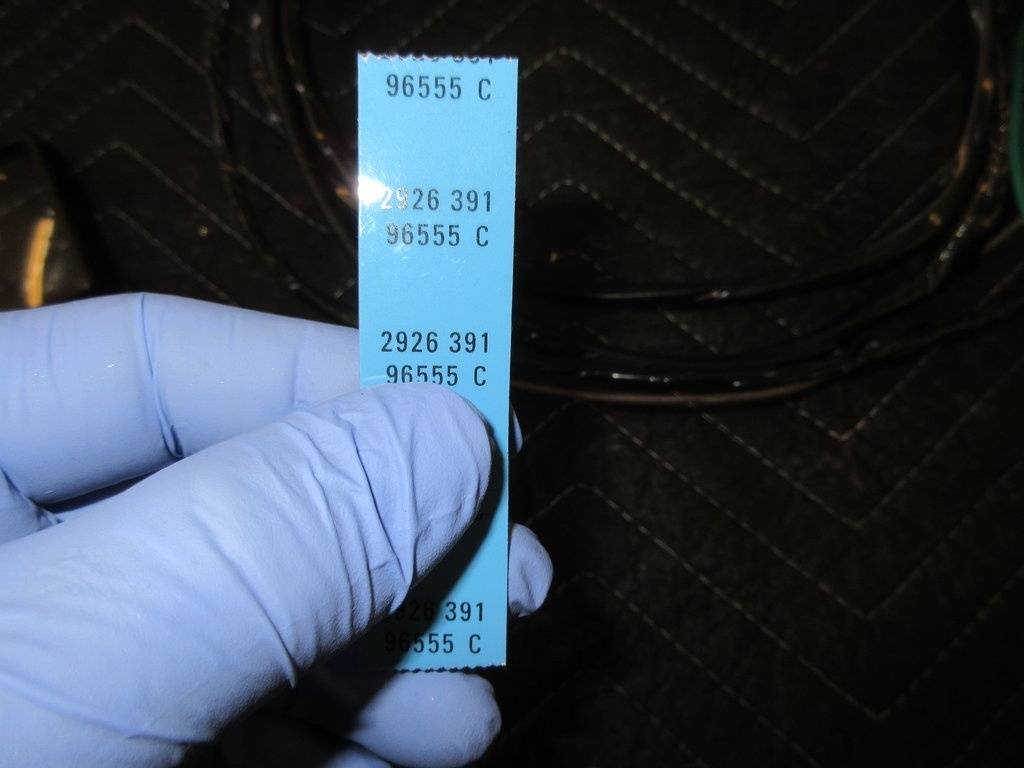

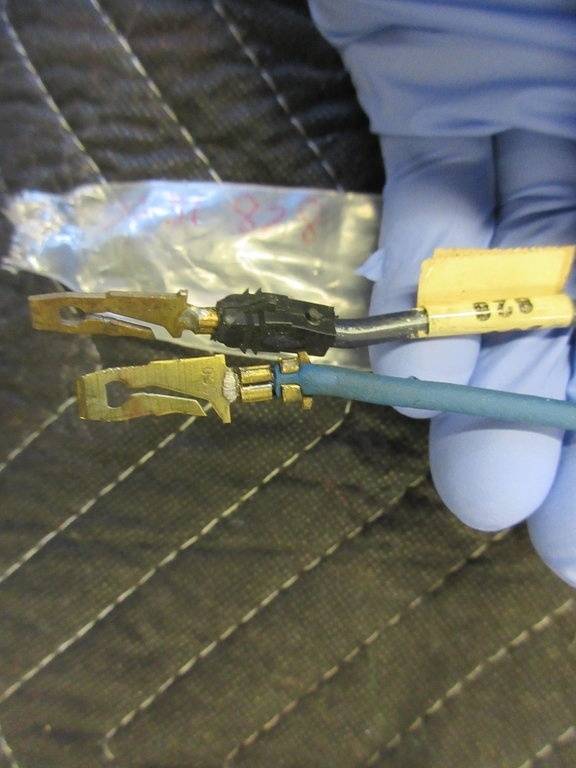

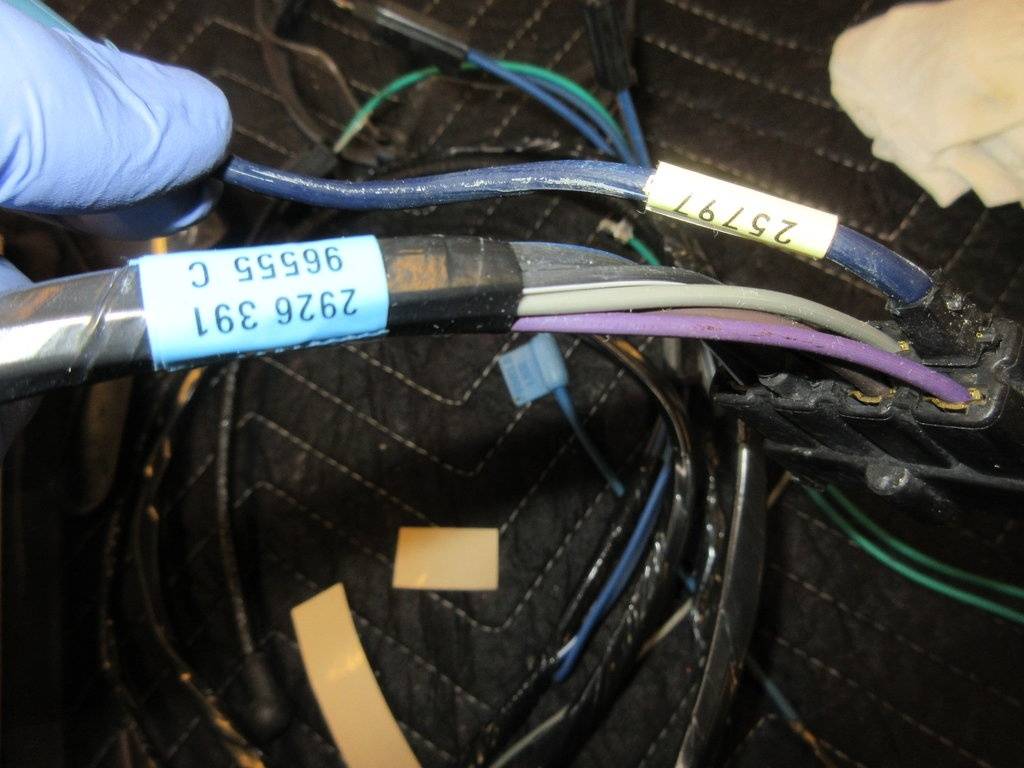

                              New main engine harness, the original had seen better days. The harness tags are from ECS and are great quality tags. The fusible links are comparing a real deal NOS versus the reproduction. Lots of differences between the two. I will let the pictures speak for me...
                              IMG_2038.JPG IMG_2039.JPG IMG_2040.JPG IMG_2041.JPG IMG_2042.JPG IMG_2043.JPG IMG_2044.JPG

                              • Like Like x 2
                              • moparnation74

                                moparnation74 FBBO Gold Member FBBO Gold Member

                                Messages:
                                3,148
                                Likes Received:
                                4179
                                Joined:
                                Mar 27, 2014
                                Location:
                                Texas
                                Local Time:
                                11:32 AM

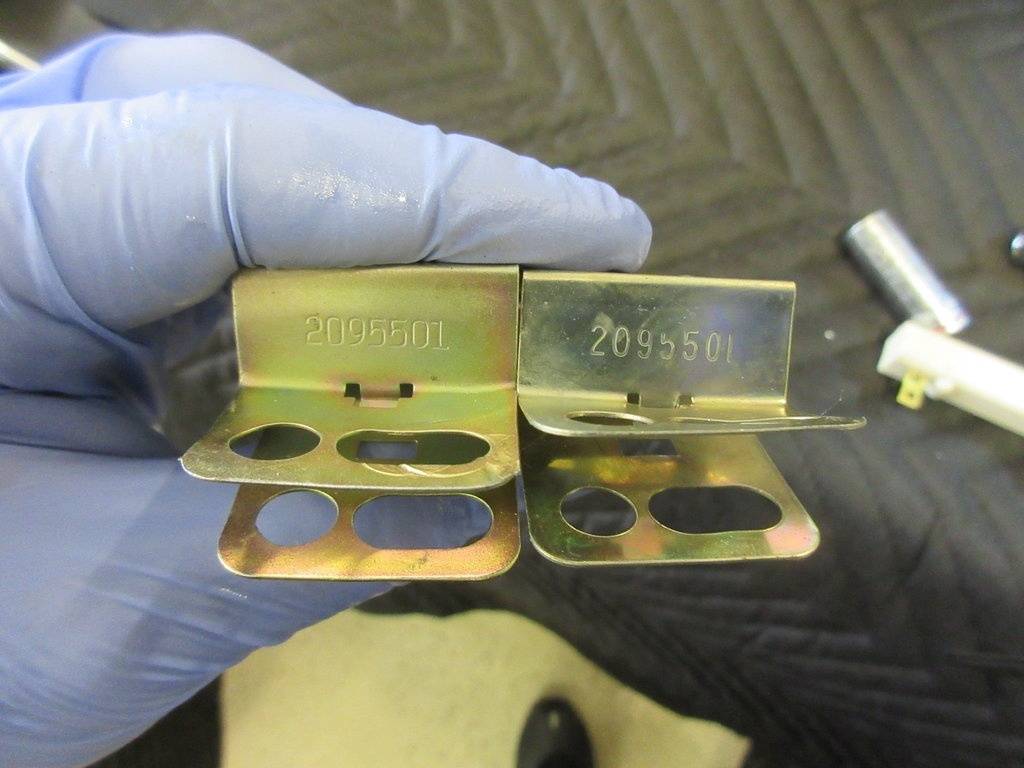

                                Ballist resistor brackets I am comparing is a new reproduction versus an original. The reproduction is the shiny CAD one(right side). The part numbers are the same but the fonts are different...
                                IMG_2047.JPG IMG_2050.JPG

                                • Thanks! Thanks! x 2
                                • Like Like x 1
                                • themechanic

                                  themechanic Well-Known Member

                                  My Photo Garage
                                  Messages:
                                  4,134
                                  Likes Received:
                                  3150
                                  Joined:
                                  Nov 11, 2012
                                  Location:
                                  Moore, Oklahoma
                                  Local Time:
                                  11:32 AM
                                  Did Mopars have rubber dust covers for the drum brake backing plates?

                                • moparnation74

                                  moparnation74 FBBO Gold Member FBBO Gold Member

                                  Messages:
                                  3,148
                                  Likes Received:
                                  4179
                                  Joined:
                                  Mar 27, 2014
                                  Location:
                                  Texas
                                  Local Time:
                                  11:32 AM
                                  Yes....Are you shocked mine are not installed?

                                  Not all were rubber...69 were plastic....

                                  Last edited: Jul 17, 2017
                                  • Thanks! Thanks! x 1
                                  • moparnation74

                                    moparnation74 FBBO Gold Member FBBO Gold Member

                                    Messages:
                                    3,148
                                    Likes Received:
                                    4179
                                    Joined:
                                    Mar 27, 2014
                                    Location:
                                    Texas
                                    Local Time:
                                    11:32 AM

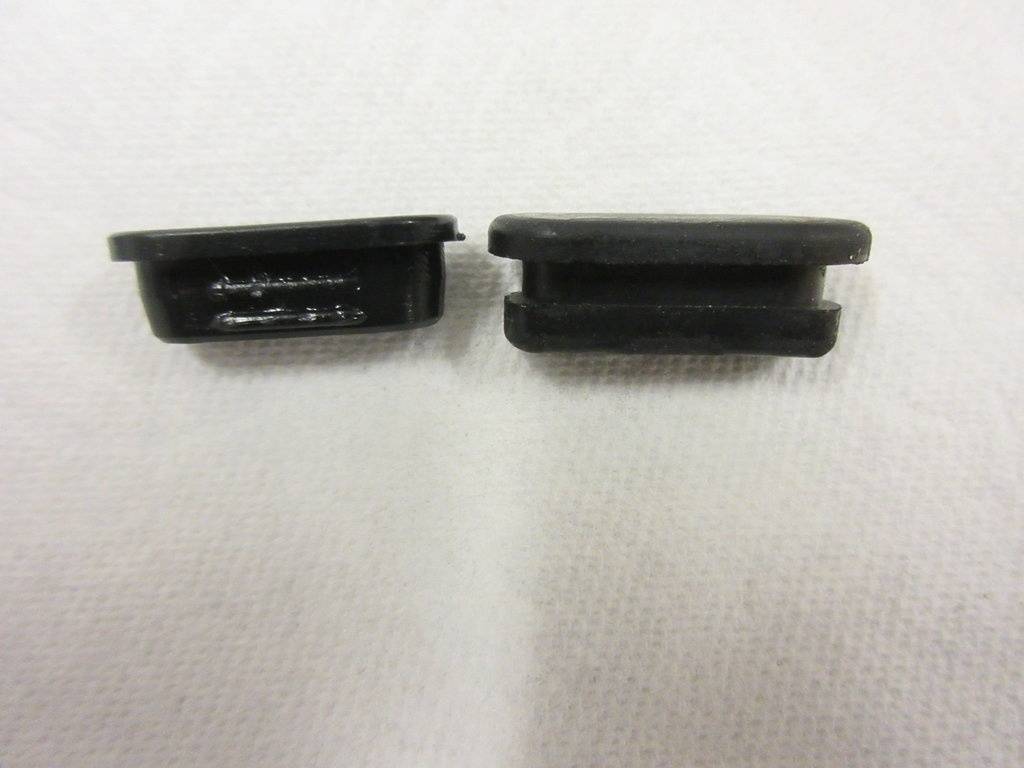

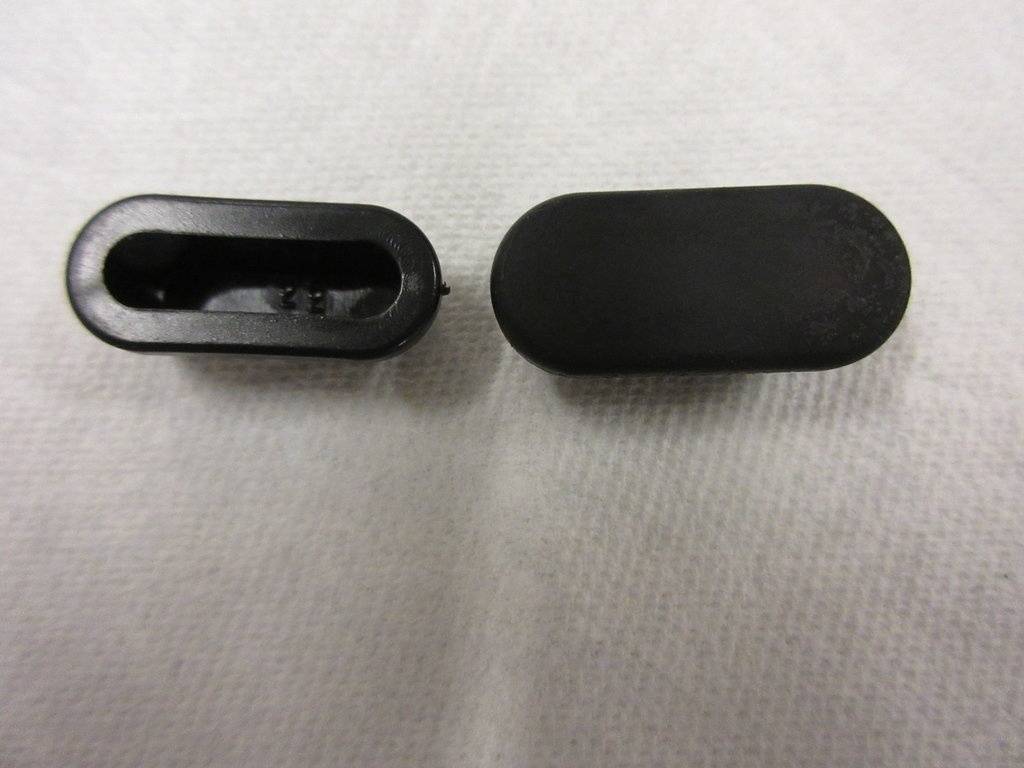

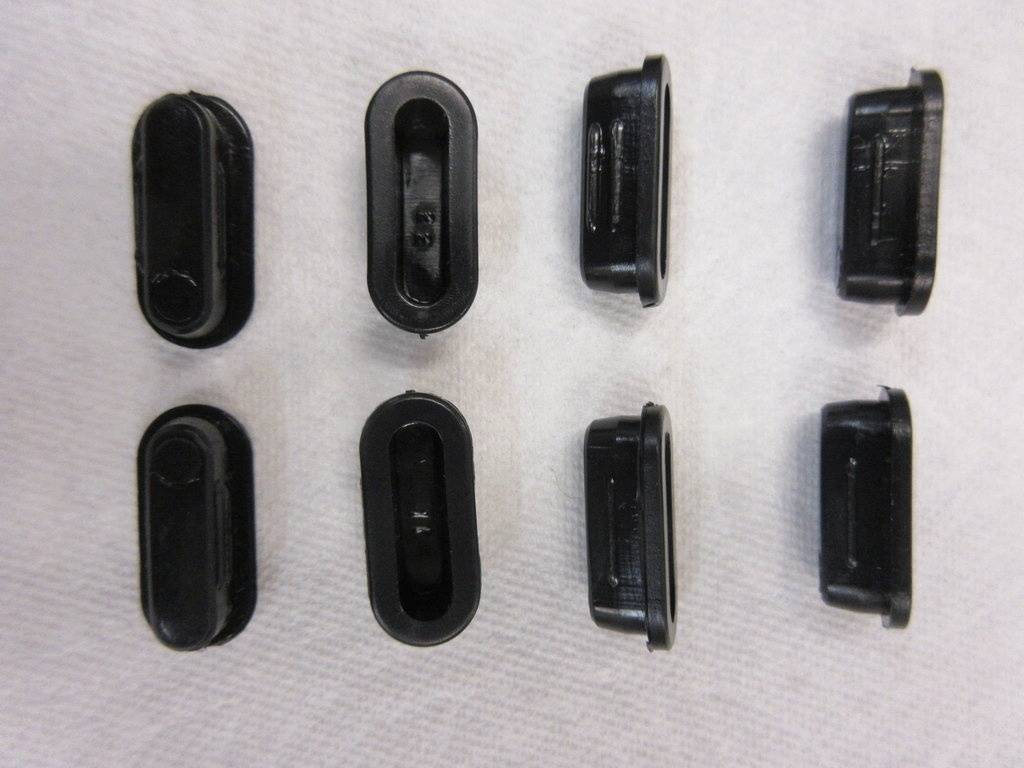

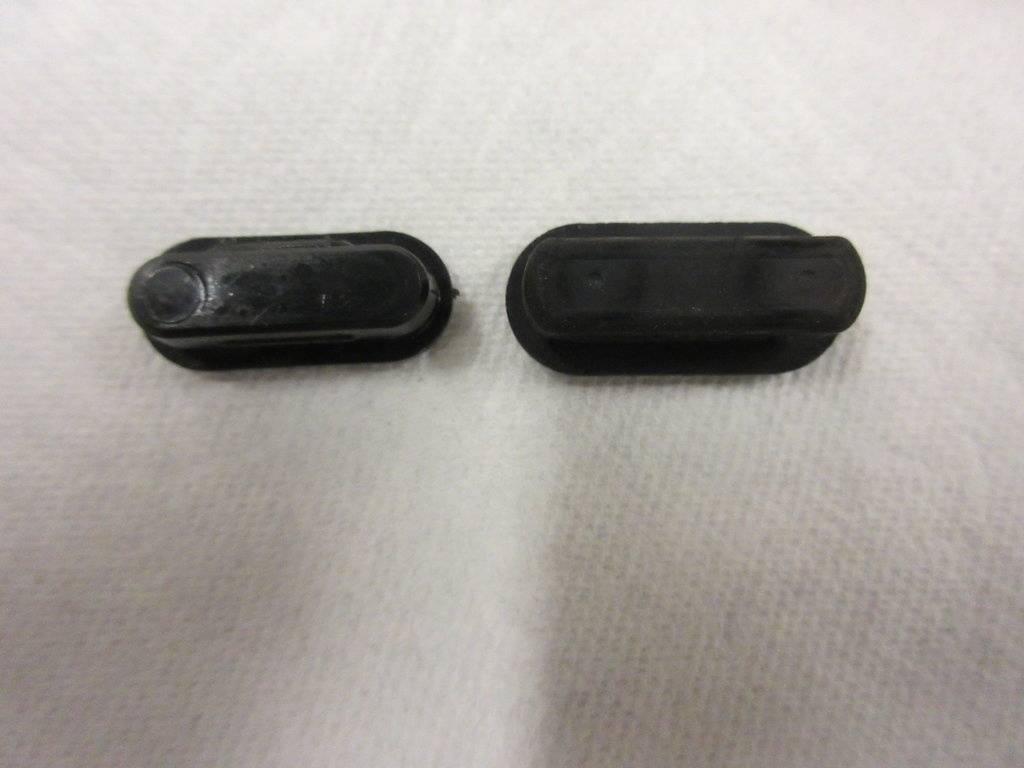

                                    Without further ado...Here are the infamous adjuster plugs....

                                    The NOS plastic ones correct for a 69 are on the left

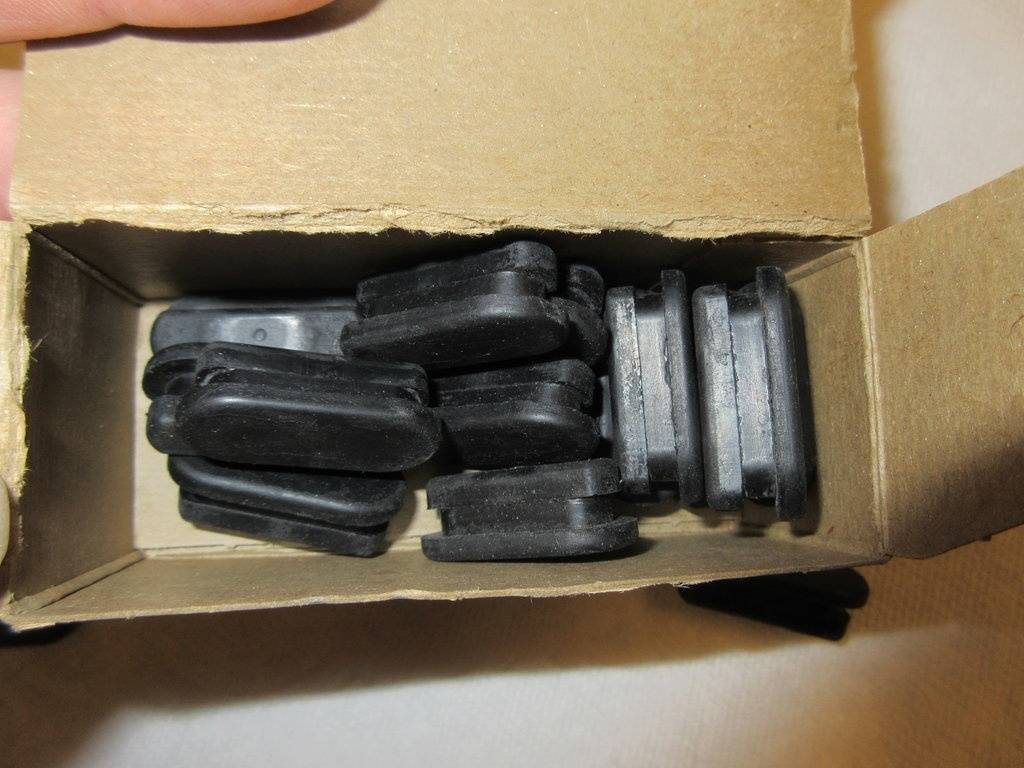

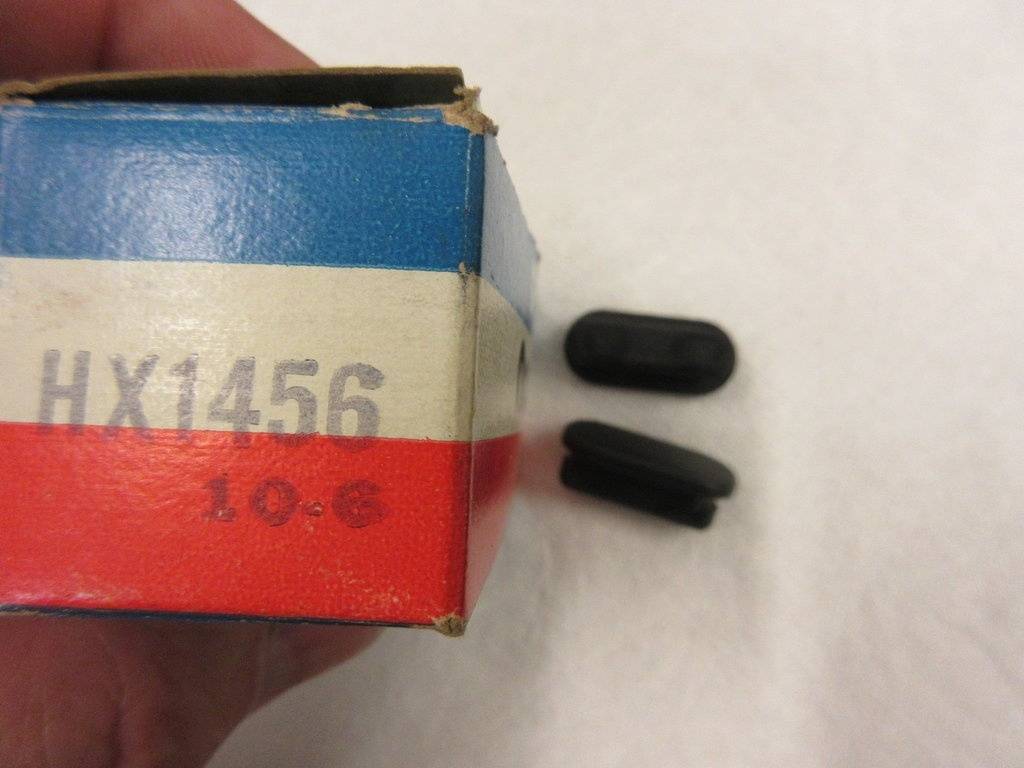

                                    The NOS ones in the box are the late 70's rubber plugs which are incorrect for 64-74
                                    IMG_2051.JPG IMG_2052.JPG IMG_2053.JPG IMG_2054.JPG IMG_2055.JPG IMG_2056.JPG IMG_2057.JPG
