What style is this? Trying to install pertronix

Electrical & Ignition

  1. 6290988

    6290988 Well-Known Member

    Messages:
    167
    Likes Received:
    64
    Joined:
    May 10, 2017
    Location:
    Raleigh, NC
    Local Time:
    10:06 PM

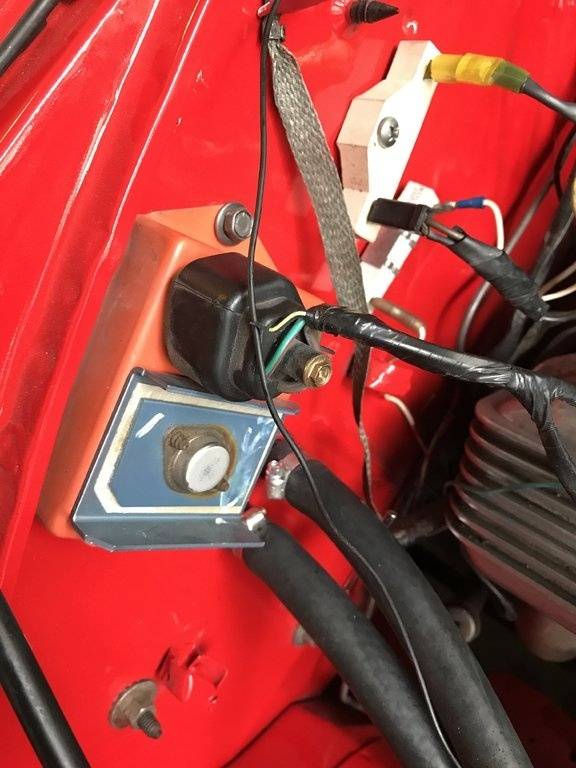

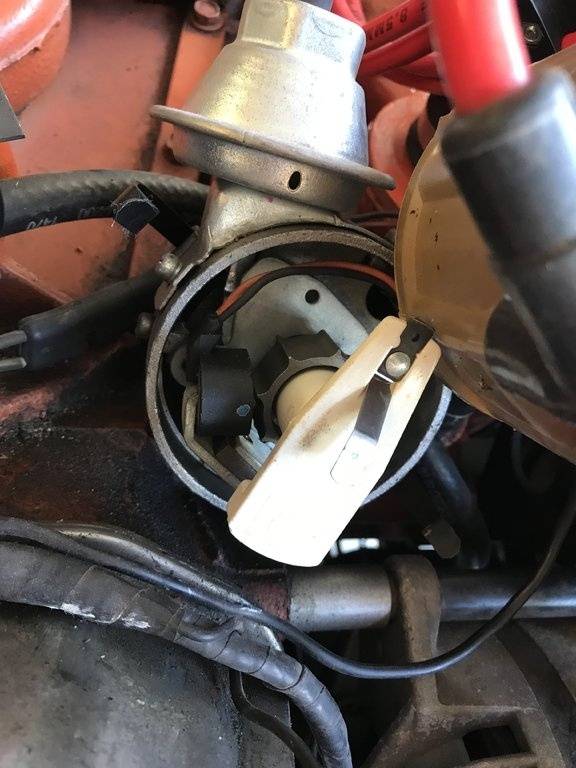

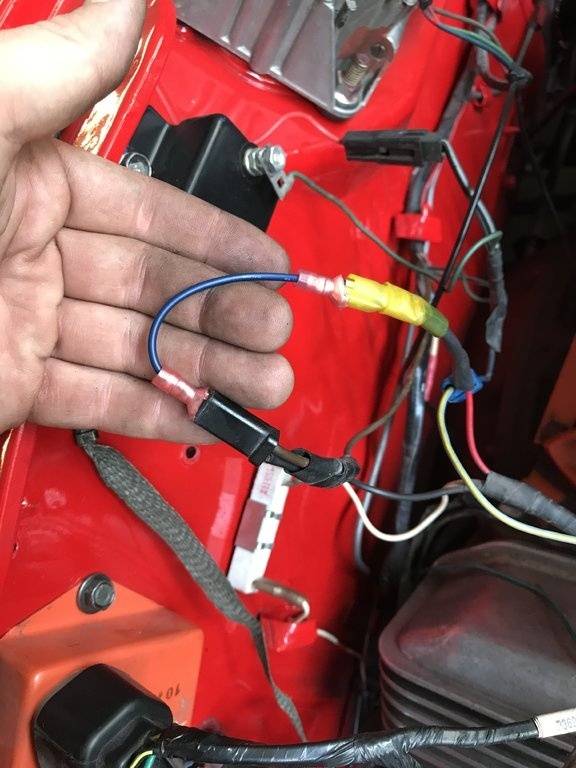

    im went to install the Pertronix 1 and opened the dist cap and saw this. Is it a stock style electronic ignition? I also went to bypass the ballast for the pertronix cool. Is this fine putting all four wires together?


    UPDATE---I made some errors. Now I need to figure out how to fix it.

    IMG_2740.JPG image.jpg

    Last edited: Aug 12, 2017
  2. 6290988

    6290988 Well-Known Member

    Messages:
    167
    Likes Received:
    64
    Joined:
    May 10, 2017
    Location:
    Raleigh, NC
    Local Time:
    10:06 PM
    Put it back to stock and now it won't start. No spark. Since I bypassed the resistor for the pertronix coil and left this other style electronic ignition and tried to start it did it burn out something?

  3. 65-440

    65-440 Well-Known Member

    Messages:
    1,853
    Likes Received:
    811
    Joined:
    Dec 2, 2009
    Location:
    virginia beach, va
    Local Time:
    1:06 AM
    Isn't pertronix to only be used in points distributors? What you have is electronic. I'm pretty sure also that you cannot delete the ballast resistor with the ignitor 1 kit, that's why I went with the ignitor 2 and their 12V coil ...

  4. 6290988

    6290988 Well-Known Member

    Messages:
    167
    Likes Received:
    64
    Joined:
    May 10, 2017
    Location:
    Raleigh, NC
    Local Time:
    10:06 PM
    Also, this electronic ign has power and ground wire going into this. Used a tester and I have no power coming out while attempting to start so it appears that's my spark issue.


  5. 6290988

    6290988 Well-Known Member

    Messages:
    167
    Likes Received:
    64
    Joined:
    May 10, 2017
    Location:
    Raleigh, NC
    Local Time:
    10:06 PM
    M
    Yes, I didn't realize I had an electronic ignition. I should've looked before I started ordering parts.

    My petronix instructions said to bypass the resistor with the coil.

    Either way I put it back to stock.

    Not getting spark.

    Last edited: Aug 12, 2017
  6. 6290988

    6290988 Well-Known Member

    Messages:
    167
    Likes Received:
    64
    Joined:
    May 10, 2017
    Location:
    Raleigh, NC
    Local Time:
    10:06 PM
    Should I be getting power from the electronic control unit when ignition is turned on?

  7. Yatzee

    Yatzee Well-Known Member

    Messages:
    858
    Likes Received:
    662
    Joined:
    Jun 20, 2015
    Location:
    London
    Local Time:
    10:06 PM
    You already had an electronic ignition on the car. Why change it - there's no points to adjust. You don't use any of the original electronic apparatus with a Pertronic's system, just the pickup and proper coil. You've probably, maybe, bitched your original electronic ignition box but reinstalling it and trying it is the only way to know. If it produces "no spark" after reinstalling the pick-up module you've probably got the wrong air gap. Use only brass feelers when adjusting the air gap. Does the Pertronix stuff even fit in the distributor properly? It requires the right air-gap as well. As far as the ballast resistor goes, Pertronic's doesn't use it, OE does so if you're trying the OE setup make sure you put the wires back exactly as they came off.

  8. 6290988

    6290988 Well-Known Member

    Messages:
    167
    Likes Received:
    64
    Joined:
    May 10, 2017
    Location:
    Raleigh, NC
    Local Time:
    10:06 PM

    I already said above I made the mistake of not checking my system before ordering parts. And then like an idiot I started working on it replacing the coil without pulling the distributor cap off. I just assumed this was all points. Lesson learned check stuff before I start working on it. I'm thinking I messed up the electronic ignition box.

  9. 65-440

    65-440 Well-Known Member

    Messages:
    1,853
    Likes Received:
    811
    Joined:
    Dec 2, 2009
    Location:
    virginia beach, va
    Local Time:
    1:06 AM
    I guess the question is .... did you take the orange box out of the system before switching to the pertronix or did you leave it hooked up ?

    • Agree Agree x 1
    • kiwigtx

      kiwigtx International Mod Staff Member FBBO Gold Member

      My Photo Garage
      Messages:
      11,465
      Likes Received:
      14299
      Joined:
      Jun 12, 2012
      Location:
      Tomorrow, NZ
      Local Time:
      4:06 PM
      You can also get plastic feeler gauges for that job....I bought a set through RS Components.

    • 6290988

      6290988 Well-Known Member

      Messages:
      167
      Likes Received:
      64
      Joined:
      May 10, 2017
      Location:
      Raleigh, NC
      Local Time:
      10:06 PM
      I had a metal one when I first did it. Would that have messed up anything?

    • moparlore

      moparlore Well-Known Member

      Messages:
      65
      Likes Received:
      41
      Joined:
      Mar 11, 2014
      Location:
      Hickville,USA
      Local Time:
      9:06 PM
      Metal feeler gages will introduce magnetism to the reluctor. I use plastic, but brass will work too. The first time I did it, I used a steel feeler gage, and the car would not start. After I removed the reluctor from the distributor and demagnetized it, the engine fired immediately.

    • 6290988

      6290988 Well-Known Member

      Messages:
      167
      Likes Received:
      64
      Joined:
      May 10, 2017
      Location:
      Raleigh, NC
      Local Time:
      10:06 PM

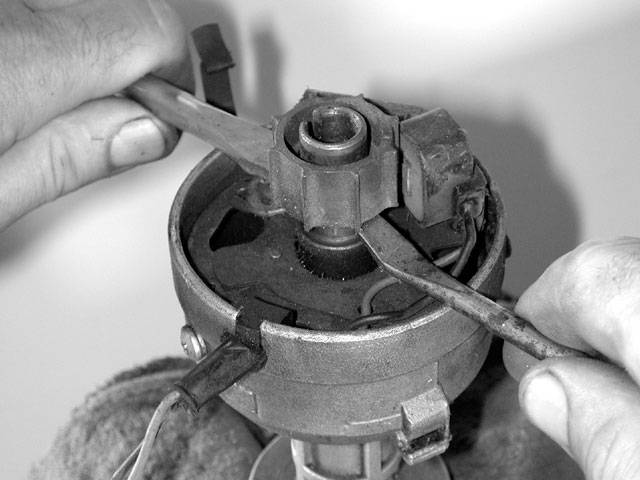

      How do you remove the reluctor?

    • Cornpatch MO

      Cornpatch MO Well-Known Member

      Messages:
      2,348
      Likes Received:
      1372
      Joined:
      Nov 28, 2011
      Location:
      Southwest Iowa
      Local Time:
      9:06 PM
      You can by pass the ballast resistor with any internally resistor coil available at all parts stores. They will be imprinted on the outside " no external resistor needed" or something to that effect. ..............................MO

    • Nacho-RT74

      Nacho-RT74 Well-Known Member

      Messages:
      1,836
      Likes Received:
      467
      Joined:
      Oct 8, 2012
      Location:
      Caracas, Venezuela
      Local Time:
      11:06 PM

      Reluctor gets a locating pin attached to set it on shaft. Need to be carefull removing it to not miss it

      • Like Like x 1
