Yankee Express RestoMod Project

[Ghostrider 67]

Those are the headlight cases standing on end. I'd rather be cold than hot. Can always put more cloths on, but once yer naked that's it.



[Ghostrider 67]

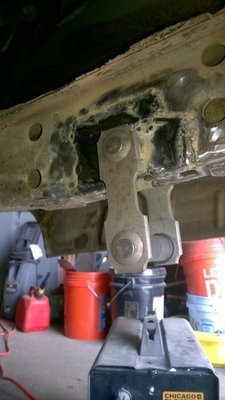

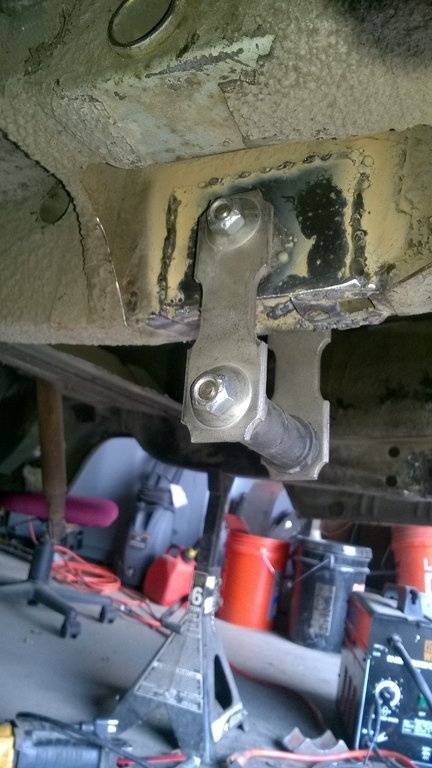

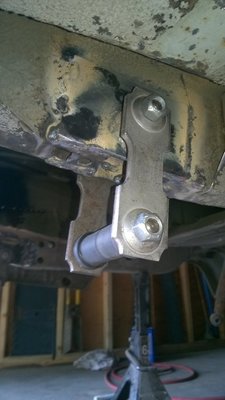

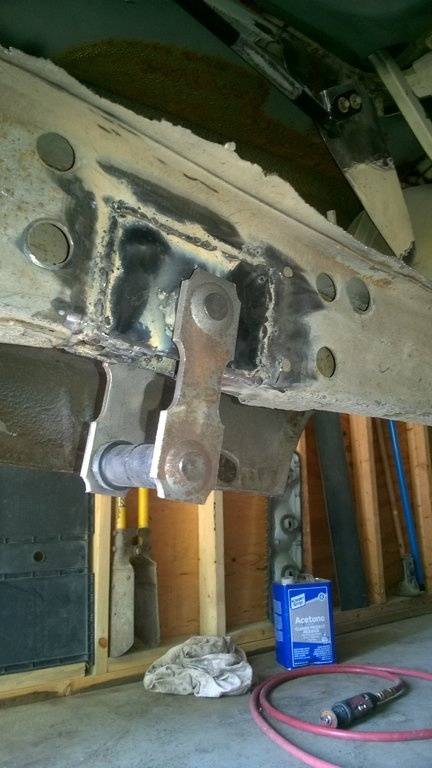

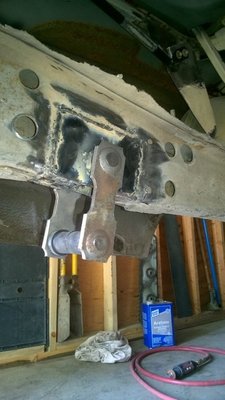

Finally got the 1 1/8th holes stamped in my 4 pieces of 1/8th steel so I could make the new hangers for the relocated rear shackles. Welded them up and cut the frames. Slide them up on and welded them in place. A little more grinding and some epoxy primer then they are done....onward...



[Ghostrider 67]

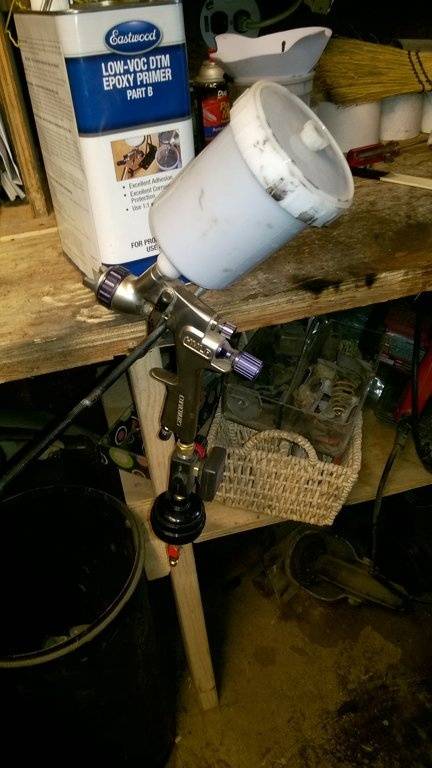

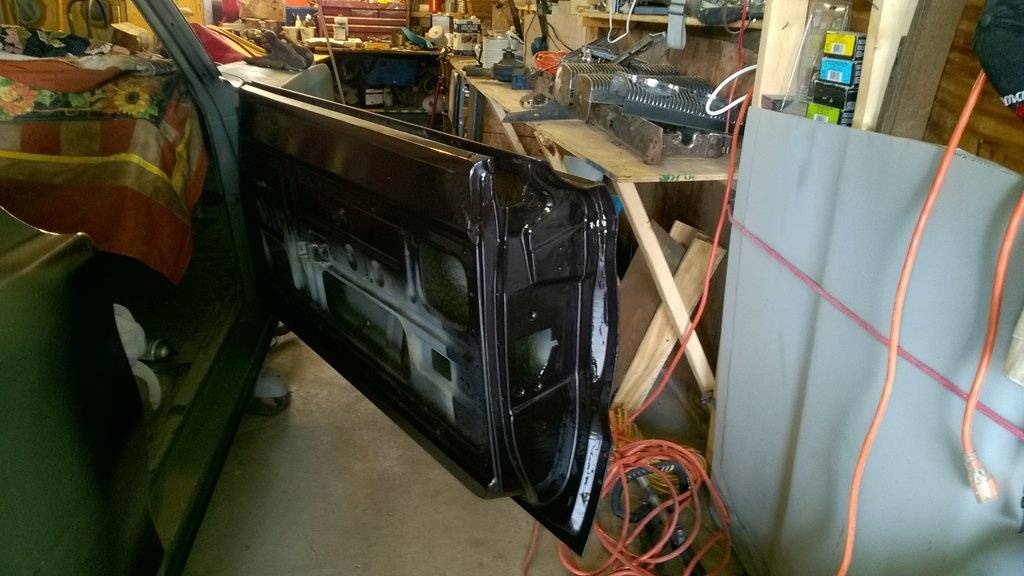

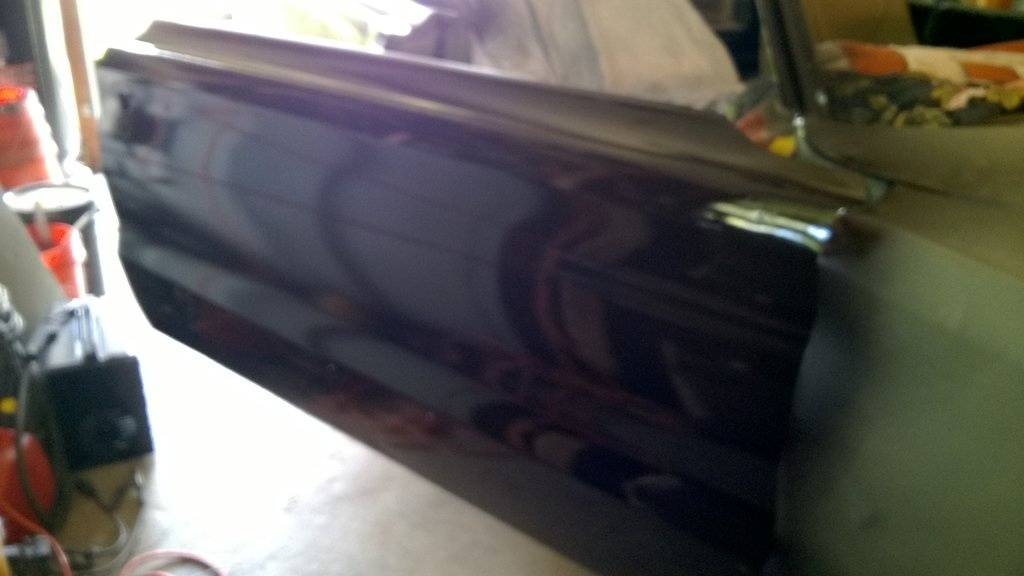

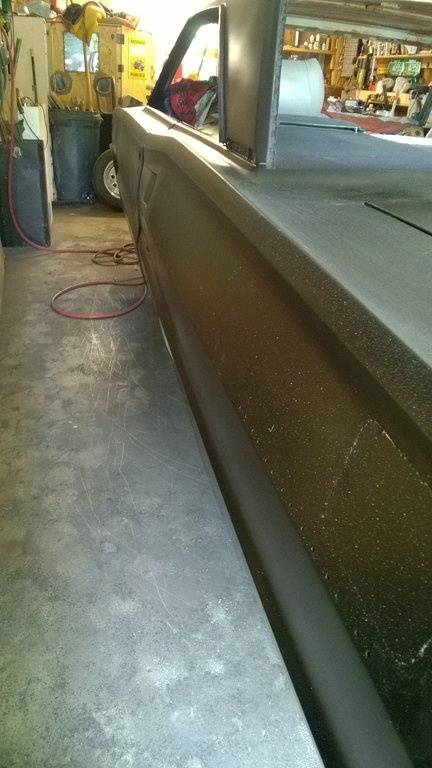

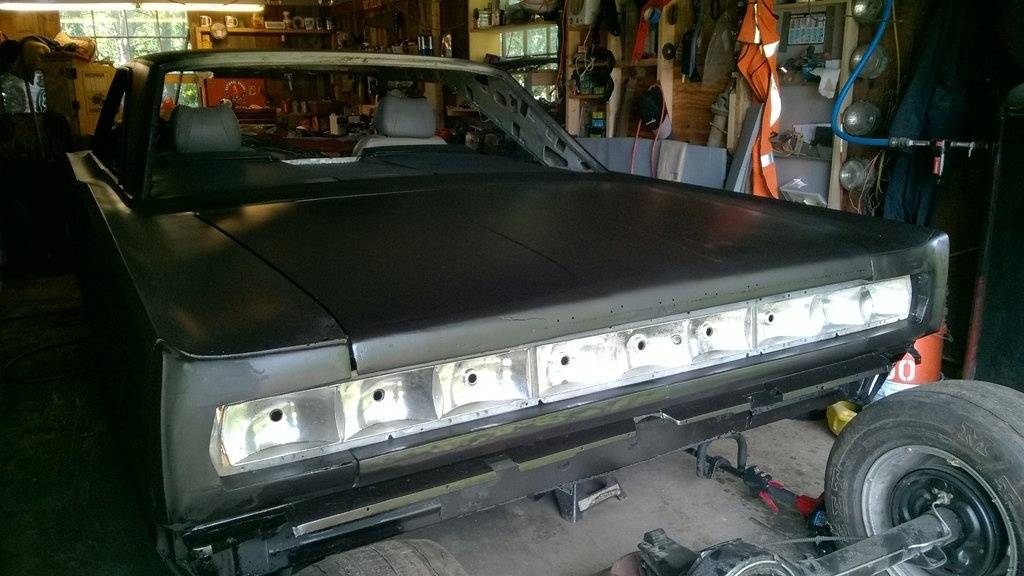

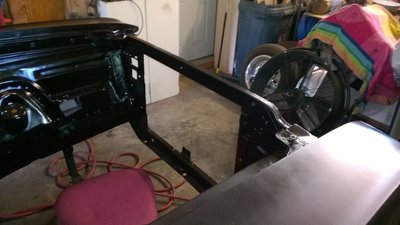

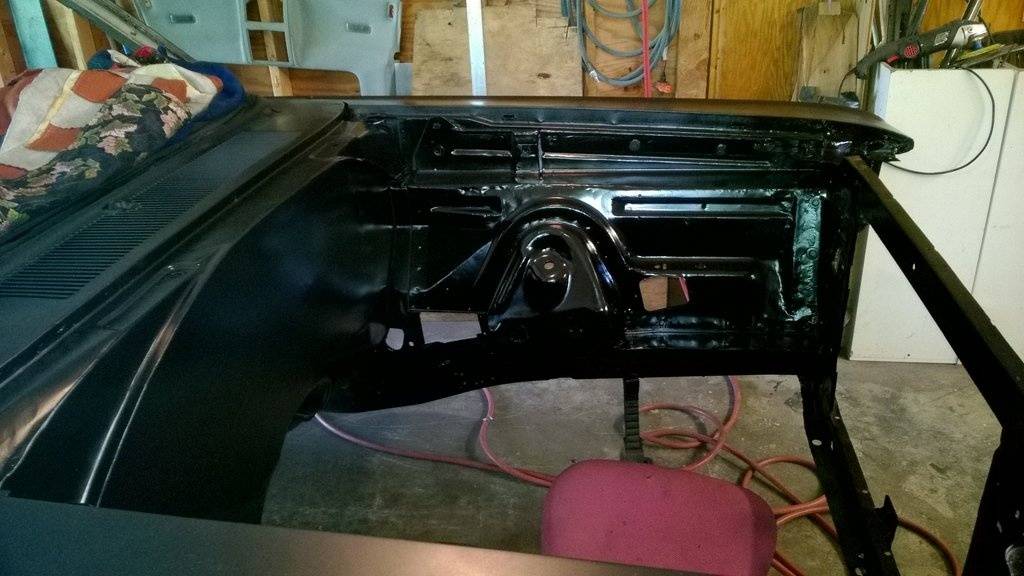

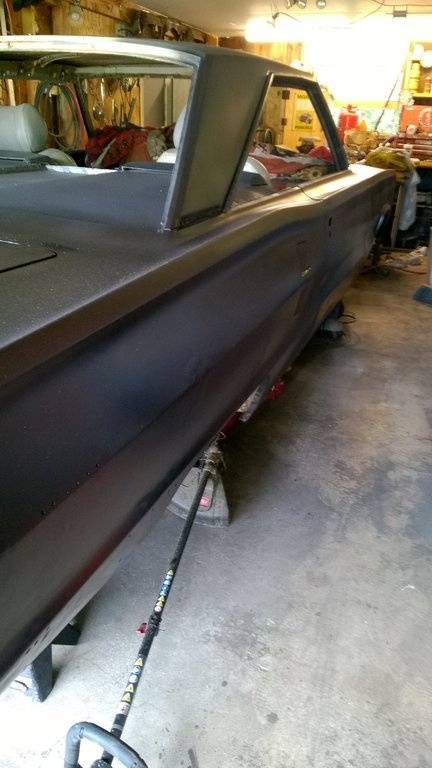

Finally broke out the new paint gun today. Took the gallon of Eastwood epoxy primer down to the paint store and had them shake it up for me. Picked up some filters and stir sticks. Mixed 1;1 Part A to part B , how much simpler could it be? Had to refill the spray cup 4 times though. So now it's all one color. black primer. lol. The gun is an Eastwood contour gun and worked very well. Easy to clean and easy to adjust. I found out though that when I put the final paint color on I need to clear every damn thing out of the garage first so I have room to move. lol.



[Ghostrider 67]

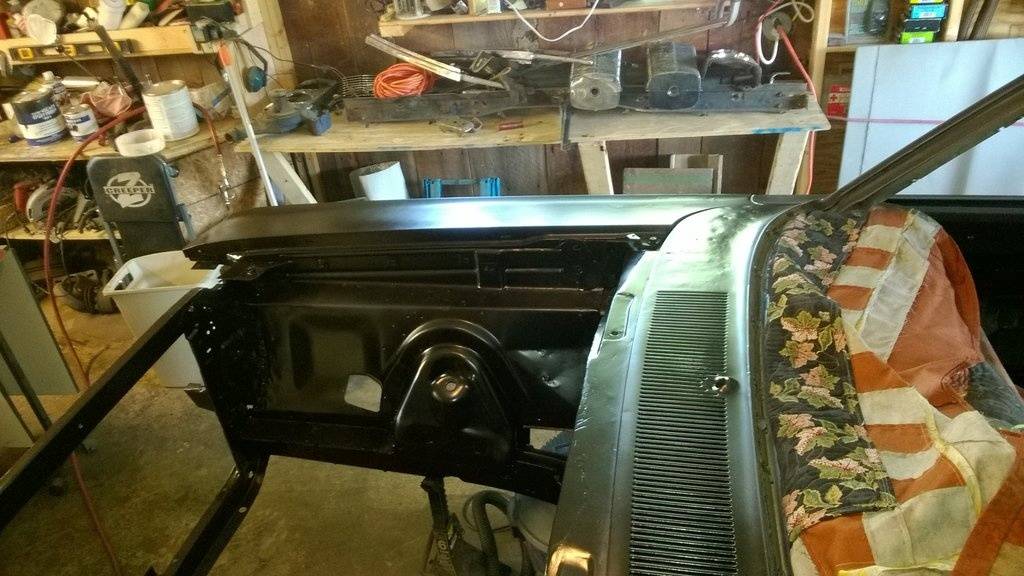

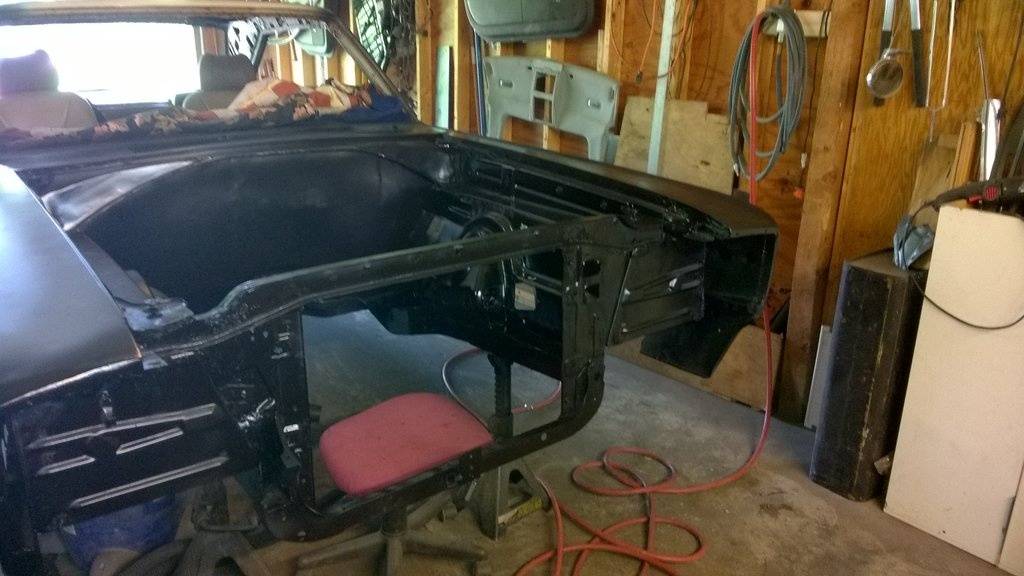

two more...



[5.7 hemi]

It's "murdered out"! I like it!



[Ghostrider 67]

It's "murdered out"! I like it!

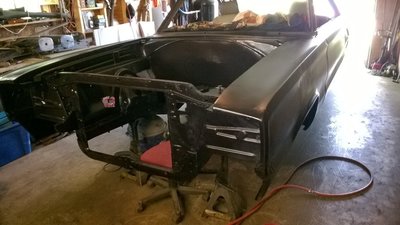

Yeah, I picked black on purpose. It will give me an idea what the end stage will look like with a dark color. Also every bump and ding stands out better so I can get 'er straight! I have not done the roof or the inside because they need no bodywork and I can hit them as a last thing after all else is complete. Onward to the leaf springs!!!



[5.7 hemi]

Your doing it right, can't wait to see color on it.



[Ghostrider 67]

Your doing it right, can't wait to see color on it.

Me too! I will have to keep reminding myself not to cut corners and get in a hurry.



[5.7 hemi]

We all have more time than money, but if ya hit the lottery, spare no expense! Lol!



[Ghostrider 67]

We all have more time than money, but if ya hit the lottery, spare no expense! Lol!

Don't worry, if that happens Chip Foose will be doing the bodywork!



[Ghostrider 67]

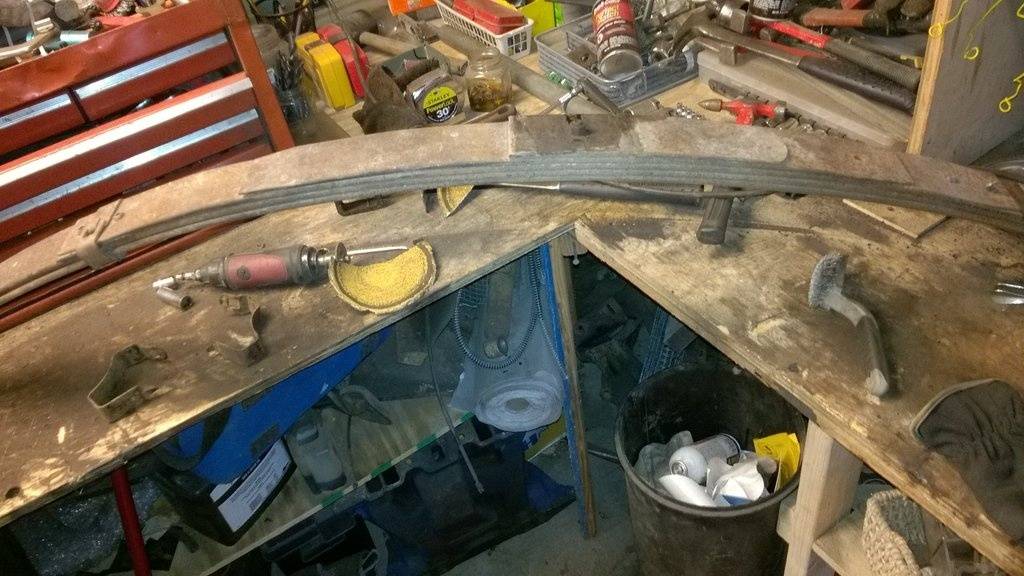

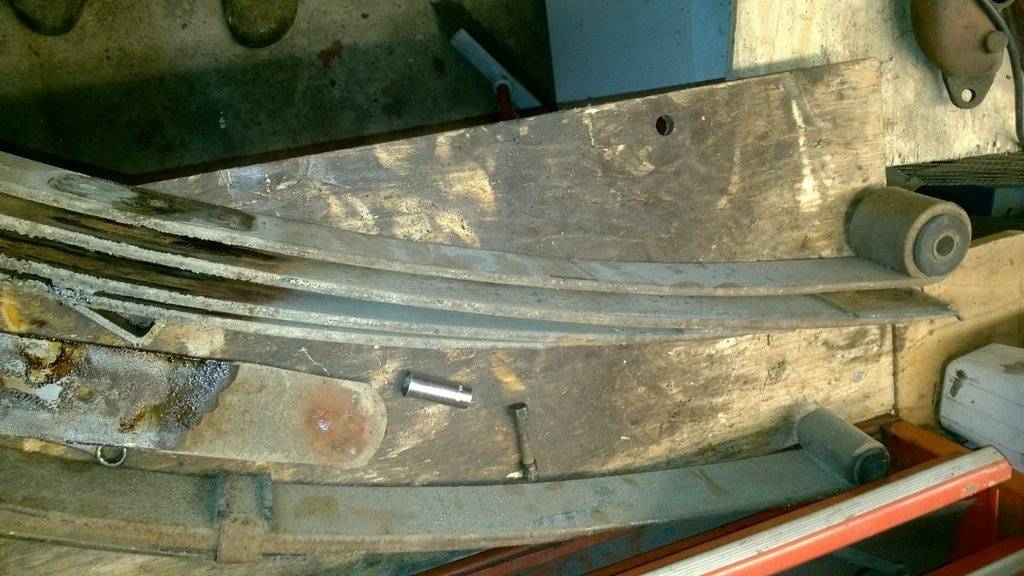

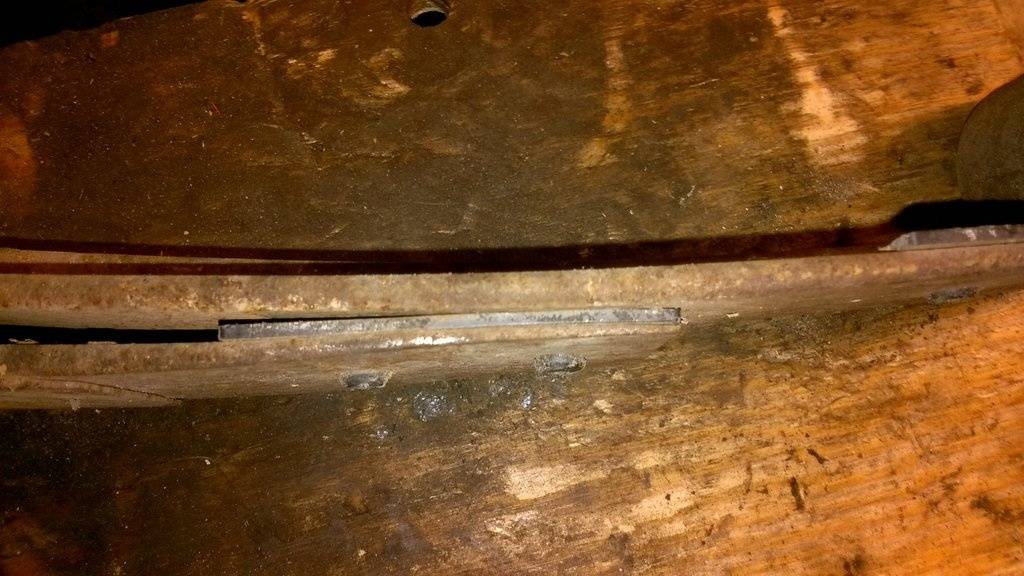

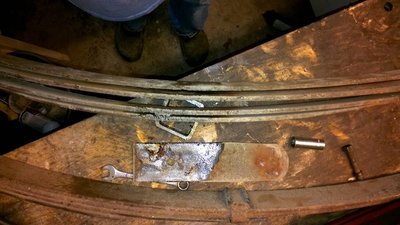

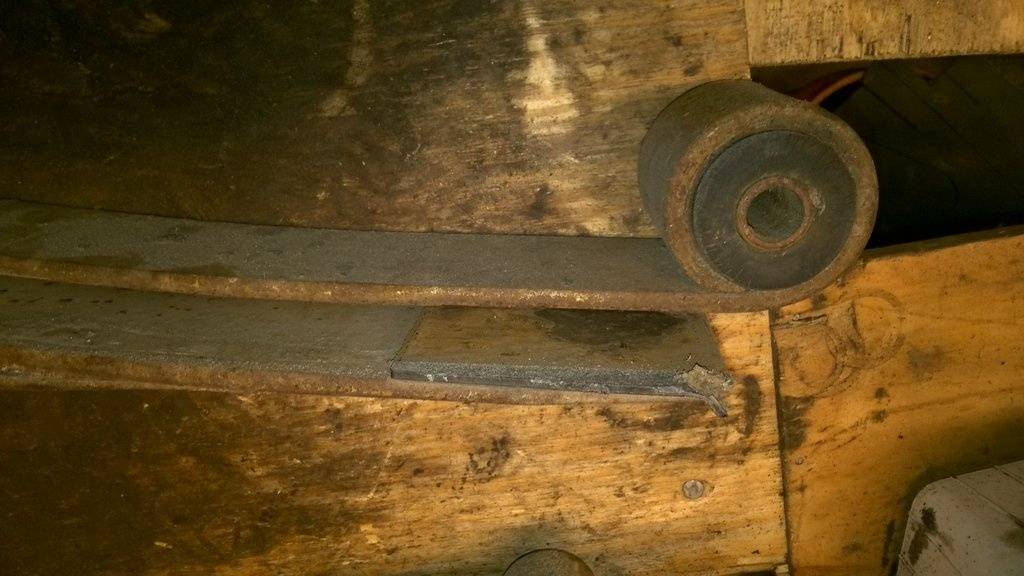

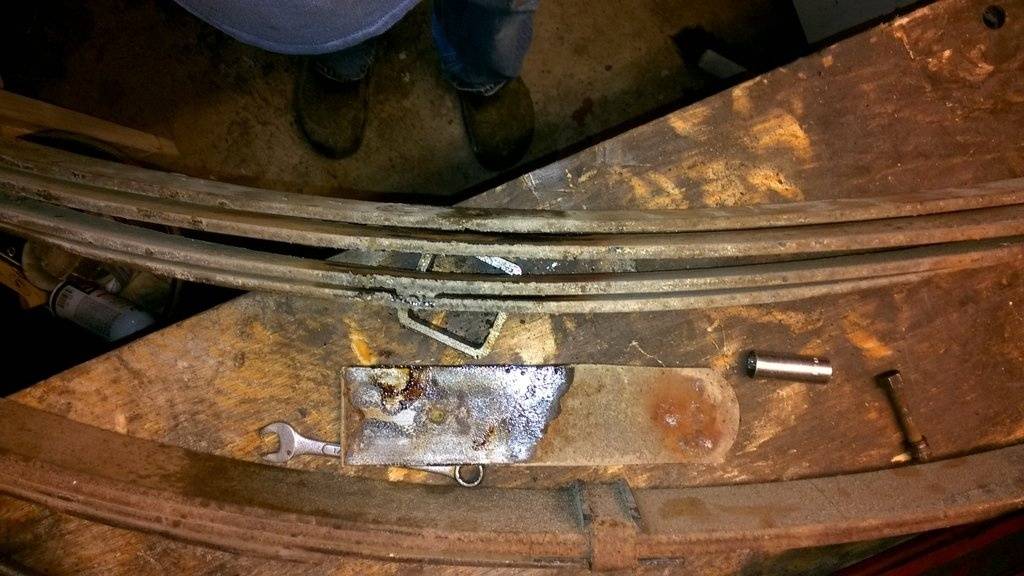

One spring down, one to go...get them both cleaned up and then I can epoxy prime them and chassis black. Going on the web now to look for new pads and clamps.



[1967coronet440]

One spring down, one to go...get them both cleaned up and then I can epoxy prime them and chassis black. Going on the web now to look for new pads and clamps.

View attachment 497563 View attachment 497564 View attachment 497565 View attachment 497566 View attachment 497567 View attachment 497568

What do you need, I have both leaf assemblies I took off my 67 sitting on the shelf in not going to use



[Ghostrider 67]

What do you need, I have both leaf assemblies I took off my 67 sitting on the shelf in not going to use

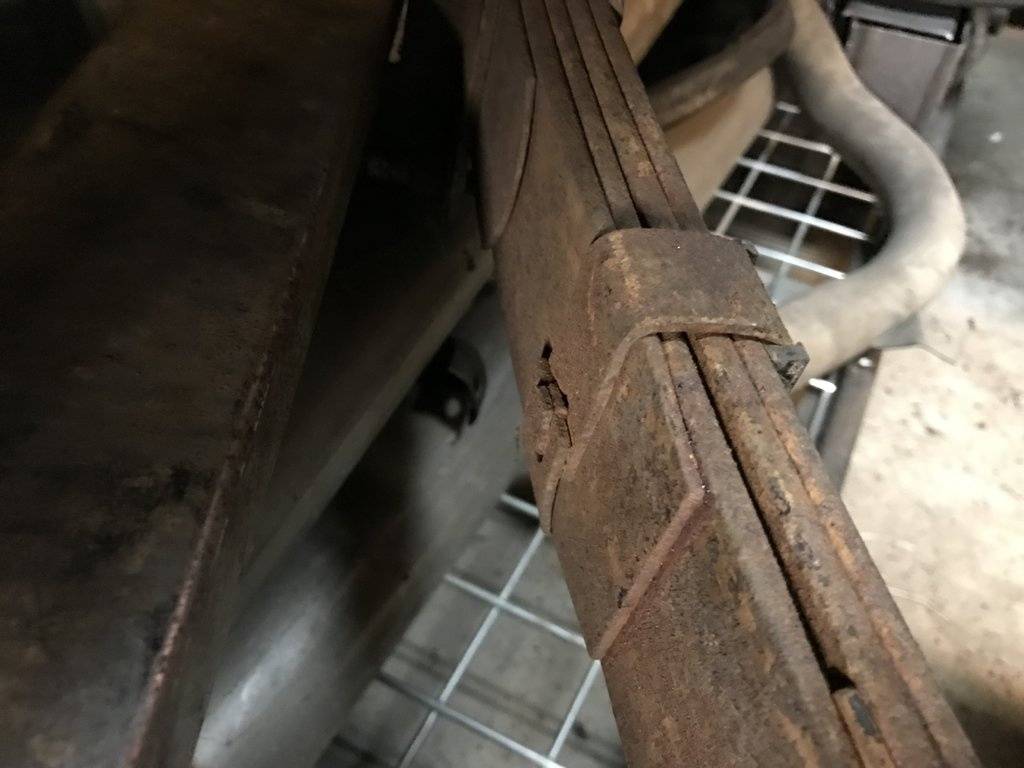

The plastic pads 4 on each spring and the 4 buckles that hold the end leafs together in the pack with those rectangular pads under each one. I guess I need new eyes too w/ the rubber bushings for the big ends.



[Ghostrider 67]

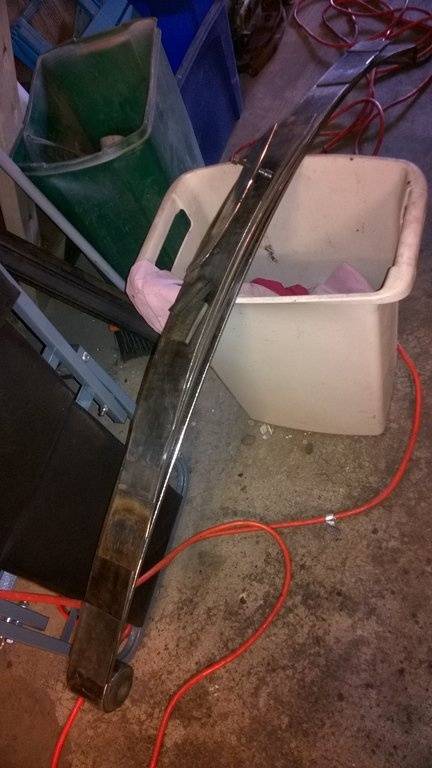

Got both spring packs cleaned up and primered 4 leafs. ran out of zeal after that.....hands are tired. I have plenty of the Eastwood 2 part epoxy black primer and a quart of Extreme Duty Chassis Black that can be sprayed w/ gun or brushed on. I'm going to primer all of the bits and wait until I have everything that I want to spray with the Extreme paint and do it all at once. I still have all of the steering linkage stuff to clean up, the shock pads for the rear, the K frame, LCA's, disc spindles, strut rods, trans mount, motor mounts, and bumper mounts to clean up and prime. Wheewwww....



[1967coronet440]

The plastic pads 4 on each spring and the 4 buckles that hold the end leafs together in the pack with those rectangular pads under each one. I guess I need new eyes too w/ the rubber bushings for the big ends.

I have them, they're pretty rough but if you want them pay shipping and they are yours



[1967coronet440]

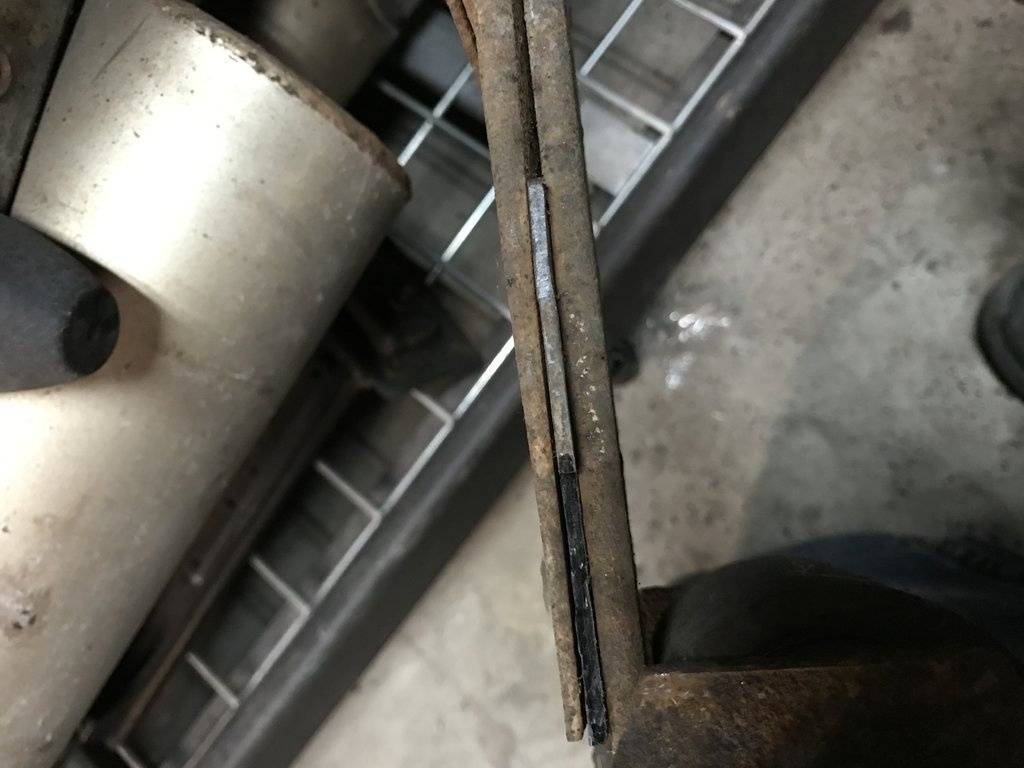

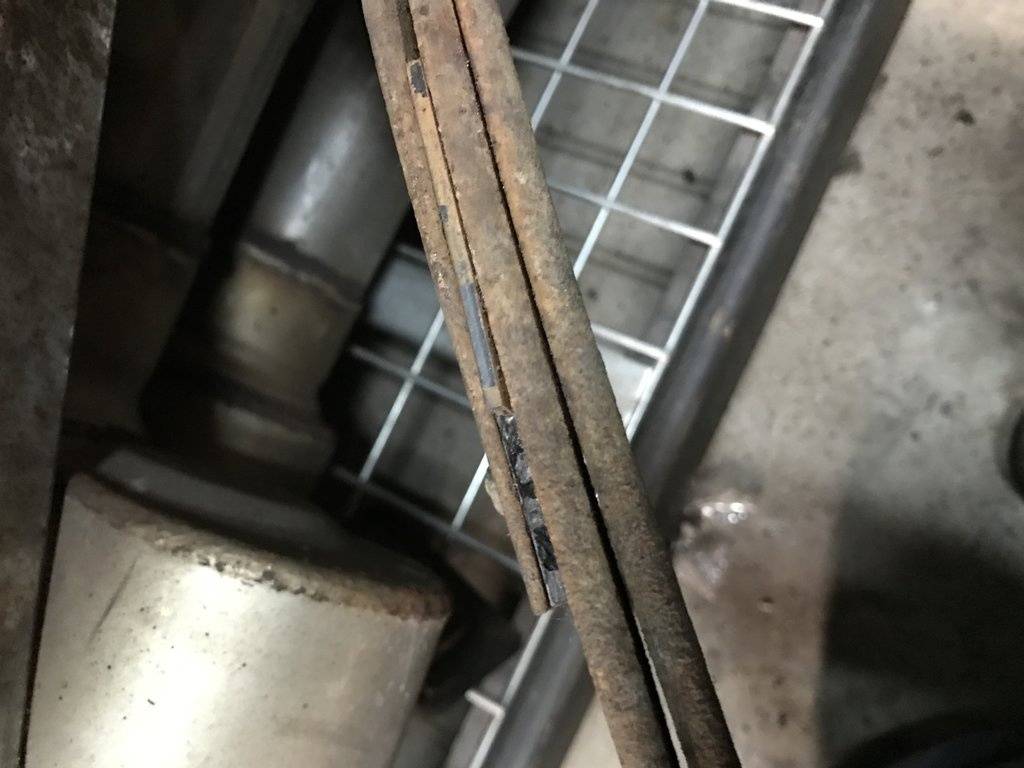

Wouldn't let me upload photos in my shop, no service. I'll upload them when I get home



[1967coronet440]



[Ghostrider 67]

Lot better shape than mine are.



[Budnicks]

Nice progress Ghost, keep it up...

all them details, will pay off in the long run...



[747mopar]

Man that looks good in black.
