    I have a couple questions about the body of my car for the guys who have taken one of these things apart. I'm preparing to paint the car.

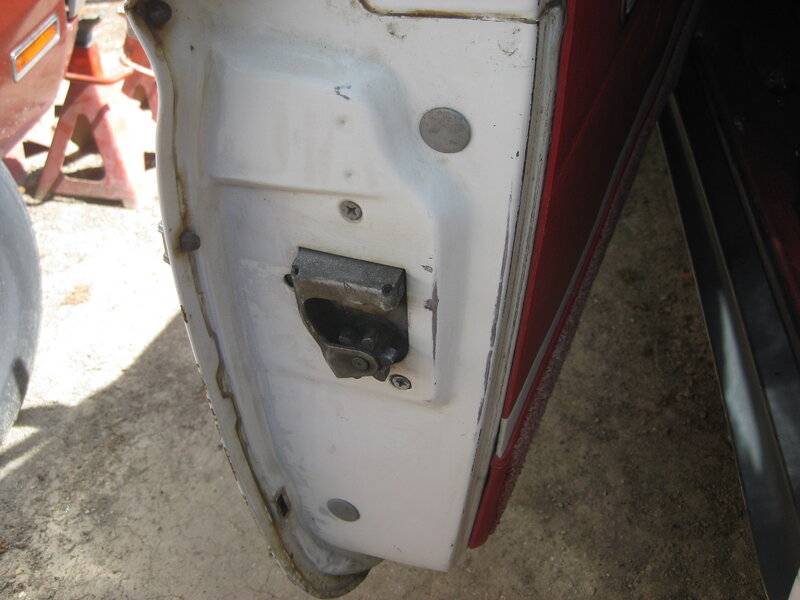

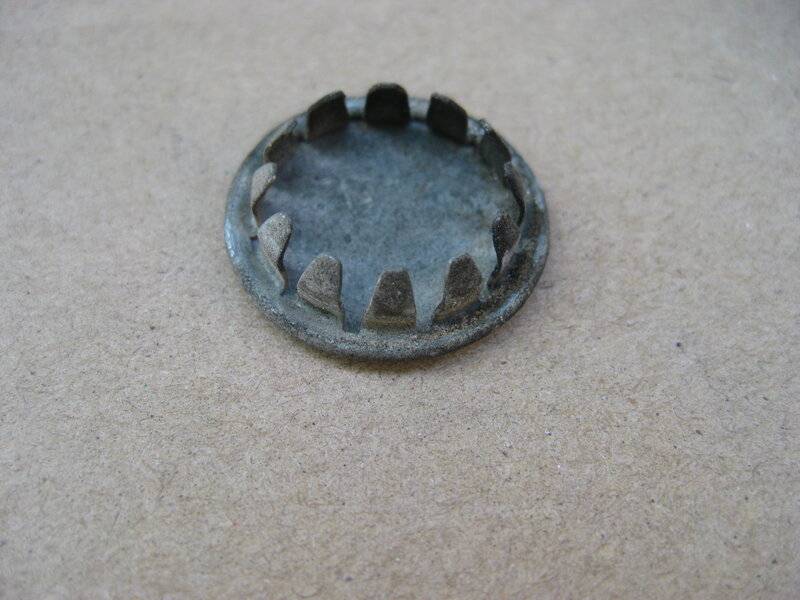

    #1 The each door has two metal plugs in them. I'm just wondering if what I have is the correct plugs, or did someone replace them at some point. (see photo)

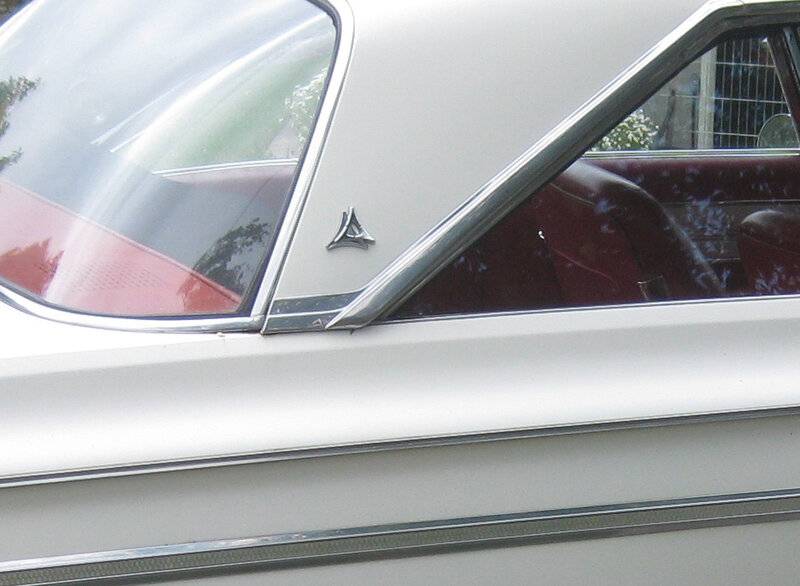

    #2 The Dodge emblem on the roof panel (see photo). Are there emblem nuts holding it on? Or, is it held on by the push in, tension fit type retainers? I really don't want to pull the headliner up to get this emblem off.

    IMG_2255.JPG IMG_2256.JPG IMG_1703.jpg

  2. moparsteve636

    moparsteve636 Well-Known Member

    Messages:
    2,901
    Likes Received:
    545
    Joined:
    Dec 4, 2009
    Location:
    Mo.
    Local Time:
    11:54 PM
    Yes those are the correct factory cap plugs! And the medallions are held on with a nut, You'll have to pull the headliner loose.

    • Thanks! Thanks! x 1
    • Agree Agree x 1
    • Sixpaksteve

      Sixpaksteve FBBO Gold Member FBBO Gold Member

      Messages:
      418
      Likes Received:
      180
      Joined:
      Jan 7, 2014
      Location:
      Central Maryland
      Local Time:
      12:54 AM
      I'm curious to know the purpose of the door plugs? ( I have a 64 Polara convertible). Is there a part of the window regulator or door glass that is adjusted behind those plugs? My doors are off my car but I'll have to look later today to see if mine has the same holes in the same exact locations.

      As a teenager in the late 70's I worked part time at a Chevy dealership while finishing high school. When a customer wanted a new vehicle to be undercoated, the dealership would spray the underside of the car or truck. They'd also drill a hole in each door in the same area as Detroit Iron's photo so that a long, thin wand could be inserted and undercoating sprayed inside the door. A plastic plug was then put into the hole.

      Last edited: May 23, 2020 at 12:07 PM
    • Detroit Iron

      Detroit Iron Well-Known Member

      Messages:
      340
      Likes Received:
      140
      Joined:
      Jul 30, 2008
      Location:
      Bay Area - California
      Local Time:
      9:54 PM
      I keep telling myself I'm not going to disassemble the entire car.... but one thing leads to another and... I have to disassemble the entire car. Haha.. Thanks for the input. That really helps. Here goes.... gotta do it right. The headliner is original, so I assume once I disturb the corner, the rest will go to hell in short time. Headliner should really be replaced anyway.

    • Detroit Iron

      Detroit Iron Well-Known Member

      Messages:
      340
      Likes Received:
      140
      Joined:
      Jul 30, 2008
      Location:
      Bay Area - California
      Local Time:
      9:54 PM
      Behind the plugs are........ NOTHING! Behind the top plug is the door lock rod, and I don't see anything behind the lower plug. They must be for something in the manufacturing process.

      Interesting what you say about undercoating cars at the Chevy dealership. My Polara is from Washington state. With the doors off; I was going to drill additional holes in the bottom of the door for water drainage, but when I looked inside the doors were perfect. Not a spec of rust or corrosion, and Washington state is known for it's heavy rain. There is also factory installed under coating on the inside of the door skin.

      What state were you living in when you worked at the dealership?

      Last edited: May 23, 2020 at 9:50 AM
    • Sixpaksteve

      Sixpaksteve FBBO Gold Member FBBO Gold Member

      Messages:
      418
      Likes Received:
      180
      Joined:
      Jan 7, 2014
      Location:
      Central Maryland
      Local Time:
      12:54 AM
      I was in here in Maryland in the 70's and still am. Things rust here pretty easily too since we have high humidity most of the year.

      Glad to hear that your doors are good both inside and out. :thumbsup:

    • Detroit Iron

      Detroit Iron Well-Known Member

      Messages:
      340
      Likes Received:
      140
      Joined:
      Jul 30, 2008
      Location:
      Bay Area - California
      Local Time:
      9:54 PM

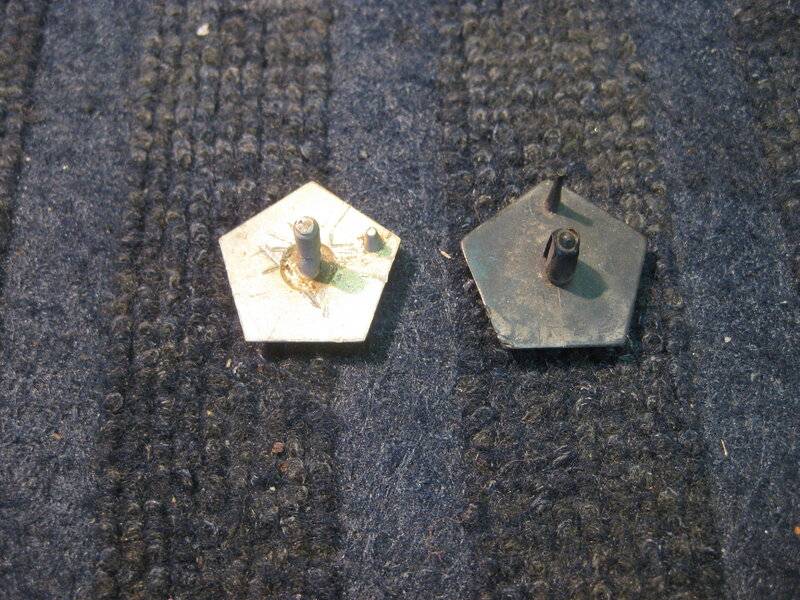

      I pulled the plastic backed pentastar emblem off the passenger fender. I thought the all aluminum ones were used on pre 1965 cars, or something like that. Does anyone know what would be correct for 1964?


    • Dan64

      Dan64 Well-Known Member

      Messages:
      623
      Likes Received:
      547
      Joined:
      Dec 27, 2018
      Location:
      South Jersey
      Local Time:
      12:54 AM
      Ziebart?

    • Sixpaksteve

      Sixpaksteve FBBO Gold Member FBBO Gold Member

      Messages:
      418
      Likes Received:
      180
      Joined:
      Jan 7, 2014
      Location:
      Central Maryland
      Local Time:
      12:54 AM
      Hey Dan.... Yep, that's the word I couldn't think of when I initially wrote my response. lol Thanks!

      • Like Like x 1
      • Detroit Iron

        Detroit Iron Well-Known Member

        Messages:
        340
        Likes Received:
        140
        Joined:
        Jul 30, 2008
        Location:
        Bay Area - California
        Local Time:
        9:54 PM
        Ok.... the door plugs. I have an answer. They are to adjust the windows. If you take off each plug and look in, you have a straight shot (with an extension) at the bolts that retain and adjust he channel that the windows go up and down on.

        • Like Like x 1
        • Sixpaksteve

          Sixpaksteve FBBO Gold Member FBBO Gold Member

          Messages:
          418
          Likes Received:
          180
          Joined:
          Jan 7, 2014
          Location:
          Central Maryland
          Local Time:
          12:54 AM
          Ahhhh...... good to know when I get to the reassembly phase of my project. Thanks Detroit!
