1966 Belvedere I Front Brake line and Distribution Block.

[Art C]

I am restoring a 1966 Belvedere I and have done most of the brake work but have come to a hault in the front.
I am converting to duel MC and purchased a Distribution Block to do this Conversion.
My problem is after 3 front lines that go from the rite wheel to the block I cant get any to fit.
The only outlet left is on the right side of the block. Do I have the wrong block ? or the lines?
Can someone please send me a picture of the distribution block.
This is a problem when you dont take the car apart yourself.

Thanks Art



[Big bill]

All you need to do is take the original distribution block and where the rear line connects put a 3/16 plug in that spot and the top hole put the front master cylinder brake line in that spot and take the rear master cylinder brake line, and a 3/16 union and connect it to the rear brake line That is all that is required they sell a kit that is essentially the same thing I have done it on five of my cars with no issue whatsoever works fantastic. Big bill.



[Art C]

All you need to do is take the original distribution block and where the rear line connects put a 3/16 plug in that spot and the top hole put the front master cylinder brake line to that and take the rear master cylinder brake line, and a union and connect it to the rear brake line That is all that is required they sell a kit that is essentially the same thing I have done it on five of my cars with no issue whatsoever works fantastic. Big bill.

Thanks for the reply but I was trying to keep it factory. If you can send a picture it will help.



[YY1]

Pics would help.

There's a '67 style block commonly available on ebay.

Is that what you have?



[Big bill]

Looks like on my 66 cornet deluxe the top hole I used an adapter that is probably 1/4 to 3/16.



[Big bill]

. And I think if I remember right, I just bought 67 and up dual master cylinder to the block lines.



[Art C]

Thanks for the guidance I will post my pictures and maybe make sense on what Im trying to do.



[Art C]

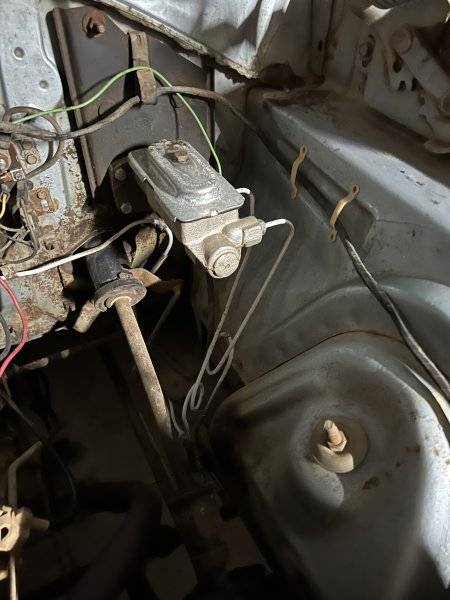

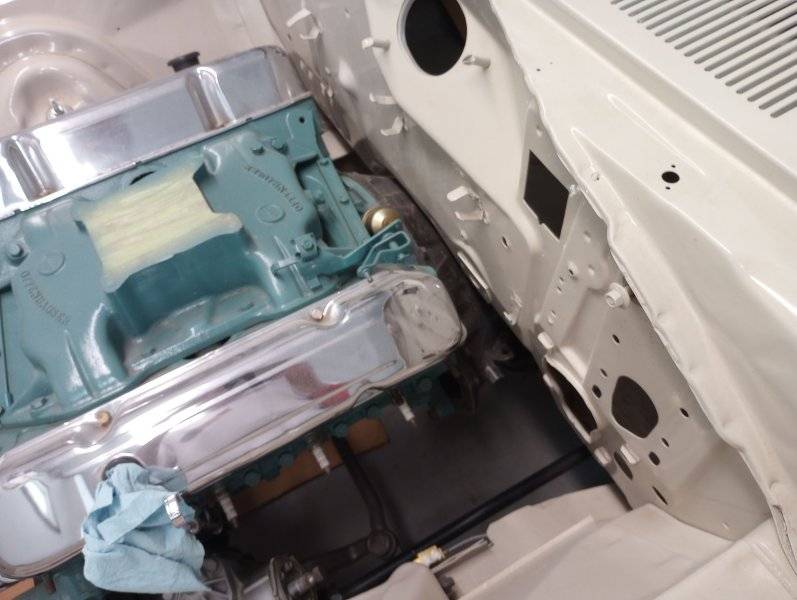

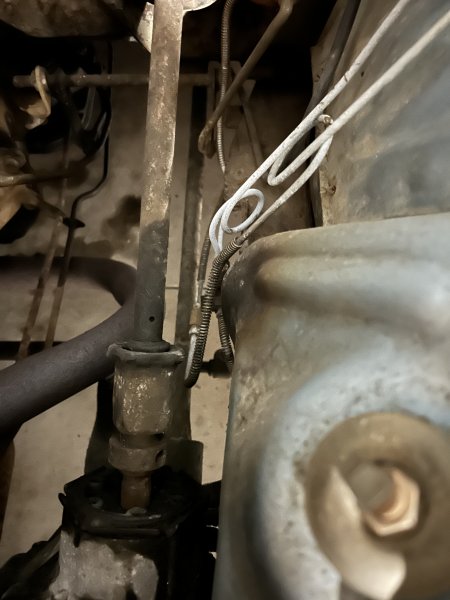

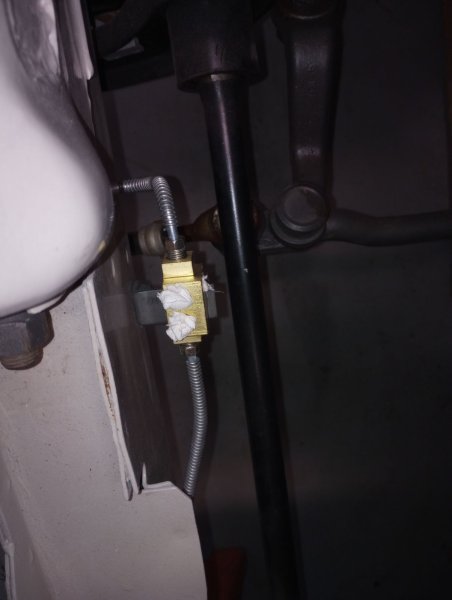

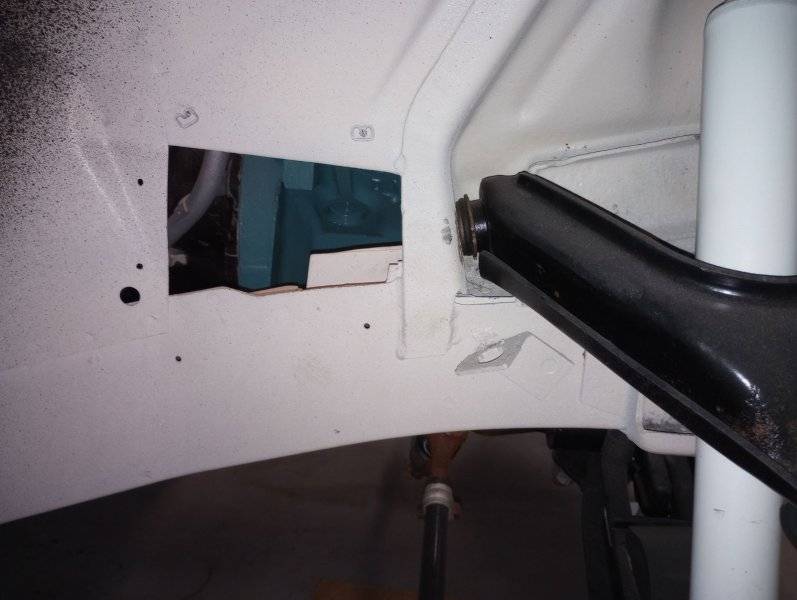

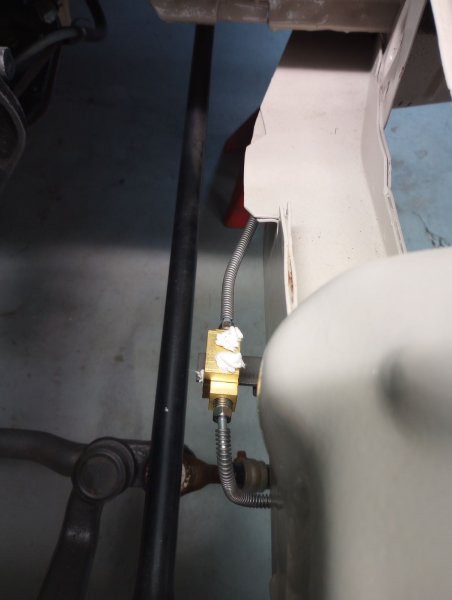

Heres what I have so far The white are towels in the holes The front line that runs along the Firewall goes in the side hole but my lines dont have that configuration.



[Art C]

I have the rear and the left line fitting correctly.



[gtx6970]

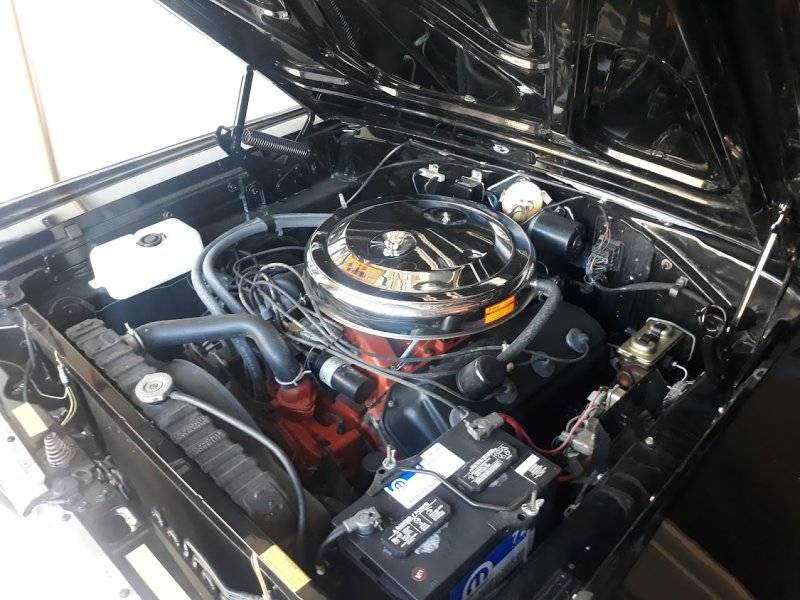

My 66 was converted to dual system. He used everything from a 1967 B body.

I can try to get the car out and take some pics, but not sure how well they will come out with my car being running and driving



[gtx6970]

Try this.

Top fitting goes to rear port on the master cyl
Right side lower fitting goes to front port of master cyl
Right side upper line/fitting goes to left front wheel
Left side Upper line/fitting goes to right front wheel
Left side lower line/fitting goes to rear axle / rear brakes

The entire braking system on my car is from Right stuff or Fine Lines ??? But was ordered as if for a 1967 GTX



[Fran Blacker]

Think this is the block I'd use if I bought one. Don't bolt the block to frame rail until you started all fitting by hand! the fittings cross thread easy. 1965-66 Mopar A B C-Body Dual Master Distribution Block For Disc Or Drum Brakes | eBay



[Sam69sat]

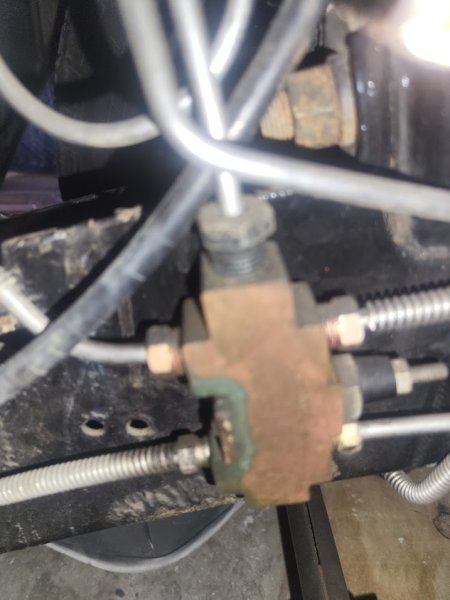

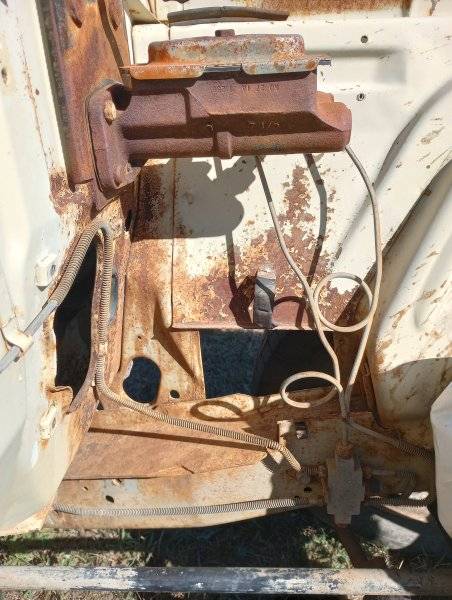

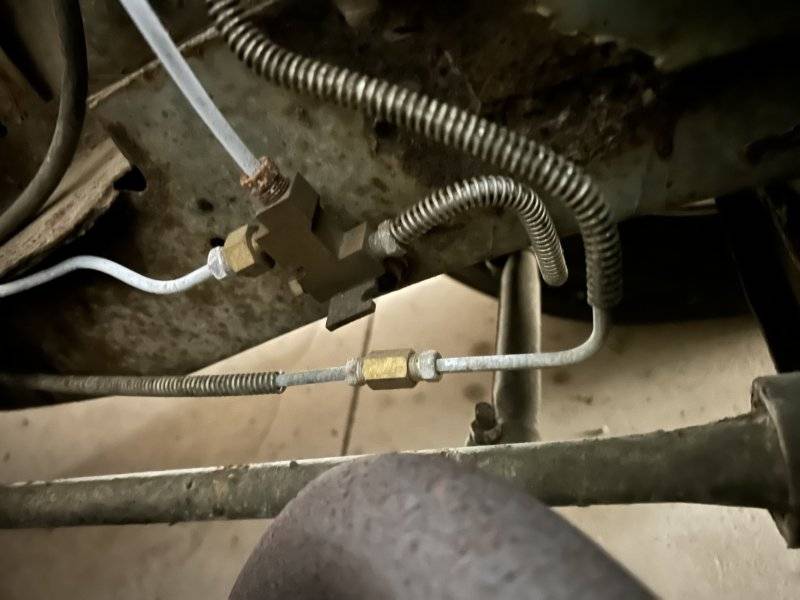

This is off my 67 coronet which i assume is stock. It corresponds with gtx6970 states above.



[Fran Blacker]

This is off my 67 coronet which i assume is stock. It corresponds with gtx6970 states above.

View attachment 1719193

You have all the parts to do a swap for dual master for a 1966 and earlier single master to dual master. I like to use the block I posted if you need to buy a block.



[gtx6970]

Think this is the block I'd use if I bought one. Don't bolt the block to frame rail until you started all fitting by hand! the fittings cross thread easy. 1965-66 Mopar A B C-Body Dual Master Distribution Block For Disc Or Drum Brakes | eBay

Fran, The issue I see with using that style block offers no advantage to upgrading to the dual res master cyl.



[Fran Blacker]

That doesn't directional switch, so no sticking in one direction.
I'll say it isn't clear about rear brakes, think your need a connector for rear brakes. The block they say has 1 in from master and 2 outlets for left and right side disc's or drums. Have factory block on my Satellite and wondering if the switch is partly stuck so brakes aren't great.



[gtx6970]

is your 66 power disc brake car ?
Im curious how they did the front to rear distribution on them , same as a normal 66 I assume . Just a simple 1 in and 3 out block ??????



[Fran Blacker]

Drums thank god.



[Sam69sat]

All you need to do is take the original distribution block and where the rear line connects put a 3/16 plug in that spot and the top hole put the front master cylinder brake line in that spot and take the rear master cylinder brake line, and a 3/16 union and connect it to the rear brake line That is all that is required they sell a kit that is essentially the same thing I have done it on five of my cars with no issue whatsoever works fantastic. Big bill.

Nice simple conversion hack without having to buy anything but a coupler!



[RemCharger]

Heres what I have so far The white are towels in the holes The front line that runs along the Firewall goes in the side hole but my lines dont have that configuration.

View attachment 1718899

View attachment 1718900

View attachment 1718901

View attachment 1718902

Art , a bit off topic and don't take it the wrong way, but that is a poor performing manifold you have there. Even stock ones from 68 up would work better.
