1966 Coronet Hemi driveshaft question.

Hemi2Much

Well-Known Member
Local time
5:48 PM
Joined
May 28, 2021
Messages
188
Reaction score
334
Location
Alabama

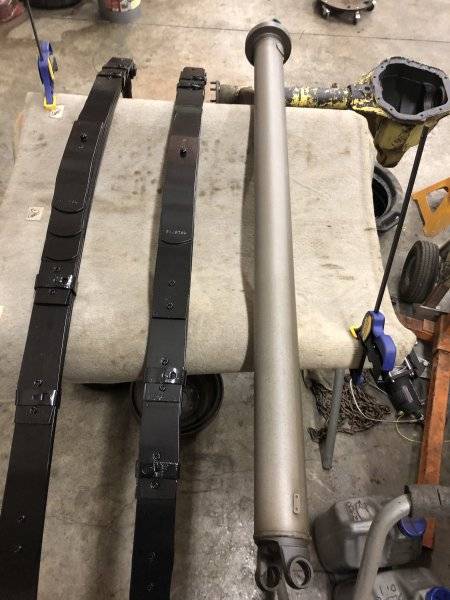

Can anyone verify the part # on a 1966 Dodge Coronet Hemi driveshaft?

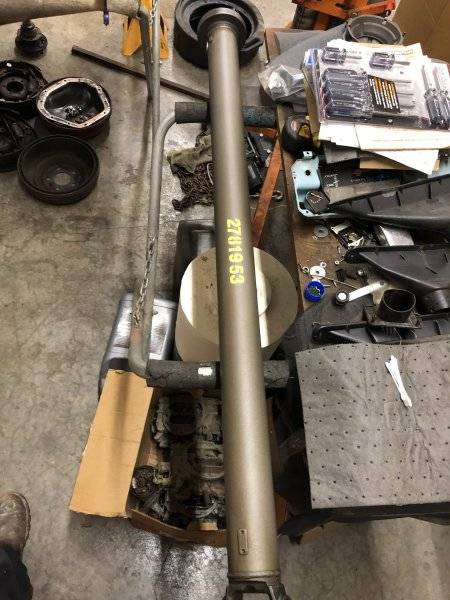

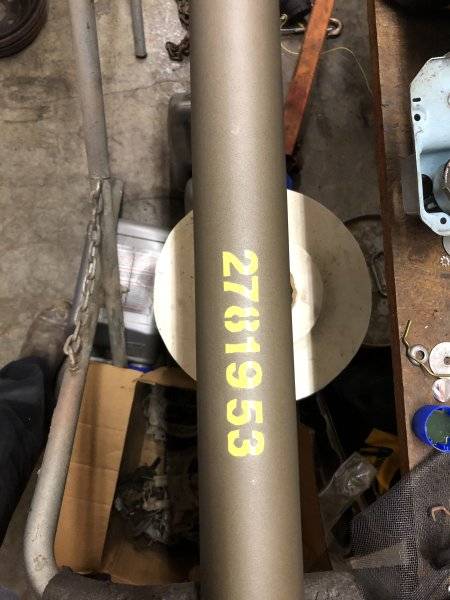

From what I can find, the part # is 2781953 is this correct?
3" Dia / 51.40" length
Is there a difference between the Hemi driveshaft and any other Big block Dodge B Body driveshaft?

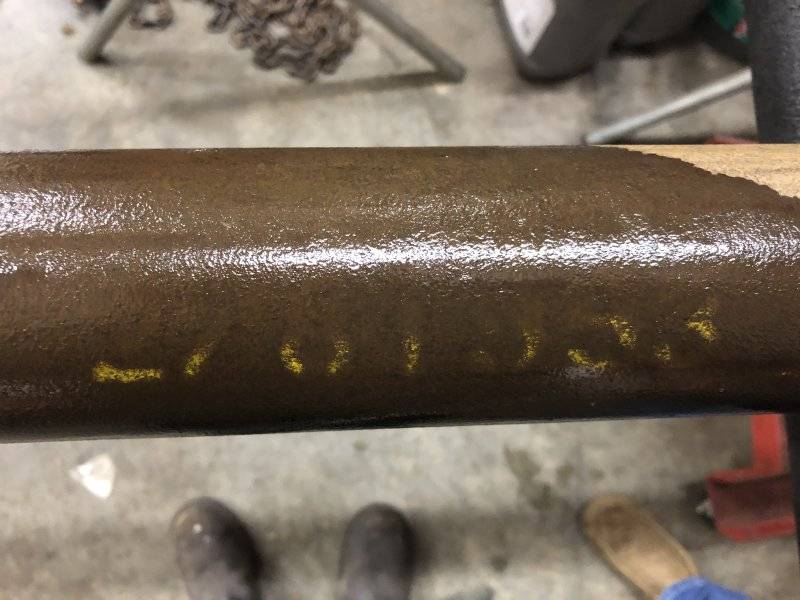

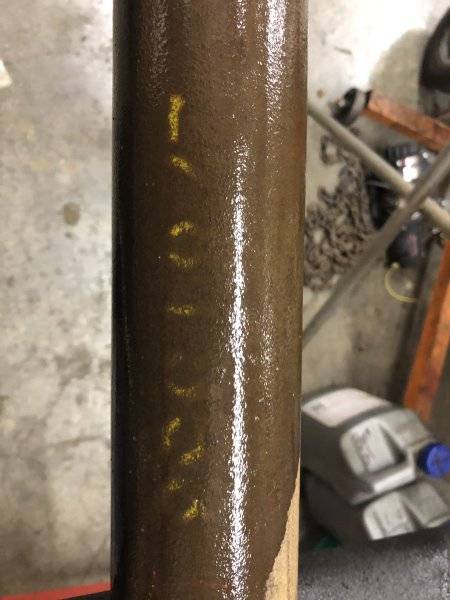

I have found 4 different driveshafts when I was trying to gather all of the parts up for the car and not sure which one is correct.
Thanks,Jkent


Don67Satellite

Well-Known Member
Local time
3:48 PM
Joined
Dec 16, 2021
Messages
442
Reaction score
551
Location
Abbotsford, British Columbia, Canada

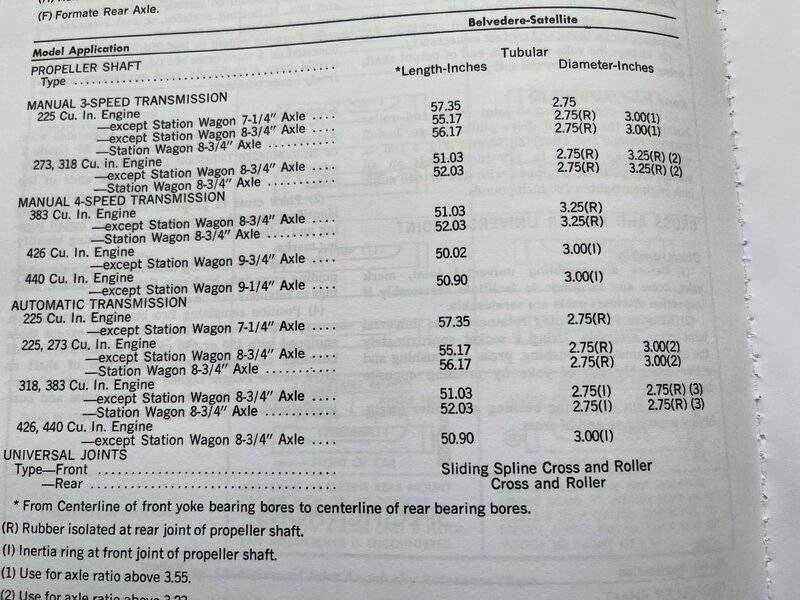

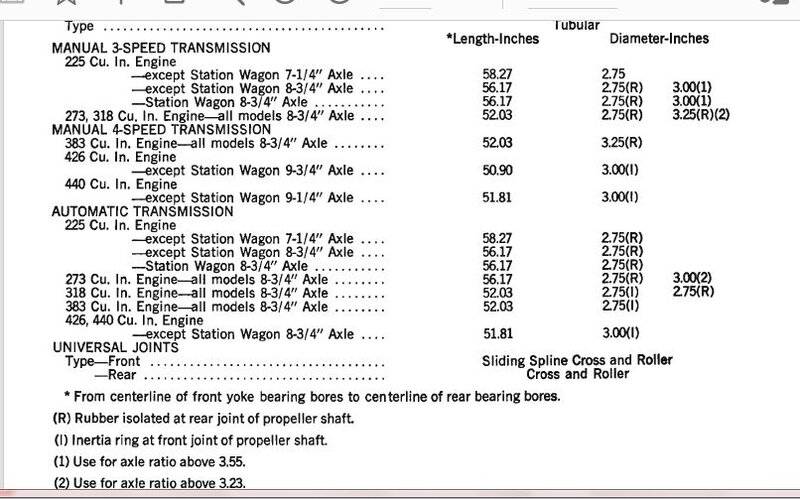

From my '67 Plymouth service manual. Don't know if this will be of help. Difference in length between 727 and 4spd.



Hemi2Much

Well-Known Member
Local time
5:48 PM
Joined
May 28, 2021
Messages
188
Reaction score
334
Location
Alabama
The 4spd is for 9 3/4 rear end and the Auto is for a 8 3/4 rear. Correct?
Mine is a 727 Auto and 8 3/4 rear.


Don67Satellite

Well-Known Member
Local time
3:48 PM
Joined
Dec 16, 2021
Messages
442
Reaction score
551
Location
Abbotsford, British Columbia, Canada
The 4spd is for 9 3/4 rear end and the Auto is for a 8 3/4 rear. Correct?
Mine is a 727 Auto and 8 3/4 rear.

Looks to me like if you had a 4spd Plymouth in '67, the 440 & Hemi had different drive shafts by length. If it was a 727, looks like they had the same one (also matches length of 440 4spd). But no part #'s are listed to be 100%. I'm sure others will chime in with more detail.


R/T Boy 67

Well-Known Member
Local time
3:48 PM
Joined
Apr 23, 2018
Messages
1,207
Reaction score
1,138
Location
Nanaimo B.C. Canada
The 66 parts book is confusing with regard to the 953 shaft. I believe the part number for a Hemi coronet with an 8 3/4 is 2781954, which is 52.03 inches long, and 3" diameter.


VANDAN

FBBO Gold Member
FBBO Gold Member
Local time
6:48 PM
Joined
May 27, 2011
Messages
3,411
Reaction score
6,169
Location
Western NY
Did you consider having one made ? You can have it done to the specs needed to match your build...


Fran Blacker

FBBO Gold Member
FBBO Gold Member
Local time
6:48 PM
Joined
Sep 23, 2016
Messages
12,245
Reaction score
12,118
Location
Connecticut

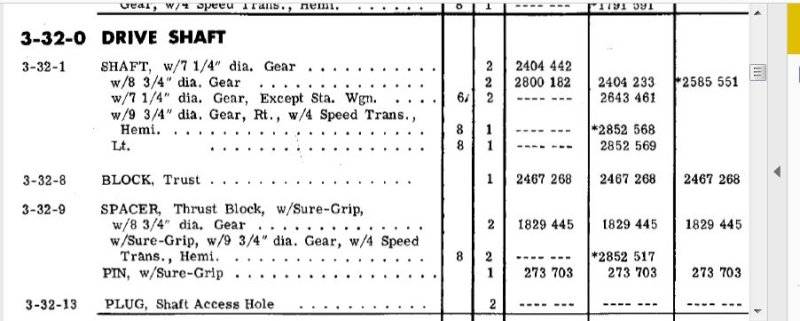

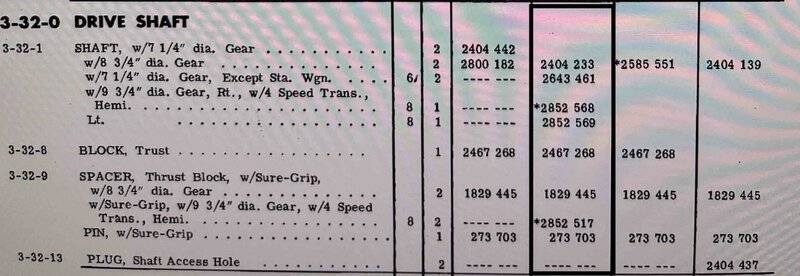

Looked in parts book downloaded from mymopar the part number there was a super seceded number. Had an * next to the part number. If someone has an earlier parts book they should look in Axle section 3-32-0.
