1967 Super Stock Coronet, the WO23

1966 -1967 Mopars

  1. Pops1967GTX

    Pops1967GTX FBBO Gold Member FBBO Gold Member

    Messages:
    25,982
    Likes Received:
    83567
    Joined:
    Oct 25, 2010
    Location:
    Monroe, New York
    Local Time:
    1:20 PM


    1967 Dodge HEMI Coronet Super Stock
    Chrysler was supposed to have built 50 of each to satisfy the NHRA rules but some say as little as 32 cars were built, the others being just numbers (with no actual cars assembled).

    The Hemi motor used blocks designated as A-blocks, as they had the closest tolerances. Forged pistons were good for 7400 rpm. Induction relied on a Vanke intake manifold which looked stock on the outside.

    Unlike the earlier Super Stock packages that were farmed out, Chrysler put together the WO’s on their own production line. Other ingredients in the package included radio/heater delete. Prestolite transistor ignition mounted under the dash against the firewall, special distributor and coil, racing plug wires, the first application of Super Stock rear springs, trunk mounded big Super Stock Battery, no undercoating or sound deadener and lighter weight carpet. Though not advertised, the metal body components were acid dipped to reduce weight. (Chrysler called this “chemical engineering”). The cars had 10” drums up front for reduced weight and better rolling resistance. Standard Street Hemi had 11 inchers up front and 11 inch rear drums. The race cars used a standard clutch fan, but with aluminum blades.

    The WO’s came through with a functional ram air hood. Chrysler took a stock hood, lightened it, and cut out a large round opening underneath. They supplied a plate that bolted around the opening to center and sealed it to the bell shaped velocity stack. The plate and stack came in the trunk along with a set of Hooker Headers that were packed in a Hooker Header box. Automatic cars came through with a special TorqueFlite that had to be shifted manually through its reverse shift pattern. The 8-3/4 rear-end was packed with the Sure-Grip 4:88 gears.

    • Like Like x 8
    • Thanks! Thanks! x 2
    • 66383

      66383 FBBO Gold Member FBBO Gold Member

      Messages:
      2,539
      Likes Received:
      1842
      Joined:
      Jan 19, 2018
      Location:
      calvert city, ky
      Local Time:
      12:20 PM
      :thankyou: for the info. Interesting history. I've always been a drag race freak.

      • Agree Agree x 1
      • Jerry Hall

        Jerry Hall FBBO Gold Member FBBO Gold Member

        Messages:
        5,247
        Likes Received:
        8498
        Joined:
        Mar 26, 2018
        Location:
        Alabama
        Local Time:
        12:20 PM
        In the RO/WO 67 cars I prefer the Coronet to the Belvedere. There has or maybe still is one for sale, I just don't know how correct the restoration is.

      • Johnpat

        Johnpat Well-Known Member

        Messages:
        956
        Likes Received:
        943
        Joined:
        Feb 28, 2018
        Location:
        Missouri
        Local Time:
        12:20 PM

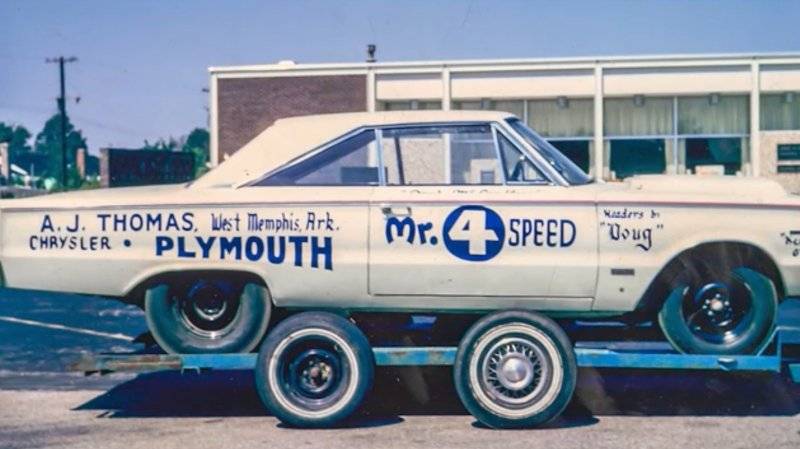

        Was able to see them up close & compete
        back in the day.
        Alton Dragway,in Alton Illinois.

        • Like Like x 3
        • R413

          R413 Well-Known Member

          Messages:
          1,611
          Likes Received:
          3344
          Joined:
          Feb 4, 2019
          Location:
          NW USA
          Local Time:
          10:20 AM

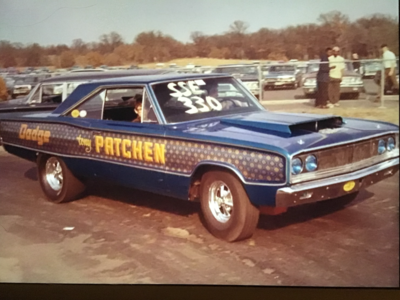

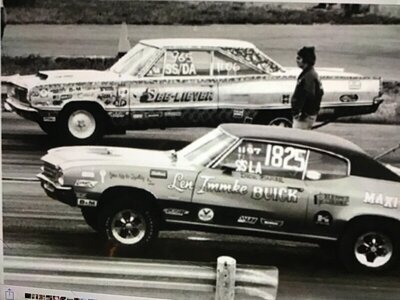

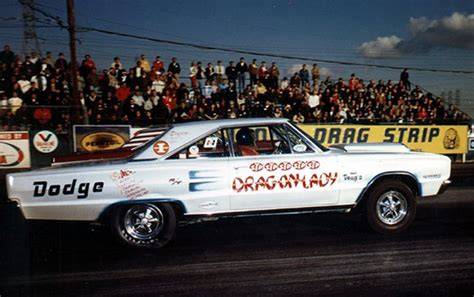

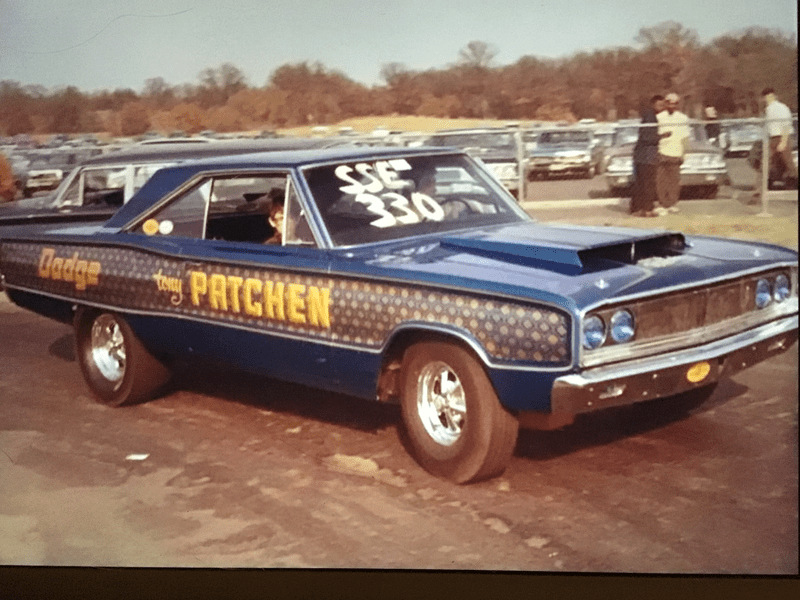

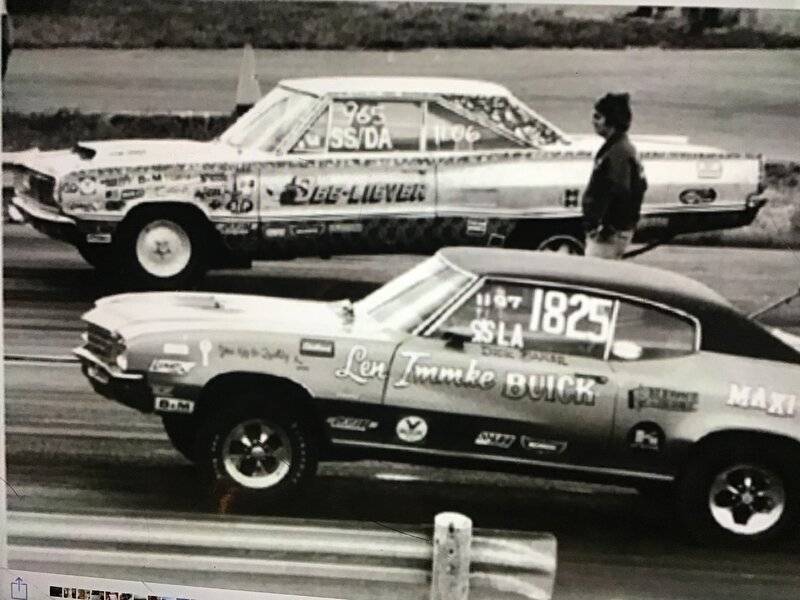

          Racing back in the day

          I have a neat winners circle pic and I can not locate it so check back and I’ll put it in here.

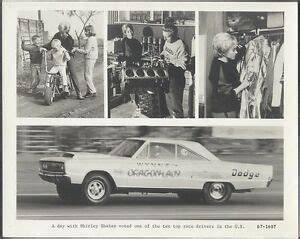

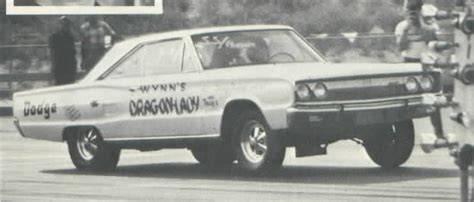

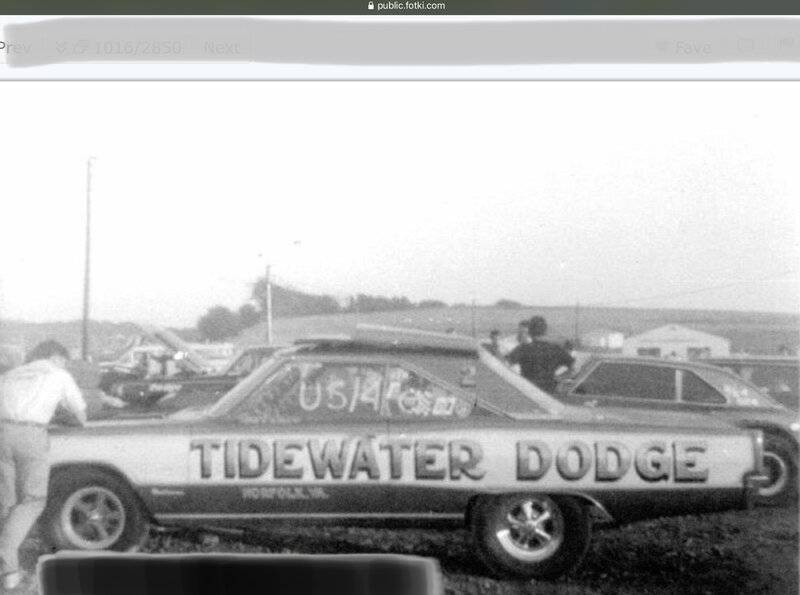

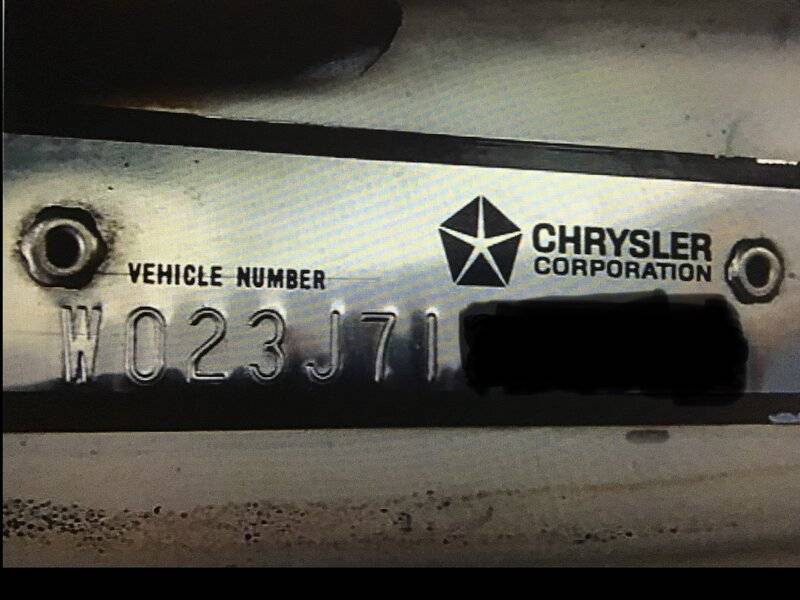

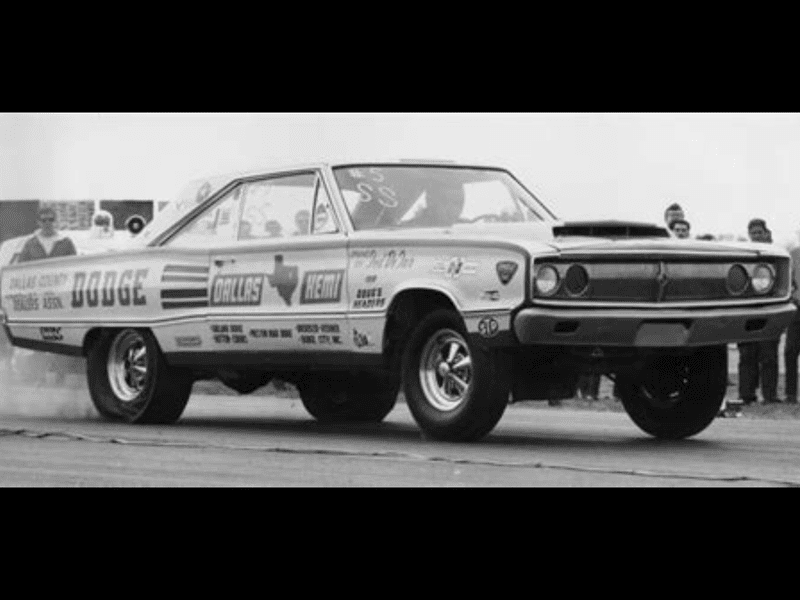

          2FC8E988-B5F7-4149-A7DF-B09DA8F344EE.png 06FDDFA8-CDAE-498E-BDB6-6883EFE094CE.jpeg E2A9A17A-F457-45A1-8998-3695F06389D9.jpeg DA6E85FA-270C-4E88-A812-C1D1C4645B38.jpegView attachment 1042840 239485BF-11F2-41A9-9507-0507A8A1B081.jpeg 193BD2DA-D785-4F45-BC59-EC810512904A.png 21BF82B9-C0BB-43B7-8698-BA91D52B6D7A.jpeg 257D139F-AF24-4FA8-BBD2-15F248D61F87.jpeg

          Last edited: Dec 19, 2020
          • Like Like x 4
          • Thanks! Thanks! x 2
          • Jeremiah

            Jeremiah FBBO Gold Member FBBO Gold Member

            Messages:
            1,300
            Likes Received:
            457
            Joined:
            Feb 7, 2012
            Location:
            Rogue River, OR
            Local Time:
            10:20 AM
            There was a 1967 wo23 car dressed up like a Coronet 500 in the Milwaukee, WI area when I was growing up. By then it was a restored car show only affair. I would love to have one of the 4 speed cars!
