1968 charger rear drum brake issue, help?

Brakes, Steering & Suspension

  1. Twalker

    Twalker Well-Known Member

    Messages:
    226
    Likes Received:
    412
    Joined:
    Jul 15, 2017
    Location:
    Nova Scotia, Canada
    Local Time:
    10:23 PM

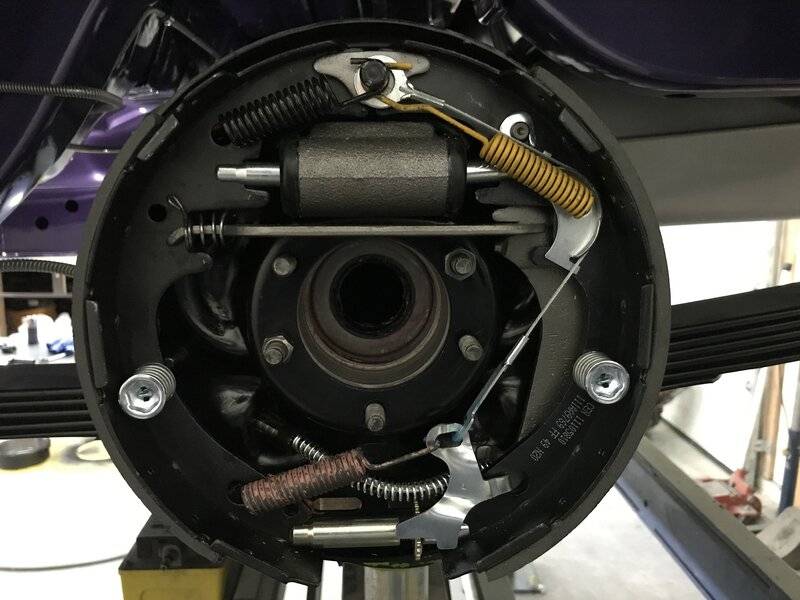

    Guys, what am I doing wrong here? The tensioner wheel doesn’t really catch the stop bracket, just barely stops backward motion. Something seems off at the bottom.


    Last edited: Nov 25, 2021
  2. Twalker

    Twalker Well-Known Member

    Messages:
    226
    Likes Received:
    412
    Joined:
    Jul 15, 2017
    Location:
    Nova Scotia, Canada
    Local Time:
    10:23 PM

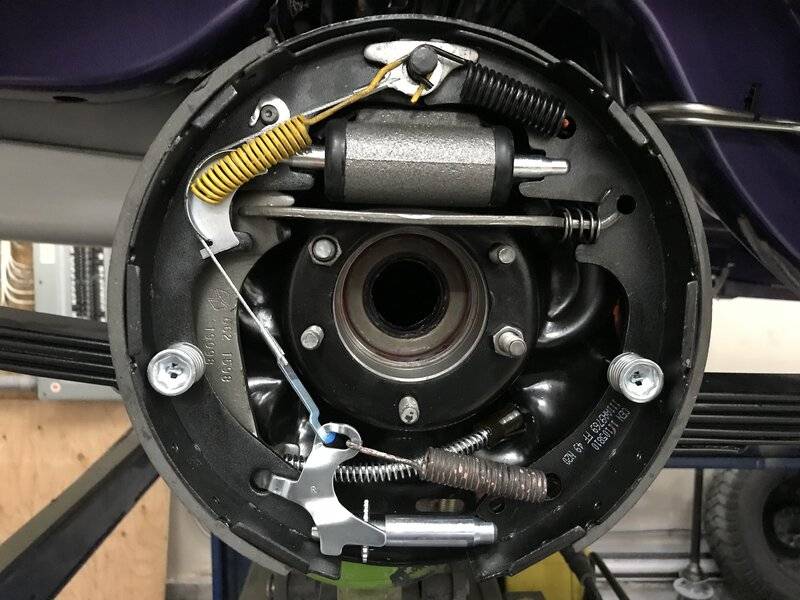

    Strange … I thought I’d try the driver side and it works perfectly. Maybe I just need to mod that bracket just a little so it catches.

    • Agree Agree x 1
    • MoparLeo

      MoparLeo NRA BENEFACTOR LEVEL LIFE MEMBER FBBO Gold Member

      Messages:
      1,650
      Likes Received:
      1513
      Joined:
      Nov 24, 2015
      Location:
      Moreno Valley, So California
      Local Time:
      6:23 PM

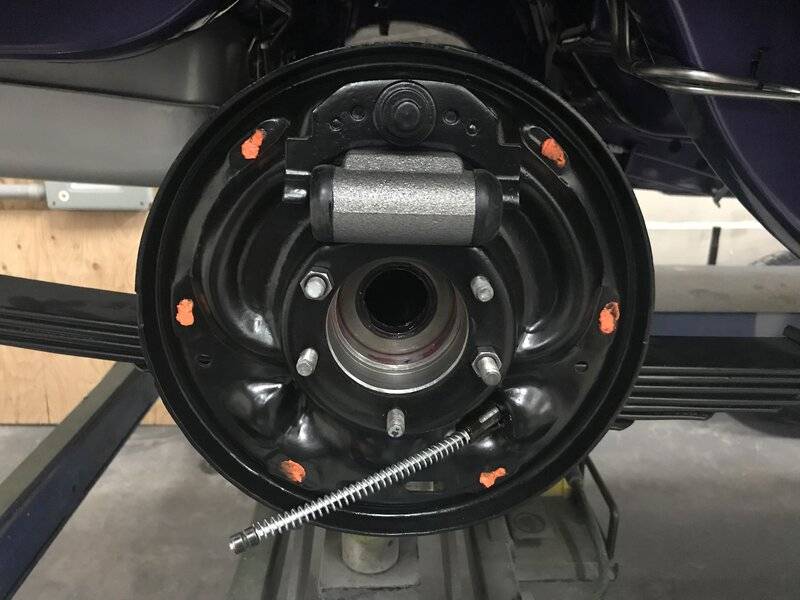

      Make sure to put a dab of Lithium grease or similar on the backing plate pads where the shoes contact the backing plate. Also lube the threads on the star wheel adjuster.

      • Agree Agree x 2
      • Thunderlugs

        Thunderlugs Well-Known Member

        Messages:
        717
        Likes Received:
        1007
        Joined:
        Sep 21, 2016
        Location:
        Burlington, WI
        Local Time:
        8:23 PM
        Make sure the self adjust cable is seated down on the pin on top where the springs attach. If its not, it will put a slight pull on the adjuster lock, keeping it from fully engaging the wheel.

        • Agree Agree x 1
        • Big Bad Dad

          Big Bad Dad Well-Known Member

          Messages:
          2,921
          Likes Received:
          5466
          Joined:
          Jun 11, 2011
          Location:
          Fincastle, Va.
          Local Time:
          9:23 PM
          First picture. Rotate the cable guide a little counterclockwise so it ain't holding the return spring away from the shoe. Looks like it might be binding, which could throw off alignment.
          Also, I assume you have the left hand and right hand threaded adjusters on the correct sides of the car?

          • Agree Agree x 1
          • RemCharger

            RemCharger Well-Known Member

            Messages:
            1,036
            Likes Received:
            751
            Joined:
            Apr 5, 2014
            Location:
            Sask
            Local Time:
            8:23 PM
            And the cable guide looks like it's poped out of the hole ,not flush to the shoe. This will pull the cable back a bit.

            • Agree Agree x 1
            • Twalker

              Twalker Well-Known Member

              Messages:
              226
              Likes Received:
              412
              Joined:
              Jul 15, 2017
              Location:
              Nova Scotia, Canada
              Local Time:
              10:23 PM
              yep, got that covered!

            • Twalker

              Twalker Well-Known Member

              Messages:
              226
              Likes Received:
              412
              Joined:
              Jul 15, 2017
              Location:
              Nova Scotia, Canada
              Local Time:
              10:23 PM
              Thanks for the help everyone! Think I’ve got it now - did two things - made sure the cable and guide were seated properly and made a slight bend and grind to the edge of the catch and all seems good now.

              thanks again

              • Like Like x 3
