1969 Plymouth air grabber duct work

carterafb

Well-Known Member
Local time
1:05 PM
Joined
Sep 24, 2012
Messages
115
Reaction score
27
Location
Connecticut

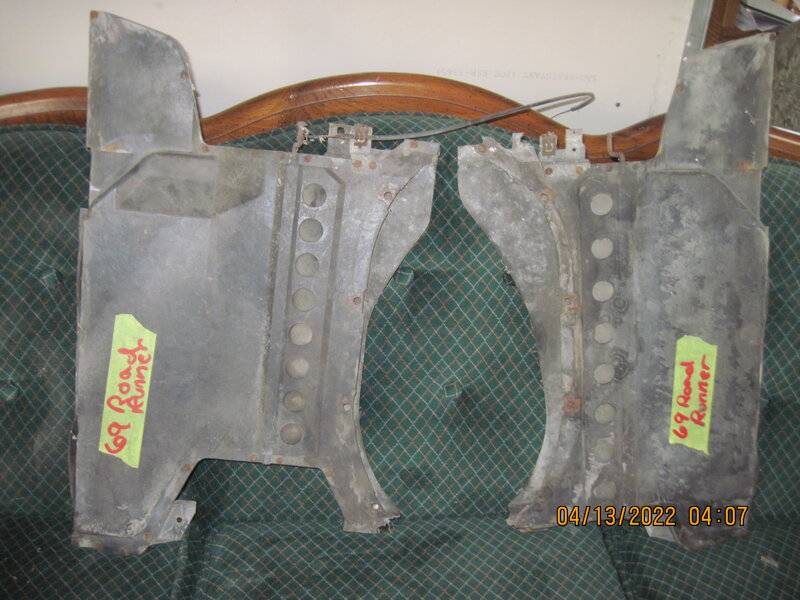

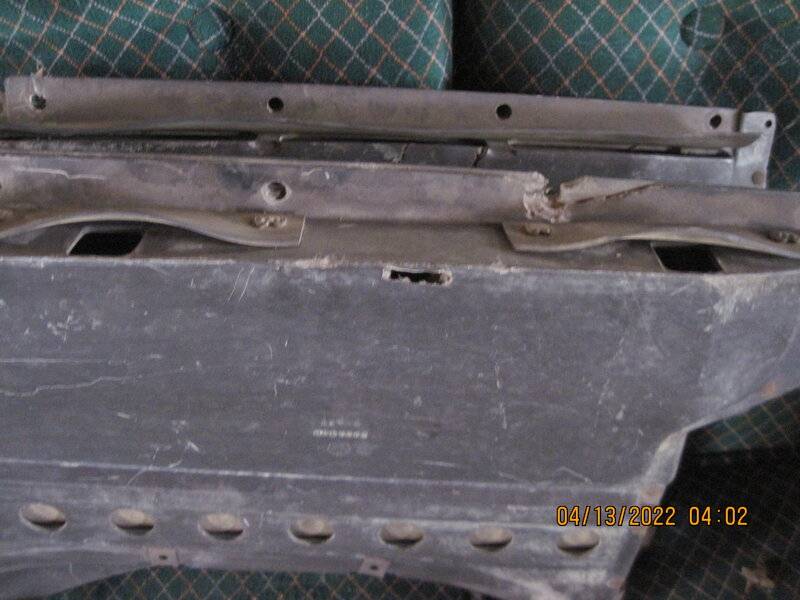

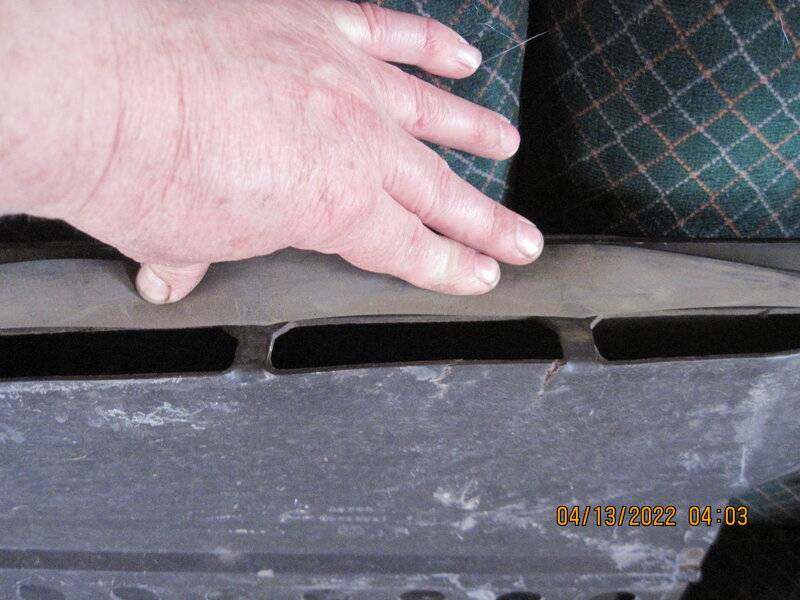

How many variations of the air boxes were there in 69. I think the air boxes may have possibly gone through a design change mid year I have one passenger air box that has three large slotted side vents while the majority of the boxes I have contain 2 square hole vents. I have part #s of 2949156, 2949157, 2998450 and 2998451 part # on two different styles.

IMG_1826.JPG IMG_1824.JPG IMG_1828.JPG


dadsbee

FBBO Gold Member
FBBO Gold Member
Local time
1:05 PM
Joined
Jan 29, 2018
Messages
12,455
Reaction score
33,136
Location
Midland Ontario, Canada
3 slots and one long flap was the early builds and the 2 hole and separate small flaps was later in the model year TTBOMK. I have a box here that the passenger side is one flap and the drivers is two, just not sure if it came off an original car that way or someone pieced a unit together.


carterafb

Well-Known Member
Local time
1:05 PM
Joined
Sep 24, 2012
Messages
115
Reaction score
27
Location
Connecticut
3 slots and one long flap was the early builds and the 2 hole and separate small flaps was later in the model year TTBOMK. I have a box here that the passenger side is one flap and the drivers is two, just not sure if it came off an original car that way or someone pieced a unit together.
Any idea when the change took affect and why.


dadsbee

FBBO Gold Member
FBBO Gold Member
Local time
1:05 PM
Joined
Jan 29, 2018
Messages
12,455
Reaction score
33,136
Location
Midland Ontario, Canada
No idea, but most of these hairball things happened over Christmas shutdown with the change effective Jan 1st..
