1969 roadrunner convertible top switch power source

paul1969cars

Member
Local time
2:14 AM
Joined
Jan 10, 2023
Messages
22
Reaction score
4
Location
new york
Hi

Just joined the forum. I have two cars. 1969 dodge charger 440 4spd numbers matching car that is being restored now. Also have 1969 plymouth roadrunner convertible 383 4spd numbers matching that Im doing some work on.
Prior owner of roadrunner hacked out wiring for convertible top under dash and added an awful switch to operate the top.

I installed the correct top switch in dash.

I have a new harness that plugs into back of switch

This harness has three wires in it

Two of the wires get connected in kick panel of driver side to the wires that go back to the convertible top pump in rear seat

The third wire off the harness is to provide power to the switch.

I need to know where this wire connects to. Is there another harness or does it connect to a relay or does it go to the starter solenoid?

I dont know because someone before me pulled out harness


toolmanmike

Henchman #2
Staff member
FBBO Gold Member
Local time
1:14 AM
Joined
Aug 11, 2010
Messages
9,572
Reaction score
16,652
Location
Iowa
The Welcome Wagon is to introduce yourself to the group and show off your car (s). I moved this to Electrical. Welcome to FBBO.


pnora

FBBO Gold Member
FBBO Gold Member
Local time
2:14 AM
Joined
Apr 21, 2020
Messages
3,076
Reaction score
3,332
Location
Ishpeming, Mi.
I am not 100 percent but I believe it was right off the ammeter stud and there was a circuit breaker used.


70Fish

Well-Known Member
Local time
1:14 AM
Joined
Apr 21, 2011
Messages
565
Reaction score
264
Location
IL
If it's like a 70, it goes right off the hot side of the AMP gauge, which is horrible and I'd recommend a relay instead.


pnora

FBBO Gold Member
FBBO Gold Member
Local time
2:14 AM
Joined
Apr 21, 2020
Messages
3,076
Reaction score
3,332
Location
Ishpeming, Mi.
I just looked and the power wire is fed off the ammeter red wire with a circuit breaker to protect it. There was a short what I would call buss bar. It bolted direct to the circuit breaker stud and ammeter stud. Off the breaker it went to the power top switch. On some models there was a splice that also fed the power window safety relay.


paul1969cars

Member
Local time
2:14 AM
Joined
Jan 10, 2023
Messages
22
Reaction score
4
Location
new york
I just looked and the power wire is fed off the ammeter red wire with a circuit breaker to protect it. There was a short what I would call buss bar. It bolted direct to the circuit breaker stud and ammeter stud. Off the breaker it went to the power top switch. On some models there was a splice that also fed the power window safety relay.
Thanks

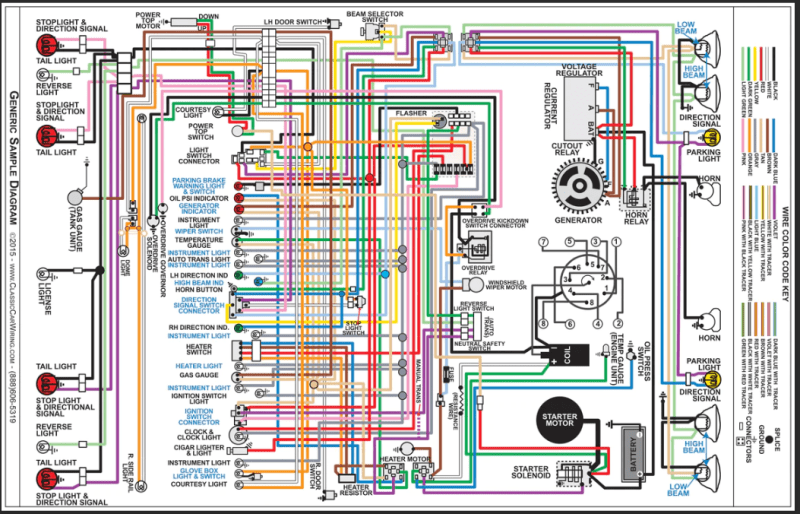

So the few replies I got basically say that its off the amp meter. Thanks for looking guys, I know its not easy to look up under that dash. This is the wiring diagram I got off line. If you follow the power line you will see if goes to the starter solenoid. There seems to be a harness off the solenoid that clips to this power wire. I ordered additional wiring diagrams and will double check. When I got the car the prior owner just ran a wire directly to the battery. This is not correct for sure. Will research some more. Currently Im going to convert my amp meter to volts while my cluster is being restored as we speak so I dont know if that will be still ok to connect to it. Thanks for info.

roadrunner diagram in color.PNG


Chargerjase

FBBO Gold Member
FBBO Gold Member
Local time
8:14 AM
Joined
Oct 16, 2013
Messages
1,144
Reaction score
1,500
Location
Kiel Germany (back again)
Hi Paul, where did you get that diagram. I found one in black and white off mymopar.com, but haven't found a color one yet.Was that free or did you pay for it?


paul1969cars

Member
Local time
2:14 AM
Joined
Jan 10, 2023
Messages
22
Reaction score
4
Location
new york
Hi Paul, where did you get that diagram. I found one in black and white off mymopar.com, but haven't found a color one yet.Was that free or did you pay for it?
I forget where I got the diagram but it was free. was on line somewhere. I took a snap shot of the image and saved it.


pnora

FBBO Gold Member
FBBO Gold Member
Local time
2:14 AM
Joined
Apr 21, 2020
Messages
3,076
Reaction score
3,332
Location
Ishpeming, Mi.
Thanks

So the few replies I got basically say that its off the amp meter. Thanks for looking guys, I know its not easy to look up under that dash. This is the wiring diagram I got off line. If you follow the power line you will see if goes to the starter solenoid. There seems to be a harness off the solenoid that clips to this power wire. I ordered additional wiring diagrams and will double check. When I got the car the prior owner just ran a wire directly to the battery. This is not correct for sure. Will research some more. Currently Im going to convert my amp meter to volts while my cluster is being restored as we speak so I dont know if that will be still ok to connect to it. Thanks for info.

View attachment 1400496
The information I gave you is from the factory FSM. Forget what you are finding on line on these diagrams. They are not always correct. You asked the question and got the right answer here. Yes you can hook the feed at your voltmeter connection. Just protect it with a breaker.


paul1969cars

Member
Local time
2:14 AM
Joined
Jan 10, 2023
Messages
22
Reaction score
4
Location
new york
The information I gave you is from the factory FSM. Forget what you are finding on line on these diagrams. They are not always correct. You asked the question and got the right answer here. Yes you can hook the feed at your voltmeter connection. Just protect it with a breaker.
thanks


paul1969cars

Member
Local time
2:14 AM
Joined
Jan 10, 2023
Messages
22
Reaction score
4
Location
new york

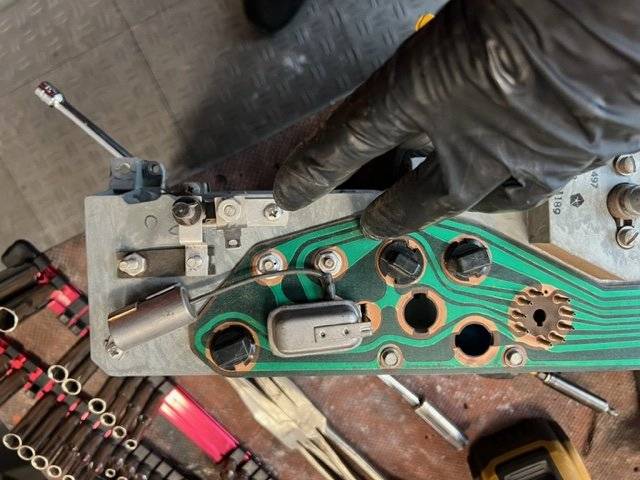

So I got confirmation. this is the hookup for the power top switch. this is behind the cluster and behind the amp meter.



pnora

FBBO Gold Member
FBBO Gold Member
Local time
2:14 AM
Joined
Apr 21, 2020
Messages
3,076
Reaction score
3,332
Location
Ishpeming, Mi.
So I got confirmation. this is the hookup for the power top switch. this is behind the cluster and behind the amp meter.

View attachment 1400583
That's what I described above. I was not sure on the exact mounting. If you are switching to a voltmeter all your ammeter wires could go on the circuit breaker terminal with the plastic cap. You will need to feed your voltmeter from a keyed 12 volt source. Otherwise it would be hot all the time draining the battery.


70Fish

Well-Known Member
Local time
1:14 AM
Joined
Apr 21, 2011
Messages
565
Reaction score
264
Location
IL
I'd agree with what was posted and as I mentioned before, which is the hot side of the amp gauge is used, but it's a **** design and you should consider using a relay instead as drawing all the amperage through the bulkhead for the top motor is asking for trouble down the road.

Last edited:

5wndwcpe

Huge Member
FBBO Gold Member
Local time
2:14 AM
Joined
Jul 17, 2008
Messages
4,584
Reaction score
2,162
Location
Southeastern, PA
I'd agree with what was posted and as I mentioned before, which is the hot side of the amp gauge is used, but it's a **** design and you should consider using a relay instead as drawing all the amperage through the bulkhead for the top motor is asking for trouble down the road.
Yep. This is what I did and mounted them on the cross brace between the rear wheel wells. They are hidden by the well liner but easily accessed from the trunk should one **** the bed.
