    Hello -

    Is there any reproduction woodgrain that looks correct for the dash in the GTX ?

    I have seem some and they are WAY WRONG.

    I am pretty sure that trying to find NOS is a impossibility. Unless someone out there has a set squirreled away somewhere.. :)


    Any suggestions would be greatly appreciated.

    Bill

  2. kiwigtx

    kiwigtx International Mod Staff Member FBBO Gold Member

    Messages:
    18,119
    Likes Received:
    31181
    Joined:
    Jun 12, 2012
    Location:
    Tomorrow, NZ
    Local Time:
    6:21 PM
    Whatever you do, do NOT buy the repro stuff from Year One. Fitment is not even close.
    They never replied to my complaint either - shocking behaviour really.

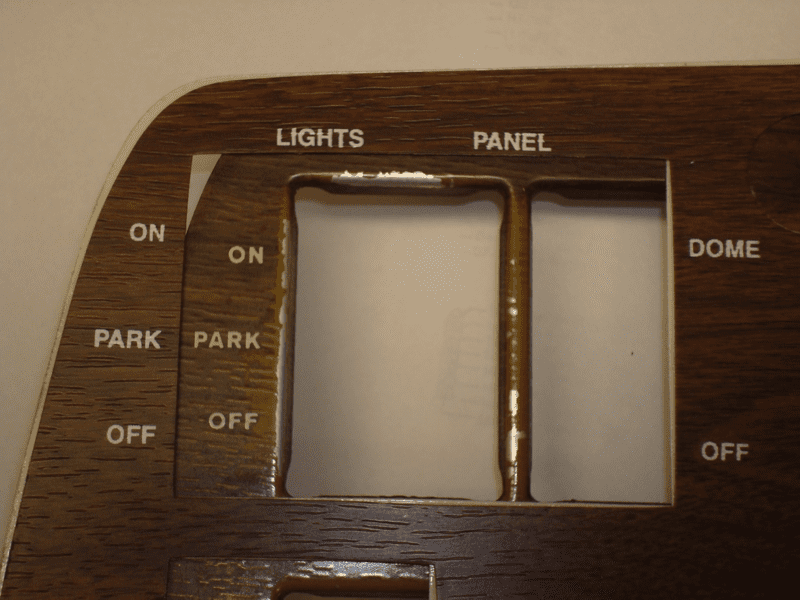

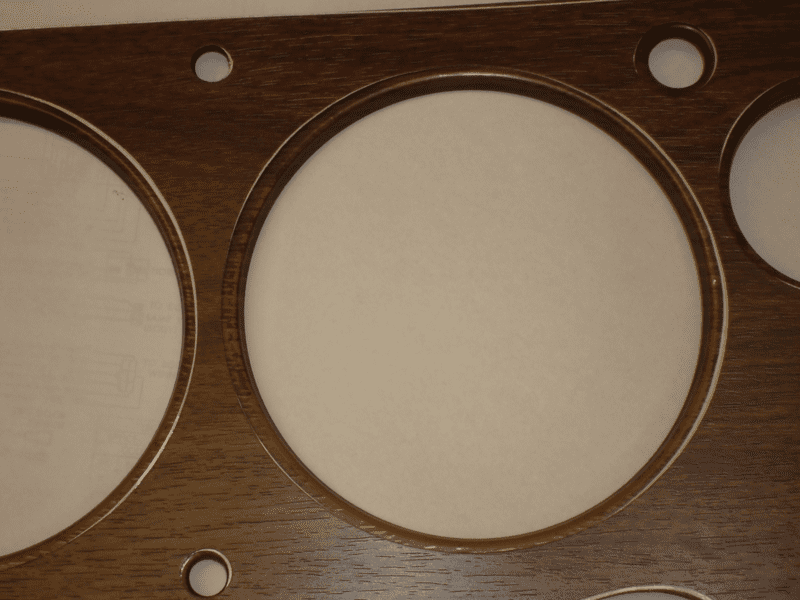

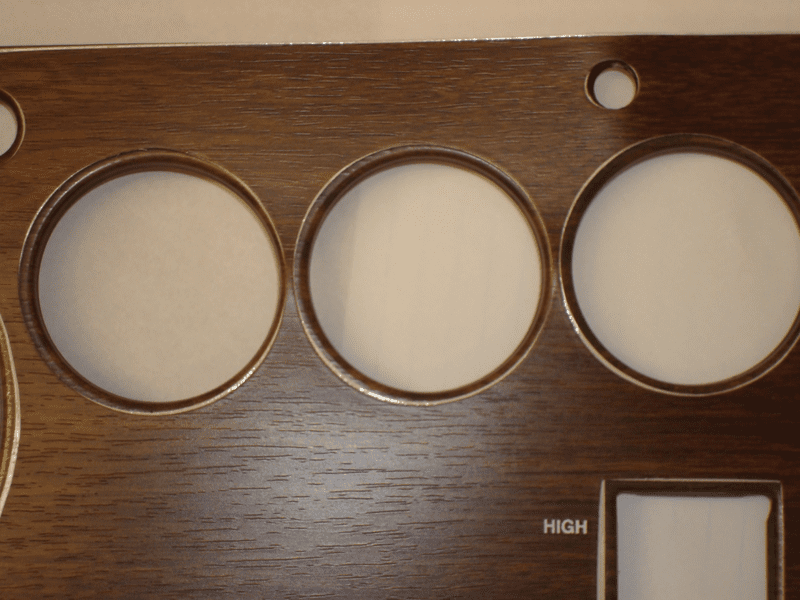

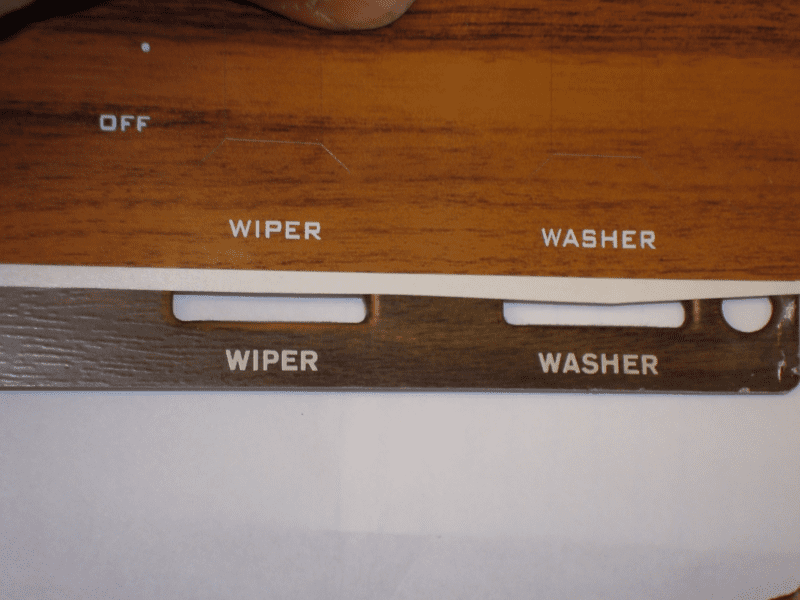

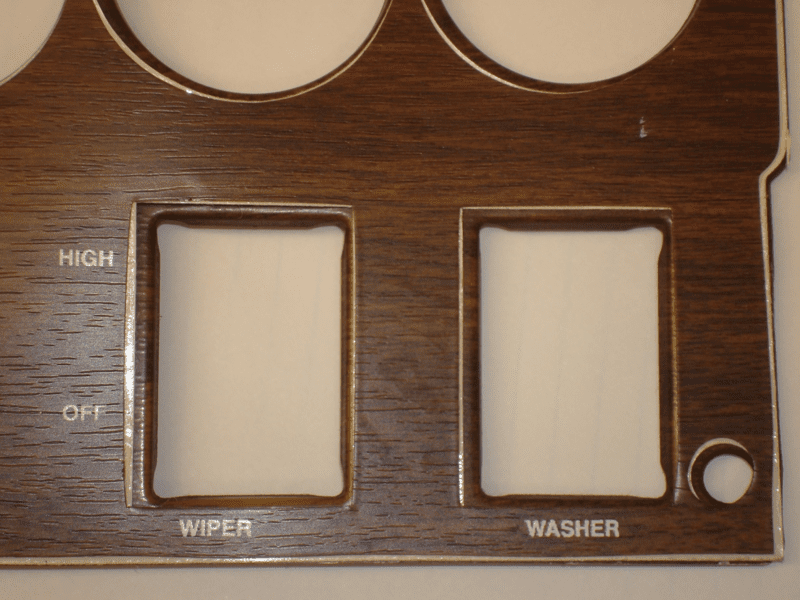

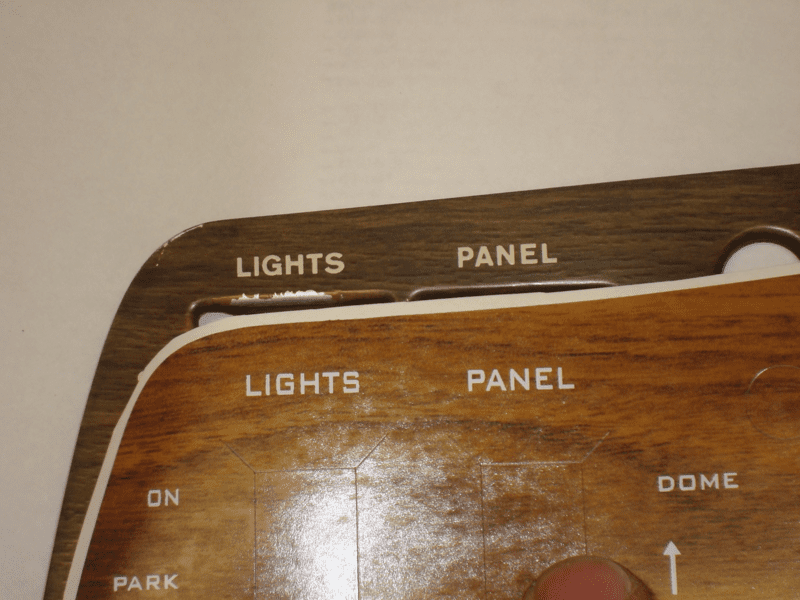

    The grain and finish is close....but the Font is terrible, and the material does not wrap around the inside of the holes for the switches & gauges....

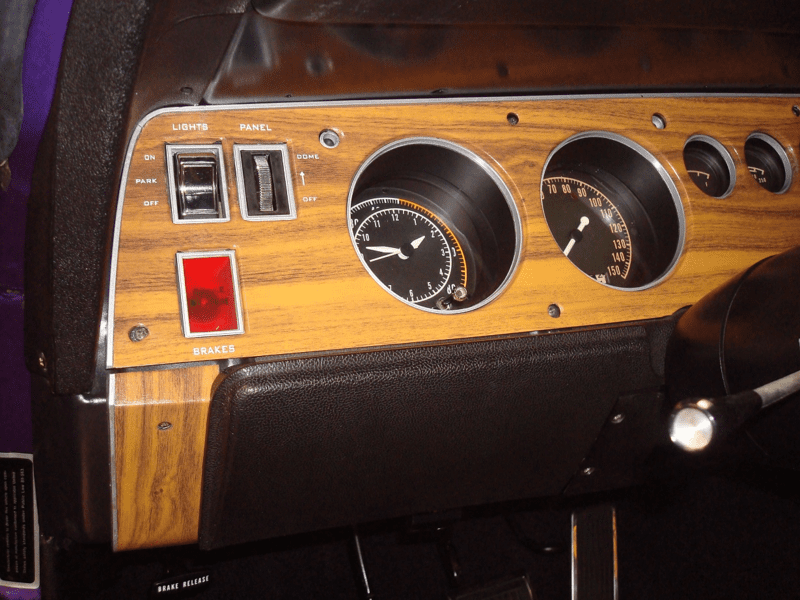

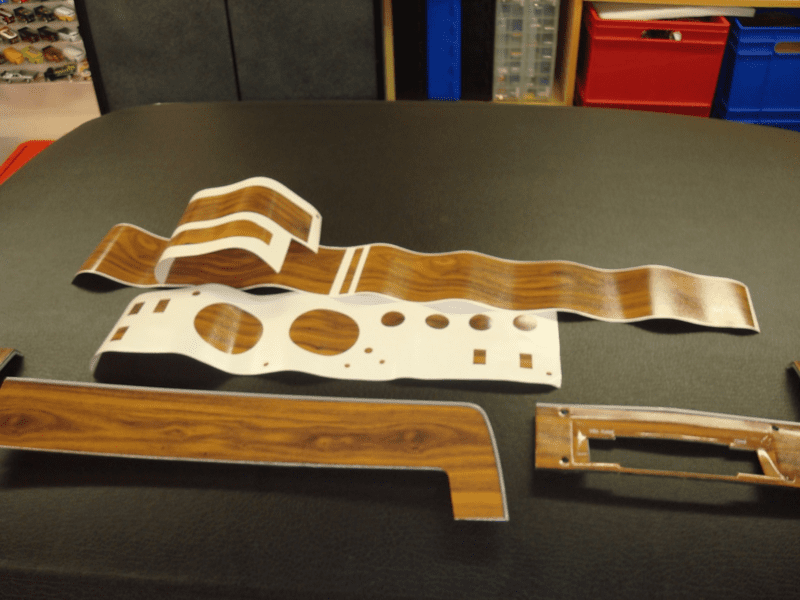

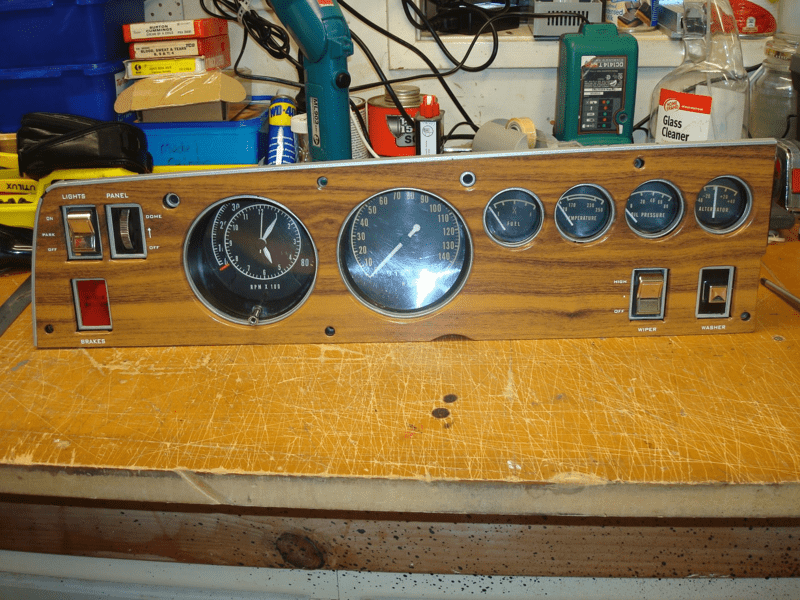

    I ended up using an adhesive set from White Gauges.....
    http://www.whitegauges.net/products/1968%2d1970-B-Body-Rally-Instrument-Cluster-Dash-Bezel-Resurfacing-Kit.html

    While not original or close to OE....they fit nice and the font is close to original. You get to choose from 3 x different colour finishes also....






    • Like Like x 2
    • moparnation74

      moparnation74 FBBO Gold Member FBBO Gold Member

      Messages:
      10,467
      Likes Received:
      17585
      Joined:
      Mar 27, 2014
      Location:
      OHIO
      Local Time:
      11:21 PM
      • Thanks! Thanks! x 1
      • JimCoronette

        JimCoronette Well-Known Member

        Messages:
        281
        Likes Received:
        309
        Joined:
        Oct 30, 2018
        Location:
        Cold Spring, NY
        Local Time:
        12:21 AM
      • 72ls5fla

        72ls5fla Member

        Messages:
        11
        Likes Received:
        0
        Joined:
        Nov 2, 2019
        Location:
        Tallahassee, FL
        Local Time:
        12:21 AM
        I was by his place last week talking to him about the repro panels ...
        not lots of good news.

        Ideally a set of OEM woodgrains in very nice shape
        or I will just pay for NOS - the car deserves OEM/NOS parts... LOL

        Thanks for all the great feedback and ideas!

        Bill

      • moparnation74

        moparnation74 FBBO Gold Member FBBO Gold Member

        Messages:
        10,467
        Likes Received:
        17585
        Joined:
        Mar 27, 2014
        Location:
        OHIO
        Local Time:
        11:21 PM
        To bad Dave didn't have any viable option and that makes it very challenging...

        NOS would be near impossible...Sometimes the NOS is either different from the "factory line" part or due to age/storage may not be the best as well......Never say never, sometimes one can get lucky.......I would cringe at the idea of price price for a complete NOS set in nice shape if found....

        Since the car deserves NOS/original parts....Post some pics of this car...Being a "true" OE car junkie as myself. I would enjoy to see some pics....

        • Agree Agree x 2
        • 72ls5fla

          72ls5fla Member

          Messages:
          11
          Likes Received:
          0
          Joined:
          Nov 2, 2019
          Location:
          Tallahassee, FL
          Local Time:
          12:21 AM
          Will try to get some pictures ..
          The reason I want OEM or NOS is just because of what it is ..
          the car was a MESS - needed some metal work etc.. but it did sit for a very long time at one place.

          not a whole lot of 440+6, 4spd, 4.10 dana GTXs floating around.
          also N96 Air Grabber too.

          has orig fender tag, dash vin plate and numbers on the core support and trunk lip.

          this one was no vinyl top and was ordered with no hood treatment.
          and surprisingly was ordered with hood pins but factory did not install (orig hood no cutouts and nothing on the fenders.)

          otherwise - all standard GTX options ( nothing fancy like PW, rear def, leather .....).

        • kiwigtx

          kiwigtx International Mod Staff Member FBBO Gold Member

          Messages:
          18,119
          Likes Received:
          31181
          Joined:
          Jun 12, 2012
          Location:
          Tomorrow, NZ
          Local Time:
          6:21 PM
          :xscuseless:

        • moparnation74

          moparnation74 FBBO Gold Member FBBO Gold Member

          Messages:
          10,467
          Likes Received:
          17585
          Joined:
          Mar 27, 2014
          Location:
          OHIO
          Local Time:
          11:21 PM
          Your preaching to the choir about NOS/OE parts.........Thats ALL I deal with.....Reproduction parts are junk.......

          Not a whole lot of GTX's period floating around of any options......I would just like to see some pics.....

          So I take it the original drivetrain is gone?

        • 72ls5fla

          72ls5fla Member

          Messages:
          11
          Likes Received:
          0
          Joined:
          Nov 2, 2019
          Location:
          Tallahassee, FL
          Local Time:
          12:21 AM
          Dana and 4spd transmission ORIG
          car built 10/8/69
          engine is a early dated 440HP block, has all the factory parts (crank, rods, pistons, heads, intake, carbs, distributer etc..)
          top pad is never been messed with , but side pad for VIN is clean/unstamped.
          Im sure its been replaced - but when I couldn't say.

        • moparnation74

          moparnation74 FBBO Gold Member FBBO Gold Member

          Messages:
          10,467
          Likes Received:
          17585
          Joined:
          Mar 27, 2014
          Location:
          OHIO
          Local Time:
          11:21 PM
          An early 70 build....cool...

          The Dana more than likely is original. An easy check is to look at the dates on the carrier assembly and ring gear....

          Sounds like the typical 6 pack car......Someone blew the motor and the engine got replaced at some point.....So the dates on the heads, intake and carbs coincide with the build date?......If so it may have been a warranty replacement short block etc....Even though the original motor is gone sounds like a very interesting car.....Waiting for pics, no Rush...lol
