I am working on restoring the dash on my FM3 1970 Satellite convertible. the cluster was removed and much of the dash hardware was missing when I got the car. Today's dilemma is related to how the low dash panel bracket attaches to the cluster.

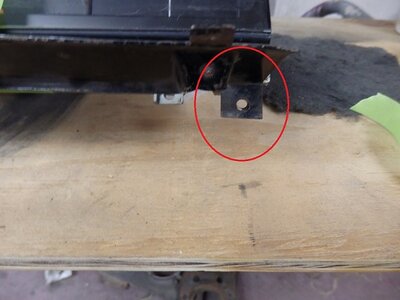

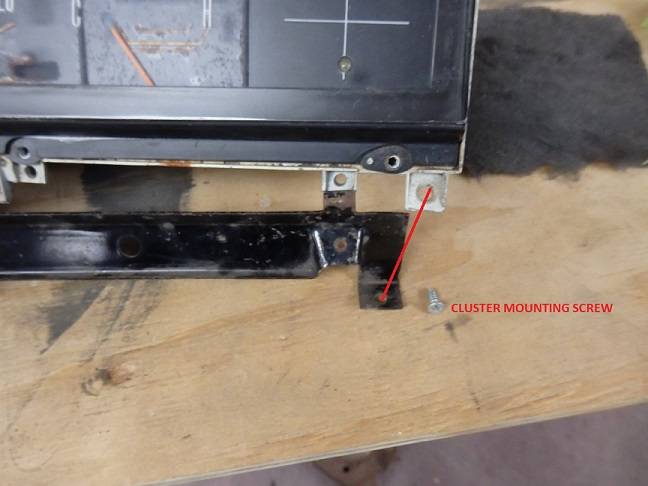

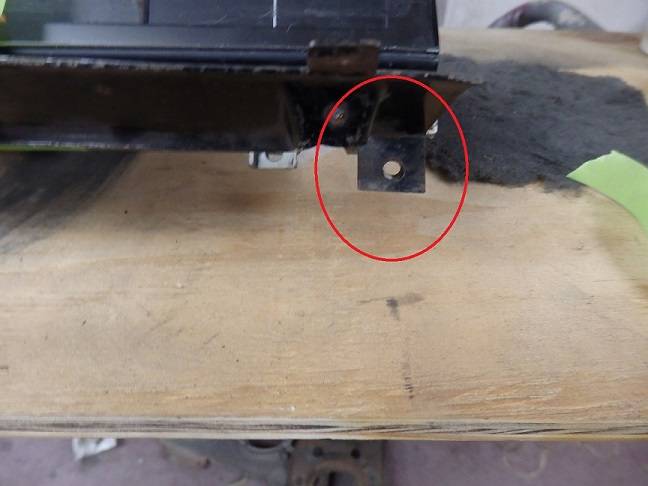

The cluster is attached to the frame using flat head screws (I have only 3 of the 7 or 8 I need). The bracket attaches to the face of the cluster. 3 of the screws are obvious as they screw directly to the cluster. The bottom right corner one is not as it appears to be screwed through the cluster to a clip on the frame ?? I am not sure what is supposed to go there. In the picture I show one of the flat head screws that hold the cluster in for reference. Can anyone post a picture of what holds the bracket in place ?
thanks
Chris
