1970 super bee 440 manual driveshaft length???

[Jimclo2002]

I need a little help. can someone tell me for a 1970 super bee 440 Six pack, 4 speed manual. what is the correct driveshaft length???
Thank you for the help in advance



[thomas patti]

I need a little help. can someone tell me for a 1970 super bee 440 Six pack, 4 speed manual. what is the correct driveshaft length???
Thank you for the help in advance

jim,patti.driveshaft is 3.25 diameterX44.60 cl to cl of u-joint,patti



[68GTX4SPEED]

1970 Dodge B-body manuell Dana 60 is C/C U-joints 50.96".



[Lionized]

1970 Dodge B-body manuell Dana 60 is C/C U-joints 50.96".

Is that manual or automatic transmission?



[Jimclo2002]

jim,patti.driveshaft is 3.25 diameterX44.60 cl to cl of u-joint,patti

Thank mr Tom

Is that manual or automatic transmission?

Manual



[thomas patti]

Is that manual or automatic transmission?

MANUAL,THX



[Garys1969RR]

We changed the transmission in my sons 1970 Super Bee from 4 speed to automatic, (he kept going thru clutches) and the driveshaft from the 4 speed worked in the auto too. I'm pretty sure it's the same length in 383 or 440 equipped cars.



[thomas patti]

We changed the transmission in my sons 1970 Super Bee from 4 speed to automatic, (he kept going thru clutches) and the driveshaft from the 4 speed worked in the auto too. I'm pretty sure it's the same length in 383 or 440 equipped cars.

GARY,PATTI. MY BOOKWORK CALLS F/`70-71 B BOODY AS PT#2883667,3.25 DIA.,44.60,9.75 AXLE. also,pt#2883775, f/`70-`71,3.25 dia,42.60,9.75 axle. hope this helps,patti



[Jimclo2002]

Hi Mr Patti

I measured the drive shaft that came with the 1970 super bee I purchased from you it measured 49 7/8
Jim



[thomas patti]

Hi Mr Patti

I measured the drive shaft that came with the 1970 super bee I purchased from you it measured 49 7/8
Jim

jim,patti. did not have the correct one. can have this one shortened and u r good,thx



[Fran Blacker]

I've have a driveshaft from a 68 GTX 4 speed Dana 60 laying around it's 50 1/2" With 7290 u-joints. Just removed it from my car when I changed it back to an 8.75" rear. Any help?



[Jimclo2002]

440 with a 4 speed , w/Dana rear
What is the correct length center to center u joints?



[Fran Blacker]

Found this on DodgeCharger.comForum



[Fran Blacker]

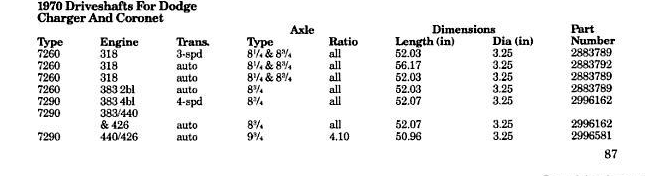

Got this on another dodge Charger website. 1970 Coronet/Super Bee.

oops thought it didn't post



[Lionized]

440 with a 4 speed , w/Dana rear
What is the correct length center to center u joints?

50.96" with 9.75
52.07" with 8.75



[68GTX4SPEED]

Is that manual or automatic transmission?

Doesn't matter but all 440 six-pack with manuell came with a Dana 60 from factory, all with 9 3/4 Dana are same, the difference between Dana 60 and a 8 3/4 is 1.14".
