Thanks for all the info.

my dash cluster is the SE, so it is different. I drew a diagram of it as I took it apart. I replaced all the bulbs and the flasher relay while I was in there. I think I have it pretty much ready to go back in, but I’m going to have to wait for my wife to help. Getting the dash back in is a bear. I also have a torn labrum in my right shoulder, so it just isn’t going to happen with one wing.
I guess I will see how it goes when I wire it back up. I’ll let y’all know.


Swamp Ape

Well-Known Member
Local time
12:01 AM
Joined
Aug 29, 2021
Messages
78
Reaction score
64
Location
SE Georgia
Well, I got the dash in and got her all connected. Connected the battery and waited to see smoke, sparks and flames. There was nothing to note, so I tried to fire her up and she started right up. I let it idle for a bit and monitored the situation. No noticeable issues, so that’s good. I still need to connect the accessories and put the rest of the bolts in the dash and steering wheel. Crossing my fingers that will go well.

Thanks for getting me this far


Nacho-RT74

FBBO Gold Member
FBBO Gold Member
Local time
6:01 AM
Joined
Oct 8, 2012
Messages
5,358
Reaction score
1,953
Location
Valencia, España
I don't get it.. dash cluster is SE? So is the round gauges? That's actually called Rallye cluster ( even it was installed on SEs too ). Standard cluster is called the rectangular speedo :)

Good to know everything seems to be working now.


Swamp Ape

Well-Known Member
Local time
12:01 AM
Joined
Aug 29, 2021
Messages
78
Reaction score
64
Location
SE Georgia
I don't get it.. dash cluster is SE? So is the round gauges? That's actually called Rallye cluster ( even it was installed on SEs too ). Standard cluster is called the rectangular speedo :)

Good to know everything seems to be working now.

I have a bunch to learn about the nuances of the different options that were available on these cars. I guess that comes with time.


Nacho-RT74

FBBO Gold Member
FBBO Gold Member
Local time
6:01 AM
Joined
Oct 8, 2012
Messages
5,358
Reaction score
1,953
Location
Valencia, España
sure, not a problem

there are 4 cluster ( we can call 5 maybe ? ) options for all 71/74

Standard:


Standard without woodgrain ( just a bezel diff )



Rallye, three of them

Basic:

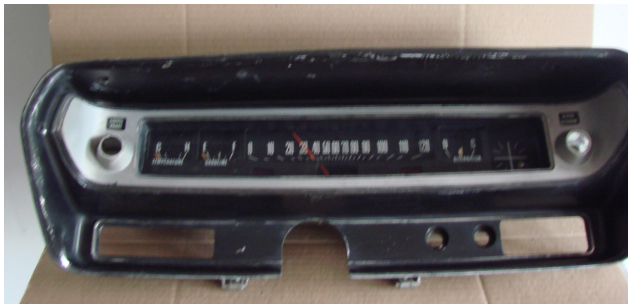

71-74-b-body-rallye-cluster-5-jpg.276799


with clock:

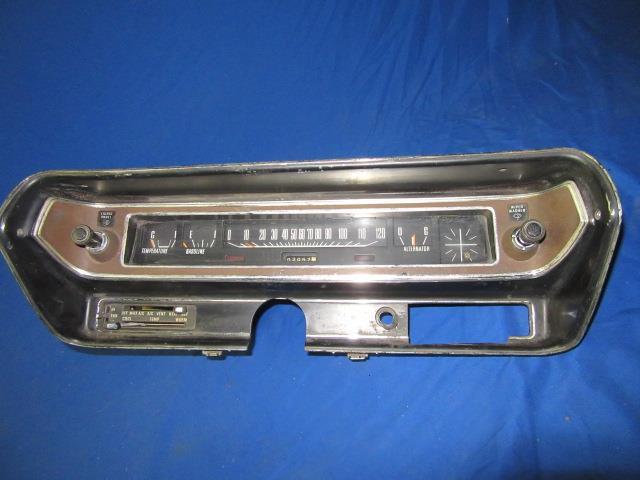

71-74-ralley-cluster-clock-jpg.291416


with tach ( same than clock but the tach in place of the clock )
1971-cluster-1-jpg.212608


I can provide a lot of details more, such as which gauges interchange between them ( i.e.: small gauges on the Rallye versions changes ), bezels, lenses, 120 vs 150 speedos on Rallye clusters depending on year and setup etc... but these pretty much sums all the important things


Swamp Ape

Well-Known Member
Local time
12:01 AM
Joined
Aug 29, 2021
Messages
78
Reaction score
64
Location
SE Georgia
sure, not a problem

there are 4 cluster ( we can call 5 maybe ? ) options for all 71/74

Standard:


Standard without woodgrain ( just a bezel diff )



Rallye, three of them

Basic:
71-74-b-body-rallye-cluster-5-jpg.276799


with clock:
71-74-ralley-cluster-clock-jpg.291416


with tach ( same than clock but the tach in place of the clock )
1971-cluster-1-jpg.212608


I can provide a lot of details more, such as which gauges interchange between them ( i.e.: small gauges on the Rallye versions changes ), bezels, lenses, 120 vs 150 speedos on Rallye clusters depending on year and setup etc... but these pretty much sums all the important things

Thanks again. That is all really good info.
