1972 Plymouth Satellite Tesla Swap

Member's Projects & Restorations

  1. 72SatelliteLEO

    72SatelliteLEO Well-Known Member

    Messages:
    51
    Likes Received:
    112
    Joined:
    Sep 6, 2016
    Location:
    Denver, Colorado
    Local Time:
    3:21 AM
    Finally began working on my 72 Satellite. I have had the car for two years and took a long time to decide on what direction I wanted to go with the car. I considered making the original 318 a turbo stroker, or a 400 big block (Turbo of course), Turbo Gen III Hemi, Hellcat, Hellephant, or Tesla Ludicrous.

    I have a Turbo 340 Dart I built a while back and love everything about it, See the build Here: https://www.forabodiesonly.com/mopar/threads/1969-dart-gt-340-efi-e85-turbo-build.278468/

    Instead of making another car just like the Dart, I decided on the Tesla Swap. This is a steep uphill learning curve, and I set rules for my builds. Must be a turnkey street car with ability to cruise, tour, track, and show. I know this is not going to be popular with everyone, but as least it is not an LS :)

    Here are some specs of the Tesla Swap:

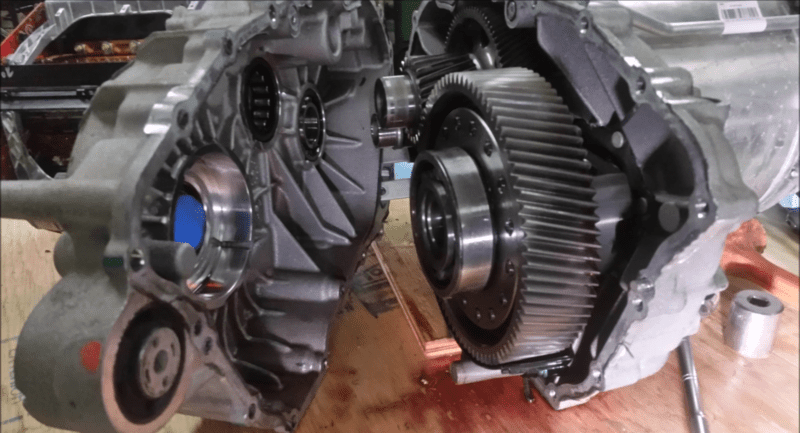

    Full Tesla Model S subclip including independent suspension, brakes, halfshafts, motor, inverter, limited slip differential
    Motor is a Ludicrous drive unit capable of 636 horsepower at 400 volts / 1400 Amps
    Torque at the half shafts can exceed 4,000ft/lbs.
    16,000 RPM
    Battery will be a full 90kwh Tesla battery pack and should put range over 200 miles of normal driving .
    Charging will be CCS, capable of 110, 220, and fast DC charging.

    Here is a video slideshow of the project so far:


    • Like Like x 8
    • rolling_Thunder

      rolling_Thunder Well-Known Member

      Messages:
      736
      Likes Received:
      263
      Joined:
      Jul 19, 2008
      Location:
      Los Angeles, CA
      Local Time:
      3:21 AM
      Would really like to see how this works out - I've been interested in doing a Tesla powertrain swap into a classic for giggles

    • Photon440

      Photon440 FBBO Gold Member FBBO Gold Member

      Messages:
      10,936
      Likes Received:
      11476
      Joined:
      Mar 14, 2012
      Location:
      Surrey, B.C. Canada
      Local Time:
      3:21 AM
    • 71SandbugCharger

      71SandbugCharger FBBO Gold Member FBBO Gold Member

      Messages:
      719
      Likes Received:
      647
      Joined:
      Jun 5, 2012
      Location:
      California
      Local Time:
      3:21 AM
      It looks awesome and I can’t wait for a better connection to watch the video! Wondering, are you going to add a speaker for the exhaust sounds we all expect and desire??

      • Like Like x 1
      • Stanton

        Stanton Well-Known Member

        Messages:
        2,742
        Likes Received:
        2634
        Joined:
        Aug 8, 2012
        Location:
        ON
        Local Time:
        6:21 AM
        Pretty cool swap !! So where does the motor actually sit ??

      • 72SatelliteLEO

        72SatelliteLEO Well-Known Member

        Messages:
        51
        Likes Received:
        112
        Joined:
        Sep 6, 2016
        Location:
        Denver, Colorado
        Local Time:
        3:21 AM
        Me too, been waiting for batteries to get up to speed.

        That is going to be a beast, I say keep pushing the power limits...swaps are going to get really interesting as time goes on.

        I think speakers are a good idea when going slow near people. Might as well make it sound rowdy.

        The motor is part of the rear subframe/suspension. Almost like a diff in an independent rear setup. It will all fit where the axle was. Hope to get my motor soon and I will make another video.

        • Like Like x 1
        • Stanton

          Stanton Well-Known Member

          Messages:
          2,742
          Likes Received:
          2634
          Joined:
          Aug 8, 2012
          Location:
          ON
          Local Time:
          6:21 AM
          So what about all the electronics to run that thing, is that simple enough to move over? I'm thinking of guys doing Hellcat swaps and they have to swap over just about everything but the washer bottle !!

        • 72SatelliteLEO

          72SatelliteLEO Well-Known Member

          Messages:
          51
          Likes Received:
          112
          Joined:
          Sep 6, 2016
          Location:
          Denver, Colorado
          Local Time:
          3:21 AM
          I am trying to go aftermarket on most everything to make it universal. The motor was purchased from Stealth EV who swapped out the Tesla control board in the inverter for their own. Kind of like using a Holley Terminator on a Hellcat. This will allow adjustments such as power output, regen, etc, to be made from a phone. I am also planning on using a display/controller from Polykup.com, which will allow onscreen adjustments and monitoring. The battery management system will be an Orion 2 96 cell balancer with canbus that will communicate to a 6.6kw charger/DC-DC converter.

          • Like Like x 1
          • Kern Dog

            Kern Dog FBBO Gold Member FBBO Gold Member

            Messages:
            20,753
            Likes Received:
            53551
            Joined:
            Apr 13, 2012
            Location:
            Granite Bay CA
            Local Time:
            3:21 AM
            No.

            • Agree Agree x 1
            • 72SatelliteLEO

              72SatelliteLEO Well-Known Member

              Messages:
              51
              Likes Received:
              112
              Joined:
              Sep 6, 2016
              Location:
              Denver, Colorado
              Local Time:
              3:21 AM
              Ok, changed my mind, thanks for the input...lol

              • Like Like x 5
              • flypaper

                flypaper Well-Known Member

                Messages:
                16,870
                Likes Received:
                26922
                Joined:
                Jul 17, 2008
                Local Time:
                6:21 AM
                Interesting
                Keep us posted

                • Agree Agree x 2
                • plymouthman72

                  plymouthman72 Well-Known Member

                  Messages:
                  703
                  Likes Received:
                  558
                  Joined:
                  Dec 3, 2013
                  Location:
                  Dallas-Fort Worth
                  Local Time:
                  5:21 AM
                  This looks like a super cool build. I know several people are speculating that EV's will eventually take over the auto industry (I think there is a thread on it here too). I have my doubts but this could be a blue print to keep our cars up with the future of technology. I can't wait to see the progression of this car.

                  • Agree Agree x 1
                  • 72SatelliteLEO

                    72SatelliteLEO Well-Known Member

                    Messages:
                    51
                    Likes Received:
                    112
                    Joined:
                    Sep 6, 2016
                    Location:
                    Denver, Colorado
                    Local Time:
                    3:21 AM
                    New autos are definitely going more electric, and there are many aftermarket options showing up. I have been talking about doing this for some time, and I have seen a dozen or so other vehicles Tesla swapped. They are fast and kind of cool, but not Mopar Muscle cool.
                    I have done many other builds and although I love forced induction, and loud engines, I wanted to try something new.
                    I had to come up with a lot of pros to outweigh missing out on classic Mopar sound, turbos, and modern Hemi technology. Here is what I have come up with:
                    • American made.
                    • All the torque from 0 to 16,000 RPM.
                    • No turbo lag
                    • I live in Denver and EV's are faster at altitude
                    • Independent rear suspension.
                    • 50/50 weight balance.
                    • Easier to find a charge station than E85
                    • Always ready to roll with a full charge from home.
                    • Nothing to leak on floor (probably)
                    • Stealthy quiet when I come home late from Mexico.
                    • No emissions from car for my wife to dislike.
                    • Ability to run on every fuel known to man.
                    • Get to watch people get worried when they think I'm icing their charge station with a fat stinky Mopar.
                    • Haven't seen one yet

                    Last edited: Nov 18, 2019
                    • Like Like x 4
                    • Thanks! Thanks! x 1
                    • Migsbig

                      Migsbig Well-Known Member

                      Messages:
                      712
                      Likes Received:
                      266
                      Joined:
                      Oct 19, 2009
                      Location:
                      San Jose,CA
                      Local Time:
                      5:21 AM
                      Seems like an interesting build and hope you the best of luck with it. I do have my concerns/questions about it though.
                      If the motor output is increased, will that affect the amount of miles you can travel between charges?
                      How experienced are you with electronics and wiring? Figuring out the transmission functions with that could be challenging.
                      Will you be buying a ‘skate’ for the chassis or splicing a Doner vehicle?
                      Have you calculated the battery weight and size to the location of the car to get the 50/50 balance?
                      How will it be insured? Not sure if a standard insurance company will cover a custom build of a car that is extensively modified.

                      Overall it is a different build and can see it being fun when it’s done. Fingers crossed that you don’t have too many issues with the build.

                    • 72SatelliteLEO

                      72SatelliteLEO Well-Known Member

                      Messages:
                      51
                      Likes Received:
                      112
                      Joined:
                      Sep 6, 2016
                      Location:
                      Denver, Colorado
                      Local Time:
                      3:21 AM
                      I'll do my best here to answer your questions.

                      Motor output will affect range exactly as a gas motor would. If you give it more pedal, you will get less range. There are no modifications to the Tesla Ludicrous motor that I want to do right now. I doubt the car will have enough traction to even load the motor to it's max output.

                      I have been wiring more than my fair share my whole life. As far as electric cars go, it is like a giant high voltage stereo install. This is my un-terminated EFI install.

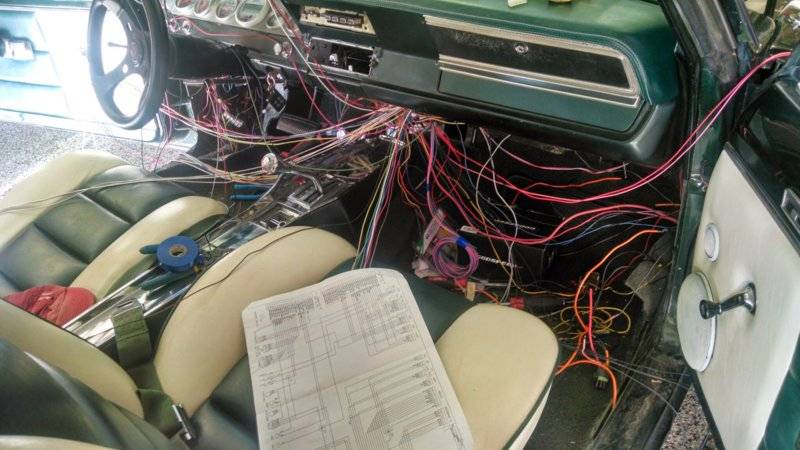

                      Dart EFI wiring.jpg

                      No transmission, just a single speed differential.

                      No skate, or splicing...Just fitting the Model S subframe where the axle was. It is 4 large mounting points just like the front K-member and houses the motor, inverter, and differential.
                      IMG_20191111_154905.jpg IMG_20191111_142048.jpg

                      Battery consists of 16 modules that weigh 55lbs each. They can be placed anywhere in the car, but for packaging I will probably group 12 under the hood and 4 in the rear. The motor in the rear of the car needs to be offset with battery weight in the front.
                      I assume I can get Hagerty insurance, have not called them yet.

                      I think issues come with every build, just have to overcome them.

                      Last edited: Nov 21, 2019
                      • Like Like x 4
                      • chtampa

                        chtampa FBBO Gold Member FBBO Gold Member

                        Messages:
                        1,997
                        Likes Received:
                        2397
                        Joined:
                        Nov 24, 2013
                        Location:
                        Tampa, FL
                        Local Time:
                        6:21 AM
                        Outside speaker and a control unit that works off the the tach that varies the pitch.

                      • Migsbig

                        Migsbig Well-Known Member

                        Messages:
                        712
                        Likes Received:
                        266
                        Joined:
                        Oct 19, 2009
                        Location:
                        San Jose,CA
                        Local Time:
                        5:21 AM
                        Thanks for the info, I was super curious on that stuff. Hope it goes together well.

                      • flypaper

                        flypaper Well-Known Member

                        Messages:
                        16,870
                        Likes Received:
                        26922
                        Joined:
                        Jul 17, 2008
                        Local Time:
                        6:21 AM
                        Like it or not
                        This might be the only way to keep
                        One of these cars on the road in 30 years.
                        They are pushing for zero emissions
                        Cars here in about that time.:mad:
                        If I was in my 20's this would be something
                        I might want to explore.
                        I hope he pulls this off

                        • Agree Agree x 4
                        • Like Like x 1
                        • 72SatelliteLEO

                          72SatelliteLEO Well-Known Member

                          Messages:
                          51
                          Likes Received:
                          112
                          Joined:
                          Sep 6, 2016
                          Location:
                          Denver, Colorado
                          Local Time:
                          3:21 AM
                          Ok, here is an update on progress:

                          I have recieved all of the EV parts I will need, and I have mounted the motor/suspension. It will take a few posts to show all the pictures.

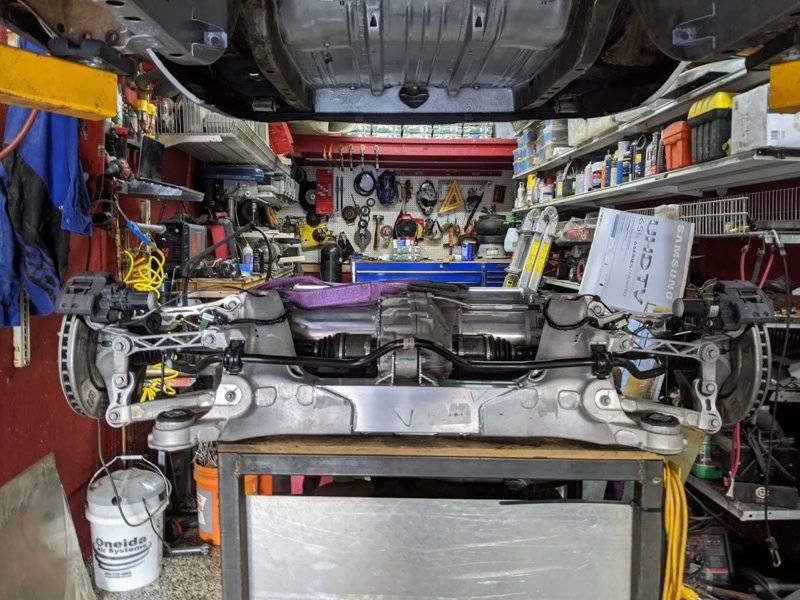

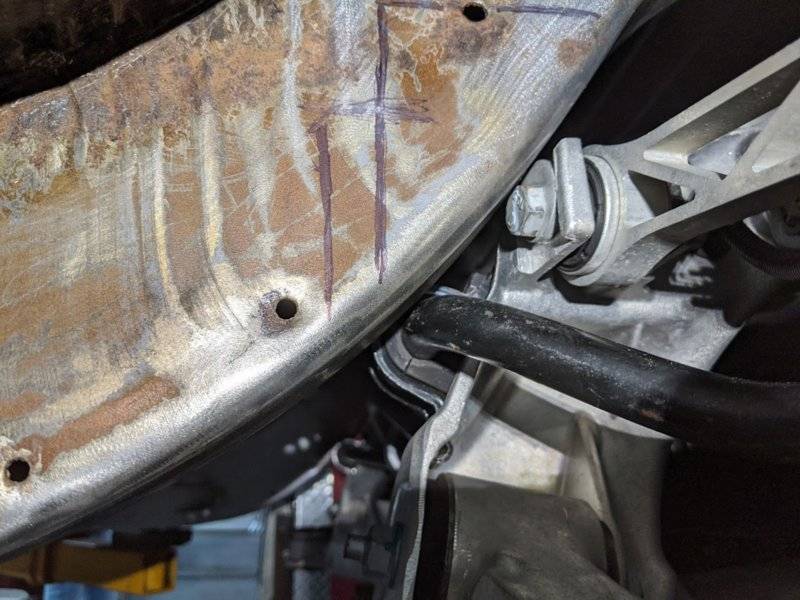

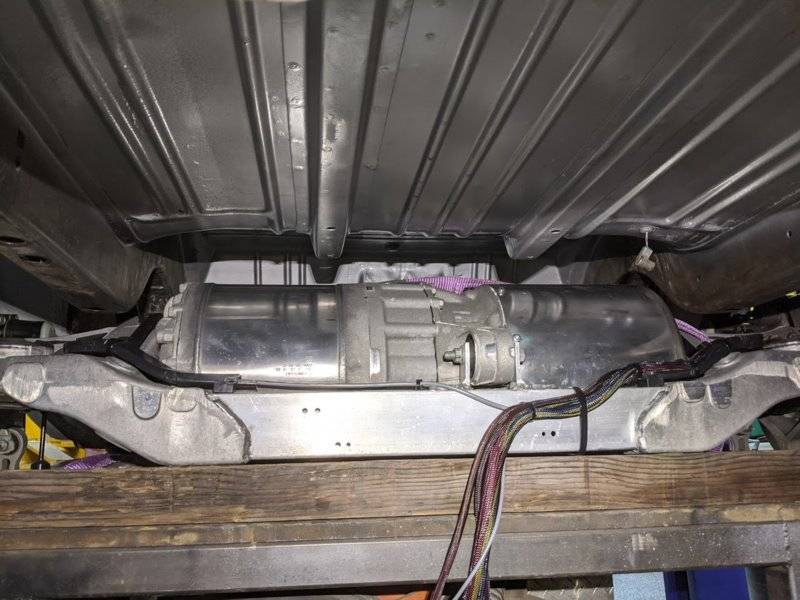

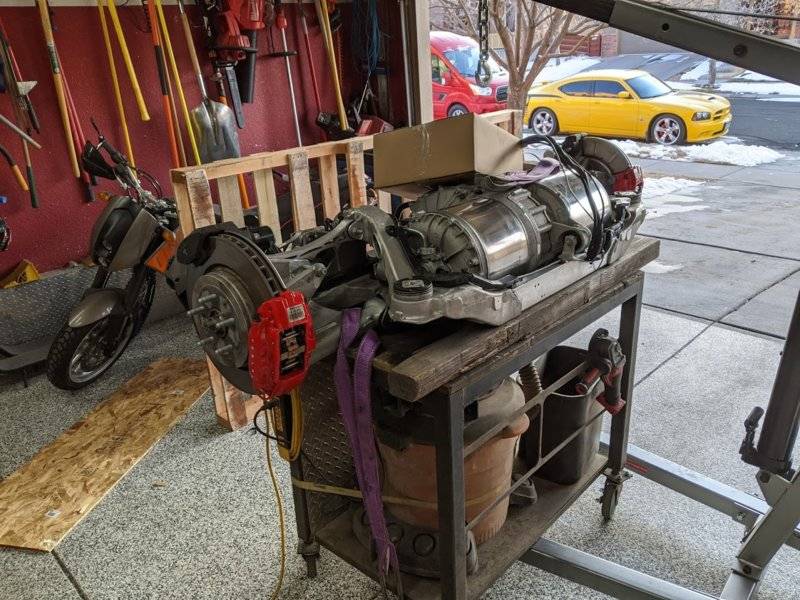

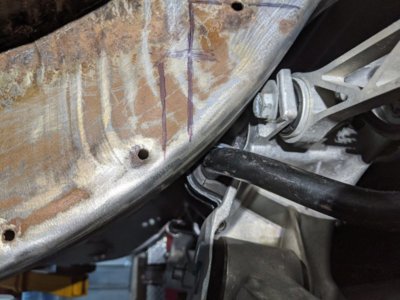

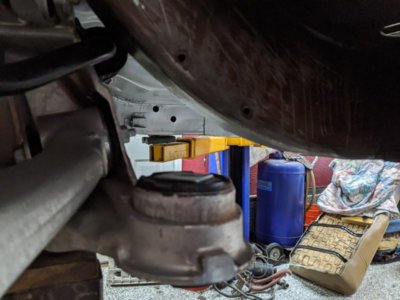

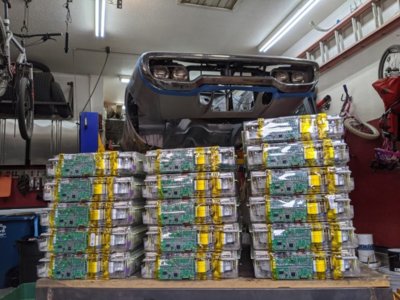

                          IMG_20200130_113705.jpg IMG_20200220_150940.jpg IMG_20200220_165352.jpg IMG_20200220_170030.jpg IMG_20200220_171904.jpg IMG_20200220_172300.jpg IMG_20200220_172358.jpg IMG_20200220_174427.jpg IMG_20200220_175353_01.jpg IMG_20200220_180512.jpg

                          • Like Like x 4
                          • 72SatelliteLEO

                            72SatelliteLEO Well-Known Member

                            Messages:
                            51
                            Likes Received:
                            112
                            Joined:
                            Sep 6, 2016
                            Location:
                            Denver, Colorado
                            Local Time:
                            3:21 AM

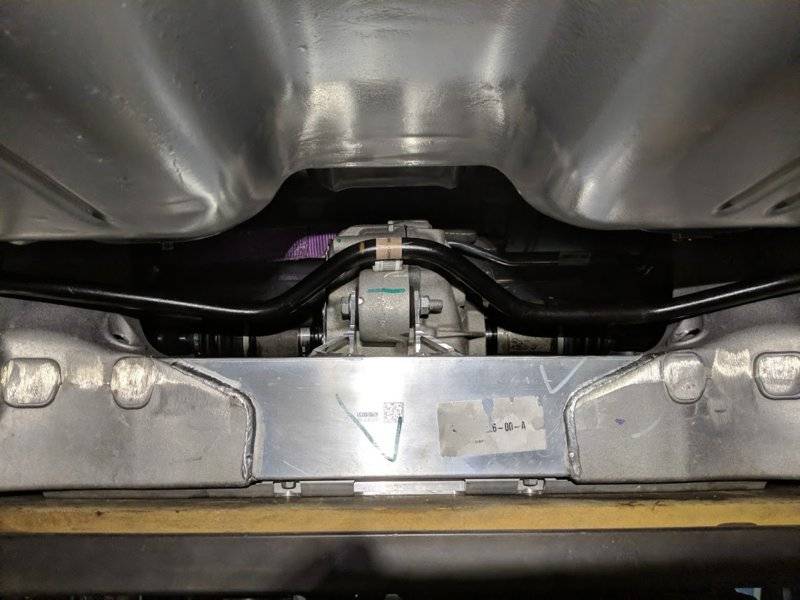

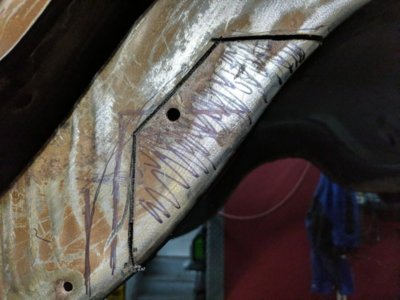

                            Fitting the motor into the car.

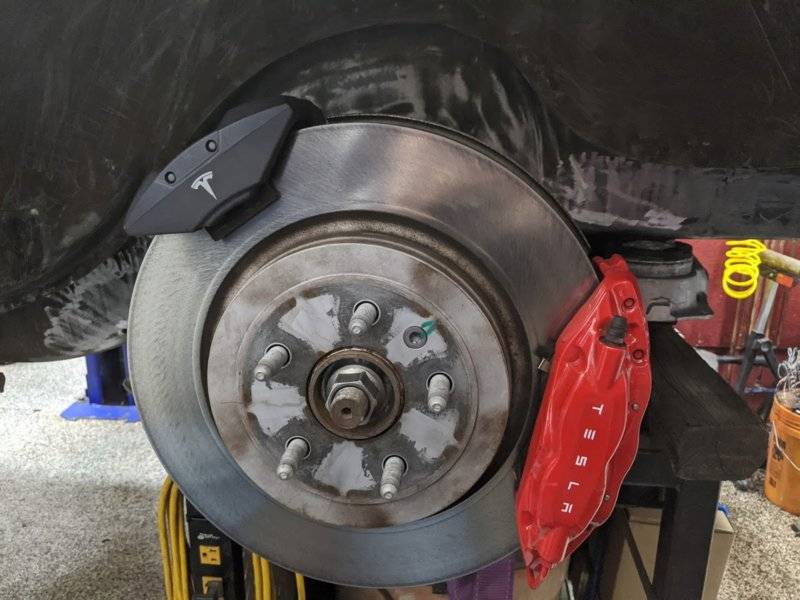

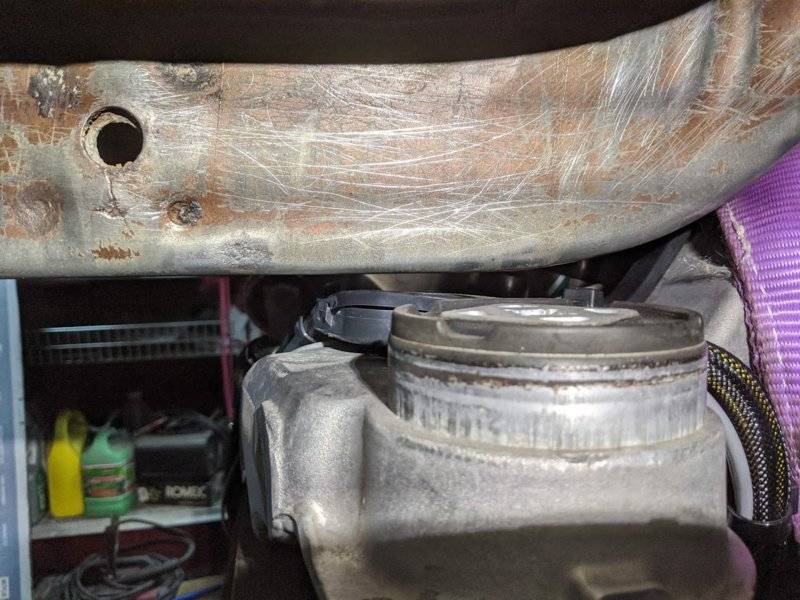

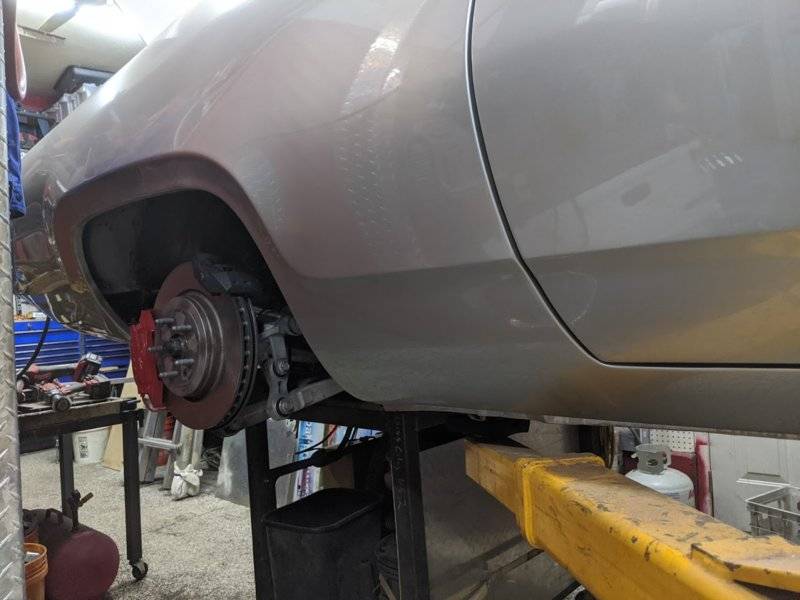

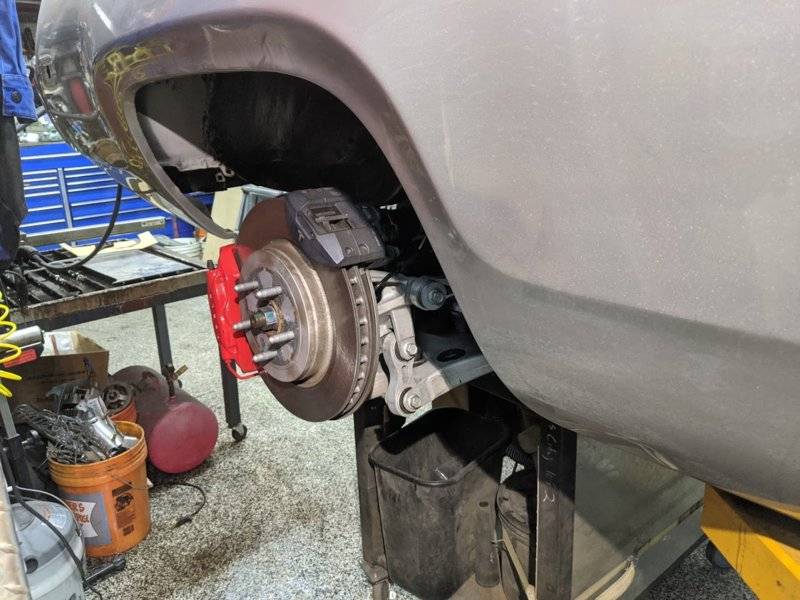

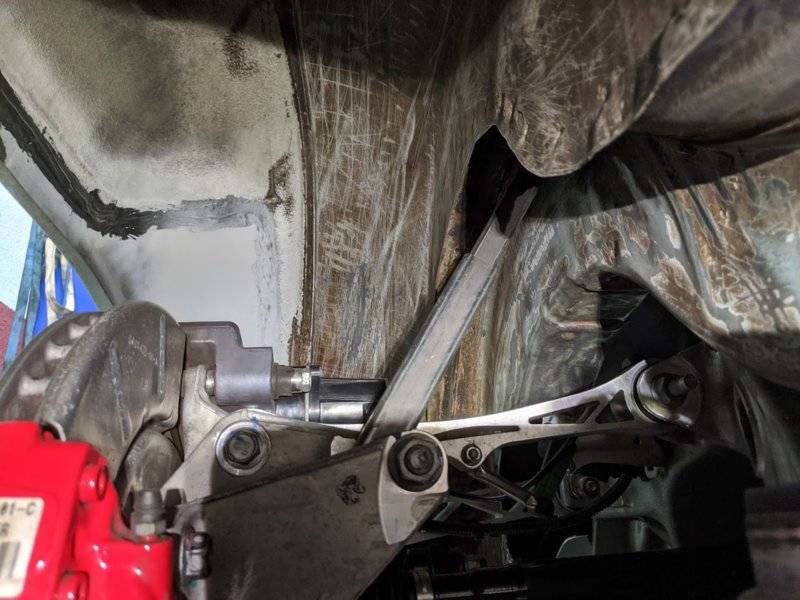

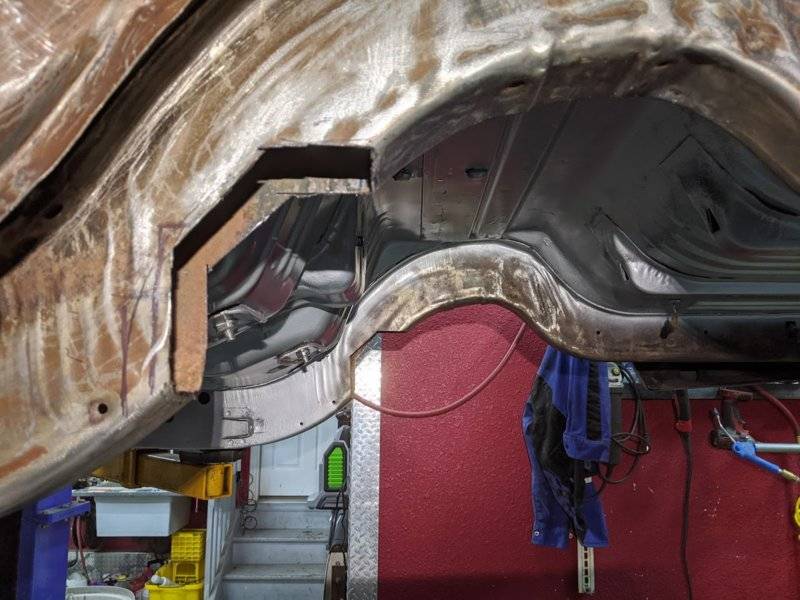

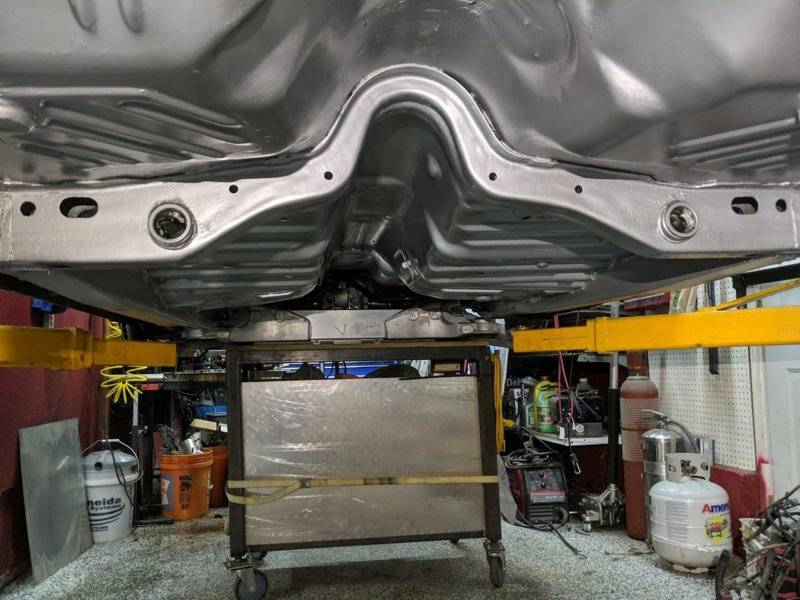

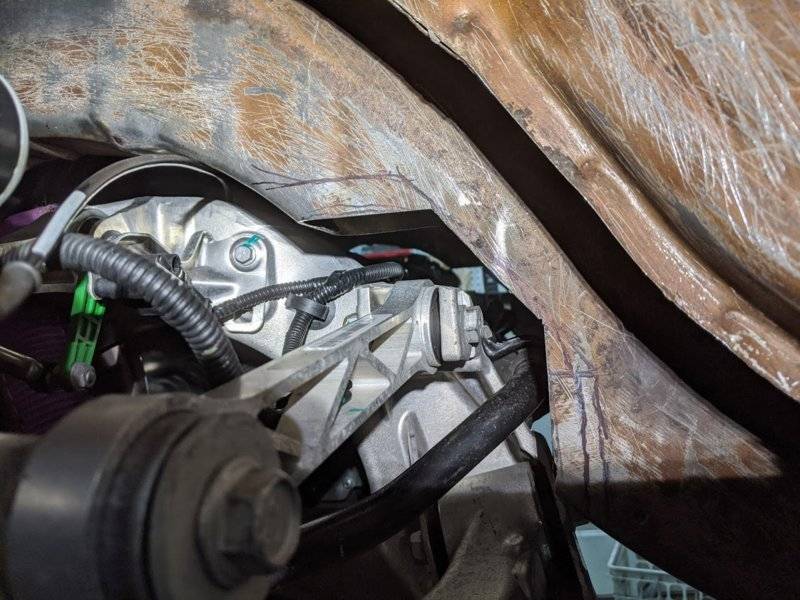

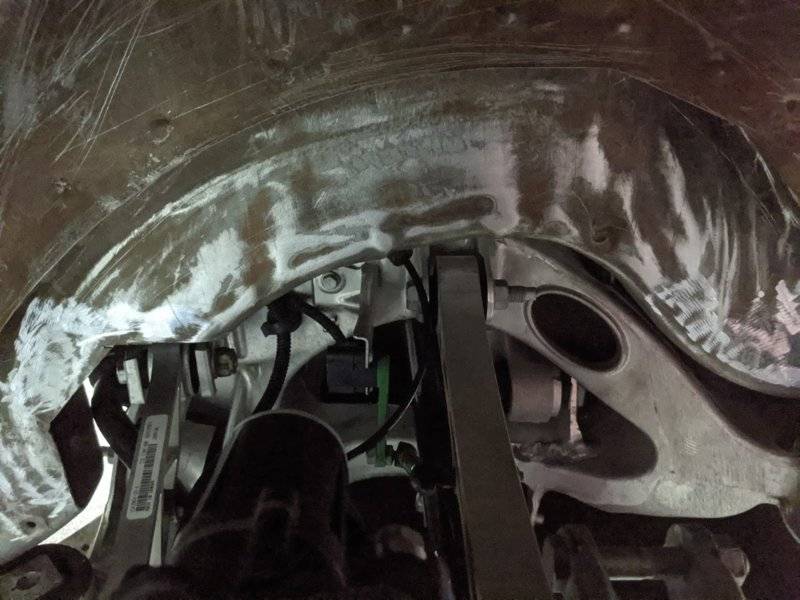

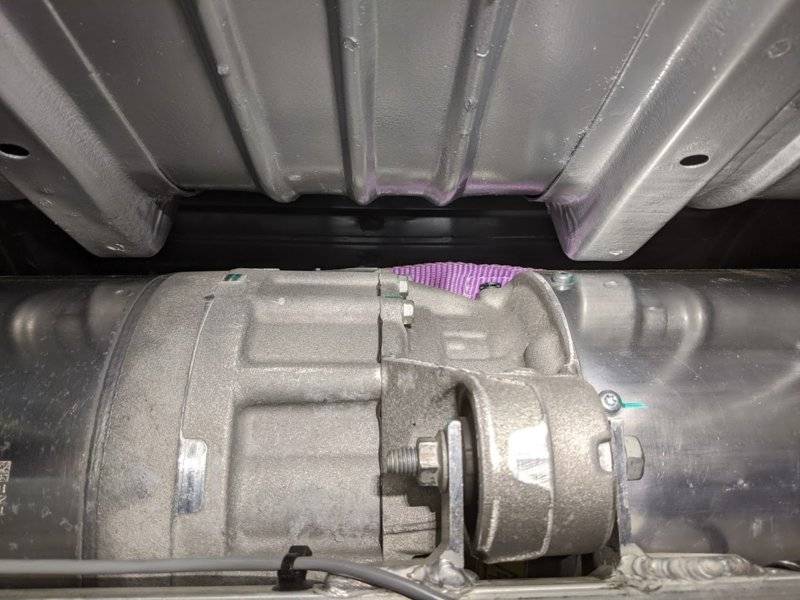

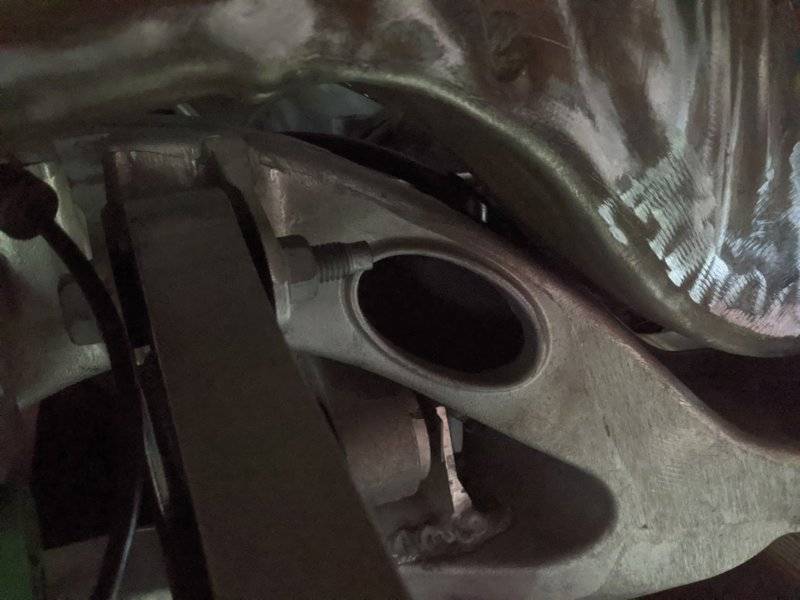

                            IMG_20200220_181051.jpg IMG_20200220_181103.jpg IMG_20200220_181131.jpg IMG_20200220_181723.jpg IMG_20200220_182248_01.jpg IMG_20200220_182336_01.jpg IMG_20200220_200511.jpg IMG_20200220_201410.jpg IMG_20200220_201454.jpg IMG_20200220_201501.jpg

                            • Like Like x 3
