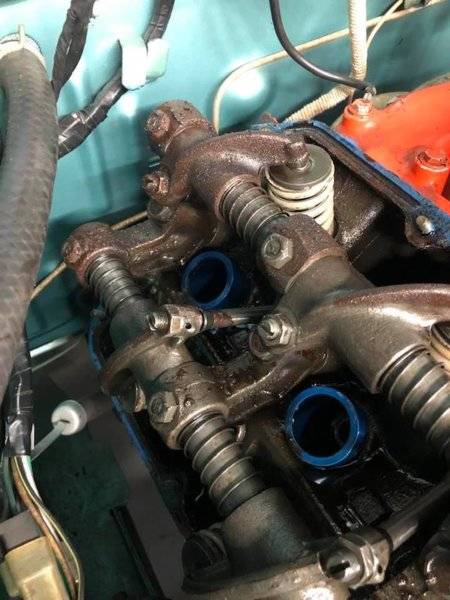

    First, what are the blue things and do I need them?

    Second, why would there be corrosion under my pivic valve? Valve cover looks no better back there.

    She sucked another intake gasket at number 5. Need something better than the rubberized donkey shit I put in a few months ago.

    And the valvetrain is noisey again. Any ideas on a better cold lash settings?

    71285208_10218160243431610_5765238659888447488_n (1).jpg

  2. 69L48Z27

    69L48Z27 FBBO Gold Member FBBO Gold Member

    Messages:
    2,294
    Likes Received:
    2165
    Joined:
    Nov 19, 2015
    Location:
    York, Pa
    Local Time:
    2:11 AM
    Blue thing is o-ring for sealing plug tubes I think.

    Rust in engine is from condensation.

    if gasket is getting sucked in, you have a clearance issue between the head and intake more than likely. Use a thicker gasket and glue it in place.

  3. khryslerkid

    khryslerkid FBBO Gold Member FBBO Gold Member

    Messages:
    18,573
    Likes Received:
    26041
    Joined:
    Mar 10, 2010
    Location:
    Hanover, Pennslyvania
    Local Time:
    2:11 AM
    Do you know any good Hemi mechanics down your way?

  4. Fran Blacker

    Fran Blacker FBBO Gold Member FBBO Gold Member

    Messages:
    6,423
    Likes Received:
    5884
    Joined:
    Sep 23, 2016
    Location:
    Connecticut
    Local Time:
    2:11 AM
    Yes blue seal suppose keep from going in cylinders when you remove plugs.
    Is your PVC clean and on vacuum tube on rear carb? Is there vacuum if you put a finger over tube?
    If heads/ block has been cut can cause sealing issues. That will lean out number 5 cylinder, hows the plug look.

  5. Fran Blacker

    Fran Blacker FBBO Gold Member FBBO Gold Member

    Messages:
    6,423
    Likes Received:
    5884
    Joined:
    Sep 23, 2016
    Location:
    Connecticut
    Local Time:
    2:11 AM
    Your intake may need to be cut some. Got a picture of intake gasket.

  6. Fran Blacker

    Fran Blacker FBBO Gold Member FBBO Gold Member

    Messages:
    6,423
    Likes Received:
    5884
    Joined:
    Sep 23, 2016
    Location:
    Connecticut
    Local Time:
    2:11 AM
    Looked like a Second Gen Hemi to me.

  7. eldubb440

    eldubb440 FBBO Gold Member FBBO Gold Member

    Messages:
    5,078
    Likes Received:
    9067
    Joined:
    Jul 17, 2008
    Location:
    South Jersey USA
    Local Time:
    2:11 AM
    make sure your pvc hose isn't collapsing

    • Agree Agree x 1
    • tonysrt

      tonysrt Well-Known Member

      Messages:
      257
      Likes Received:
      185
      Joined:
      Dec 6, 2017
      Location:
      Northport, NY
      Local Time:
      2:11 AM
      I put those blue inserts in my Hemi and I believe they were from Milodon. I did it about 15 years ago.

    • 69Bee

      69Bee FBBO Gold Member FBBO Gold Member

      Messages:
      1,664
      Likes Received:
      1156
      Joined:
      Nov 17, 2009
      Location:
      Whetstone, AZ
      Local Time:
      12:11 AM
      Yea, I deleted my post as I was referring to an early hemi, then I looked at the rocker shaft, lol...

    • 1 Wild R/T

      1 Wild R/T Well-Known Member

      Messages:
      1,080
      Likes Received:
      1712
      Joined:
      Jul 9, 2019
      Location:
      California
      Local Time:
      2:11 AM
      Where are the other eighteen questions?

      As has been stated the blue anodized aluminum tube seals keep oil out of the cylinders when you pull the plugs....

      Also as mentioned you may have an issue with intake fit due to milled components... But even if everything is right intake leaks are common on Hemi's due to the big ports, small bolts & unreinforced gaskets...

      My suggestion for the intake leak is first check alignment but if it looks good try a different sealant...

      "What Sealant" You ask? Well I've had very good results with Hondabond 4. Sold by Honda Motorcycle dealers it's good stuff, they use it to glue engine cases together with no other gasket or seal... And you know Honda's don't leak....

      Make sure you get Hondabond 4.. No regular Hondabond which is just a premium silicone...

      Hondabond 4 is not silicone, it's kinda runny, kinda sticky & it doesn't harden it gets firm but never hardens... I use it on every intake but especially Hemi's, never had a failure... Just lay a smooth bead on both sides of the gasket.. When you work with it you'll know it's different..

    • BIGSHCLUNK

      BIGSHCLUNK FBBO Gold Member FBBO Gold Member

      Messages:
      1,426
      Likes Received:
      1124
      Joined:
      Jan 1, 2012
      Location:
      Wisconsin
      Local Time:
      1:11 AM
      A little honda bond (atv sealer) on the intake cures many ill's....

    • Ironbuilt

      Ironbuilt FBBO Gold Member FBBO Gold Member

      Messages:
      10,084
      Likes Received:
      17282
      Joined:
      Jul 1, 2017
      Location:
      North Carolina
      Local Time:
      2:11 AM
      Might be a few hour ride, but Dvorak is in Ocala.

    • 1 Wild R/T

      1 Wild R/T Well-Known Member

      Messages:
      1,080
      Likes Received:
      1712
      Joined:
      Jul 9, 2019
      Location:
      California
      Local Time:
      2:11 AM
      Yeah, it does seem like we had that discussion last year...

      • Agree Agree x 1
      • Andew Sury

        Andew Sury FBBO Gold Member FBBO Gold Member

        Messages:
        216
        Likes Received:
        443
        Joined:
        Apr 18, 2019
        Location:
        West Palm Beach
        Local Time:
        2:11 AM
        I take it the blue cups are not just an upgrade for something that Mopar put there. Looks like there is a receiver groove for orings, which are not there. Keep getting lots of oil in the plug tubes. Enough to cause a misfire. On three cylinders.

        PCV is a valve in passenger valve cover that snaps in the breather hole and connected to the rear carb. Store grade hose so I found a new valve and will replace hose. The muck doesn't bother me that much as there is no baffle under the valve so humidity is collecting there. I'm going to use a steel brush and a shop vac to clean it best I can and just add some grease to the rockers and shafts to keep it at bay.

        I set the valve lash at .017/.017 cold so I'm just going to tighten up a little. Maybe .015.

        Next step is to run compression and leak down tonight. If it is good, I reassemble it so I can make it to Don Garlits next month in Ocala. If not I'll pull it and build it. Kinda planned on it in the long term anyway. But it would be tough to get it done in a month. I need to do the Torqueflite as well. If it sits for a week or so it wont drop into drive with a touch of loud pedal. After that it is perfect. It just bothers me.

        And if nothing else, it needs MOPOWER!

      • 1 Wild R/T

        1 Wild R/T Well-Known Member

        Messages:
        1,080
        Likes Received:
        1712
        Joined:
        Jul 9, 2019
        Location:
        California
        Local Time:
        2:11 AM
        The tube seals are supposed to help with keeping oil out of the cylinders... And yes, they should have O rings...

        Valve lash, exhaust should be a couple thou looser than intake, I'd probably try .016 ex & .014 in

        Are you using a go/no go gauge? It can be hard to set valves on a Hemi do to the weird angles and engine compartment space so a go/no go gauge takes the feel variable away.. It goes or it doesn't...

        The no gear cold on a torqueflite is common, unlike a Ford that does that it doesn't mean rebuild time, it's the fluid in the torque convertor draining into the pan... Mopars don't pump the fluid back to the convertor while running in park so it does fill the convertor till you drop it in gear... Try running the car in neutral instead.. There is a revised manual shift valve available that will fill the convertor in park... It can be installed by simply removing the valve body...

        https://www.sonnax.com/parts/1835-manual-valve

        • Like Like x 1
        • Agree Agree x 1
        • Fran Blacker

          Fran Blacker FBBO Gold Member FBBO Gold Member

          Messages:
          6,423
          Likes Received:
          5884
          Joined:
          Sep 23, 2016
          Location:
          Connecticut
          Local Time:
          2:11 AM
          Re torque your manifold 4 or 5 times over 3 days after reinstall. Gaskets compress and bolts lose torque and clamping pressure. Crossrams with bolt inside the manifold retorqeing is mandatory. Not having o-rings in tube seals make oil going into cylinders worse, mo.

        • Andew Sury

          Andew Sury FBBO Gold Member FBBO Gold Member

          Messages:
          216
          Likes Received:
          443
          Joined:
          Apr 18, 2019
          Location:
          West Palm Beach
          Local Time:
          2:11 AM
          Finally got back to it. My OCD was killing me all week on a new trailer to get it to the Garlits Museum next month. Done!

          Ran compression and everything except #2 is 165 plus. #2 is sitting at 140. I can live with it. Leakdown is less than 5%. I ran the valves to .35mm and .40mm exhaust.

          I have the intake gaskets, valve cover gaskets, and I have the o-rings in stock for the plug tubes. Turns out the bolts for the intake loosened up.

          At least the engine is tight.

        • Andew Sury

          Andew Sury FBBO Gold Member FBBO Gold Member

          Messages:
          216
          Likes Received:
          443
          Joined:
          Apr 18, 2019
          Location:
          West Palm Beach
          Local Time:
          2:11 AM
          Oh!
          #3 How does positraction on a Plymouth work?
          #4 Skoal. Pussy shit or?
          #5 Personal plate that reads URMYSTR. Yeah or nay?
          #6 Is three dogs enough on an acre and half?
          #7 Does this dress make my wife look fat or is it just the fat?
          #8 Does the carny actually spray Pam on the bottles for the ring toss game?
          #9 What is the capitol of Asyria?
          #10 Why do you drive on the Parkway but park in the Driveway?
          #11 Why do the Dolphins suck?
          #12 Can Nurgamenov be stopped?
          #13 Can Adesanya be stopped?
          #14 Why does Pelosi, Waters, Shiff, and Clinton still breathe our air?
          #15 Who wins Dover tomorrow?
          #16 Who wins the Cup?
          #17 Why did Junior suck so bad?
          #18 What is your favorite color?
          #19 What is that ugly white slab in my can of beans?
          #20 JJ, 8th cup next year or hang up the helmet?

        • Fran Blacker

          Fran Blacker FBBO Gold Member FBBO Gold Member

          Messages:
          6,423
          Likes Received:
          5884
          Joined:
          Sep 23, 2016
          Location:
          Connecticut
          Local Time:
          2:11 AM
          Retorqueing the manifold until the bolts don't lose torgue is important but still think you may have fitment problem. Were you able to see impressions in old gasket? Think there's one port you can see through carb bores, if so see how the port match is.

        • Andew Sury

          Andew Sury FBBO Gold Member FBBO Gold Member

          Messages:
          216
          Likes Received:
          443
          Joined:
          Apr 18, 2019
          Location:
          West Palm Beach
          Local Time:
          2:11 AM
          It looks very good. Big thing I noticed is store grade hardware on the intake. 50 1/4 bolts do not help much when they are made of Chineseum.
