4 speed bearing retainer question.

71Beeper

Well-Known Member
Local time
4:08 PM
Joined
Nov 28, 2010
Messages
515
Reaction score
745
Location
Stoney Creek, Ontario

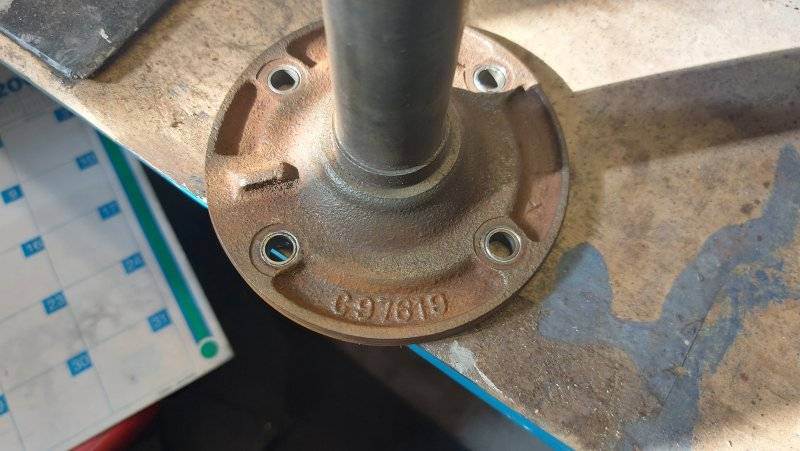

I have this 4 speed bearing retainer.
Sept 21st (1).jpg

Unfortunately, the bell housing I have will not work with said bearing retainer.

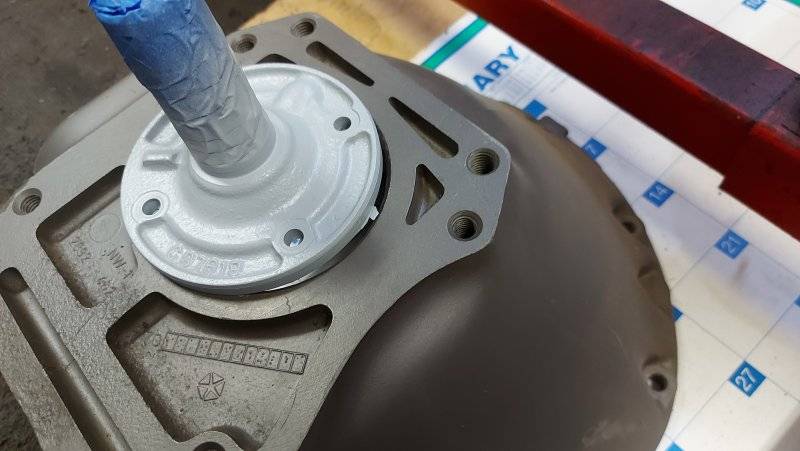

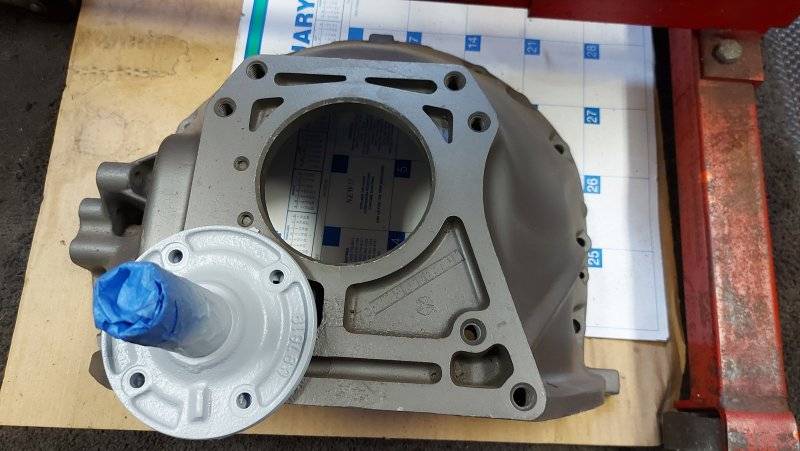

Sept 21st (18).jpg
Sept 21st (19).jpg


Besides getting the proper retainer, is there anything that I can do with this existing one to make it fit?


pnora

FBBO Gold Member
FBBO Gold Member
Local time
4:08 PM
Joined
Apr 21, 2020
Messages
2,635
Reaction score
2,834
Location
Ishpeming, Mi.
Have a machine shop properly machine it to fit. That might cost more than finding the right one.


Beekeeper

It’s a disease without a cure!
FBBO Gold Member
Local time
3:08 PM
Joined
Jul 4, 2012
Messages
4,487
Reaction score
4,493
Location
Rogersville,TN.
You would probably be better off to get the correct one from brewer’s and sell the one you have.


Mr. Cranky

Banned Henchman #27
Staff member
FBBO Gold Member
Local time
3:08 PM
Joined
Dec 4, 2009
Messages
28,356
Reaction score
29,460
Location
Down southeast Taxas
I could machine it pretty cheap but the shipping to and from Texas would probably make that expensive.....


69Bee

FBBO Gold Member
FBBO Gold Member
Local time
2:08 PM
Joined
Nov 17, 2009
Messages
3,910
Reaction score
3,623
Location
Whetstone, AZ
I have machined the retainer down to fit. That is easier than opening up the bellhousing. Mostly depends on how you need to remove. I have taken one down almost to the bolt holes having to go from the largest retainer diameter to the smallest bellhousing hole.


Beekeeper

It’s a disease without a cure!
FBBO Gold Member
Local time
3:08 PM
Joined
Jul 4, 2012
Messages
4,487
Reaction score
4,493
Location
Rogersville,TN.
There is a 4.16 and 3.70 bolt circle the 307 bearing using the 3.70 circle and the 308 is 4.16.


71Beeper

Well-Known Member
Local time
4:08 PM
Joined
Nov 28, 2010
Messages
515
Reaction score
745
Location
Stoney Creek, Ontario
The bolt pattern on this one is 3.7"
My brother is a machinist so I'll have him machine the OD of the retainer down.
The cost of retainers and bell housings are getting stupid expensive.
I'm pretty sure what I have is a big block bearing retainer, but I need it to fit the small block bell housing opening.


Mr. Cranky

Banned Henchman #27
Staff member
FBBO Gold Member
Local time
3:08 PM
Joined
Dec 4, 2009
Messages
28,356
Reaction score
29,460
Location
Down southeast Taxas
The bolt pattern on this one is 3.7"
My brother is a machinist so I'll have him machine the OD of the retainer down.
The cost of retainers and bell housings are getting stupid expensive.
I'm pretty sure what I have is a big block bearing retainer, but I need it to fit the small block bell housing opening.
Stress to him that you want no run out when he machines it. Also, if he plans on chucking on the small end, he probably should put a hard plug into it before chucking on it. :)


RJRENTON

FBBO Gold Member
FBBO Gold Member
Local time
3:08 PM
Joined
Jul 1, 2015
Messages
3,134
Reaction score
3,238
Location
South Shores area of Decatur, Illinois
I have this 4 speed bearing retainer.
View attachment 1346327
Unfortunately, the bell housing I have will not work with said bearing retainer.
View attachment 1346328View attachment 1346329

Besides getting the proper retainer, is there anything that I can do with this existing one to make it fit?
IMO....You could turn the O.D. of the retainer to fit the I.D. of the bell housing or machine the bell housing to fit your retainer, but which bearing to use? There are two ball bearing used. If you make the retainer fit the housing, then you'll have an odd ball setup, small bearing in a big retainer. As suggested by others, BUY THE CORRECT BEARING RETAINER TO FIT YOUR BELL HOUSING and sell your existing retainer. Just talking out loud.
BOB RENTON


4speed68rt

Well-Known Member
Local time
2:08 PM
Joined
Nov 24, 2021
Messages
388
Reaction score
350
Location
88007
Its never easy with Chrysler 4 speed, mix and match. You have clutch and flywheel diameter, bearing retainer size, spline, bell housing hole size, shifter location, tail housing length, yoke type, dont forget z-bar length. Shifters can be a factor as well... ask me how I know... I have a matched set now that works.


71Beeper

Well-Known Member
Local time
4:08 PM
Joined
Nov 28, 2010
Messages
515
Reaction score
745
Location
Stoney Creek, Ontario
Bob, I'm a little confused by you saying there is 2 ball bearings used?
Do you mean 2 different throw-out bearings?

Here's the proper smaller od retainer that Brewers sell.

Look how close the mounting holes are to the outside dia of the retainer.

Now look at mine.
Sept 21st (1).jpg

Look at how much there is from the mounting holes to the outside dia. on mine.


Beekeeper

It’s a disease without a cure!
FBBO Gold Member
Local time
3:08 PM
Joined
Jul 4, 2012
Messages
4,487
Reaction score
4,493
Location
Rogersville,TN.
Bob, I'm a little confused by you saying there is 2 ball bearings used?
Do you mean 2 different throw-out bearings?

Here's the proper smaller od retainer that Brewers sell.
View attachment 1346381
Look how close the mounting holes are to the outside dia of the retainer.

Now look at mine.
View attachment 1346382
Look at how much there is from the mounting holes to the outside dia. on mine.
Bob means there were two input shaft bearing sizes used as in a 307 and 308 bearing and yes there were two different size throwout bearing collars the 18 spline retainer throwout snout was a bigger OD for the throwout bearing collar.
As long as you have the correct bolt circle on the retainer it can be cut down like you plan.


RJRENTON

FBBO Gold Member
FBBO Gold Member
Local time
3:08 PM
Joined
Jul 1, 2015
Messages
3,134
Reaction score
3,238
Location
South Shores area of Decatur, Illinois
Bob, I'm a little confused by you saying there is 2 ball bearings used?
Do you mean 2 different throw-out bearings?

Here's the proper smaller od retainer that Brewers sell.
View attachment 1346381
Look how close the mounting holes are to the outside dia of the retainer.

Now look at mine.
View attachment 1346382
Look at how much there is from the mounting holes to the outside dia. on mine.
There are two (2) different ball bearings used. Each retainer used a different bearing. I can't recall the bearing number off hand, but the bearings have different OD, number of balls, but I recall they have the the same ID. I can't remember if the 23 spline shaft transmission used the smaller of the 2 bearings and the 18 spline shaft transmission used the large bearing. The throw out or release bearing matches the pressure plate used, assuming its the Borg & Beck setup and not the diaphragm pressure plate or hydraulic throw out bearing assy. Perhaps someone can research the input shaft bearing number, but its a single row ball bearing open on both sides with or without snap ring groove.....I just can't remember......having a senior moment...brain freeze....
BOB RENTON


gkent

Well-Known Member
Local time
4:08 PM
Joined
Aug 8, 2012
Messages
4,336
Reaction score
4,613
Location
Ontario, Canada
a) I wouldn't machine the retainer, you'll lose the outer lip which adds strength. If you bolt it on after machining it will likely crack at one or more of the bolt flanges. b) don't even think about ruining a bell !! c) the retainers from Brewers are billet steel - not cast like the originals. They're well worth the price.


Dragon Slayer

Well-Known Member
Local time
4:08 PM
Joined
Jun 18, 2014
Messages
774
Reaction score
342
Location
Virginia
This is the retainer you have: 1968-69 B-body 23 spline transmissions with 307 front bearing, 4.805" outside diameter, 3.70" bolt circle.

Does the retainer fit the front of your transmission?

The smaller diameter retainer are available. You need a 4.354" outside diameter, 3.70" bolt circle. I agree cutting that down to the 4.354 is risky.


71Beeper

Well-Known Member
Local time
4:08 PM
Joined
Nov 28, 2010
Messages
515
Reaction score
745
Location
Stoney Creek, Ontario
gkent - Now that I look at the retainer some more, you are correct, that would be quite a bit to remove.

Thanks Dragon Slayer for the confirmation that the retainer is for an earlier B-body.

I'll call around to a few Mopar buddies to see if any one has the retainer I need and is willing to trade for the one I have.


71Beeper

Well-Known Member
Local time
4:08 PM
Joined
Nov 28, 2010
Messages
515
Reaction score
745
Location
Stoney Creek, Ontario

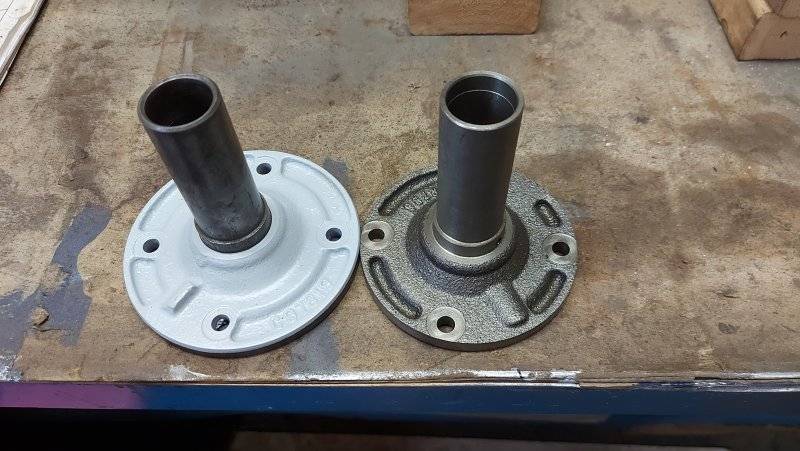

So I did order the proper bearing retainer from a local Mopar distributor.
Oct 4th (1).jpg


But look where it originated from.....:lol:
Oct 4th (2).jpg
