426 Hemi Manifold to H Pipe Bolts

mrhemi

Well-Known Member
Local time
3:51 PM
Joined
Jan 9, 2019
Messages
324
Reaction score
375
Location
Ontario

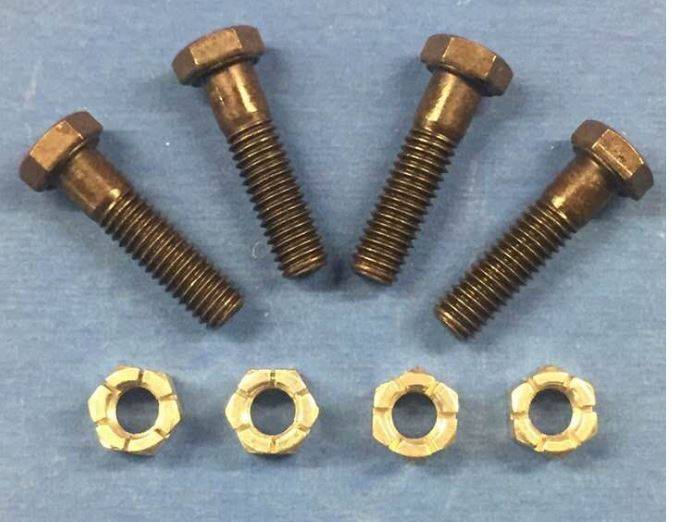

Does anyone know if the factory manifold to H-Pipe bolt up uses lock nuts? I have a reproduction set that includes castellated nuts, however they are not crimped to lock on the bolts. Anyone know the correct orientation? It is possible that the castellated side of the nut is placed toward the mounting flange so that the concave surface of the flange wedges the the nut segments tight? My apologies for no photos at the moment.


Attachments

  • Exhust Bolts.pdf
    946.4 KB · Views: 28

Fran Blacker

FBBO Gold Member
FBBO Gold Member
Local time
3:51 PM
Joined
Sep 23, 2016
Messages
12,370
Reaction score
12,305
Location
Connecticut
I put the nuts on H-pipe side. The nuts would be difficult to put on manifold side, especially in the car. The drivers side upper bolt to get a wrench on go through front end adjustment hole by removing dirt flap.


AR67GTX

FBBO Gold Member
FBBO Gold Member
Local time
2:51 PM
Joined
Jan 28, 2012
Messages
3,171
Reaction score
2,263
Location
Arkansas
Can you post a picture of the correct bolts/nuts? I’ve wondered if they are halfway correct on mine. They work but the h-pipe side flange holes are so large that washers are deformed into them to seat solidly.


Fran Blacker

FBBO Gold Member
FBBO Gold Member
Local time
3:51 PM
Joined
Sep 23, 2016
Messages
12,370
Reaction score
12,305
Location
Connecticut
Can you post a picture of the correct bolts/nuts? I’ve wondered if they are halfway correct on mine. They work but the h-pipe side flange holes are so large that washers are deformed into them to seat solidly.
Picture from first post.


AR67GTX

FBBO Gold Member
FBBO Gold Member
Local time
2:51 PM
Joined
Jan 28, 2012
Messages
3,171
Reaction score
2,263
Location
Arkansas
Thanks, I couldn’t get that picture to open on my iPad. Looks like mine are not correct although still a nut & bolt.


mrhemi

Well-Known Member
Local time
3:51 PM
Joined
Jan 9, 2019
Messages
324
Reaction score
375
Location
Ontario
Update. I found out that those are "Marsden" nuts. A type of lock nut that does not tighten on the bolt until torqued against the mating surface. This is what had me confused. They appeared to be a lock nut but spin freely onto the bolt. I thought they were defective. Not so.
Today's project: finish up the exhaust install on my Charger.


Dean Prevolos

Well-Known Member
Local time
3:51 PM
Joined
Sep 3, 2020
Messages
474
Reaction score
296
Location
Naples, Florida

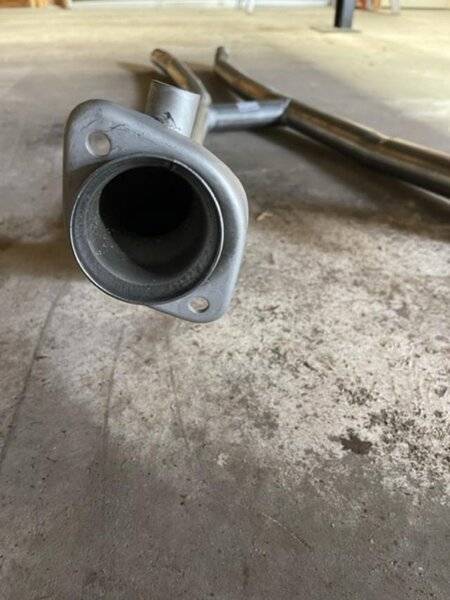

I need to buy the Exhaust Pipe Gasket to install my new exhaust system. The part book calls out #2780614. I went to Napa and they didn't have it or just a 3" donut hole gasket for the 2- bolt holes( see photo). I looked online and a cross reference Fel-Pro #60016 came up but it is definetly not a 3" diameter.
What do you guys use?

exhaust pipe flange.jpg


Robertop

Well-Known Member
Local time
3:51 PM
Joined
Jun 4, 2016
Messages
78
Reaction score
35
I need to buy the Exhaust Pipe Gasket to install my new exhaust system. The part book calls out #2780614. I went to Napa and they didn't have it or just a 3" donut hole gasket for the 2- bolt holes( see photo). I looked online and a cross reference Fel-Pro #60016 came up but it is definetly not a 3" diameter.
What do you guys use?

View attachment 1288132
Hemis do not have a gasket, strange enough.


AR67GTX

FBBO Gold Member
FBBO Gold Member
Local time
2:51 PM
Joined
Jan 28, 2012
Messages
3,171
Reaction score
2,263
Location
Arkansas
Dean, you must have had an old Corvette once with the donut seals and sleeves.
