SOLD 440 Heads - Performance Rebuild

Status
Not open for further replies.

GTX5877

Member
Local time
6:03 PM
Joined
Nov 26, 2010
Messages
17
Reaction score
1
Location
Albert Lea, MN
Feedback: 0 / 0 / 0
Contact seller

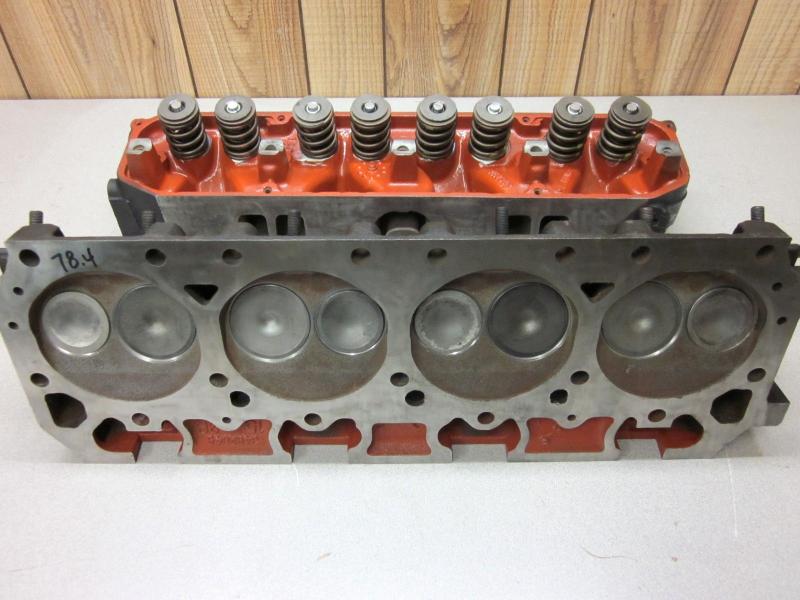

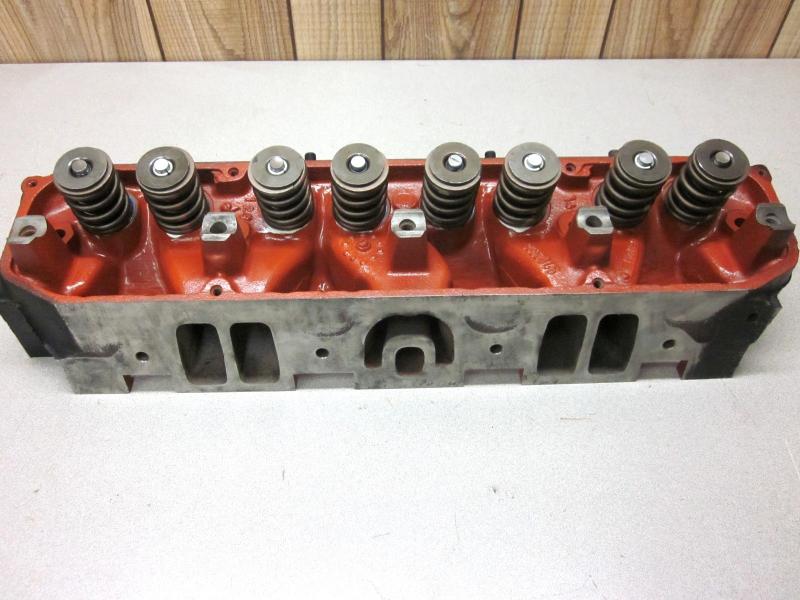

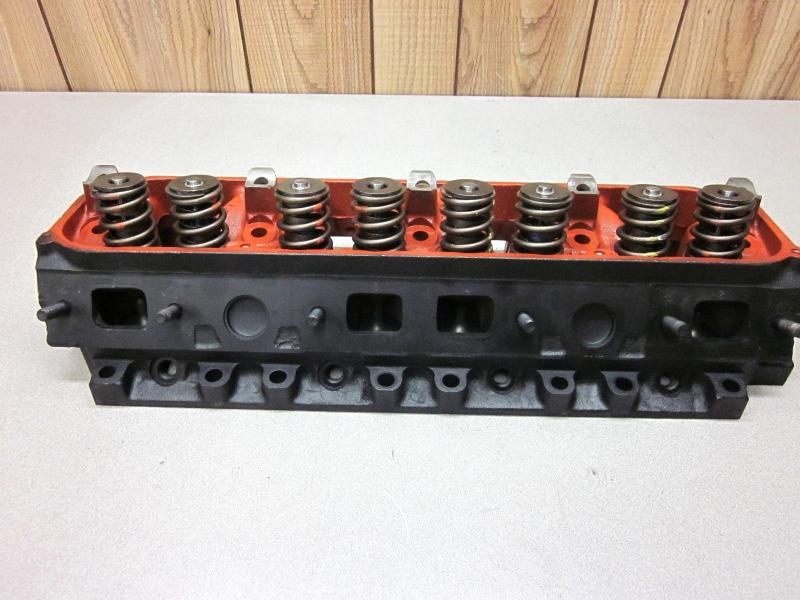

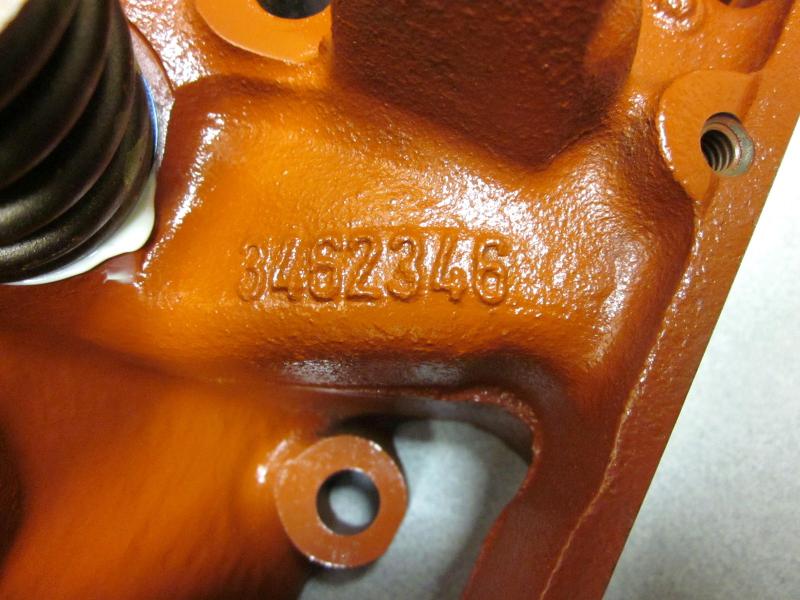

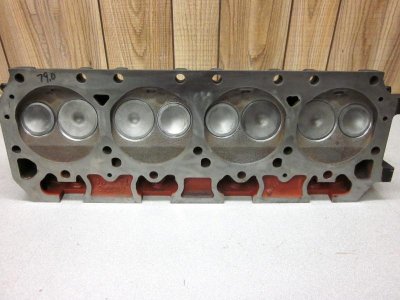

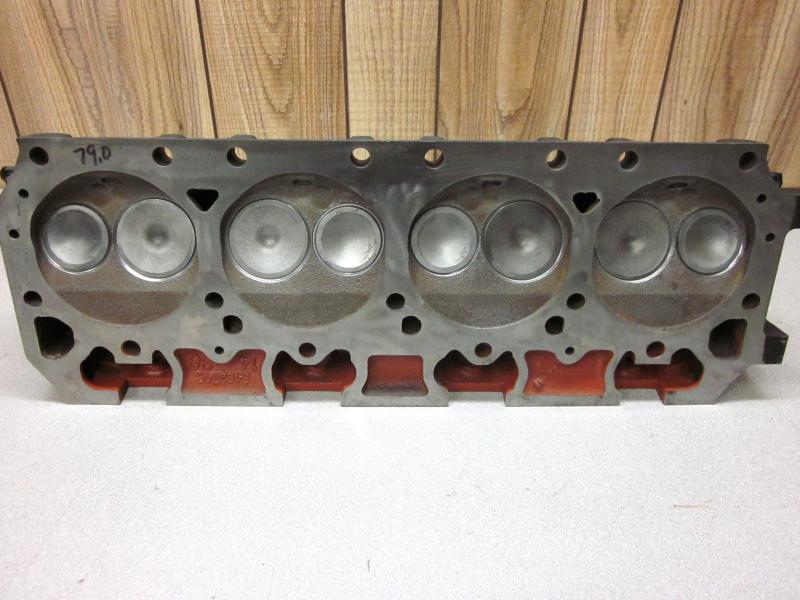

Freshly Rebuilt 440 Big Block Mopar cylinder heads. 1972 castings #3462'346', with factory induction hardened exhaust seats. Very similar to 906, 452, and 213 casting heads. Previously milled a bunch for compression. Now at 78 - 79cc, about 10+ ccs off. May require shorter pushrods!

2.08 & 1.74 Valves.

NEW Bronze guides, honed for proper clearance.

Multi-angle radius valve job.

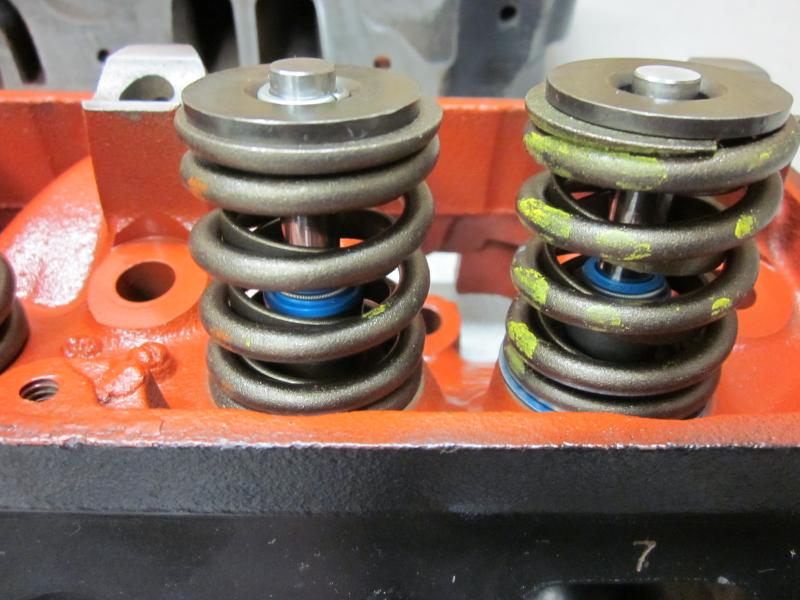

NEW Comp Cams 911-16 Valve Springs for hydraulic or solid cams up to about .580" lift. Seat pressure is 125#@1.88" and open 320#@1.38" or 360#@1.28"

Springs shimmed to proper Installed Height.

NEW Viton race type positive valve seals. (pressed on guide)

There is over $850 worth of parts and machining costs not counting the value of the heads.

SELL FOR $550

Minnesota


Attachments

  • IMG_1066.jpg
    62.4 KB · Views: 1,000
  • IMG_1062.jpg
    65.4 KB · Views: 1,256
  • IMG_1063.jpg
    65.2 KB · Views: 827
  • IMG_1065.jpg
    63.1 KB · Views: 957
  • IMG_1067.jpg
    68.1 KB · Views: 547
  • IMG_1068.jpg
    64.2 KB · Views: 605
If you click on thread tools, you can mark the ad 'sold' that way it'll show up in the index and save the members from clicking and reading the ad only to see they have been sold already....
