440 Holley Dual inlet fuel line plumbing

Fuel and Air Systems

  1. Jim Maserejian

    Jim Maserejian Member

    Messages:
    11
    Likes Received:
    2
    Joined:
    Jun 11, 2017
    Location:
    Evansville, Indiana
    Local Time:
    5:03 AM
    DIY not a mechanic looking at all the pitfalls before I begin the next project - switch from Edlebrock performer series to Holley Dual inlet 4160. Need advice on fuel lines (pump to carb) for '67 Coronet with 440, TF, stock intake manifold, aftermarket headers, Lunati cam and I recently updated to electronic ignition. Currently lines plumbed for Edelbrock performer 600 single inlet. Just for the heck of it, if I wanted a Holley 750 cfm 4160 (dual feed inlets), how much plumbing headache will I have? I don't have a Holley, yet. I'm afraid that the usual dual inlet chrome line for $20 will bump into the distributor. or coil. No return lines on this engine. If you've tried / done the conversion, looking for your advice.


    Last edited: Jun 12, 2019
  2. Jim Maserejian

    Jim Maserejian Member

    Messages:
    11
    Likes Received:
    2
    Joined:
    Jun 11, 2017
    Location:
    Evansville, Indiana
    Local Time:
    5:03 AM

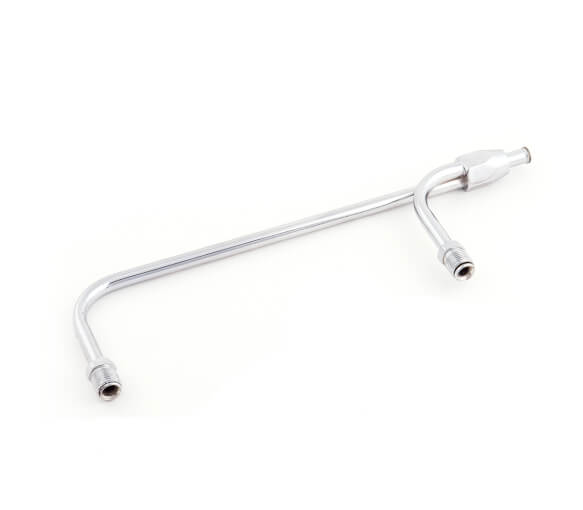

    RSD-PCY05S_s.jpg Found this on Summit Racing - looks like it would solve the problem.

    • Agree Agree x 1
    • moparedtn

      moparedtn Ed on the Ridge FBBO Gold Member

      Messages:
      6,485
      Likes Received:
      9458
      Joined:
      May 14, 2011
      Location:
      On the Ridge, TN
      Local Time:
      6:03 AM
      You can use that one (they're real common, of course) but I can tell you on a 440 it's gonna require a little "redirecting"
      on the inlet end (sits low on a stock intake and aims at the distributor).

      • Agree Agree x 2
      • Joe66satellite

        Joe66satellite Well-Known Member

        Messages:
        210
        Likes Received:
        92
        Joined:
        Nov 30, 2018
        Location:
        Las vegas
        Local Time:
        3:03 AM
        If you already have an Edelbrock on it you could just get an Edelbrock 750 CFM carburetor that's what I did reducing my ProForm 850 double pumper because I got terrible gas mileage with that thing and I couldn't get a very good idle out of it either just saying

      • dadsbee

        dadsbee FBBO Gold Member FBBO Gold Member

        Messages:
        5,846
        Likes Received:
        12538
        Joined:
        Jan 29, 2018
        Location:
        Ontario, Canada
        Local Time:
        6:03 AM

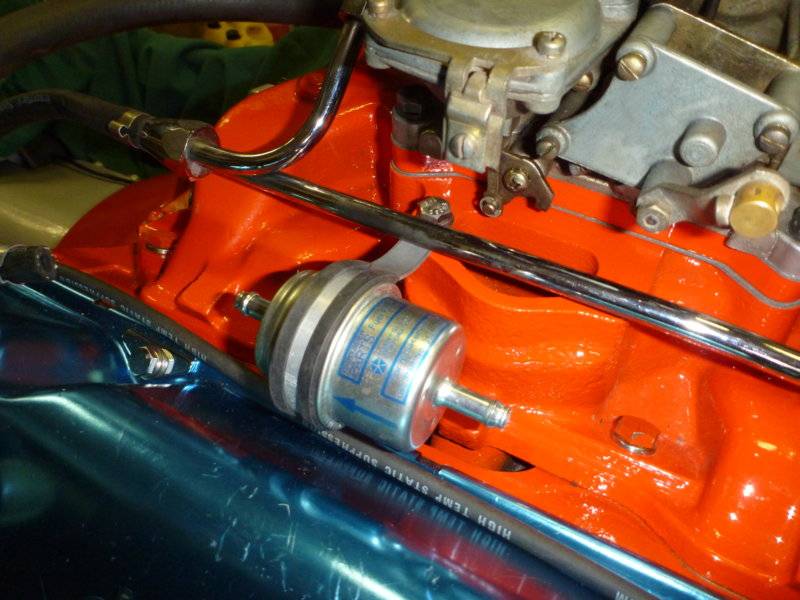

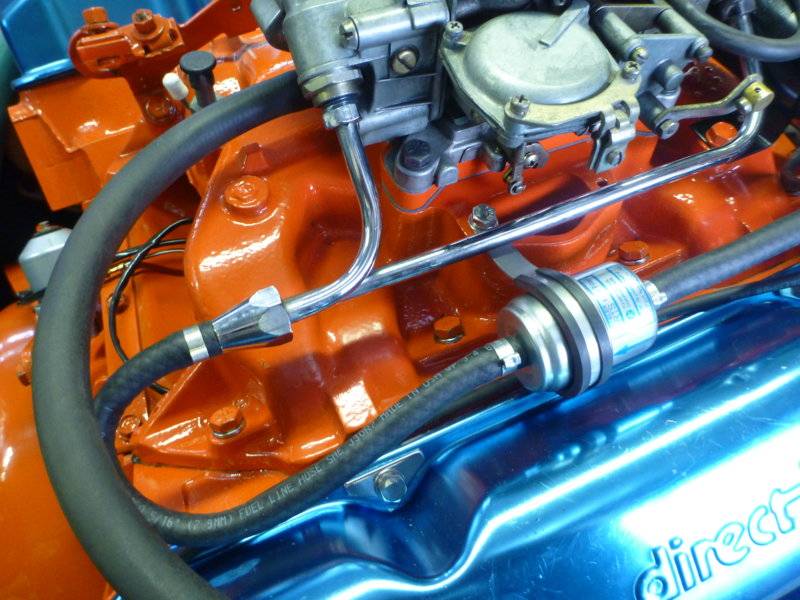

        beerestoration2017 779.JPG

        • Like Like x 5
        • Ratbastard

          Ratbastard Well-Known Member

          Messages:
          47
          Likes Received:
          118
          Joined:
          Apr 21, 2019
          Location:
          Sun city ca.
          Local Time:
          3:03 AM

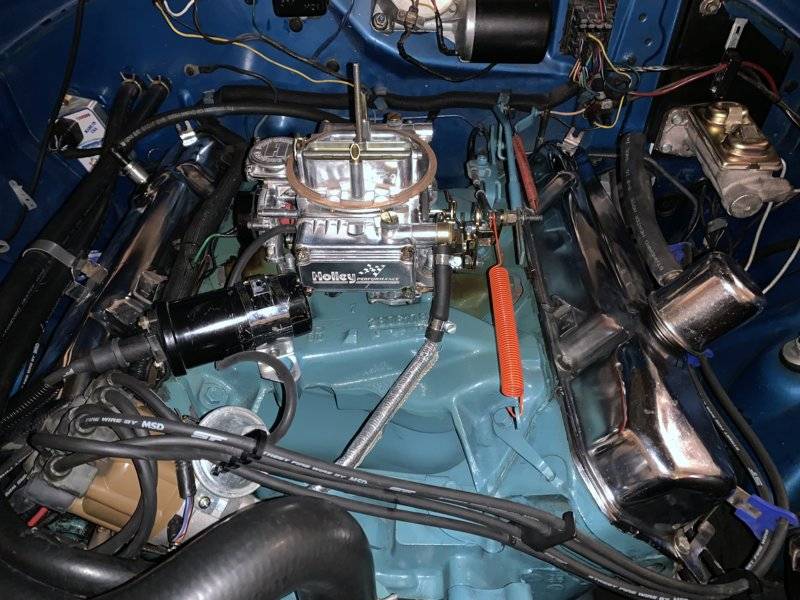

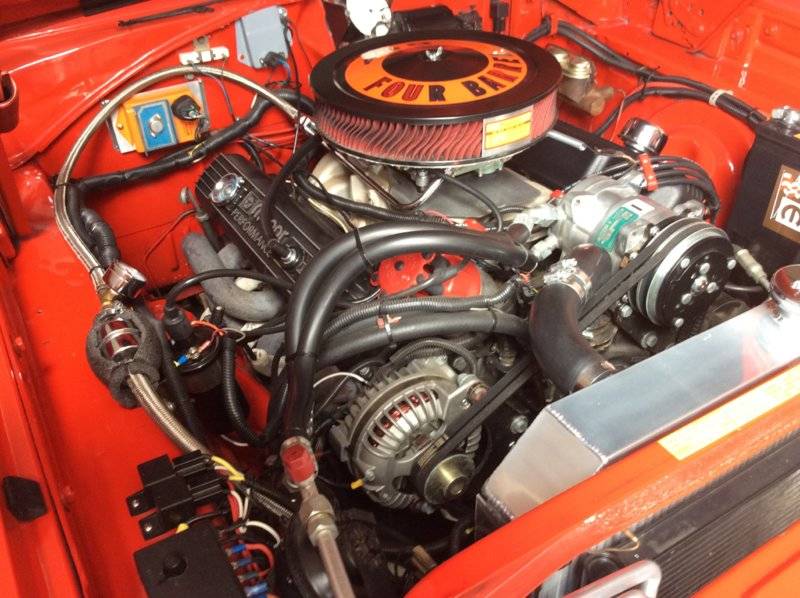

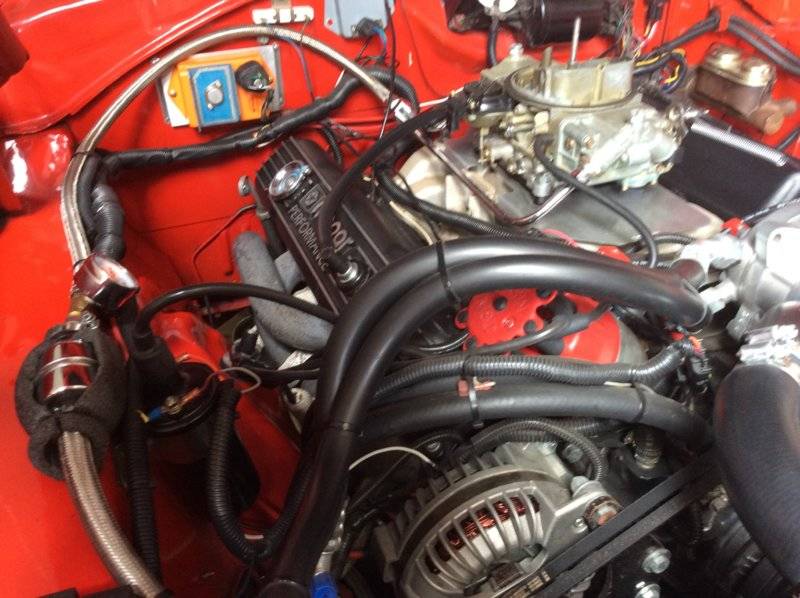

          8A959C91-75D5-4440-AE15-9C8B5F2D8910.jpeg 1E07FC5D-C3AF-472F-9776-A5C15E52D42D.jpeg Just like dadsbee did just run the duel fuel line backwards to the rear and run fuel line where you want. This is what I did.

        • Jim Maserejian

          Jim Maserejian Member

          Messages:
          11
          Likes Received:
          2
          Joined:
          Jun 11, 2017
          Location:
          Evansville, Indiana
          Local Time:
          5:03 AM
          Thank you - Looks good. I was hesitant to to pull off the 180 turn. But it looks clean. Is a braided steel line a waste of time?

        • Jim Maserejian

          Jim Maserejian Member

          Messages:
          11
          Likes Received:
          2
          Joined:
          Jun 11, 2017
          Location:
          Evansville, Indiana
          Local Time:
          5:03 AM
          dadsbee can you possibly get a pic of where the coil was moved to?
          Jim

        • dadsbee

          dadsbee FBBO Gold Member FBBO Gold Member

          Messages:
          5,846
          Likes Received:
          12538
          Joined:
          Jan 29, 2018
          Location:
          Ontario, Canada
          Local Time:
          6:03 AM
          Right where it belongs.. well at least with one bolt!

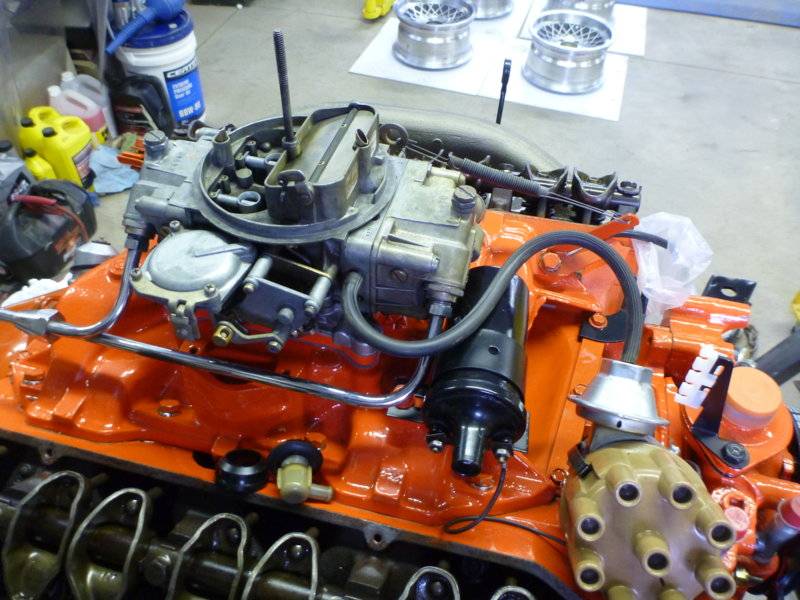

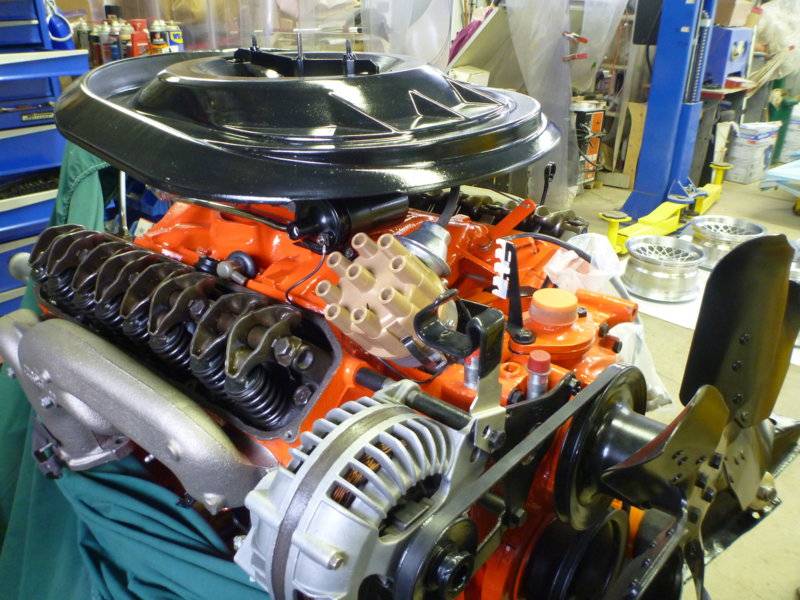

          beerestoration2017 728.JPG beerestoration2017 733.JPG

        • Ratbastard

          Ratbastard Well-Known Member

          Messages:
          47
          Likes Received:
          118
          Joined:
          Apr 21, 2019
          Location:
          Sun city ca.
          Local Time:
          3:03 AM
          You won’t have a problem with u-turn, braided line is for wear and tear and looks only. Ran line along fender to keep fuel as cool as possible as long as possible. If looking for factory stock look, then run it right along the engine and intake as close as possible.

        • Jim Maserejian

          Jim Maserejian Member

          Messages:
          11
          Likes Received:
          2
          Joined:
          Jun 11, 2017
          Location:
          Evansville, Indiana
          Local Time:
          5:03 AM
          Great pics thank you. Looks like a good size carb spacer seems to help the primary side bowl clear the coil. As an easier fit option, Holley is offering a single feed 750 cfm 4160 model - it's a bit smaller overall dimensions with the inlet on the driver's side front.

        • BBishere2

          BBishere2 FBBO Gold Member FBBO Gold Member

          Messages:
          537
          Likes Received:
          666
          Joined:
          Oct 5, 2013
          Location:
          Fulton, MO
          Local Time:
          5:03 AM

          I took a similar fuel rail off of my 440 as the fuel line will plumb with a rubber hose over the distributor. I replaced it with a Holley fuel rail and a 90 degree turn down that gets the fuel line away from the distributor and gave a port for a fuel pressure gauge. Picked the parts up from Summit and they work great.

          • Like Like x 1
          • Jim Maserejian

            Jim Maserejian Member

            Messages:
            11
            Likes Received:
            2
            Joined:
            Jun 11, 2017
            Location:
            Evansville, Indiana
            Local Time:
            5:03 AM
            Update - The dual inlet Holley's front primary side fuel bowl was all over the coil bracket. Rather than fabricate a bracket extension / move it, I ended up choosing a single inlet Holley 4160 which has slightly smaller dimensions front/back, allowing reasonable space for the coil. Maybe the '67 440HP stock intake manifold has a different set up for coil mount than later manifolds?

            A 1/4 inch carb spacer was required, with either dual or single inlet Holley 4160, to allow full movement of the throttle mechanism. Classic industries has a $15 pump to carb fuel line designed for OEM single inlet Holley carbureted Mopars.

            So it's not exactly stock appearing, but I will say the exhaust smell at idle is a lot more tolerable with the Holley 4160 than the Edelbrock Performer (no matter how I tuned the idle mixture screws, it just skunked - possibly because of the particular Lunati cam I guess). Thank you for all the advice and pics.


            Last edited: Jul 27, 2019
          • HEMI-ITIS

            HEMI-ITIS STREETER on LI FBBO Gold Member

            Messages:
            11,588
            Likes Received:
            13732
            Joined:
            Dec 14, 2008
            Location:
            Long Island,New York
            Local Time:
            6:03 AM
            Sometimes there is no road map,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,:lol:


            • Like Like x 1
            • Agree Agree x 1
            • Ratbastard

              Ratbastard Well-Known Member

              Messages:
              47
              Likes Received:
              118
              Joined:
              Apr 21, 2019
              Location:
              Sun city ca.
              Local Time:
              3:03 AM
              Jim, I think the thing you learn most is, adapt and move on. Take notes, invent, live with your choices, and Enjoy your success. If any thing I’ve learned at car shows is what the hell was that guy thinking when he installed that piece on that car. Other then that, we’re all professionals. Enjoy your work, and always take credit for it!!!!!!!!!! This is what it gets you. Your peers will like your work.

              07108B24-1CC9-4275-82E8-FC31EA562C9E.jpeg 134CAEBD-7DF1-48D7-BF99-FCE6BA372909.png

            • TN Mopar

              TN Mopar Well-Known Member

              Messages:
              183
              Likes Received:
              150
              Joined:
              Dec 8, 2015
              Location:
              Cleveland TN
              Local Time:
              6:03 AM

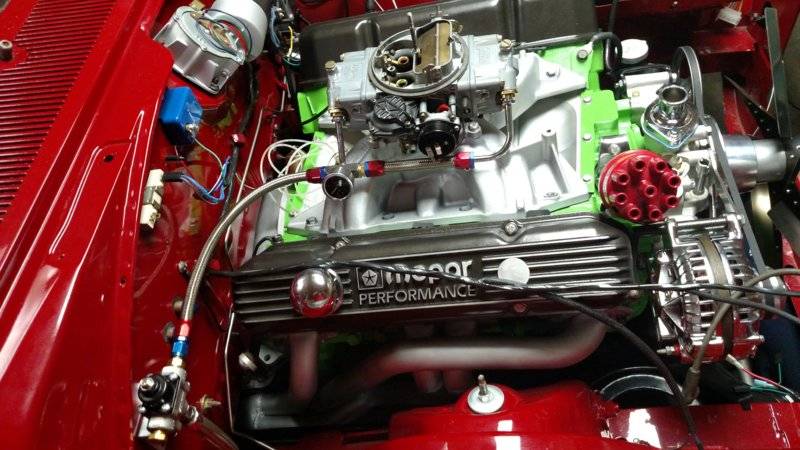

              This is what I did

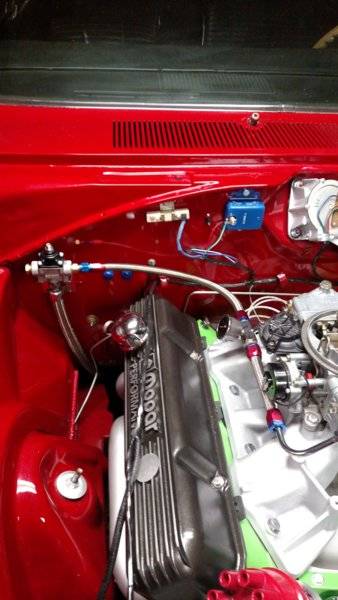

              IMG_20190703_204438772.jpg IMG_20190703_212700341.jpg

            • cmkryzer

              cmkryzer Well-Known Member

              Messages:
              45
              Likes Received:
              6
              Joined:
              May 21, 2012
              Location:
              Minnesota
              Local Time:
              5:03 AM
              dadsbee, I have the same issue with my fuel line also and like what you did. Two questions, first, did you run a hard line or a rubber line from the fuel pump up all the way ? and two, your mount for the fuel filter, that home mage of something you can buy stock? I like the looks of it !

            • dadsbee

              dadsbee FBBO Gold Member FBBO Gold Member

              Messages:
              5,846
              Likes Received:
              12538
              Joined:
              Jan 29, 2018
              Location:
              Ontario, Canada
              Local Time:
              6:03 AM

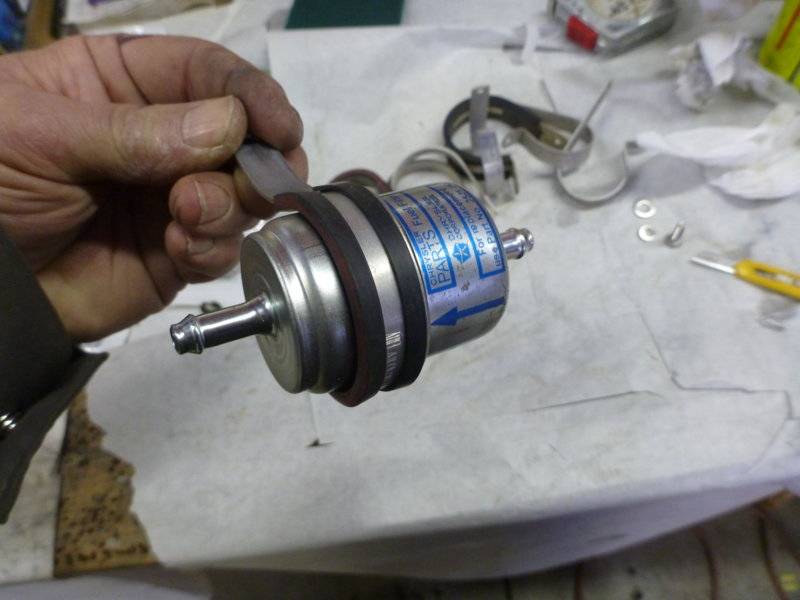

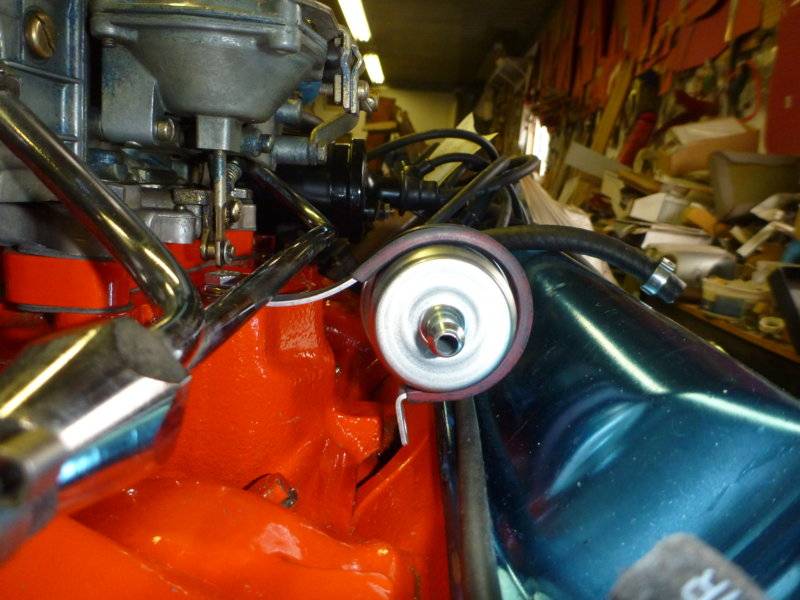

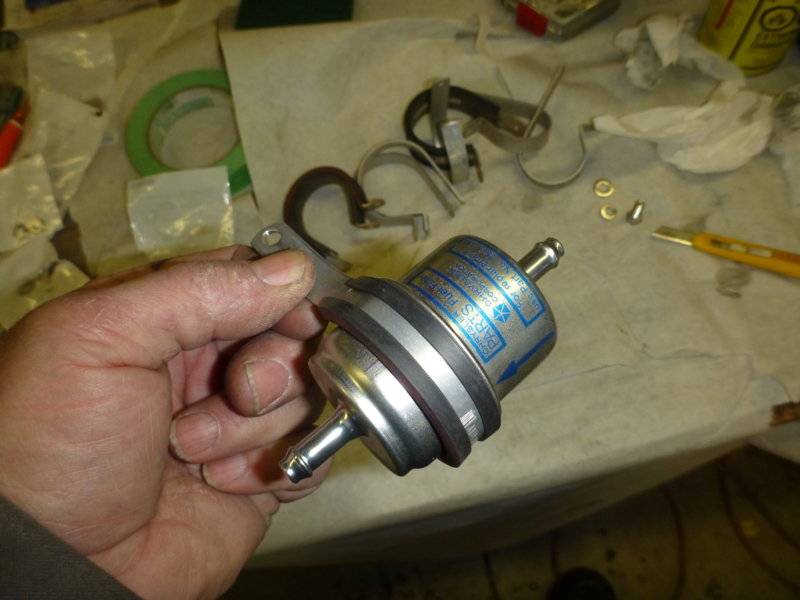

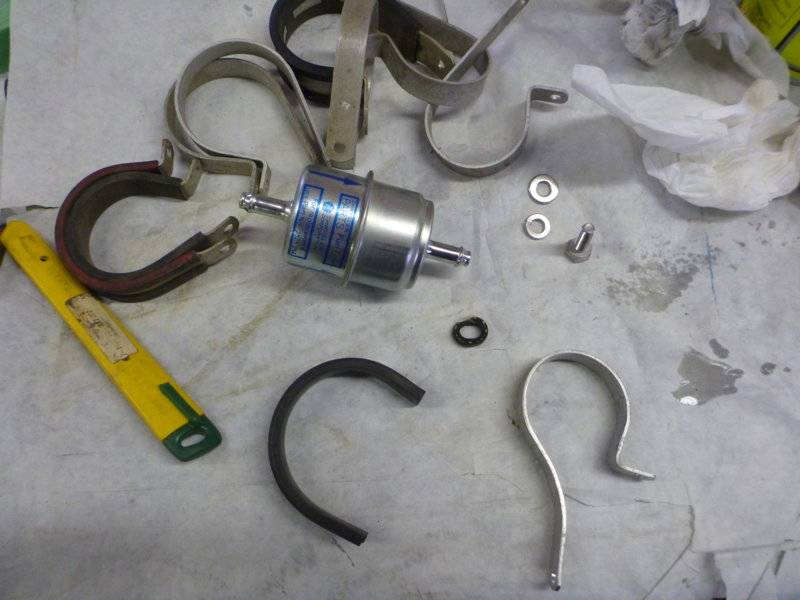

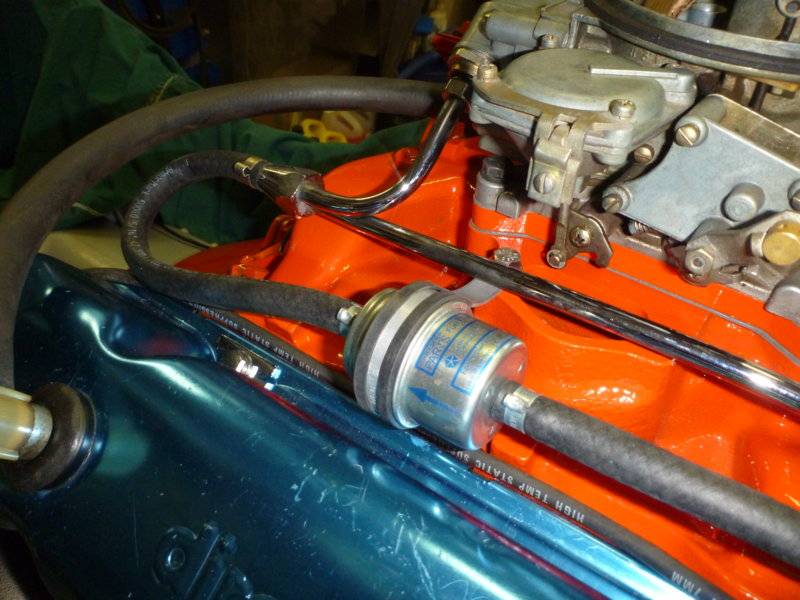

              Rubber line from pump, as it's an aftermarket with a hose barb.. not a threaded fitting. Filter holder is just a "tube clamp" of the appropriate size, I have 10's of thousands of them on hand so not an issue getting one the correct size. The effort was to hold the filter up in "free" air so it stays cool and not resting on the manifold and percolating. beerestoration2017 770.JPG beerestoration2017 772.JPG beerestoration2017 773.JPG beerestoration2017 774.JPG beerestoration2017 775.JPG beerestoration2017 776.JPG

            • HEMI-ITIS

              HEMI-ITIS STREETER on LI FBBO Gold Member

              Messages:
              11,588
              Likes Received:
              13732
              Joined:
              Dec 14, 2008
              Location:
              Long Island,New York
              Local Time:
              6:03 AM
              With under,,,,,say 500 HP the small fuel line would be ok.

              • Agree Agree x 1
              • dadsbee

                dadsbee FBBO Gold Member FBBO Gold Member

                Messages:
                5,846
                Likes Received:
                12538
                Joined:
                Jan 29, 2018
                Location:
                Ontario, Canada
                Local Time:
                6:03 AM

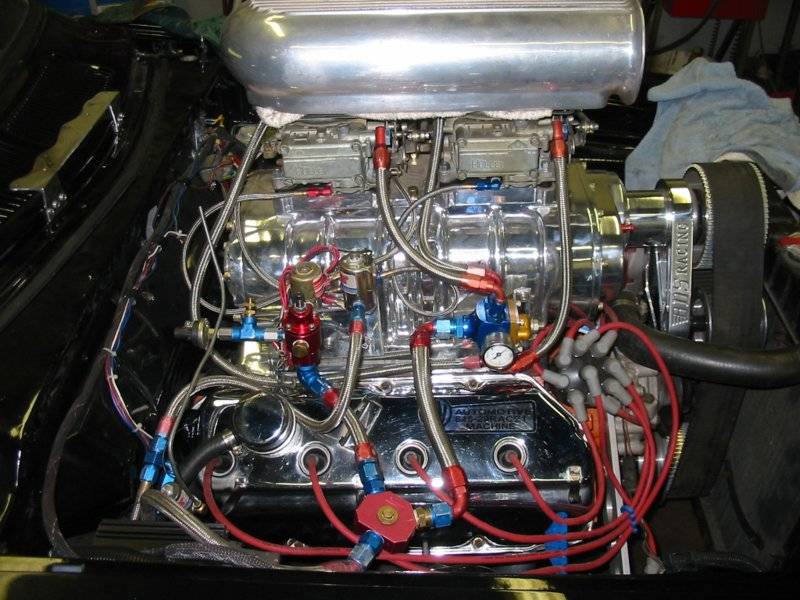

                LOL.. it's a stock 383HP.. we don't all run monster blower engines!..............BUT we should!

                • Thanks! Thanks! x 1
