440 MW clone tuning/plug read

Engine, Trans & Driveline

  1. miller

    miller FBBO Gold Member FBBO Gold Member

    My Photo Garage
    Messages:
    3,413
    Likes Received:
    1537
    Joined:
    Jan 5, 2014
    Location:
    Tom Bean,Texas
    Local Time:
    2:36 AM
    Just turned 500 miles on my 64 Sport Fury. Motor is a 69 440, MW clone, with a 63 model crossram, with a pair of 1405 600 cfm Eddys.
    Just pulled the plugs for a look, and a compression test, showing 150 psi all, except one 145 read.
    I admit, my first 440 (like that's any dif), first crossram, first dual carbs...:blah::blah:.

    Okay, what I'm looking at, on the plugs, strap mark is almost to the base. Plugs too hot? Using Champion J12YC plugs. I'll get a few pictures up, later today, after my camera gets charged.
    Ceramic is tan, it's full length. One plug (#8) slightly oiled, but after finding the plug boot on the wire cooked pretty good, that is probably that problem.

    Both carb mixture screws are 1 1/2 turns out. Engine runs fairly strong, pulls good, no smoke out the exhaust. What I am getting out the exhaust...is soot! At a little over 400 miles, it started showing, so during the last 100 miles, or slowly building up over time. Carb mixture too rich??

    Last edited: Jul 17, 2018
  2. Bill Monk

    Bill Monk FBBO Gold Member FBBO Gold Member

    My Photo Garage
    Messages:
    1,475
    Likes Received:
    1421
    Joined:
    Feb 27, 2017
    Location:
    West Virginia
    Local Time:
    3:36 AM
    • Thanks! Thanks! x 1
    • miller

      miller FBBO Gold Member FBBO Gold Member

      My Photo Garage
      Messages:
      3,413
      Likes Received:
      1537
      Joined:
      Jan 5, 2014
      Location:
      Tom Bean,Texas
      Local Time:
      2:36 AM
      Here's the photos...

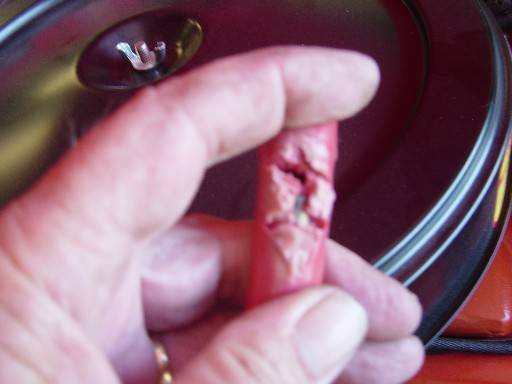

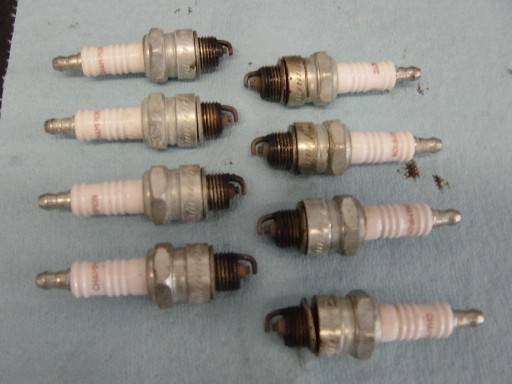

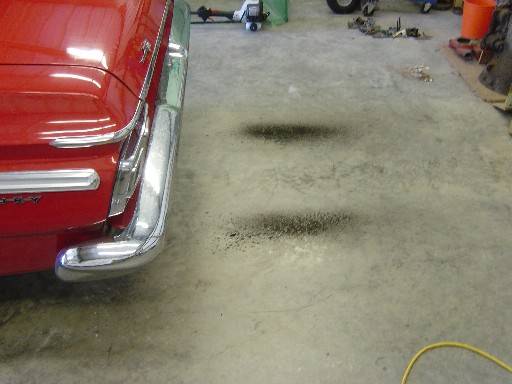

      440 plugs.JPG soot.JPG boot.JPG
