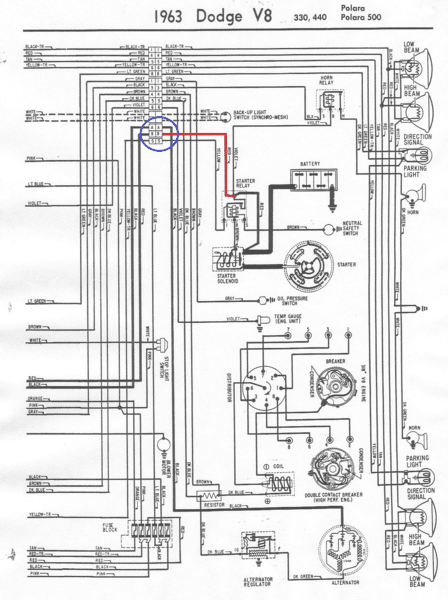

Hey guys my buddy's '63 440 is having some electrical issues. I've found the schematic for his car on mymopar.com.
Can anyone tell me how the bulkhead connection (from the starter relay RED wire on drawing below) as well as the bulkhead connection (from the Alternator stud) are physically made? I recall seeing some screw terminals on the engine bay side of the bulk head connector. Specifically the A & B terminals (within the BLUE circle on the drawing).
Pictures and any details are greatly appreciated.
