65 belvedere gas pedal low and not enough travel

1962 - 1965 Mopars

  1. Redfiretb

    Redfiretb Member

    Messages:
    16
    Likes Received:
    2
    Joined:
    Mar 8, 2020
    Location:
    Pennsylvania
    Local Time:
    7:53 AM
    Hey Guy's

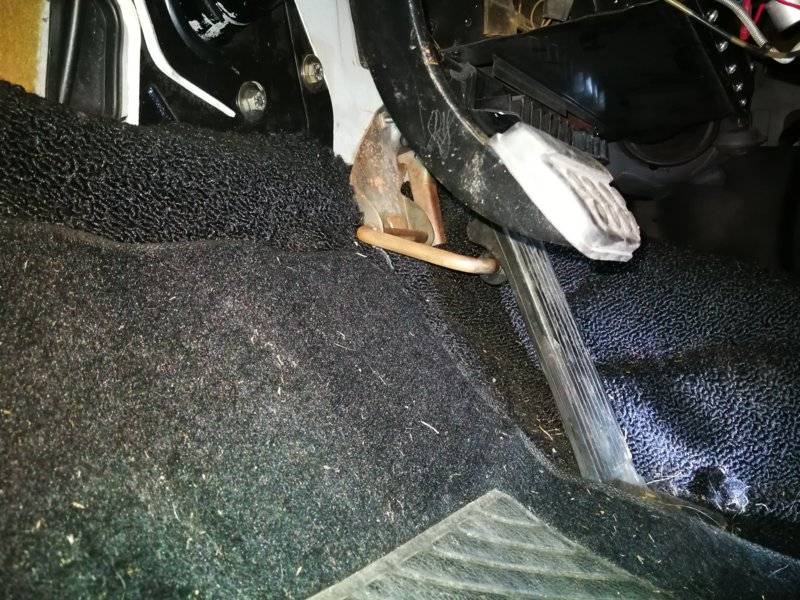

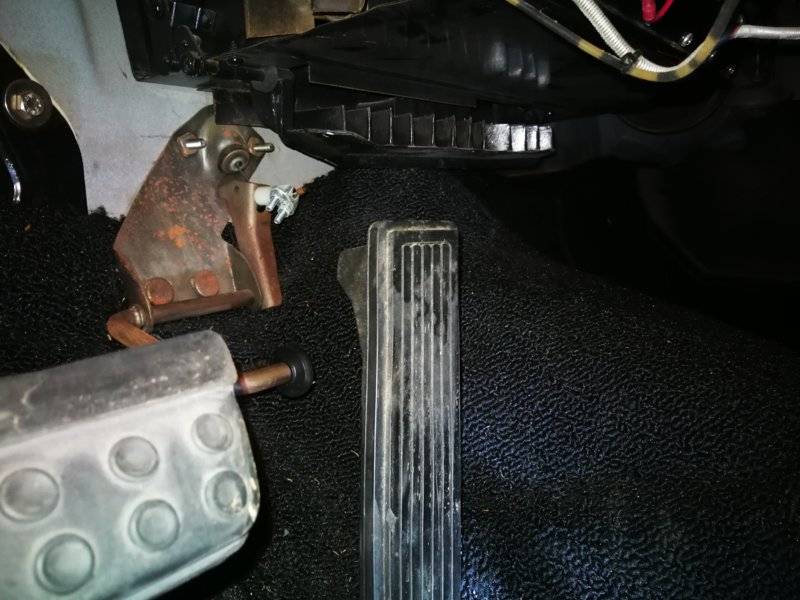

    This is my first post I attached some pictures of my gas pedal in a 65 belvedere with a hemi and dual quad elderbrocks. The car had this pedal setup when I got it and I want to replace it all. To me looks like I have the wrong throttle cable as well as an issue with the pedal linkage arm. My pedal is way to low and I cannot get full throttle. Do you guys think the linkage is bent to far? I was thinking of bending the linkage up some with a new cable but that will not move the pedal up that much. Is there something I'm missing or are these pedals just this low and on an angle? I did previously have a 68 gtx and don't remember the pedal being like this. You guys have any suggestions?

    Also does anybody like lokar or something make an aftermarket pedal assembly that would bolt in as an option?

    Thanks,
    -Tim

    IMG_20200308_200037.jpg IMG_20200308_200015.jpg IMG_20200308_200023.jpg ?temp_hash=8be47bf4c44a43c4943ea81f6a9adefb.jpg ?temp_hash=8be47bf4c44a43c4943ea81f6a9adefb.jpg ?temp_hash=8be47bf4c44a43c4943ea81f6a9adefb.jpg

  2. Cranky

    Cranky Banned Staff Member FBBO Gold Member

    Messages:
    20,518
    Likes Received:
    16856
    Joined:
    Dec 4, 2009
    Location:
    Pasa-getdown-dena Texas
    Local Time:
    6:53 AM
    What does the linkage under the hood look like? The cable at the pedal doesn't look too cool to me.....

  3. Redfiretb

    Redfiretb Member

    Messages:
    16
    Likes Received:
    2
    Joined:
    Mar 8, 2020
    Location:
    Pennsylvania
    Local Time:
    7:53 AM

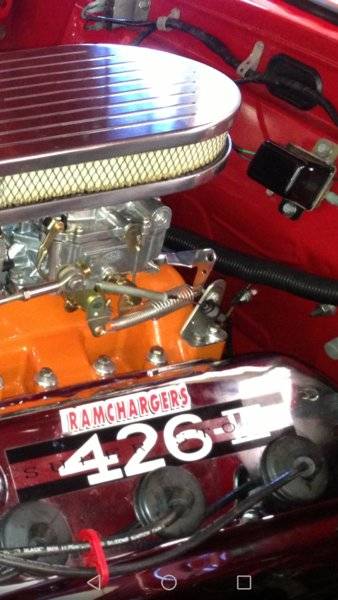

    I agree I want to rip it all out asap. Here is a Pic of linkage on carbs


  4. Fran Blacker

    Fran Blacker FBBO Gold Member FBBO Gold Member

    Messages:
    7,606
    Likes Received:
    7169
    Joined:
    Sep 23, 2016
    Location:
    Connecticut
    Local Time:
    7:53 AM
    That rig on cable isn't right.

  5. dadsbee

    dadsbee FBBO Gold Member FBBO Gold Member

    Messages:
    5,588
    Likes Received:
    11871
    Joined:
    Jan 29, 2018
    Location:
    Ontario, Canada
    Local Time:
    7:53 AM
    But if he's going to remove it I have an antenna cable that could use a new guide wire clamp! The engine side cable clamp should have enough adjustment in it that you don't need the slack taken up at the pedal.

  6. streetwedg

    streetwedg Well-Known Member

    Messages:
    340
    Likes Received:
    384
    Joined:
    Nov 2, 2011
    Location:
    ohio
    Local Time:
    7:53 AM
    That’s the wrong pedal. The correct pedal should have the same (dot ) pattern as the brake pedal pad.

  7. Redfiretb

    Redfiretb Member

    Messages:
    16
    Likes Received:
    2
    Joined:
    Mar 8, 2020
    Location:
    Pennsylvania
    Local Time:
    7:53 AM
    I have a new cable that I will be installing as well as the correct pedal (with dots) but they look pretty close I dont think it will make much of a difference. my main question was the pedal linkage arm seems to me that it should be bent up more, so they are closer to perpendicular which would allow more throttle travel as well as pushing pedal higher up.

  8. silversedan

    silversedan Well-Known Member

    Messages:
    473
    Likes Received:
    272
    Joined:
    Mar 29, 2014
    Location:
    Edgar , Wi.
    Local Time:
    6:53 AM
    also on the carb , there is a mopar linkage adapter for the edelbrock carb for mopar linkage, should lower the attachment location which would put the carb open farther.

    • Like Like x 1
    • swampdonkey

      swampdonkey Well-Known Member

      Messages:
      86
      Likes Received:
      64
      Joined:
      May 28, 2015
      Location:
      litchfield,me
      Local Time:
      6:53 AM
      Silversedan has the correct approach it's in the linkage attachment on the carb that's going to correct the problem.
      I had that same problem with my car I shortened the pivet point I believe where the cable is attached.

    • dvw

      dvw Well-Known Member

      Messages:
      4,879
      Likes Received:
      6799
      Joined:
      Feb 16, 2010
      Location:
      waterford mi
      Local Time:
      7:53 AM

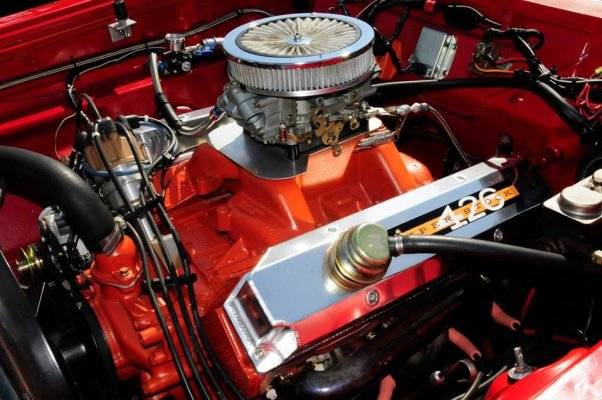

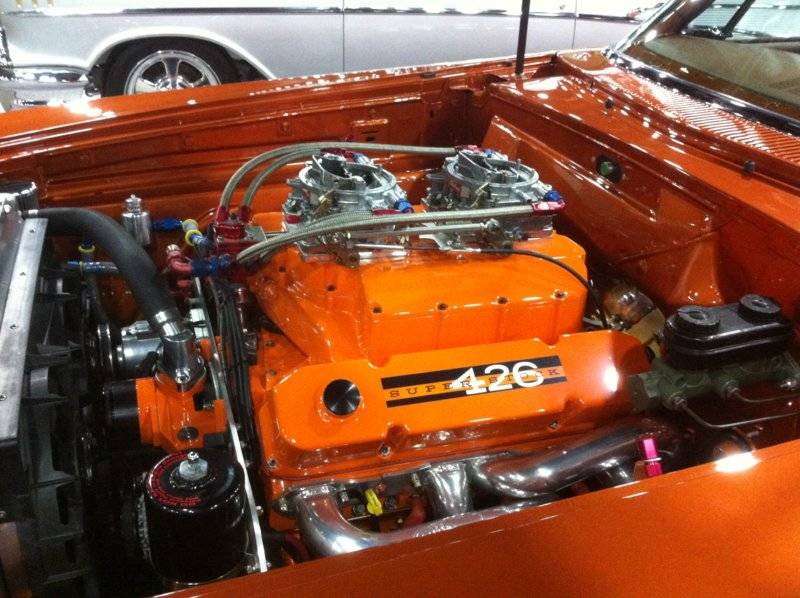

      You'll be a lot happier using a longer cable. Attach the cable at the front carb. Cleaner and less of a bend. Stock 6 cylinder cable works perfect. This isnt a very good pic. But the bracket that holds the cable mounts to the left rear stud on the front carb and the left front stud on the rear carb. It used the stock cable clamp.
      Doug

      64 Engine.JPG

      • Like Like x 1
      • Agree Agree x 1
      • Redfiretb

        Redfiretb Member

        Messages:
        16
        Likes Received:
        2
        Joined:
        Mar 8, 2020
        Location:
        Pennsylvania
        Local Time:
        7:53 AM
        Thanks guys! I didn't think about the actual linkage to the carbs as well I will look in new mounts and carb linkages.

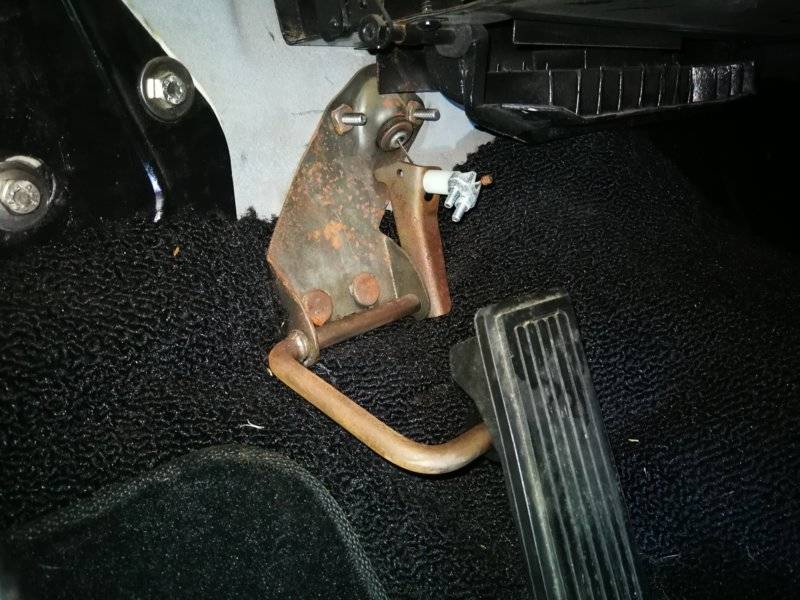

        As far as pedal position does mine look correct I feel like it's leaning too far forward like it needs to be more vertical. The arm that cable mounts to tight against firewall. How far up is the roller wheel on pedal arm supposed to up on pedal? Here is a Pic showing where it rests on my pedal.


      • R/T Boy 67

        R/T Boy 67 Well-Known Member

        Messages:
        619
        Likes Received:
        541
        Joined:
        Apr 23, 2018
        Location:
        Nanaimo B.C. Canada
        Local Time:
        4:53 AM
        Pedal linkage does not look right. The roller should be up near the top of the curved section. Wrong year parts? You have nothing to lose by bending the lever up a bit. As stated,the engine side needs attention also.

        • Agree Agree x 1
        • Centerline

          Centerline Well-Known Member

          Messages:
          426
          Likes Received:
          578
          Joined:
          Jan 17, 2009
          Location:
          South Central TEXAS
          Local Time:
          6:53 AM

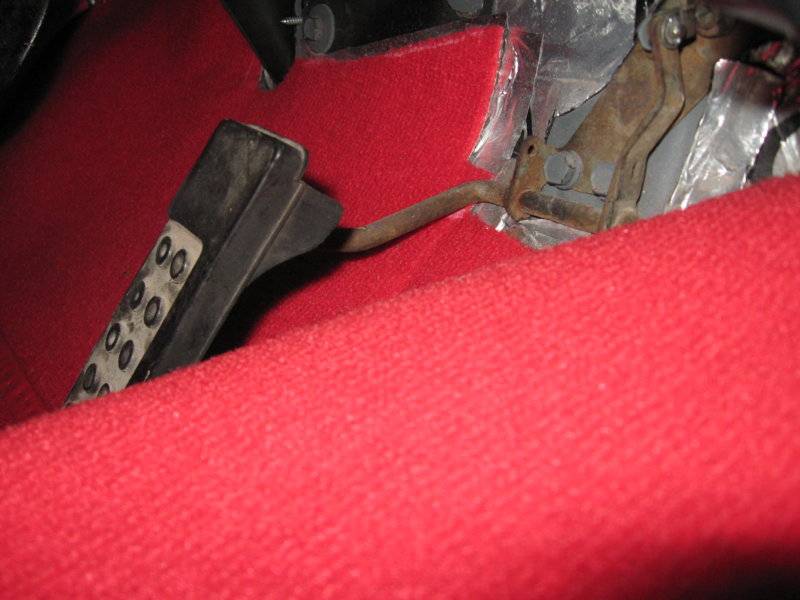

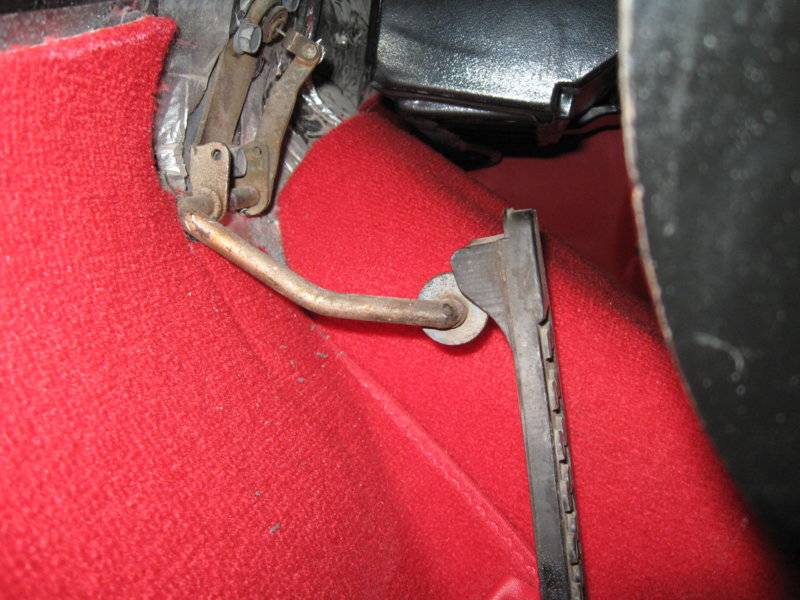

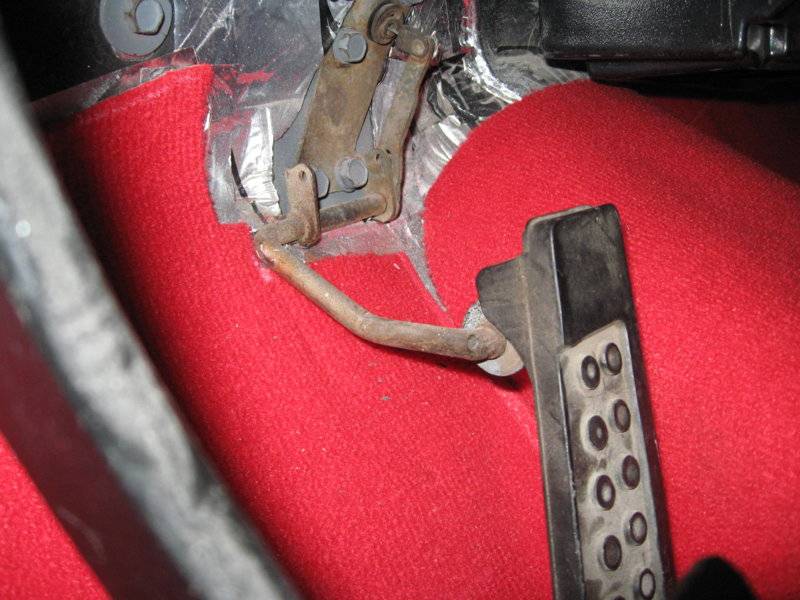

          This is the pedal setup on my '64 Polara. Yours should be almost identical. If you notice the arm should be at a 90 degree angle, not bent over as far as yours.

          IMG_6429.JPG IMG_6430.JPG IMG_6431.JPG

          I suspect someone Jerry-Rigged yours just to get it to work for a quick sale. You need to first replace the pedal with the correct one and then bend the linkage back so the washer fits in the proper location on the pedal. Then, as has been suggested, install a new throttle cable and attach it to the front carb, NOT the rear carb as it is now.

          • Thanks! Thanks! x 1
          • Redfiretb

            Redfiretb Member

            Messages:
            16
            Likes Received:
            2
            Joined:
            Mar 8, 2020
            Location:
            Pennsylvania
            Local Time:
            7:53 AM
            Thanks for the pictures! I knew it was off. I'm going to pull it off heat it and bent it up some. I already got the correct pedal for it.

            I do have a question about carb connection and it being progressive, Isn't the back usually the primary carb? How does the linkage work with the cable hooked to front carb?

            Thanks for all the help Guy's!

          • Redfiretb

            Redfiretb Member

            Messages:
            16
            Likes Received:
            2
            Joined:
            Mar 8, 2020
            Location:
            Pennsylvania
            Local Time:
            7:53 AM
            Is the linkage adapter I need to get the 1481 from elderbrock

          • Fran Blacker

            Fran Blacker FBBO Gold Member FBBO Gold Member

            Messages:
            7,606
            Likes Received:
            7169
            Joined:
            Sep 23, 2016
            Location:
            Connecticut
            Local Time:
            7:53 AM

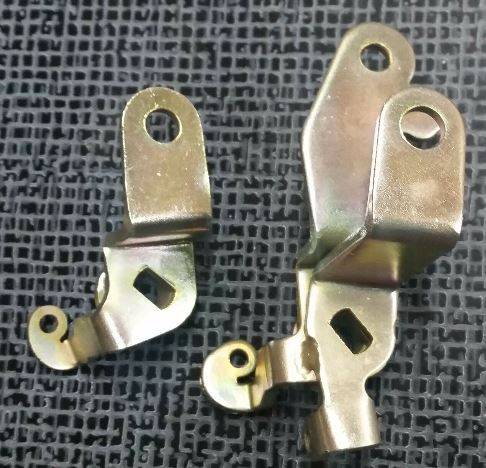

            Picture is of AFB Hemi throttle arms front carb arm left pivot is shorter. Larger hole is for auto trans linkage. arms.JPG

          • Redfiretb

            Redfiretb Member

            Messages:
            16
            Likes Received:
            2
            Joined:
            Mar 8, 2020
            Location:
            Pennsylvania
            Local Time:
            7:53 AM
            Will these fit on the elderbrock carbs? I'm also assuming I will need a stock linkage again to connect the carbs? And those arms are used to hook the throttle cable to the front carb?

          • Fran Blacker

            Fran Blacker FBBO Gold Member FBBO Gold Member

            Messages:
            7,606
            Likes Received:
            7169
            Joined:
            Sep 23, 2016
            Location:
            Connecticut
            Local Time:
            7:53 AM
            Don't if they would work on eddies. Once you get gas pedal right, get rear carb to open fully first. Then work on front carb throttle arm. Guys that work on eddies may have advice .

          • 383man

            383man Well-Known Member

            Messages:
            4,405
            Likes Received:
            3211
            Joined:
            Jul 19, 2008
            Location:
            Md
            Local Time:
            6:53 AM
            I have been using a Lokar cable on my 63 for 14 years since I put it on the road. When I was done I could not get full throttle even with the cable as tight as it could go. So I went inside the car and bent that rod that the pedal hits on with the roller on it as I bent it up for more pedal travel and that cured the problem and gave me full throttle. Its been like that for 14 years now. Ron


          • coloradodave

            coloradodave FBBO Gold Member FBBO Gold Member

            Messages:
            3,497
            Likes Received:
            2844
            Joined:
            Jun 1, 2011
            Location:
            Lincoln, CA
            Local Time:
            4:53 AM
            Agree with Ron. COLD bend the pedal. Worked for me...
