66 washer bottle and pump setup. Need help

1966 -1967 Mopars

  1. 66charger101

    66charger101 Well-Known Member

    Messages:
    48
    Likes Received:
    5
    Joined:
    Dec 27, 2014
    Location:
    ontario
    Local Time:
    1:40 AM
    Ok so I have a 66 charger and I'm installing the washer bottle and pump then gonna run the hoses. Friend of mine is saying there is a screen type nut that goes onto the washer bottle that the hose attaches to then after that I hook up the hose to the pump and then to the dash. My question is, is there really a screen that I need for the install, I got a complete kit and this screen that he is talking about is not in the kit. If i could get pics of ppls washer bottle and pump setup. That would be great.
    Thanks in advance

  2. 69bfan

    69bfan FBBO Vendor FBBO Sponsor

    Messages:
    1,015
    Likes Received:
    808
    Joined:
    Mar 14, 2009
    Location:
    Jasper, GA.
    Local Time:
    2:40 AM
    The 66 B-Body washer bottle uses a external pump and thus no screen or filter as found on the 67 style or the 68 to 70 B-Body washer bottle.

    • Agree Agree x 2
    • JimCoronette

      JimCoronette Well-Known Member

      Messages:
      393
      Likes Received:
      499
      Joined:
      Oct 30, 2018
      Location:
      Cold Spring, NY
      Local Time:
      2:40 AM
      The screen nut was used in 67 and newer.
      In 67 The pump sits in the bottom of the reservoir.
      66 has a nipple on the side of the reservoir that feeds the pump that is mounted on the fender well.

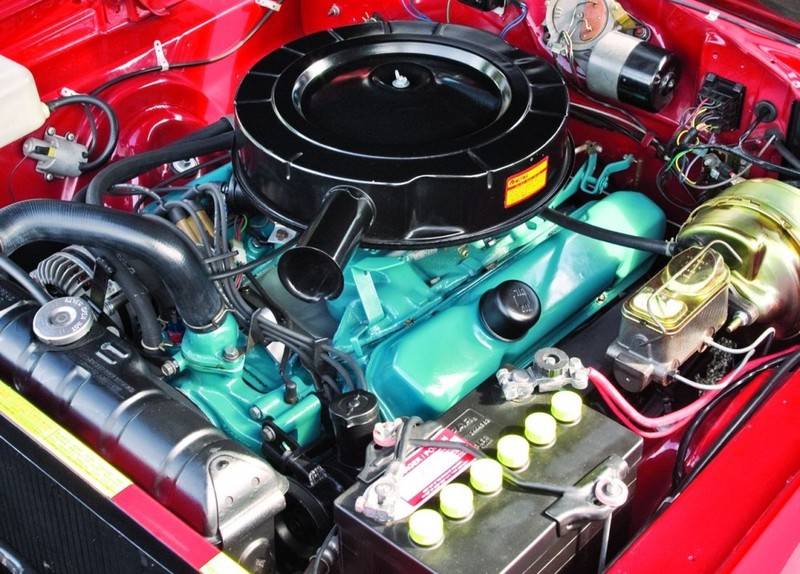

      1966

      1967 and newer

      Last edited: Jan 17, 2020
      • Agree Agree x 2
      • Thanks! Thanks! x 1
      • 66charger101

        66charger101 Well-Known Member

        Messages:
        48
        Likes Received:
        5
        Joined:
        Dec 27, 2014
        Location:
        ontario
        Local Time:
        1:40 AM
        Ahhh gotcha gotcha that makes total sense. Thanks guys much appreciated. Learn something new everyday.
        Mopar or no car

        • Like Like x 2
        • Agree Agree x 1
        • Darter6

          Darter6 FBBO Gold Member FBBO Gold Member

          Messages:
          3,696
          Likes Received:
          3718
          Joined:
          Dec 29, 2009
          Location:
          Nevada
          Local Time:
          1:40 AM
          I agree . That's why you gotta love this site !
