67 Belvedere Convertible top poc request.

Exterior Body, Paint, Trim, Chrome

  1. closer9

    closer9 Well-Known Member

    Messages:
    58
    Likes Received:
    20
    Joined:
    Jul 18, 2008
    Location:
    SWMO
    Local Time:
    3:49 AM
    About to start putting my top frame back together. I have the service manual, but not a lot of good illustrations. Was curious if someone would be able to send/post pictures of all the attachment points, please? Mine is completely disassembled. Fixing missing rivet bushings and some rust on the header.

    I've been putting this off and dreading it, but it has to be done.

    Please and thank you!!!

  2. Dakar Timm

    Dakar Timm Well-Known Member

    Messages:
    95
    Likes Received:
    248
    Joined:
    Nov 14, 2020
    Location:
    Lake Mills Wisconsin
    Local Time:
    3:49 AM
    How similar is this to our '66 Coronet convertible ?

  3. closer9

    closer9 Well-Known Member

    Messages:
    58
    Likes Received:
    20
    Joined:
    Jul 18, 2008
    Location:
    SWMO
    Local Time:
    3:49 AM
    From what I've read the convertible parts are the same. I have no first hand knowledge of Dodge though.

  4. Dakar Timm

    Dakar Timm Well-Known Member

    Messages:
    95
    Likes Received:
    248
    Joined:
    Nov 14, 2020
    Location:
    Lake Mills Wisconsin
    Local Time:
    3:49 AM
    just so I understand ,you would like pictures of how the mechanism attaches to the body of the car ?

  5. closer9

    closer9 Well-Known Member

    Messages:
    58
    Likes Received:
    20
    Joined:
    Jul 18, 2008
    Location:
    SWMO
    Local Time:
    3:49 AM
    If you could also get pictures of where the bows and header attach as well, that would be great. I'll take whatever I can get. I'm just getting started. Not exactly sure what all I'll need. Would rather have the pictures ahead of time to start planning, etc. Make sure I'm not missing any little brackets, etc.

    Thanks!

  6. closer9

    closer9 Well-Known Member

    Messages:
    58
    Likes Received:
    20
    Joined:
    Jul 18, 2008
    Location:
    SWMO
    Local Time:
    3:49 AM
    Bump...

    Please and thank you.

  7. Dakar Timm

    Dakar Timm Well-Known Member

    Messages:
    95
    Likes Received:
    248
    Joined:
    Nov 14, 2020
    Location:
    Lake Mills Wisconsin
    Local Time:
    3:49 AM
    Mia culpa ..today as soon as I get home .

  8. closer9

    closer9 Well-Known Member

    Messages:
    58
    Likes Received:
    20
    Joined:
    Jul 18, 2008
    Location:
    SWMO
    Local Time:
    3:49 AM
    Thank you very much! I don't want to sound impatient or pushy. Just anxious. I understand life gets busy.

    Thanks!

    Last edited: Apr 30, 2021
  9. Dakar Timm

    Dakar Timm Well-Known Member

    Messages:
    95
    Likes Received:
    248
    Joined:
    Nov 14, 2020
    Location:
    Lake Mills Wisconsin
    Local Time:
    3:49 AM

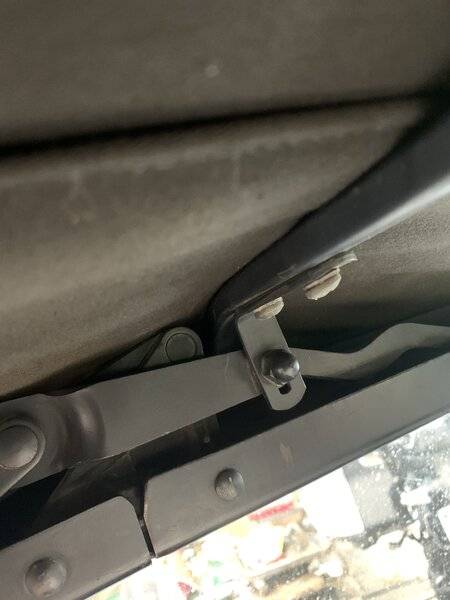

    I hope this helps . Let me know if you need more

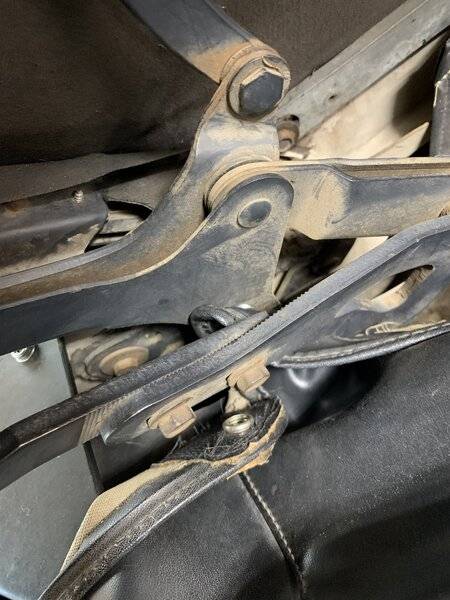

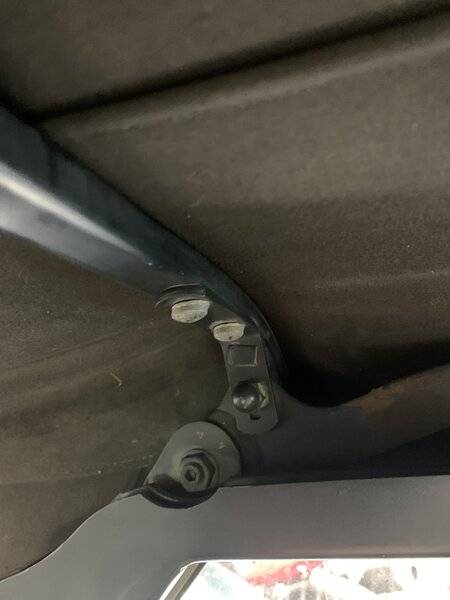

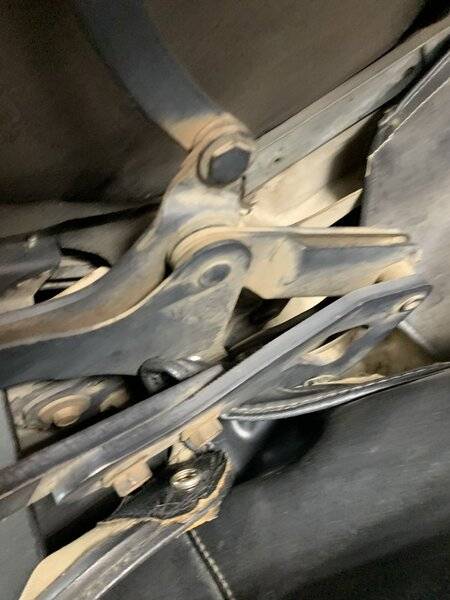

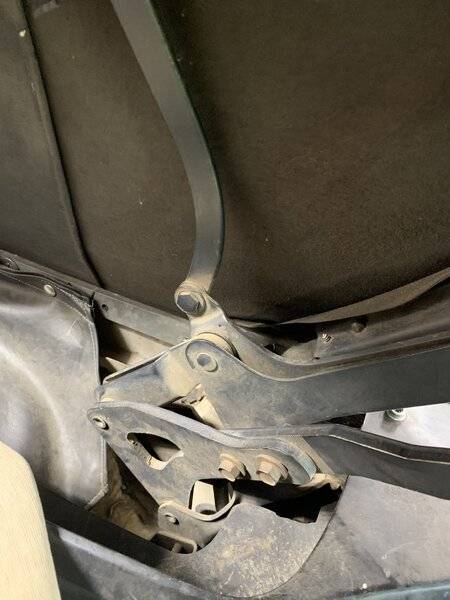

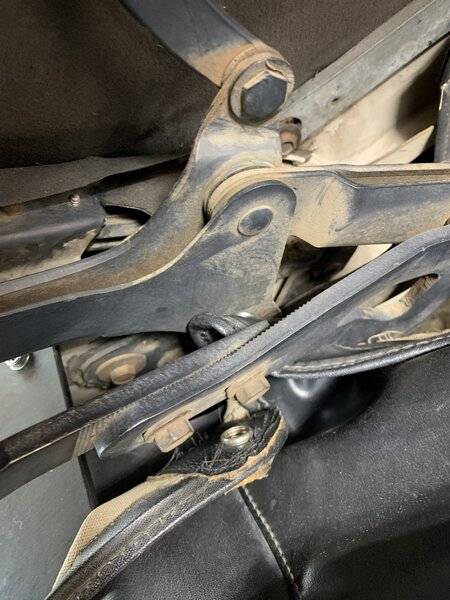

    4B9675B5-2D50-4604-B99A-AADD9FBA778D.jpeg 4470C05C-59B7-4E67-91B5-7AC4B68C6179.jpeg 316FFD9F-4BC2-4296-A49F-400FCE4CD0DB.jpeg B968A666-E1DF-420E-B61E-AA84C67627E8.jpeg 87AAF4B2-B167-475F-99AC-0424E01D4E45.jpeg 578D574B-68E4-4128-B1A5-2C8AC1B5988B.jpeg

    • Like Like x 1
    • closer9

      closer9 Well-Known Member

      Messages:
      58
      Likes Received:
      20
      Joined:
      Jul 18, 2008
      Location:
      SWMO
      Local Time:
      3:49 AM
      Great, thanks! Could you get one more? Trying to see which holes are used for the main bracket to the body. Are there two bolts or three. Service manual doesn't really show.

    • 5wndwcpe

      5wndwcpe Huge Member FBBO Gold Member

      Messages:
      4,420
      Likes Received:
      1922
      Joined:
      Jul 17, 2008
      Location:
      Southeastern, PA
      Local Time:
      4:49 AM

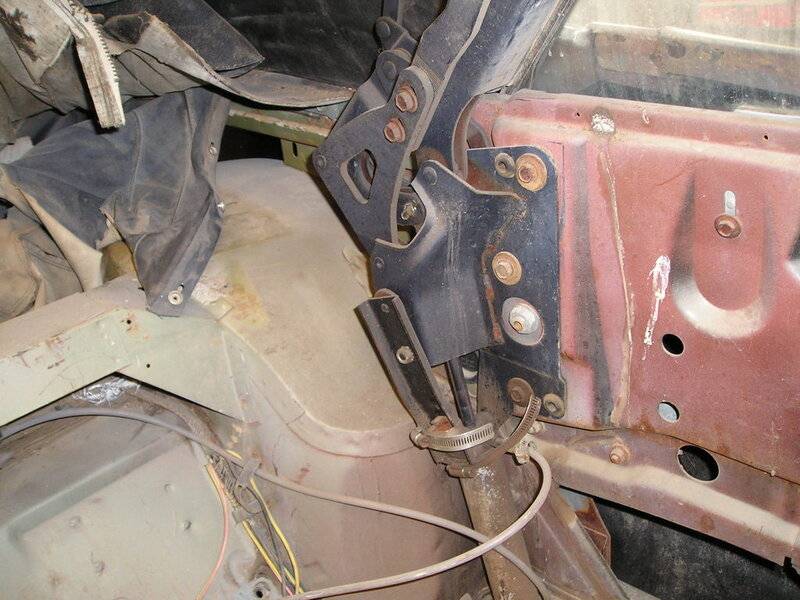

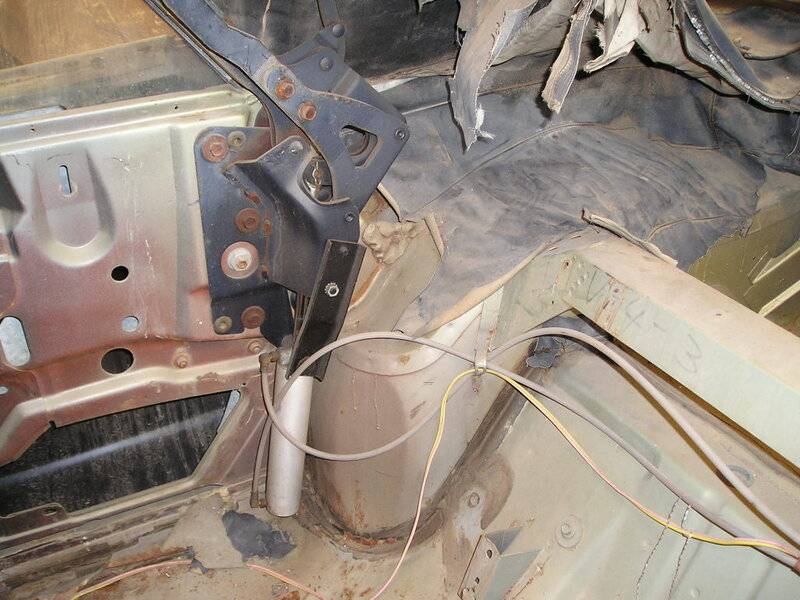

      This is a '68.

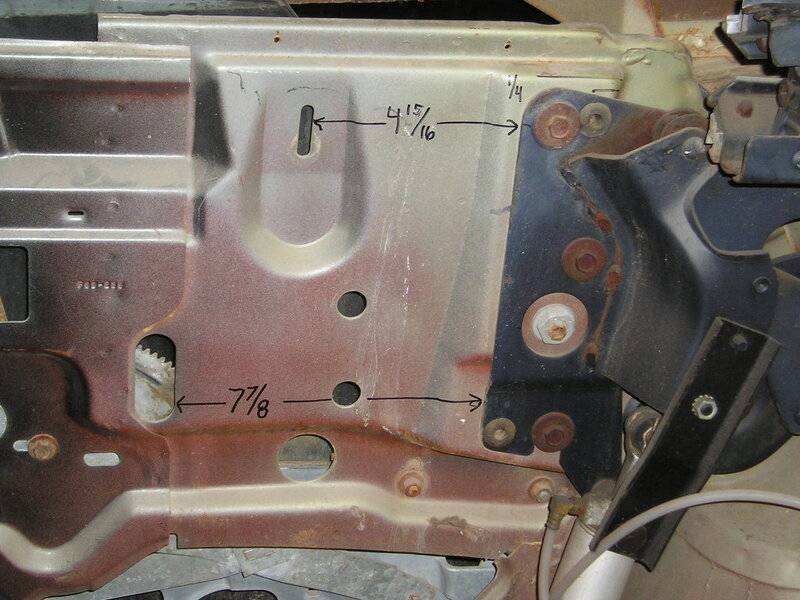

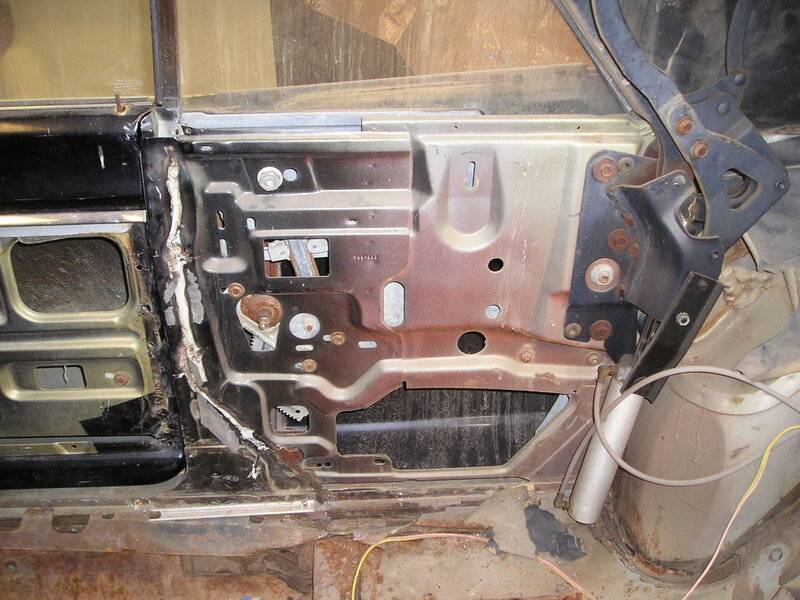

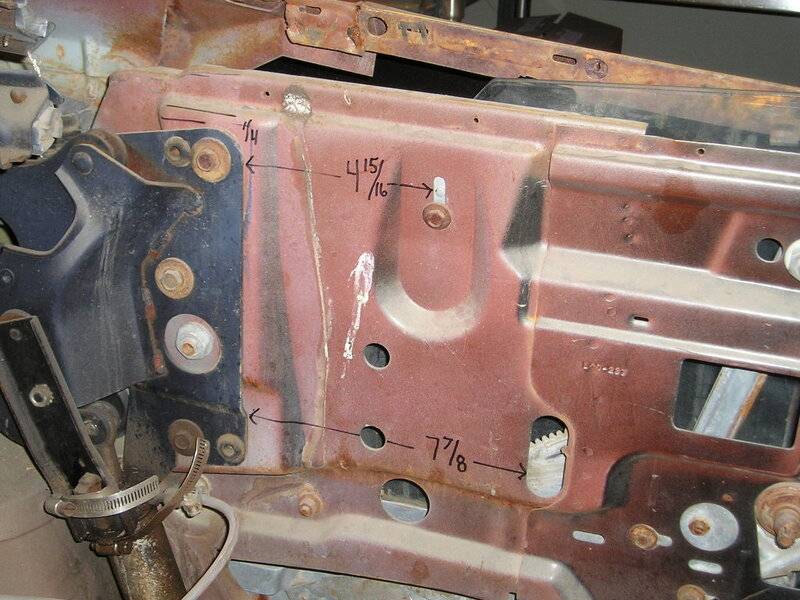

      '68 SS reference 009.jpg '68 SS reference 013.jpg '68 SS reference 014.jpg P1010001-002.JPG P1010002-002.JPG

      • Like Like x 1
      • closer9

        closer9 Well-Known Member

        Messages:
        58
        Likes Received:
        20
        Joined:
        Jul 18, 2008
        Location:
        SWMO
        Local Time:
        3:49 AM
        Ah, thanks! I'm not home with the car, but that looks the same. I was curious about the lower holes. I see the slot is actually used. Are those rubber plugs bottom left and top right on passenger side? Also looks like there is an extra bracket on the driver side bottom.

      • RemCharger

        RemCharger Well-Known Member

        Messages:
        723
        Likes Received:
        456
        Joined:
        Apr 5, 2014
        Location:
        Sask
        Local Time:
        3:49 AM
        I think the factory used shims when necessary where it bolts to the car.

      • 5wndwcpe

        5wndwcpe Huge Member FBBO Gold Member

        Messages:
        4,420
        Likes Received:
        1922
        Joined:
        Jul 17, 2008
        Location:
        Southeastern, PA
        Local Time:
        4:49 AM
        There are rubber plugs on both sides and if memory serves, the slotted holes are for the quarter window up stop.

      • closer9

        closer9 Well-Known Member

        Messages:
        58
        Likes Received:
        20
        Joined:
        Jul 18, 2008
        Location:
        SWMO
        Local Time:
        3:49 AM
        Thanks. I still need to get glass and regulators put back too.

      • closer9

        closer9 Well-Known Member

        Messages:
        58
        Likes Received:
        20
        Joined:
        Jul 18, 2008
        Location:
        SWMO
        Local Time:
        3:49 AM
        And now I need to dig around for the bolts or get new ones. Seems those either have a large flange or washer for the oversize holes.

      • closer9

        closer9 Well-Known Member

        Messages:
        58
        Likes Received:
        20
        Joined:
        Jul 18, 2008
        Location:
        SWMO
        Local Time:
        3:49 AM
        Just one more question for now, please.

        What is the diameter of the washers on the bolts holding the main brackets to the body? Or are they flange nuts? Been digging through all my parts and cannot find them. :(

        Found some bolts at Lowe's, but the captured washer is only 0.875". The holes are roughly 0.75". I found some on McMaster with a 1" captured washer.

      • 5wndwcpe

        5wndwcpe Huge Member FBBO Gold Member

        Messages:
        4,420
        Likes Received:
        1922
        Joined:
        Jul 17, 2008
        Location:
        Southeastern, PA
        Local Time:
        4:49 AM
        They are SEMS bolts 5/16-18 x 7/8. The washer is 1 1/8".

      • closer9

        closer9 Well-Known Member

        Messages:
        58
        Likes Received:
        20
        Joined:
        Jul 18, 2008
        Location:
        SWMO
        Local Time:
        3:49 AM
        Thanks a bunch!

        • Like Like x 1
        • closer9

          closer9 Well-Known Member

          Messages:
          58
          Likes Received:
          20
          Joined:
          Jul 18, 2008
          Location:
          SWMO
          Local Time:
          3:49 AM
          I got some new bolts and mounted up the driver's side frame section. Wow! It's been off for 21 years. Feeling like a bit of a loser here... at the same time it felt great to see it back on. Going to use it as a guide to work through the rivets and bushings on the passenger's side. Then I'll work through the driver's side. Working with a machinist friend to modify rivets and make bushings. Just FYI, I had several bushings that were worn out and sloppy and at lease two that were broken. Apparently this top got a lot of use. I plan to keep that going once it's back on.

          I also have to replace a small patch of rust on the header panel.

          • Like Like x 1
