    Texas
    Local Time:
    3:02 PM
    Team

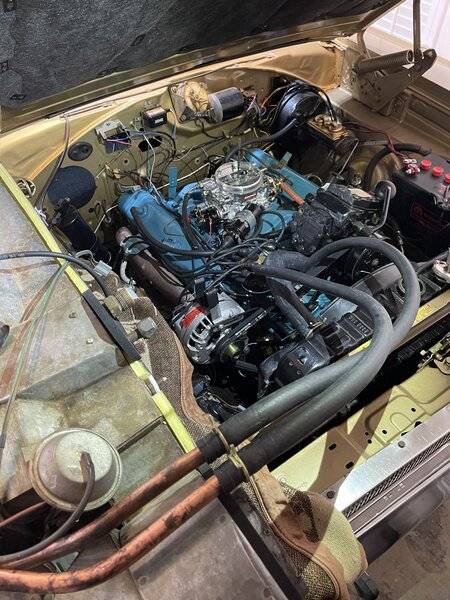

    The box is out and open How do you get it out ?

    was this sweated together?

    1875D4E7-C947-4E2C-8A49-0D7B8E12F605.jpeg 0DDEE8FE-0014-4C3A-AC70-474166F9921A.jpeg

    • Thanks! Thanks! x 1
    • Fran Blacker

      Fran Blacker FBBO Gold Member FBBO Gold Member

      Messages:
      12,029
      Likes Received:
      12046
      Joined:
      Sep 23, 2016
      Location:
      Connecticut
      Local Time:
      4:02 PM
      Looked in SM didn't seem helpful. Maybe an exploded view in SM or parts catalog?

      • Thanks! Thanks! x 1
      • Durandal25

        Durandal25 FBBO Gold Member FBBO Gold Member

        Messages:
        3,113
        Likes Received:
        3205
        Joined:
        Aug 29, 2011
        Location:
        Texas
        Local Time:
        3:02 PM

        Ok, I called the fine folks at Glen Ray. They got me what I needed! The long end pipes are fitted in with o-rings....and the darn thing just pulls right out with some warming and WD 40. Done deal

        • Like Like x 2
        • Thanks! Thanks! x 2
        • Durandal25

          Durandal25 FBBO Gold Member FBBO Gold Member

          Messages:
          3,113
          Likes Received:
          3205
          Joined:
          Aug 29, 2011
          Location:
          Texas
          Local Time:
          3:02 PM
          I'm going to try and document this box break down and review it for others.

          PICs a plenty.

          • Thanks! Thanks! x 2
          • R413

            R413 Well-Known Member

            Messages:
            2,969
            Likes Received:
            6136
            Joined:
            Feb 4, 2019
            Location:
            NW USA
            Local Time:
            1:02 PM

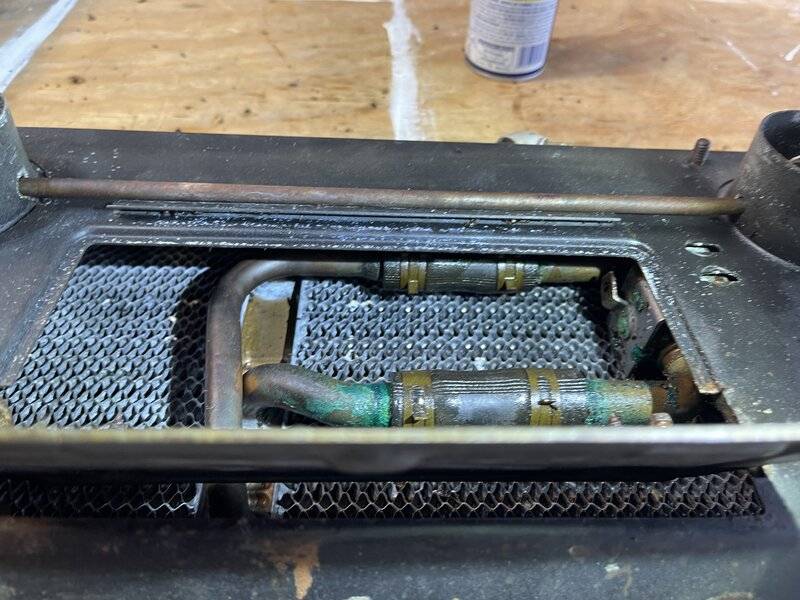

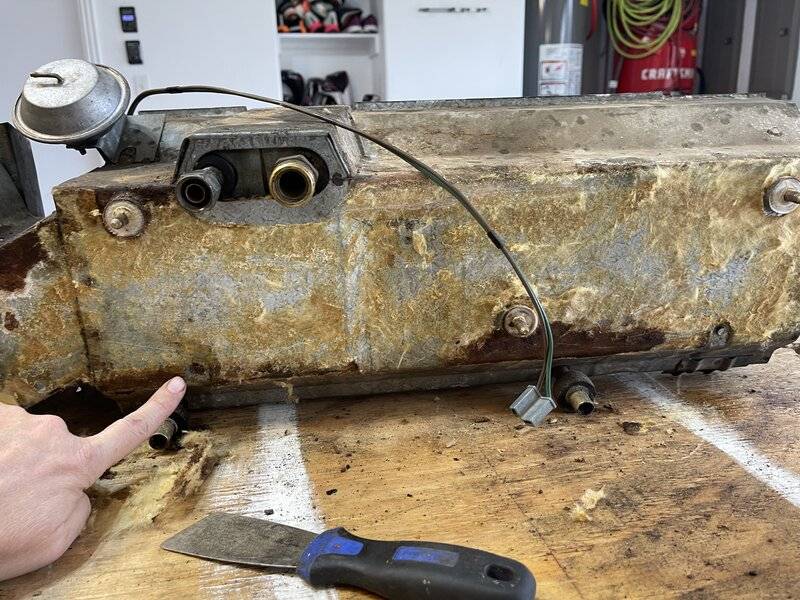

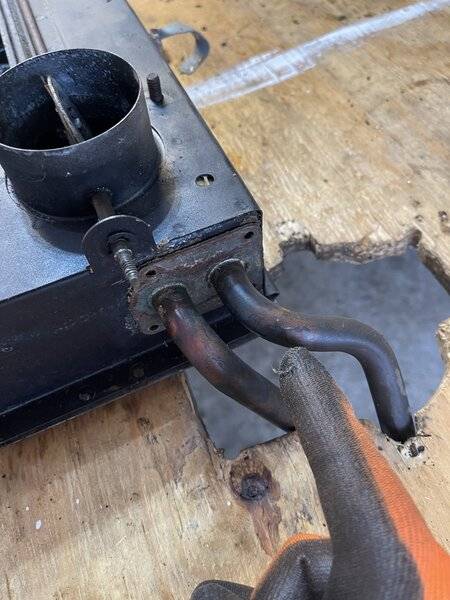

            First pic, this pipes are bolted on. You have the bolts out. And they have o-rings inside where they hat are now rock hard. To remove they pull straight out, but it’s not easy to do. Don’t twist because there are 2 pipes and they can break.

            Try a heat gun, try to spray some lube in there but
            not much room for that.

            • Thanks! Thanks! x 1
            • Durandal25

              Durandal25 FBBO Gold Member FBBO Gold Member

              Messages:
              3,113
              Likes Received:
              3205
              Joined:
              Aug 29, 2011
              Location:
              Texas
              Local Time:
              3:02 PM
              It worked like a charm. I'm pretty sure one of the leaks was coming from this area.....and the others were from the old heater hose fittings. I think the core is good to go. The temp valve is suspect also......

            • Durandal25

              Durandal25 FBBO Gold Member FBBO Gold Member

              Messages:
              3,113
              Likes Received:
              3205
              Joined:
              Aug 29, 2011
              Location:
              Texas
              Local Time:
              3:02 PM
              Keeping it rolling in the last day of 2021

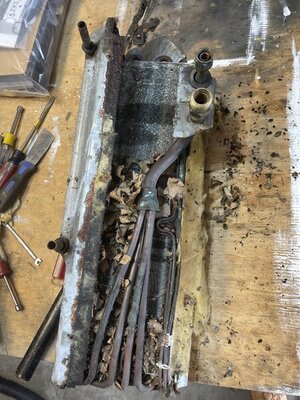

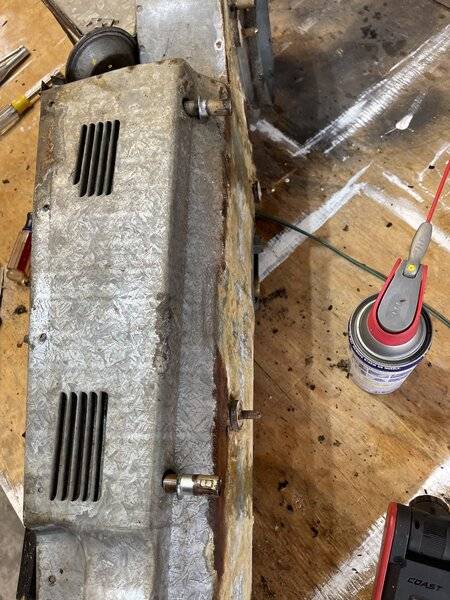

              how do we get the condenser out?

              the drain tubes seem to be hanging me up

              33470D06-3DED-4BAE-8C50-9154F12BD692.jpeg 981926A4-6383-4A57-8D00-005F2013E4C6.jpeg

            • gtx6970

              gtx6970 Well-Known Member

              Messages:
              1,577
              Likes Received:
              2356
              Joined:
              Dec 29, 2015
              Location:
              Tucson AZ
              Local Time:
              1:02 PM
              There is a ferrule over the drain tubes. You have to remove them to pull the evap core out of the case

            • Kilrbee

              Kilrbee Well-Known Member

              Messages:
              241
              Likes Received:
              113
              Joined:
              May 12, 2014
              Location:
              Wisconsin
              Local Time:
              3:02 PM
              These A/C boxes area pain, I've done some myself. my two cents of advice is send your heater core and evaporator to Glen-ray for a pressure check and flush after you have them removed from the case.

              • Agree Agree x 1
              • Durandal25

                Durandal25 FBBO Gold Member FBBO Gold Member

                Messages:
                3,113
                Likes Received:
                3205
                Joined:
                Aug 29, 2011
                Location:
                Texas
                Local Time:
                3:02 PM
                I'm going to flush and clean them here....and try to perform a pressure test....both static and with temperature. I think RC and team over at Glen Ray are just fantastic.....but its the shipping that scares me. UPS and Fed ex are getting to be just as terrible as USPS and frankly, could care less about your products.

                • Agree Agree x 1
                • Durandal25

                  Durandal25 FBBO Gold Member FBBO Gold Member

                  Messages:
                  3,113
                  Likes Received:
                  3205
                  Joined:
                  Aug 29, 2011
                  Location:
                  Texas
                  Local Time:
                  3:02 PM

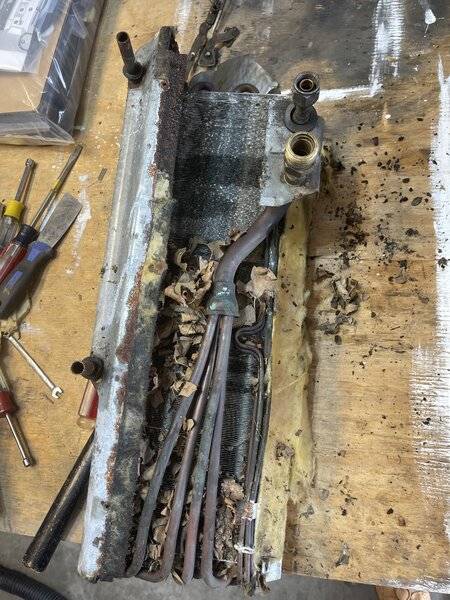

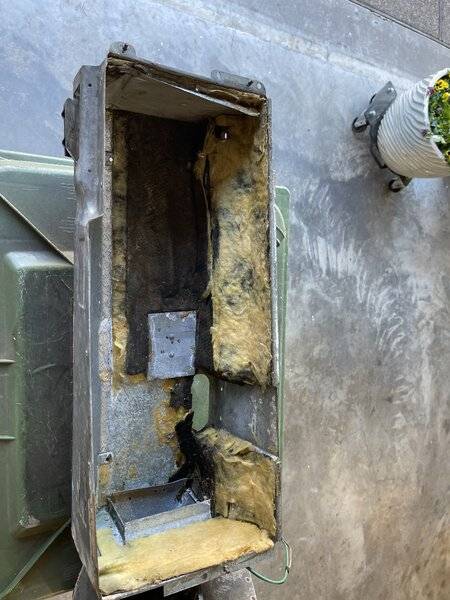

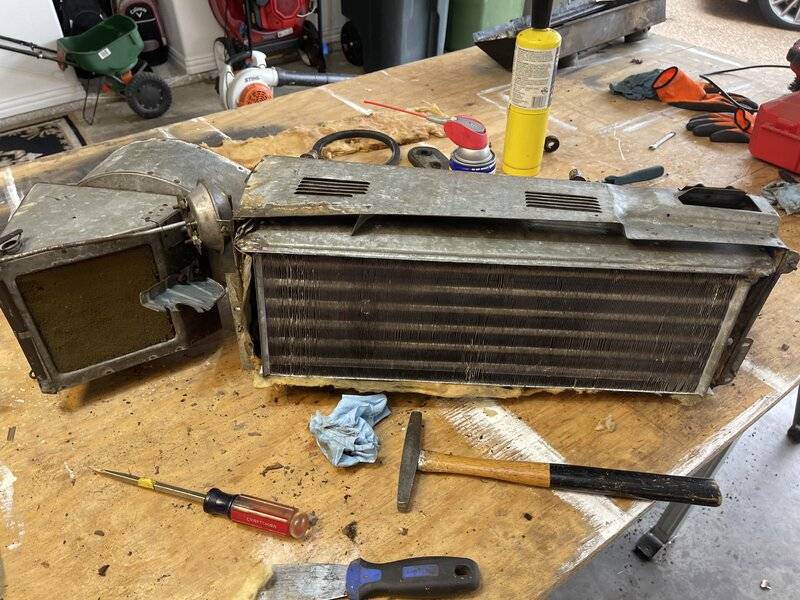

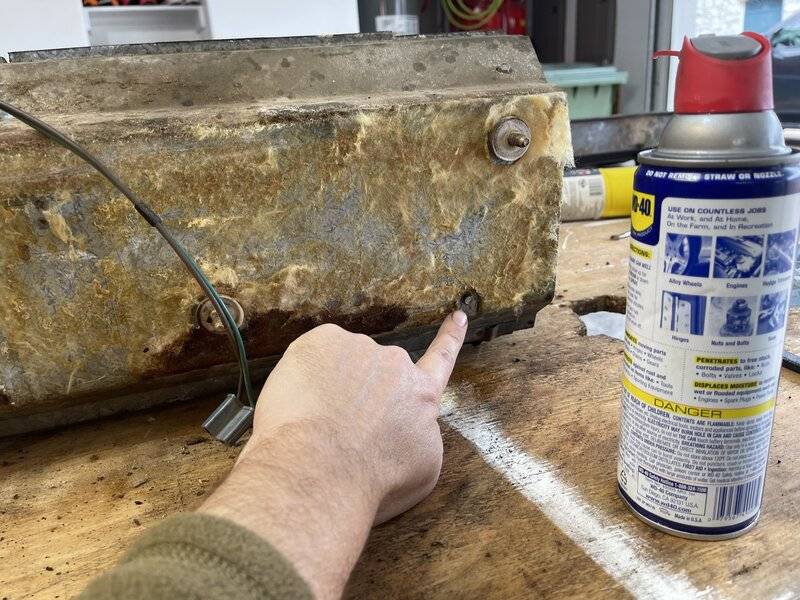

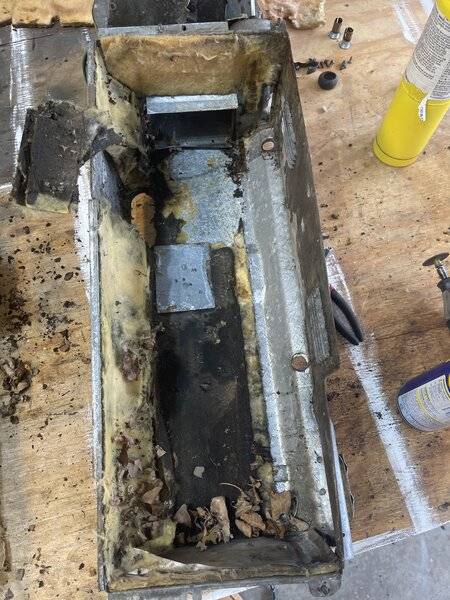

                  Adding a few pics of the box deconstructed.
                  Take note of the OE insulation and it’s color . A lot of kits out there have great replacement insulation
                  DMT s kit is really good

                  8589F731-17F4-44A5-AAC7-24CABE90027D.jpeg B66EC831-7E93-4864-9DB1-C72D59C0F84D.jpeg 22A860B0-FEA6-4D29-86CF-2E083C1CA220.jpeg 81EFCDF6-9E0F-41FB-821F-7F1765F20431.jpeg 06652AA4-CC84-42F0-9D6D-67E7AACB5472.jpeg E4432B14-6855-48EF-B61D-0F489B3AE6C7.jpeg

                  • Thanks! Thanks! x 1
                  • Durandal25

                    Durandal25 FBBO Gold Member FBBO Gold Member

                    Messages:
                    3,113
                    Likes Received:
                    3205
                    Joined:
                    Aug 29, 2011
                    Location:
                    Texas
                    Local Time:
                    3:02 PM

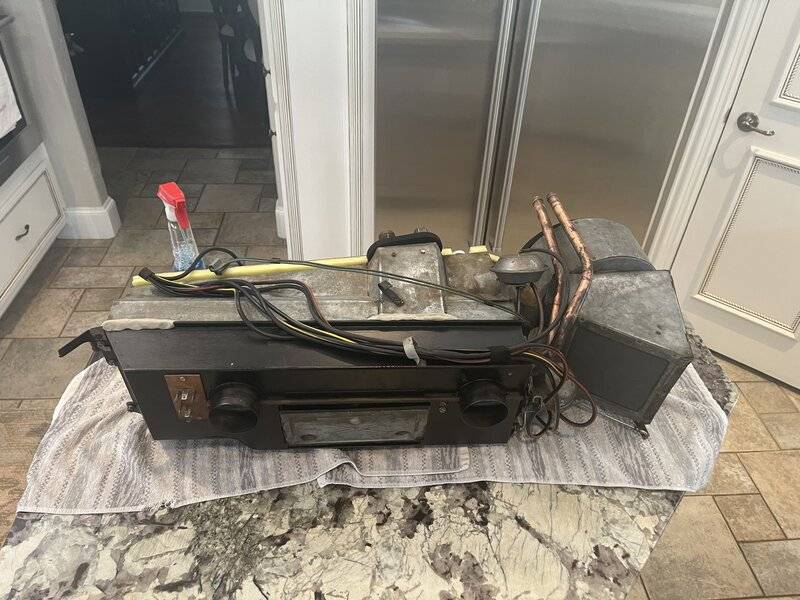

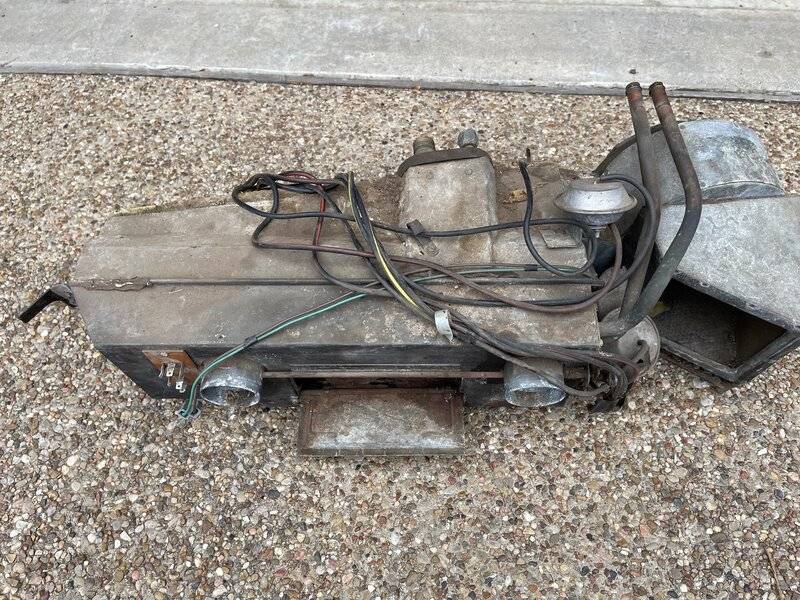

                    Nearly done with unit. Pretty unbelievable how gross these things get, and how much documentation you need to do to put it back together

                    785EC2DA-C230-4860-8BCC-09B27E0BDC50.jpeg 48256024-934D-4CA0-8131-FFDD75088484.jpeg

                    • Thanks! Thanks! x 1
                    • Durandal25

                      Durandal25 FBBO Gold Member FBBO Gold Member

                      Messages:
                      3,113
                      Likes Received:
                      3205
                      Joined:
                      Aug 29, 2011
                      Location:
                      Texas
                      Local Time:
                      3:02 PM
                      I'll note the DMT kit is very good, and with a few tweeks....will be perfect. I've saved the foam bits and seals from this unit to send them for R&D.

                    • Durandal25

                      Durandal25 FBBO Gold Member FBBO Gold Member

                      Messages:
                      3,113
                      Likes Received:
                      3205
                      Joined:
                      Aug 29, 2011
                      Location:
                      Texas
                      Local Time:
                      3:02 PM
                      So before I re-install this unit, I'm going to real time test it by hooking up the heater hoses while its sitting on a stand next to the car. I already tested the core ect...but feel its wise to run it up to temperature in a way that I can control and observe. There are a few fairly interesting area's that can leak on these and truth be told.....the o-ring seals on the inlet/exit pipes segment are interesting and the heater valve that's connected via two heater hose segments is also a possible leak spot too. The original speed clamps that I took off are still awesome so I re-used them.. I warmed up the hoses a bit when I installed them to get them to form up a bit. If this all works out well, I'll try to get a lot more pics uploaded for those that want to attempt a A/C heater box rebuild. I really could not find a good vid on YouTube to document this process.....so on my next rebuild I may film it.

                    • Durandal25

                      Durandal25 FBBO Gold Member FBBO Gold Member

                      Messages:
                      3,113
                      Likes Received:
                      3205
                      Joined:
                      Aug 29, 2011
                      Location:
                      Texas
                      Local Time:
                      3:02 PM
                      Boom, worked great!
