67 Coronet rear brakes locking up

Brakes, Steering & Suspension

  1. Jay Williamson

    Jay Williamson FBBO Gold Member FBBO Gold Member

    Messages:
    58
    Likes Received:
    46
    Joined:
    Jun 8, 2019
    Location:
    Indiana
    Local Time:
    1:46 PM

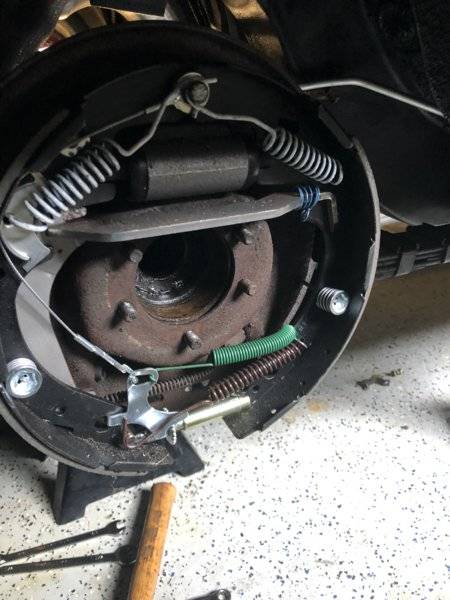

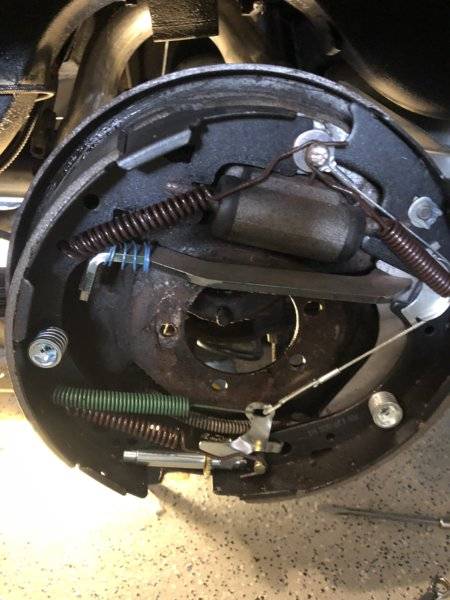

    i am asking for anyone that has a picture or what the brake setup should look like on the rear of a 67 Coronet to please share. I posted pictures of my rear hubs as I was removing the axels for another repair when several members posted that my brake set up did not look correct. There was an extra spring across the bottom that seemed not to belong (see photo). So I removed the spring and now my brakes have adjusted our so far I the drum wouldn’t turn. Another piece of the puzzle is the parking brake cable is broken. Someone mentioned that the parking brake strut seemed to be installed wrong. The first picture is of the drivers side ( the one that is locking up) the second one is of the passenger side EBE0AC69-7FDC-43B1-96C3-C5C780CF43EB.jpeg

  2. mccoymail

    mccoymail Well-Known Member

    Messages:
    423
    Likes Received:
    266
    Joined:
    Nov 30, 2010
    Location:
    Johnstown, Ohio
    Local Time:
    1:46 PM

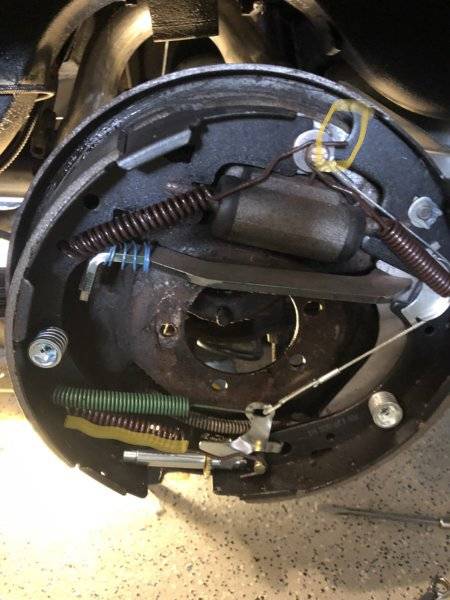

    1CB9AEA9-6AD0-4B1F-A792-41456F3FACDE.jpeg Remove the spring I highlighted in yellow and obviously put the upper shoe back into place. You may also have a pressure build up in the line due to some blockage. Crack open the bleeder screw and see if the cylinder compresses more.

    • Agree Agree x 2
    • BeepBeepRR

      BeepBeepRR Well-Known Member

      Messages:
      3,150
      Likes Received:
      3049
      Joined:
      Oct 16, 2016
      Location:
      Atlanta,Ga
      Local Time:
      1:46 PM


      Last edited: Jul 11, 2019
      • Agree Agree x 2
      • R/T Boy 67

        R/T Boy 67 Well-Known Member

        Messages:
        441
        Likes Received:
        374
        Joined:
        Apr 23, 2018
        Location:
        Nanaimo B.C. Canada
        Local Time:
        10:46 AM
        Buy some new spring kits and follow the above pictures. There are a few things wrong with your setup.

        • Agree Agree x 2
        • BeepBeepRR

          BeepBeepRR Well-Known Member

          Messages:
          3,150
          Likes Received:
          3049
          Joined:
          Oct 16, 2016
          Location:
          Atlanta,Ga
          Local Time:
          1:46 PM

        • BeepBeepRR

          BeepBeepRR Well-Known Member

          Messages:
          3,150
          Likes Received:
          3049
          Joined:
          Oct 16, 2016
          Location:
          Atlanta,Ga
          Local Time:
          1:46 PM
          I think even the lower picture in my post is wrong, I think you get a white spring and a brown spring on each wheel on top. Not 2 browns or 2 whites.. One brown one white per side.

        • R/T Boy 67

          R/T Boy 67 Well-Known Member

          Messages:
          441
          Likes Received:
          374
          Joined:
          Apr 23, 2018
          Location:
          Nanaimo B.C. Canada
          Local Time:
          10:46 AM

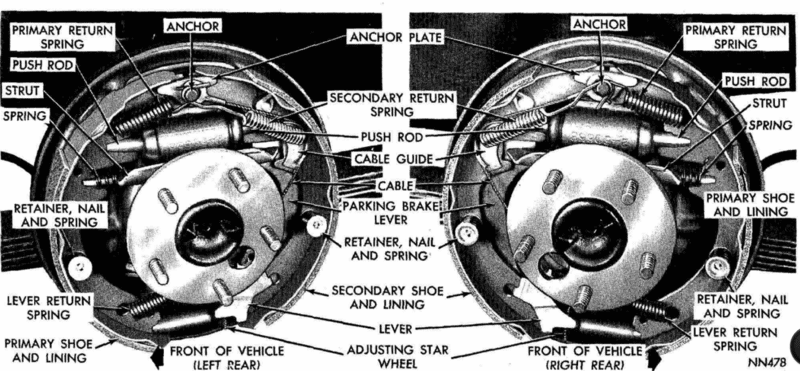

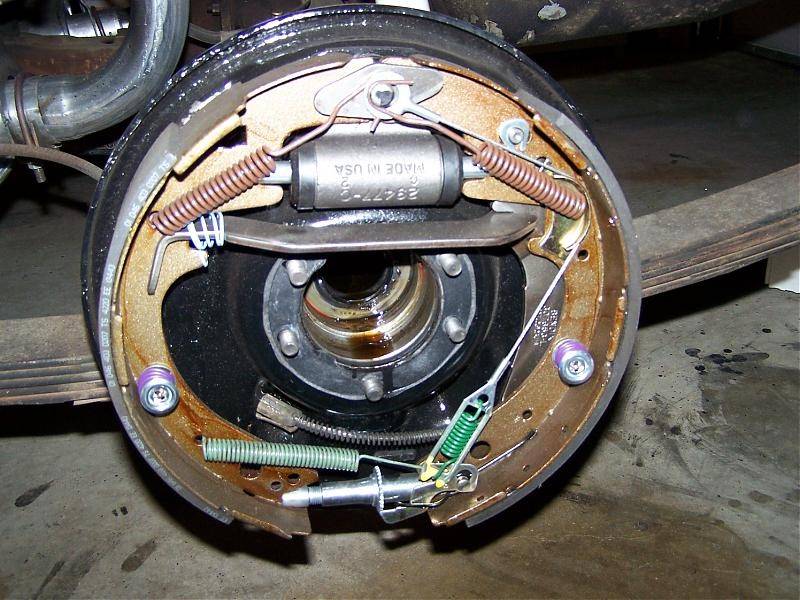

          BeepBeepRR's picture is of a later year set up, which has a better self adjuster. The shop manual picture is for a 67. You could use the later set up if you wanted to.

        • 493 Mike

          493 Mike FBBO Gold Member FBBO Gold Member

          Messages:
          1,383
          Likes Received:
          1327
          Joined:
          Dec 25, 2011
          Location:
          White Cloud, MI
          Local Time:
          1:46 PM
          This is a perfect example why amateurs should not work on brake systems! Death will come quickly enough.
          Mike

          • Agree Agree x 2
          • Jay Williamson

            Jay Williamson FBBO Gold Member FBBO Gold Member

            Messages:
            58
            Likes Received:
            46
            Joined:
            Jun 8, 2019
            Location:
            Indiana
            Local Time:
            1:46 PM
            So whoever did these brakes put two brown springs on the drivers side shoes and two white springs on the passenger side. The white springs were shorter and stronger and were SOB’s to get off. I’m having a hard time finding a hardware set for 11x2.5 shoes. I’m wondering if the white spring is for the secondary shoe for each side and the brown spring is for the primary shoe on each side?
