67 GTX Hood scoop

1966 -1967 Mopars

  1. donbmopar

    donbmopar Member

    Messages:
    7
    Likes Received:
    0
    Joined:
    Jun 17, 2017
    Location:
    manchester nh
    Local Time:
    9:58 PM
    Hi, I'm wondering if someone may be able to help me with a question. I'm restoring a 67gtx. I'm using a hood off 67 belv I. I don't have the original hood... Does anyone know what or where I could get dimensions of where exactly to drill holes for factory scoops?? Thank You for your help.

    Last edited: Jan 10, 2019
  2. 66 Sat

    66 Sat Well-Known Member

    Messages:
    192
    Likes Received:
    166
    Joined:
    Apr 26, 2015
    Location:
    Australia
    Local Time:
    8:58 PM

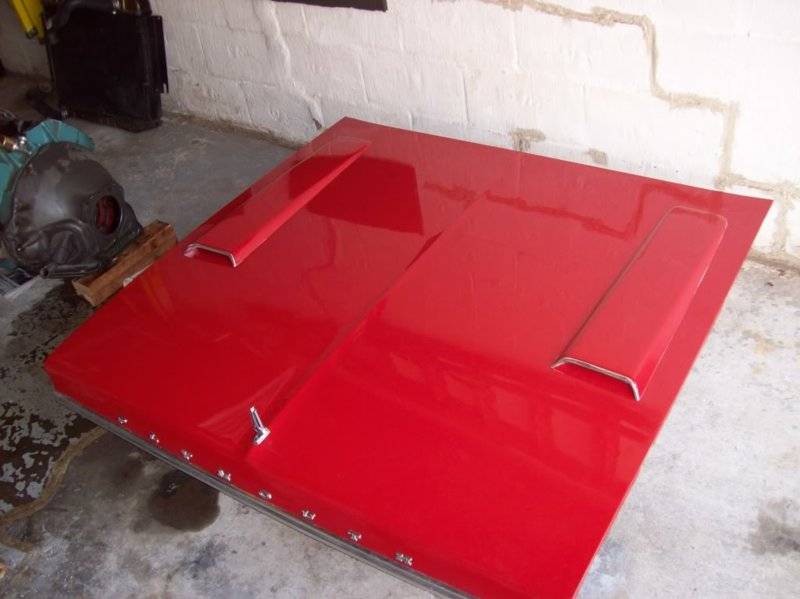

    Mate I used this photo I found on the internet and eyed mine in - very dodgy I know but surprisingly accurate. If it was concours then I'd want dimensions, but the average guy isn't walking around with a tape measure. Just make sure you have them on the right sides...and hope the photo is of an original hood! GTXhood.jpg

  3. donbmopar

    donbmopar Member

    Messages:
    7
    Likes Received:
    0
    Joined:
    Jun 17, 2017
    Location:
    manchester nh
    Local Time:
    9:58 PM
    Thank you! I wasn't sure if there was someone that might have done it with dimensions out there... you have a good idea. Thank you

  4. 66 Sat

    66 Sat Well-Known Member

    Messages:
    192
    Likes Received:
    166
    Joined:
    Apr 26, 2015
    Location:
    Australia
    Local Time:
    8:58 PM

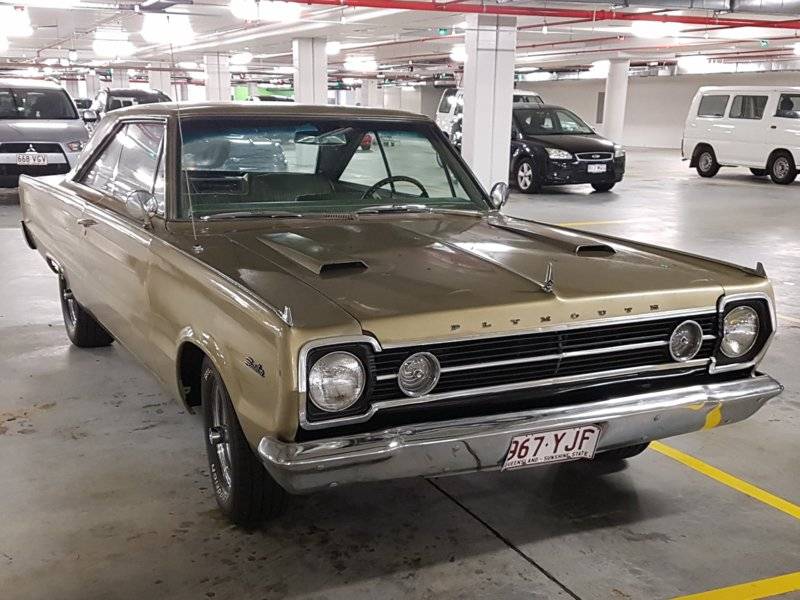

    No worries. As a starting point, mine are about 70mm (2&3/4") from the back of the hood, and 70mm from the side of the hood (from the midpoint of the scoop). Cheers 20181009_193541.jpg

    • Thanks! Thanks! x 1
    • donbmopar

      donbmopar Member

      Messages:
      7
      Likes Received:
      0
      Joined:
      Jun 17, 2017
      Location:
      manchester nh
      Local Time:
      9:58 PM
      Nice Car....... Thanks again. That is a big help. Have a great day!

    • YY1

      YY1 Well-Known Member

      My Photo Garage
      Messages:
      11,799
      Likes Received:
      4494
      Joined:
      Jun 26, 2010
      Location:
      FL
      Local Time:
      9:58 PM
      IIRC, the stripes, and therefore the scoops- line up with the front turn signal lights.

    • donbmopar

      donbmopar Member

      Messages:
      7
      Likes Received:
      0
      Joined:
      Jun 17, 2017
      Location:
      manchester nh
      Local Time:
      9:58 PM
      YY1... Thank you... nice car!! This will help.

    • AR67GTX

      AR67GTX Well-Known Member

      Messages:
      1,069
      Likes Received:
      530
      Joined:
      Jan 28, 2012
      Location:
      Arkansas
      Local Time:
      8:58 PM
      I can map the dimensions on where the edges of the scoops sit from the edges of the hood on my car. From that it would probably be best to make a stiff paper template of the scoop footprint from your hood scoops with holes punched where the studs are and then lay that on your hood as a template to mark the hole locations. Quite a job to map the holes as the insulation has to come off, etc.

    • AR67GTX

      AR67GTX Well-Known Member

      Messages:
      1,069
      Likes Received:
      530
      Joined:
      Jan 28, 2012
      Location:
      Arkansas
      Local Time:
      8:58 PM

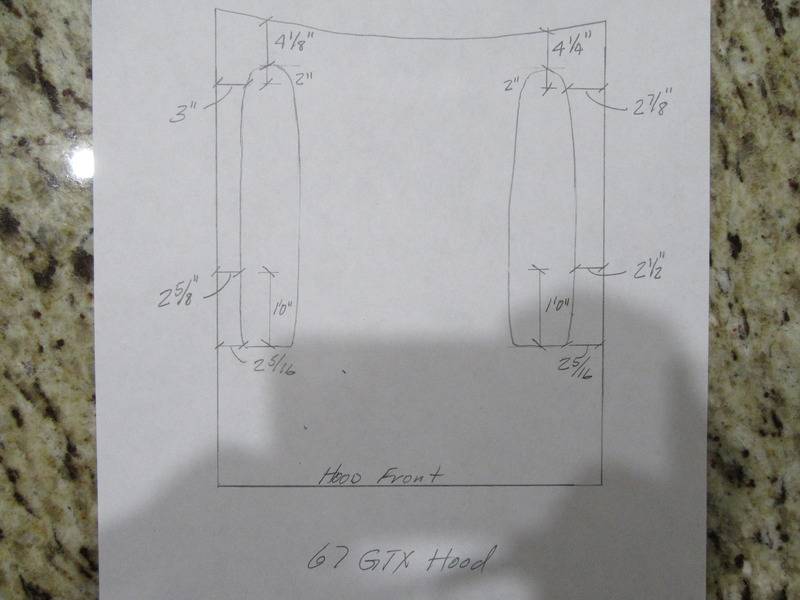

      Maybe this will help. If not maybe someone with their hood apart will come along.


      The holes are a bit oversize from memory so that probably accounts for some of the difference from side to side.

      • Like Like x 1
      • donbmopar

        donbmopar Member

        Messages:
        7
        Likes Received:
        0
        Joined:
        Jun 17, 2017
        Location:
        manchester nh
        Local Time:
        9:58 PM
        Thank you AR67GTX,,,, that will help. Have a great day! I took a pic of original hood when I removed from car. I thought that would be enough for future reference... I never measured the holes (not good). I got rid of the original....maybe with dimensions of hood and picture I got, someone who knows a CAD program??? I'm not asking anyone to do that here I know that is costly... what you sent will be a help. Thanks

      • YY1

        YY1 Well-Known Member

        My Photo Garage
        Messages:
        11,799
        Likes Received:
        4494
        Joined:
        Jun 26, 2010
        Location:
        FL
        Local Time:
        9:58 PM
        Most studs generally go either on an extended "flat" with metal on both the inner and outer structure, or dead center of an underside rib.

      • donbmopar

        donbmopar Member

        Messages:
        7
        Likes Received:
        0
        Joined:
        Jun 17, 2017
        Location:
        manchester nh
        Local Time:
        9:58 PM
        YY1... Thanks, I'll look at the underside again. I remember the original hood was in the ribs on some of the cuts. Thanks... this is my first time with gtx and I'm needing some of you experienced guys on some of this stuff. Have a good day.
