67 GTX TROUBLE PUTTING FUEL IN

1966 -1967 Mopars

  1. XMAN JR

    XMAN JR Well-Known Member

    Messages:
    754
    Likes Received:
    428
    Joined:
    Sep 11, 2013
    Location:
    white deer PA.
    Local Time:
    11:20 PM
    Anyone have trouble putting fuel in there 67 gtx ? I no sooner start putting fuel in & it spits it back out. When I put fuel in out of a gas can (slowly) I can hear it gurgling. Is it not vented right ? I put every thing back on right.

  2. Don Frelier

    Don Frelier FBBO Gold Member FBBO Gold Member

    Messages:
    973
    Likes Received:
    972
    Joined:
    Oct 11, 2016
    Location:
    Ionia, NY
    Local Time:
    12:20 AM
    Yes they are a little tricky to fill.
    They just don't vent real well.
    My 66 Plymouth creates enough backpressure at the pump to kick it out real easily.
    I have to play with the angle of the nozzle and how far I squeeze the trigger.

    • Agree Agree x 6
    • Fran Blacker

      Fran Blacker FBBO Gold Member FBBO Gold Member

      Messages:
      5,171
      Likes Received:
      4577
      Joined:
      Sep 23, 2016
      Location:
      Connecticut
      Local Time:
      12:20 AM
      I put mine in by hand (no set and wait for it to kick off). Lousy design, to many bends. If you have some 1/4" cable maybe feed it up vent pipe from under car, never tried it.

    • Charger Dana

      Charger Dana FBBO Gold Member FBBO Gold Member

      Messages:
      110
      Likes Received:
      75
      Joined:
      Apr 17, 2014
      Location:
      Saskatoon, SK
      Local Time:
      10:20 PM
      My brother in law had an issue with a very different vehicle, but it was really dense spiderwebs plugging the vent tube. Maybe run a pipe cleaner down the vent just in case. My 67 Charger vents like an absolute champ, so possibly you have mechanical interference. Especially if it’s been in storage.

    • XMAN JR

      XMAN JR Well-Known Member

      Messages:
      754
      Likes Received:
      428
      Joined:
      Sep 11, 2013
      Location:
      white deer PA.
      Local Time:
      11:20 PM
      The car has had a full resto. MY dad had 2 67 GTXs & they both had the same problem. Must be the nature of the beast lol

      • Agree Agree x 2
      • RT6PK

        RT6PK FBBO Gold Member FBBO Gold Member

        Messages:
        125
        Likes Received:
        277
        Joined:
        Aug 21, 2017
        Location:
        Poland, Ohio
        Local Time:
        12:20 AM
        It is the nature of the beast. I am on my third '67 Belvedere and my dad just sold his '66. They all had/have the same issue.

        • Agree Agree x 1
        • omegamonk

          omegamonk Active Member

          Messages:
          40
          Likes Received:
          13
          Joined:
          Feb 22, 2009
          Location:
          jersey shore
          Local Time:
          11:20 PM
          I was soaked with gas by An AMC gremlin once I learned to stand to the side when I filled them

        • sxarnold

          sxarnold FBBO Gold Member FBBO Gold Member

          Messages:
          112
          Likes Received:
          185
          Joined:
          Apr 23, 2014
          Location:
          Santa Cruz, CA
          Local Time:
          9:20 PM
          Vent it out the rear bezel


        • dan juhasz

          dan juhasz FBBO Gold Member FBBO Gold Member

          Messages:
          526
          Likes Received:
          569
          Joined:
          Aug 5, 2016
          Location:
          Manalapan, NJ
          Local Time:
          12:20 AM
          Only thing I found that helps is to angle the nozzle towards the back of the vehicle this allows you to insert the nozzle further.
          sounds kinky I know, :)

          • Agree Agree x 2
          • Thanks! Thanks! x 1
          • ws27

            ws27 FBBO Gold Member FBBO Gold Member

            Messages:
            1,369
            Likes Received:
            942
            Joined:
            May 17, 2012
            Location:
            Waltham
            Local Time:
            12:20 AM
            I have two 67 GTXs and they both have the same problem. I think it's the nature of the beast.

            Can you imagine running one of these cars as a daily driver back in the day...it's not like they get bad mileage or anything.:rolleyes:

          • ws27

            ws27 FBBO Gold Member FBBO Gold Member

            Messages:
            1,369
            Likes Received:
            942
            Joined:
            May 17, 2012
            Location:
            Waltham
            Local Time:
            12:20 AM
            66-67 Dodge B-bodies are totally different filler tube and vent.

          • kiwigtx

            kiwigtx International Mod Staff Member FBBO Gold Member

            Messages:
            15,924
            Likes Received:
            25354
            Joined:
            Jun 12, 2012
            Location:
            Tomorrow, NZ
            Local Time:
            4:20 PM
            I think the fuel pumps of the days gone by ran at a lower pressure, and delivery was much more calm. These days the pumps are high pressure and fast flow...hence vent piping on older cars cannot keep pace with delivery.

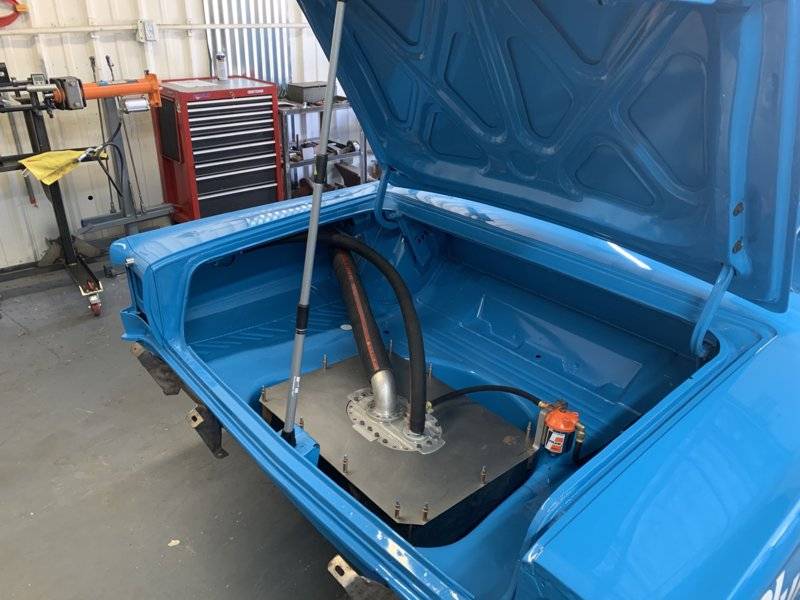

            At least that is my observation and experience. Certain gas stations around these parts are faster than others. Even with a fancy new tank with a larger filler tube, and 3/8" vent tube, I still get some blow-back with the A100. Not often...but occasionally. :)

            • Thanks! Thanks! x 1
            • Agree Agree x 1
            • khryslerkid

              khryslerkid Well-Known Member

              Messages:
              16,270
              Likes Received:
              21660
              Joined:
              Mar 10, 2010
              Location:
              Hanover, Pennslyvania
              Local Time:
              12:20 AM
              Back in the day they used a larger nozzle. They worked ok. When they went to the unleaded gas the nozzle became smaller and was a lot more sensitive when useing in the older filler tubes. Sometimes they won't even detect when they are full. Some were so sensitive you had a hard time getting the gas flowing. Thank you EPA!

              • Agree Agree x 2
              • Thanks! Thanks! x 1
              • XMAN JR

                XMAN JR Well-Known Member

                Messages:
                754
                Likes Received:
                428
                Joined:
                Sep 11, 2013
                Location:
                white deer PA.
                Local Time:
                11:20 PM
                The 67 gtx I have my dad bought new. He never mentioned having problems back then

              • Fran Blacker

                Fran Blacker FBBO Gold Member FBBO Gold Member

                Messages:
                5,171
                Likes Received:
                4577
                Joined:
                Sep 23, 2016
                Location:
                Connecticut
                Local Time:
                12:20 AM
                Sounds like he was use to it and never said anything?

              • XMAN JR

                XMAN JR Well-Known Member

                Messages:
                754
                Likes Received:
                428
                Joined:
                Sep 11, 2013
                Location:
                white deer PA.
                Local Time:
                11:20 PM
                could be

              • 67belsat

                67belsat Member

                Messages:
                14
                Likes Received:
                14
                Joined:
                Feb 28, 2019
                Location:
                ohio
                Local Time:
                12:20 AM
                I have the same problem all new tank and neck I have to play around like others to put fuel in, my 67 GTX original never had that problem

              • XMAN JR

                XMAN JR Well-Known Member

                Messages:
                754
                Likes Received:
                428
                Joined:
                Sep 11, 2013
                Location:
                white deer PA.
                Local Time:
                11:20 PM
                I wonder if you can vent it another way if that might help.

              • matthon

                matthon Well-Known Member

                Messages:
                280
                Likes Received:
                147
                Joined:
                Mar 3, 2018
                Location:
                New York
                Local Time:
                12:20 AM
                I had a 71 Dart with the same issue.
                After I sold it I discovered the stock tank was actually a tank within a tank.

                I forget the reason, but you'd fill up the upper tank faster than it would drain to the lower section, and also trap air, causing a full effect.

                Yes, it also had the ridiculous number of vent tubes at the filler neck, and the one that went all the way to the engine bay.
