67gtx new carpet

Interior

  1. Jc cooper

    Jc cooper FBBO Gold Member FBBO Gold Member

    Messages:
    101
    Likes Received:
    29
    Joined:
    Jan 2, 2017
    Location:
    Houston tx
    Local Time:
    7:03 PM
    Ok Guys ready for some experience to speak to me , received my new carpets for 67 hardtop gtx 4/s would appreciate your install help , not scarred just being smart, thanks for help in advance !

  2. vintage chromoly

    vintage chromoly FBBO Gold Member FBBO Gold Member

    Messages:
    1,668
    Likes Received:
    2737
    Joined:
    Nov 13, 2010
    Location:
    ohio
    Local Time:
    7:03 PM
    Lay it flat for a couple weeks and let it flatten some.

  3. 66 Sat

    66 Sat Well-Known Member

    Messages:
    410
    Likes Received:
    523
    Joined:
    Apr 26, 2015
    Location:
    Australia
    Local Time:
    7:03 PM
    Be careful around the headlight full beam/dip switch, and obviously around the cut out for the shifter. If it's a 2 piece carpet which I assume it is, try to get your overlap correct so you aren't left short at either end. Under the door sills carefully trim the carpet so it overhangs the sill slightly so the sill plates have something to lock onto. Check the thickness of the jute backing, mine had huge amounts in places which made it lumpy. It's one of them jobs where the second time you do it, it will be way better than the first. I might re-do mine at some point as my first attempt was frankly rubbish (refer all the points above to see my mistakes haha).

  4. R413

    R413 Well-Known Member

    Messages:
    440
    Likes Received:
    720
    Joined:
    Feb 4, 2019
    Location:
    NW USA
    Local Time:
    5:03 PM
    Don’t cut holes too big or in wrong place. Sounds obvious but you can’t go back and re-do cuts later.

    Yes lay it out flat first. Cut small holes for the floor brackets first, get the thing in there and flat then enlarge as needed. Remove the hi beam switch, let the carpet lay flat for a few days, then mark and cut the hole for it.

    • Agree Agree x 1
    • 69b3rt

      69b3rt Well-Known Member

      Messages:
      384
      Likes Received:
      300
      Joined:
      Oct 28, 2015
      Location:
      Fargo, ND
      Local Time:
      7:03 PM
      The gas pedal needs to have a rectangle hole cut of carpet that is supposed to be located in right front corner of heel pad. I feel that is the most important part of laying carpet in place. With the 4-speed hump right next to it, you may have to work with what you got, if heel pad isn't located in the right spot on the carpet. I find too many cars with gas pedal installed in wrong spot of the carpet.

      • Agree Agree x 3
      • Jc cooper

        Jc cooper FBBO Gold Member FBBO Gold Member

        Messages:
        101
        Likes Received:
        29
        Joined:
        Jan 2, 2017
        Location:
        Houston tx
        Local Time:
        7:03 PM
        Thanks for heads up

      • Aarons Air

        Aarons Air Well-Known Member

        Messages:
        1,336
        Likes Received:
        1649
        Joined:
        Dec 8, 2016
        Location:
        Dayton ohio
        Local Time:
        8:03 PM
        Consider adding a layer of insulation or matt under the carpet to help with exhaust heat & noise. Make sure your taillight wiring and console (if you have one) wiring are in place & ok 1st

      • Jc cooper

        Jc cooper FBBO Gold Member FBBO Gold Member

        Messages:
        101
        Likes Received:
        29
        Joined:
        Jan 2, 2017
        Location:
        Houston tx
        Local Time:
        7:03 PM
        Sounds good thinking about using a steamer or maybe a heat gun gently to help spread it out , it’s winter here hard to lay out in sun to relax it , any views on this ?

      • vintage chromoly

        vintage chromoly FBBO Gold Member FBBO Gold Member

        Messages:
        1,668
        Likes Received:
        2737
        Joined:
        Nov 13, 2010
        Location:
        ohio
        Local Time:
        7:03 PM
        I laid mine out in the basement

      • Blake67GTX

        Blake67GTX Active Member

        Messages:
        25
        Likes Received:
        39
        Joined:
        May 31, 2010
        Location:
        Ohio
        Local Time:
        7:03 PM
        For me, the plastic mat that’s stitched into the carpet by the mfg (under drivers feet) wanted to lay out of square or out of parallel with my drivers seat. It was frustrating and kind of bothered me. It’s crooked to this day. So, may wanna double check to see how that plastic mat looks when you lay the carpet in the car for first time. The high beams button on the floor can be tricky too.

        In general, I think leaving more material is better than cutting yourself too short. You can always go back later and trim further if need be.

        -Blake

        • Agree Agree x 1
        • plymouthbelvy

          plymouthbelvy Member

          Messages:
          21
          Likes Received:
          11
          Joined:
          Sep 18, 2014
          Location:
          Aurora,Ne
          Local Time:
          7:03 PM

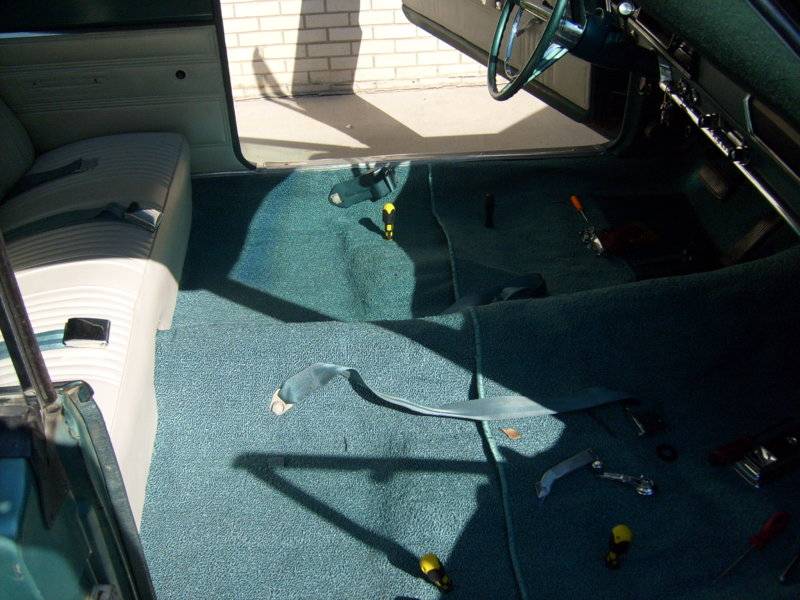

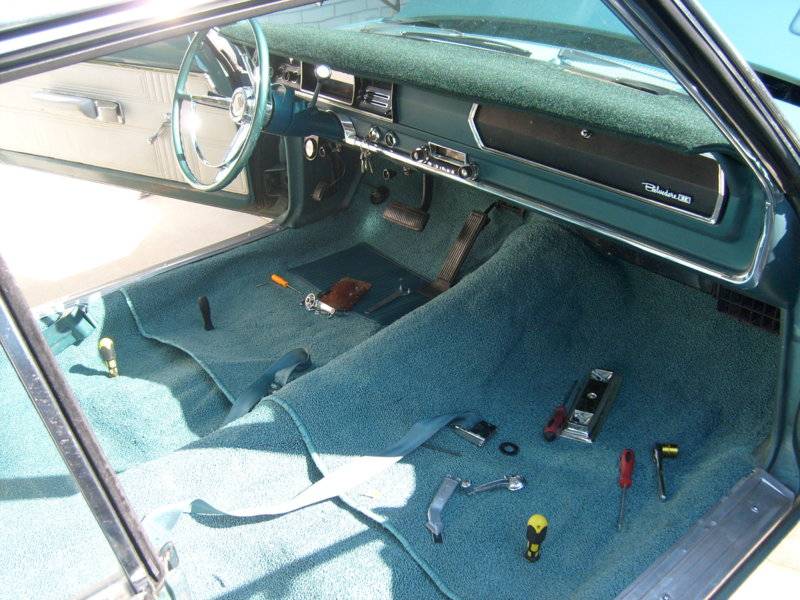

          I cut out and saved the rubber foot mat area and used as a template as it was still the factory carpet. I used same template on my 66 belvedere as well as my 67. I also poke screwdrivers in seat track holes to keep in place as I am trimming. This is after I make sure I happy with placement. Just my two cents.

          002.JPG 003.JPG

          • Like Like x 1
          • Ranger16

            Ranger16 Well-Known Member

            Messages:
            3,291
            Likes Received:
            3908
            Joined:
            Jun 27, 2016
            Location:
            Woodstock Ill.
            Local Time:
            7:03 PM
            Slightly is the operative word. Too much overhang and it will wick up water that comes down the front door jamb (hinge side) and gets under the sill plate .

          • Mike67

            Mike67 Well-Known Member

            Messages:
            5,026
            Likes Received:
            7779
            Joined:
            Nov 23, 2014
            Location:
            Woodlands Tx
            Local Time:
            7:03 PM
            What up a screw driver/ ice pick with a torch or heat gun to poke holes for mounting holes to seat frame, console,shifter ect. It will melt the carpet instead of fraying it.

            • Agree Agree x 4
            • retractable

              retractable FBBO Gold Member FBBO Gold Member

              Messages:
              234
              Likes Received:
              149
              Joined:
              Jan 11, 2016
              Location:
              New london MN
              Local Time:
              7:03 PM
              I just had a carpet replaced by factory because heal pad was in wrong place. I don't have new yet but it should fit better I hope. If it is not correct call about it and tell them why. I sent pictures along with my complaint. Vhf

            • Jc cooper

              Jc cooper FBBO Gold Member FBBO Gold Member

              Messages:
              101
              Likes Received:
              29
              Joined:
              Jan 2, 2017
              Location:
              Houston tx
              Local Time:
              7:03 PM

            • Jc cooper

              Jc cooper FBBO Gold Member FBBO Gold Member

              Messages:
              101
              Likes Received:
              29
              Joined:
              Jan 2, 2017
              Location:
              Houston tx
              Local Time:
              7:03 PM
              Your pics were very helpful,but could you give me another view closer of the underside view of the dash both sides of the trans hump for verification,thanks

            • HEMI-ITIS

              HEMI-ITIS STREETER on LI FBBO Gold Member

              Messages:
              11,053
              Likes Received:
              12813
              Joined:
              Dec 14, 2008
              Location:
              Long Island,New York
              Local Time:
              8:03 PM

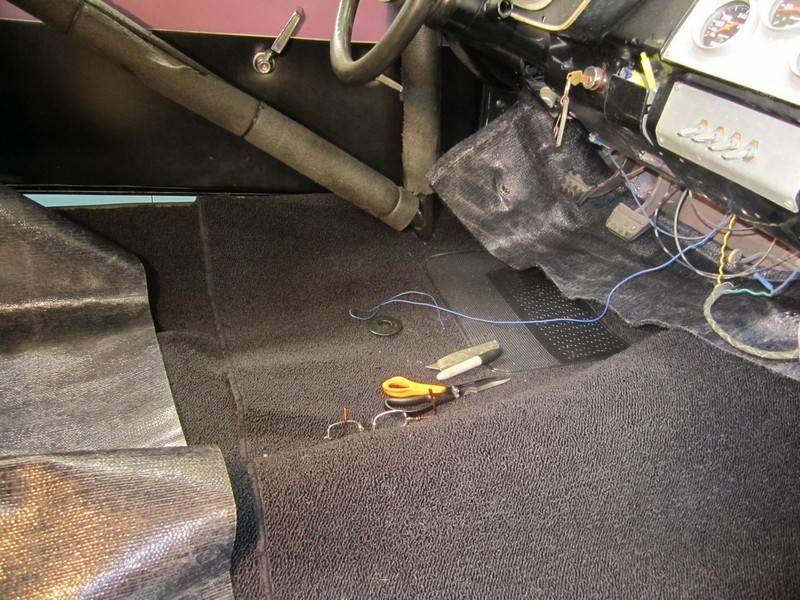

              I ordered through Stock Interiors that sells ACC.Ordered fron and rear UNtruimmed with add'l material on the rear as I have no back seat. I also don't like when you look through the back window and see the top of the carpet,I like it up further.
              Take your time and even cut a little longer in the critical spots to get it the way you want it!!
              Many good tips given.

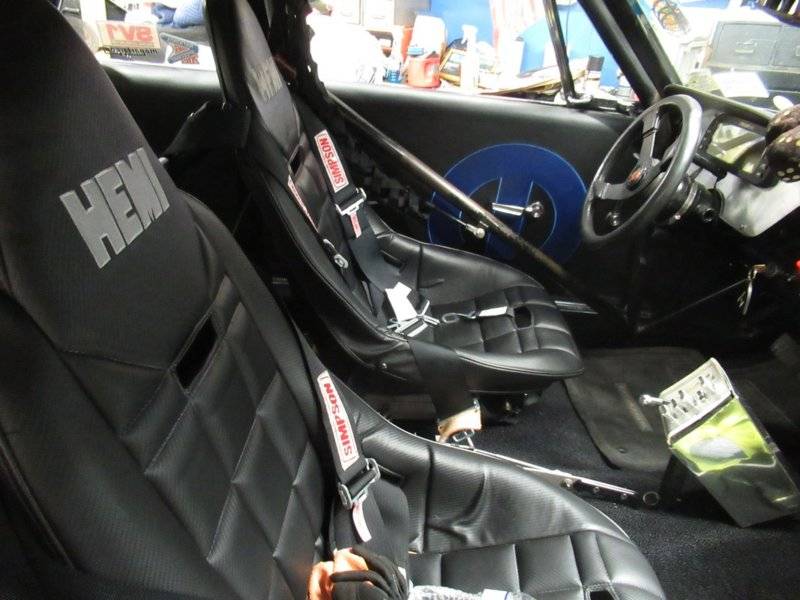

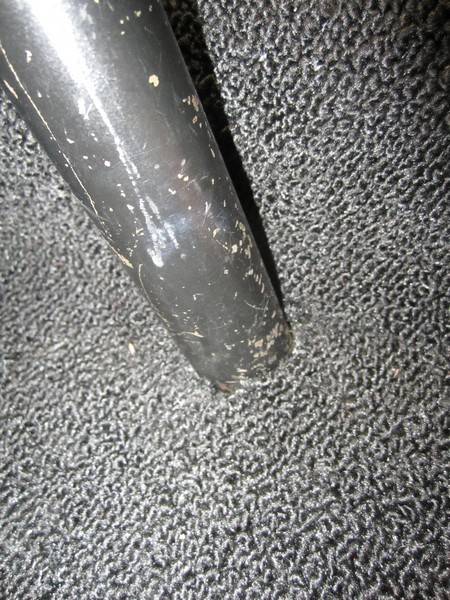

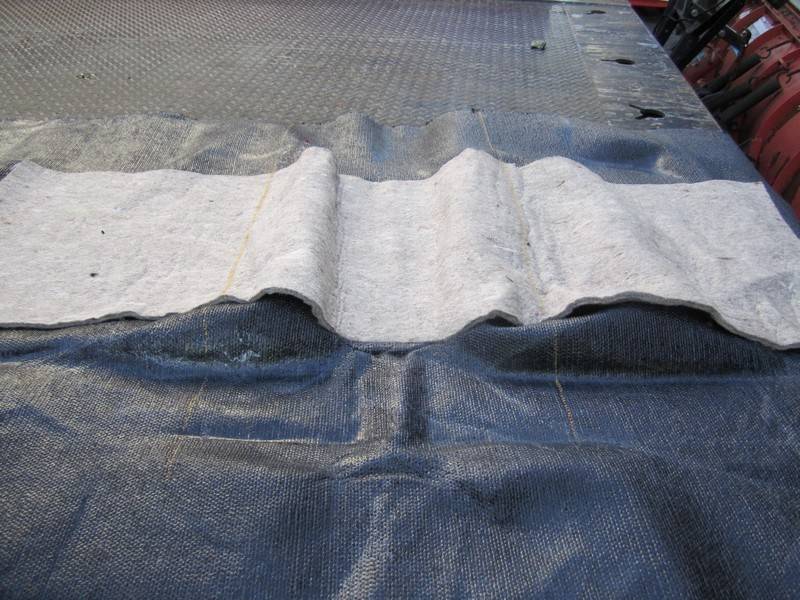

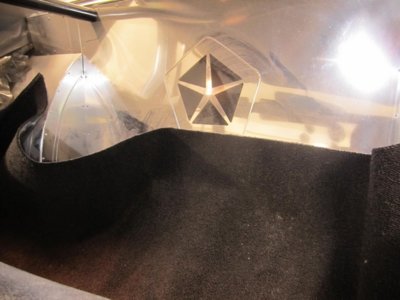

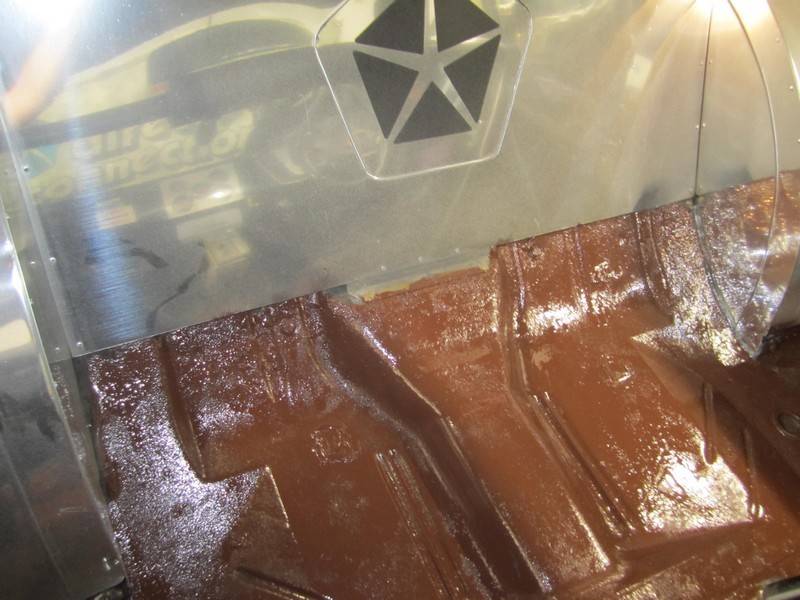

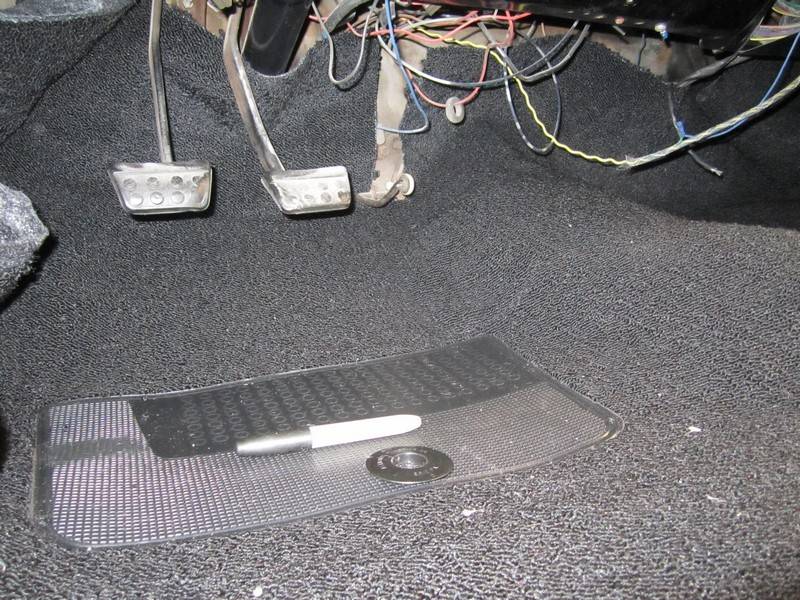

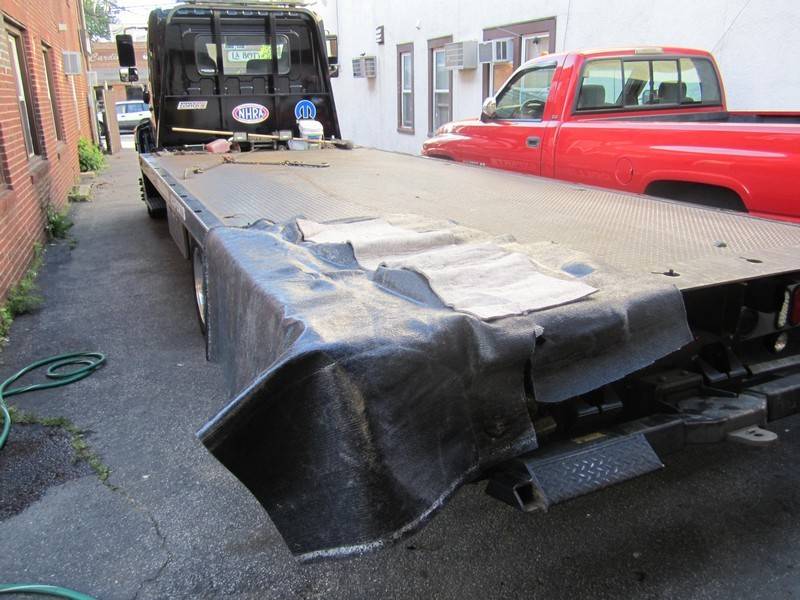

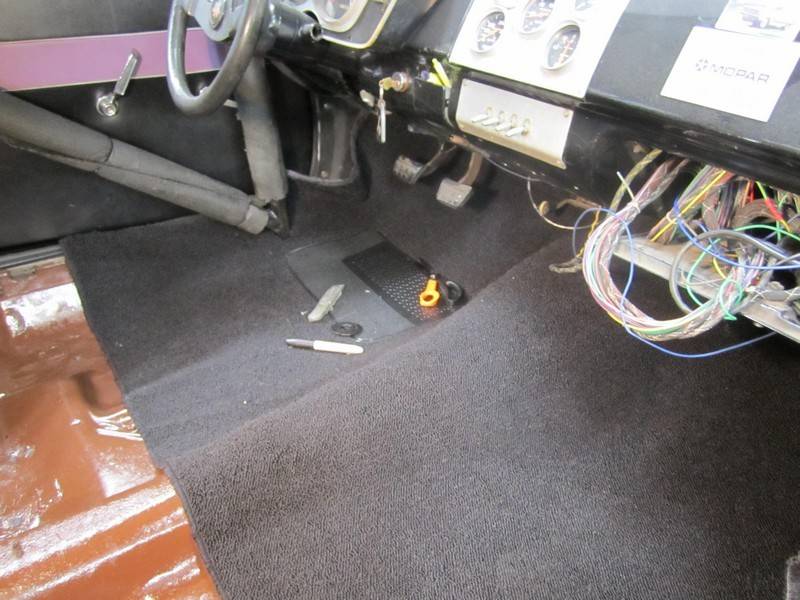

              5.19.12 007.jpg 5.19.12 039.jpg 5.19.12 041.jpg 5.19.12 042.jpg 5.19.12 043.jpg 5.19.12 047.jpg 5.19.12 048.jpg 6.12.12 014.jpg 5.20.19 036.jpg

              • Like Like x 1
              • turbine68rt

                turbine68rt FBBO Gold Member FBBO Gold Member

                Messages:
                95
                Likes Received:
                69
                Joined:
                Dec 1, 2019
                Location:
                PA
                Local Time:
                8:03 PM
                A number of years ago a friend asked me to help with his carpet install and once it was in position i was going to make holes for the seat tracks with a screwdriver. He had a better idea, and plugs in a cheap pencil soldering iron and made nice clean holes from underneath. Used that method ever since for other replacements.

                • Like Like x 1
                • Agree Agree x 1
                • Jc cooper

                  Jc cooper FBBO Gold Member FBBO Gold Member

                  Messages:
                  101
                  Likes Received:
                  29
                  Joined:
                  Jan 2, 2017
                  Location:
                  Houston tx
                  Local Time:
                  7:03 PM

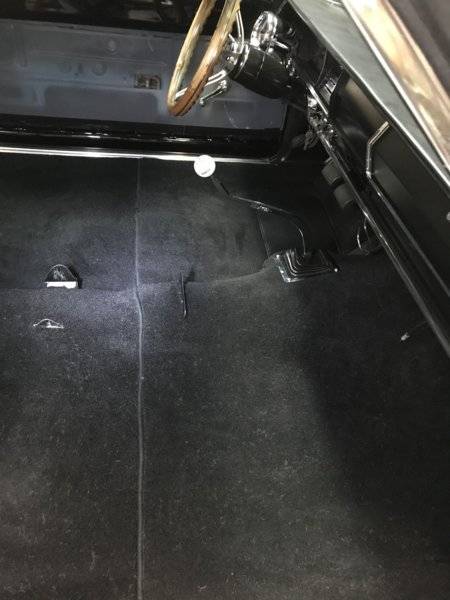

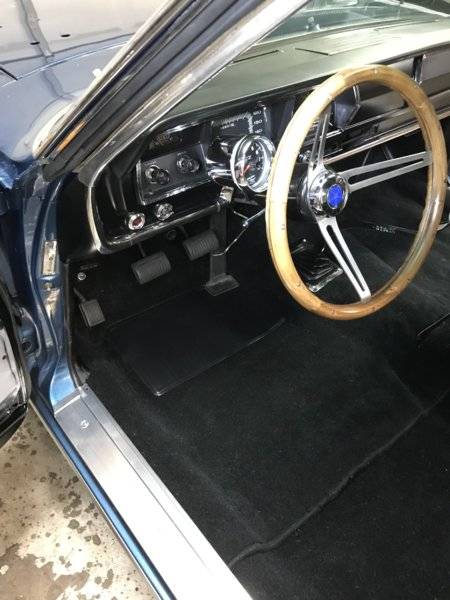

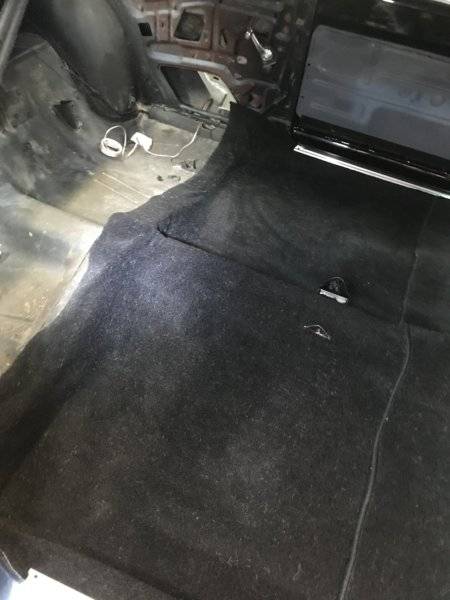

                  C433E302-4F17-4D82-80A2-973C82BAF52C.jpeg Ok thanks guys got her done 9C688AE6-3D83-443F-92AE-7DE1E9001257.jpeg EFF3ED37-5DA3-4722-9489-5C3DCD2F0097.jpeg

                  • Like Like x 1
