68 Charger Emergency/Parking Brake Fix

Member's Projects & Restorations

  1. gelpilot

    gelpilot Member

    Messages:
    5
    Likes Received:
    0
    Joined:
    Dec 30, 2015
    Location:
    Broken Arrow, OK
    Local Time:
    10:48 PM
    I'm restoring a 68 Charger, non-RT, 383, automatic. Most of the stuff is proceeding well enough.

    The emergency brake works, but it won't return to the 'off' position when you pull the handle. You have to put your foot under the pedal and pull the pedal back while you pull back on the release knob.

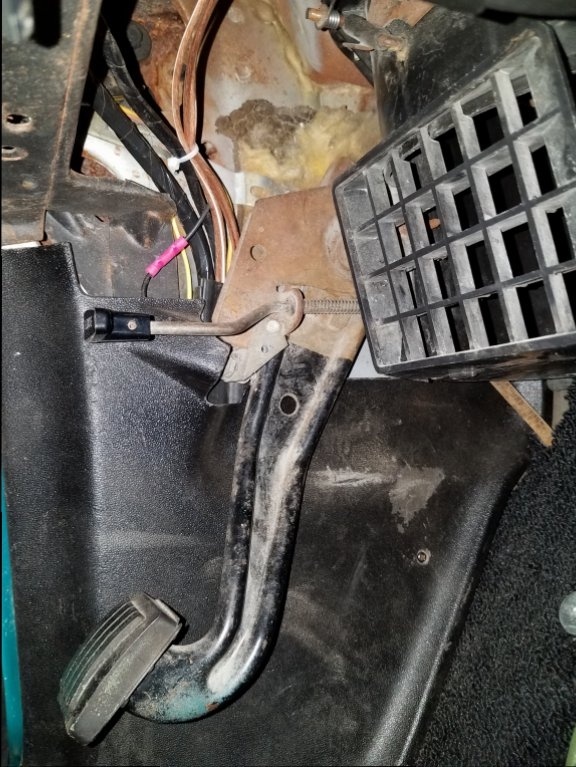

    I've searched high and low for an absent spring, and can't find any pictures or documentation to point me in the right direction. I can't even figure out the engineering that is supposed to make the brake pedal return to its normal position. Below is a photo of the brake pedal assembly as it is right now.

    Anyone have an idea what I'm missing or what I can do to get this brake to return properly when I pull the release handle?

    Thanks,
    George Lehmann
    Broken Arrow, OK

    2017-01-01 14.18.44.jpg

  2. Beekeeper

    Beekeeper FBBO Gold Member FBBO Gold Member

    Messages:
    3,184
    Likes Received:
    2677
    Joined:
    Jul 4, 2012
    Location:
    Rogersville,TN.
    Local Time:
    10:48 PM
    The spring to return the pedal is in the cable in the backing plate. If the cable is not tensioned properly it will not have enough tension to bring the pedal up fully when released. With the pedal in the full up position tighten the cable up at the splitter until it has a bit of tension on it but not enough to move the shoes.

  3. gelpilot

    gelpilot Member

    Messages:
    5
    Likes Received:
    0
    Joined:
    Dec 30, 2015
    Location:
    Broken Arrow, OK
    Local Time:
    10:48 PM
    Well that's just too simple. :) Thanks for getting me on the right track.
    Cheers,
    George

  4. dieseldazzle

    dieseldazzle Well-Known Member

    Messages:
    2,665
    Likes Received:
    1928
    Joined:
    Aug 31, 2014
    Location:
    California
    Local Time:
    10:48 PM
    You are missing the clip and screw that holds the top of the parking brake cable to the assembly. It has a square stand over it. You'll want to remove the cowl vent with the three push screw that hold it to the underside of the dash. You can get a good look at it then

  5. dieseldazzle

    dieseldazzle Well-Known Member

    Messages:
    2,665
    Likes Received:
    1928
    Joined:
    Aug 31, 2014
    Location:
    California
    Local Time:
    10:48 PM

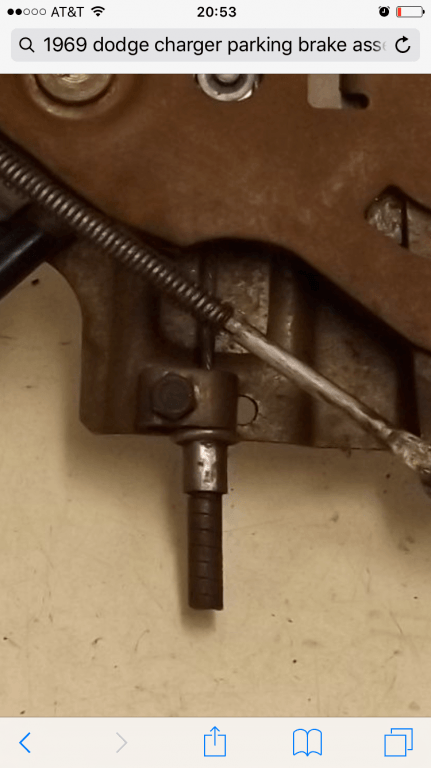

    I zoomed in on it the 7/16 head bolts Holds it on ad secures the top of the cable. Bet yours is gone


  6. gelpilot

    gelpilot Member

    Messages:
    5
    Likes Received:
    0
    Joined:
    Dec 30, 2015
    Location:
    Broken Arrow, OK
    Local Time:
    10:48 PM
    Thanks, I'll take a look at that.
    George

  7. showard

    showard Well-Known Member

    Messages:
    1,105
    Likes Received:
    1485
    Joined:
    Aug 14, 2014
    Location:
    Southern Utah
    Local Time:
    9:48 PM
  8. gelpilot

    gelpilot Member

    Messages:
    5
    Likes Received:
    0
    Joined:
    Dec 30, 2015
    Location:
    Broken Arrow, OK
    Local Time:
    10:48 PM
    I've gotten the brake to work about 95% better just by adjusting the tension on the cable. It works about 4 times out of 5 now, but occasionally I still have to nudge the pedal back to get it to the full return position. I think I'm going to have to give up and remove it for a complete disassembly/cleanup to get it moving properly.

    Thanks to all who pointed me in the right directions. At least I now know I'm not missing any parts.
    Cheers, George

  9. oldbee

    oldbee FBBO Gold Member FBBO Gold Member

    Messages:
    9,130
    Likes Received:
    9087
    Joined:
    Oct 15, 2011
    Location:
    NE Ohio
    Local Time:
    11:48 PM
    You could have rust built up inside any of the casings where the cables run hindering the return tension. I replaced all the cables probably 30yrs ago with new from NAPA,still working great.

  10. gelpilot

    gelpilot Member

    Messages:
    5
    Likes Received:
    0
    Joined:
    Dec 30, 2015
    Location:
    Broken Arrow, OK
    Local Time:
    10:48 PM
    Yeah, I thought about that as a possibility, too. As a temporary measure (I'm getting ready to send the car to my brother-in-law's body shop for six months for a total paint job) I may just squirt some WD40 or liquid lithium grease down the cable run. Good idea, thx.
    George

  11. oldbee

    oldbee FBBO Gold Member FBBO Gold Member

    Messages:
    9,130
    Likes Received:
    9087
    Joined:
    Oct 15, 2011
    Location:
    NE Ohio
    Local Time:
    11:48 PM
    Can't hurt and maybe cure it. Up north,they could have had frozen water in there also.

  12. daytona kid

    daytona kid Well-Known Member

    Messages:
    2,088
    Likes Received:
    1860
    Joined:
    Dec 10, 2012
    Location:
    midsouth
    Local Time:
    10:48 PM

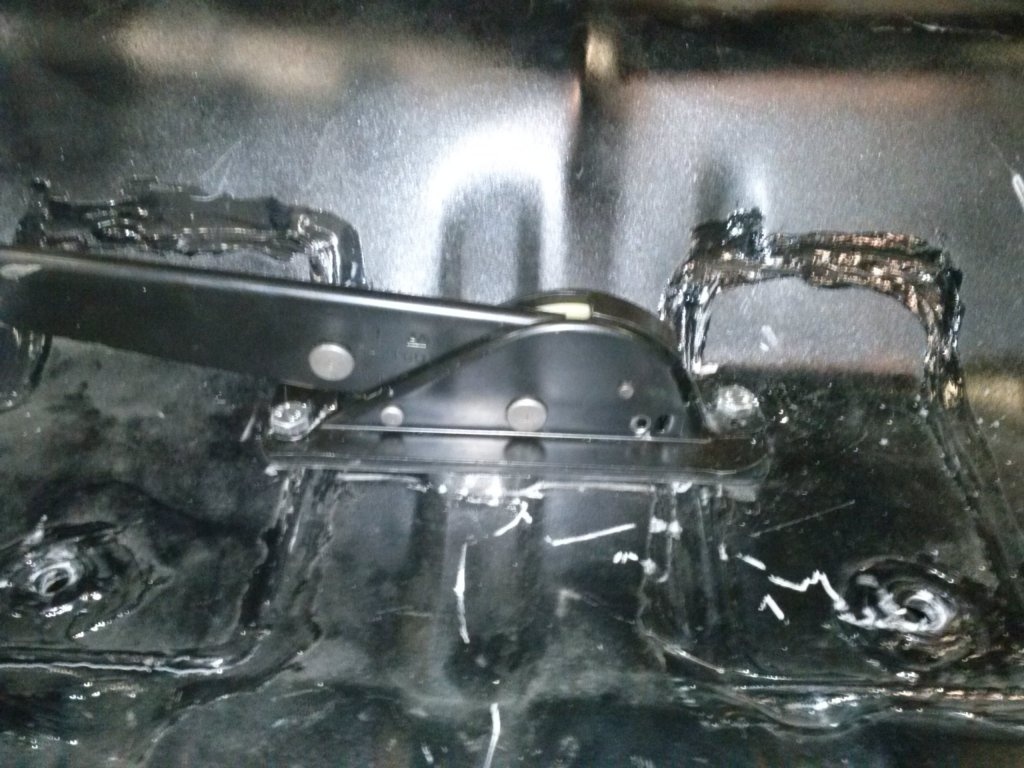

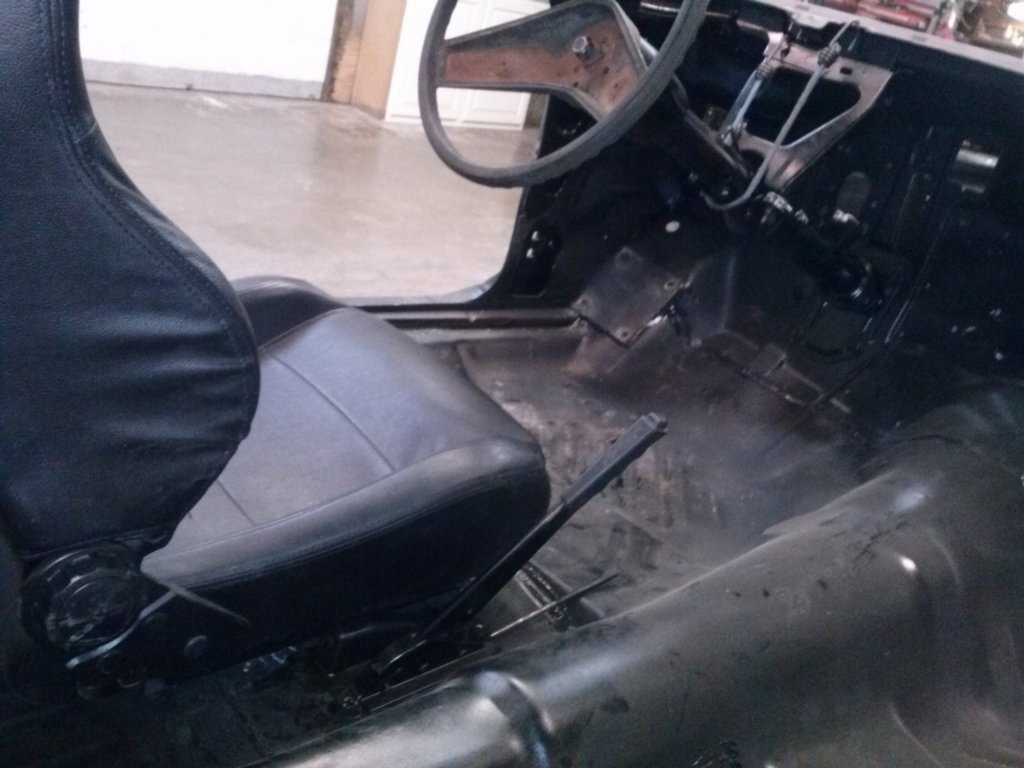

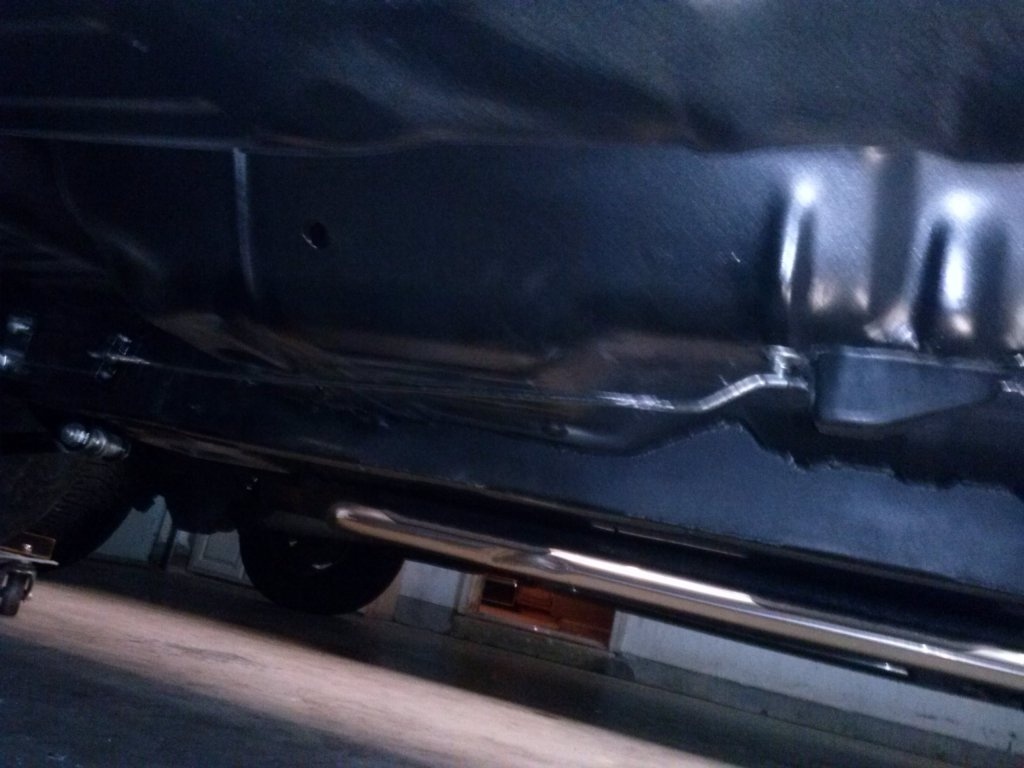

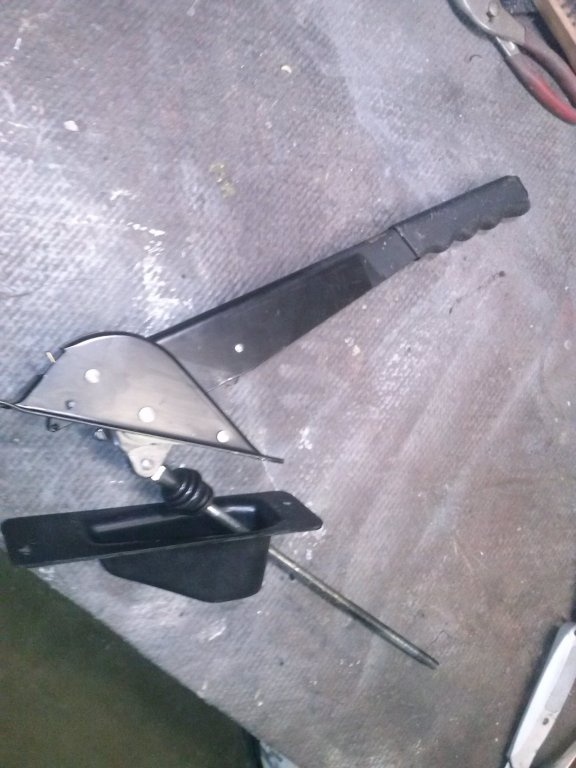

    For anyone interested in a handbrake conversion, here is how I put a Jeep handbrake in my charger. I did it because my door bar floor mount made the foot e-brake not very possible. I used a solid rod back to the 2 cable connector. The handle assembly bolts to the doubled floor seat mount areas for a strong attachment. CAM00183.jpg CAM00231.jpg CAM00238.jpg CAM00234.jpg

  13. RAFMOPAR

    RAFMOPAR Member

    Messages:
    8
    Likes Received:
    1
    Joined:
    Apr 27, 2021
    Location:
    Alberta, Canada
    Local Time:
    9:48 PM
    Any more pics ?
    And what model and year for the jeep handbreak ?

  14. daytona kid

    daytona kid Well-Known Member

    Messages:
    2,088
    Likes Received:
    1860
    Joined:
    Dec 10, 2012
    Location:
    midsouth
    Local Time:
    10:48 PM

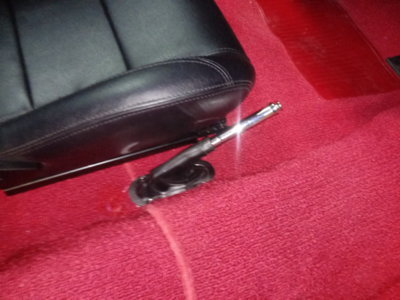

    Sorry I have no idea what year that handle came out of. Maybe mid 80s? But I actually replaced that one with this better looking Lokar one. It is shorter than the jeep one and is harder to get stopping power when you pull it. I don't have any other pics of the jeep or the lokar handle that show any more than the ones I posted.


    • Like Like x 1
    • RAFMOPAR

      RAFMOPAR Member

      Messages:
      8
      Likes Received:
      1
      Joined:
      Apr 27, 2021
      Location:
      Alberta, Canada
      Local Time:
      9:48 PM
      Thanks for you help ... I seen that lokar one before, seems a little overpriced for how simple it is .

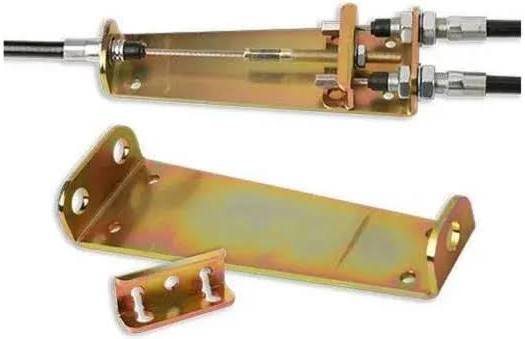

      I think I need to do a trip to the junkyard and find that old jeep handbreak , and then buy myself one of these too ..
