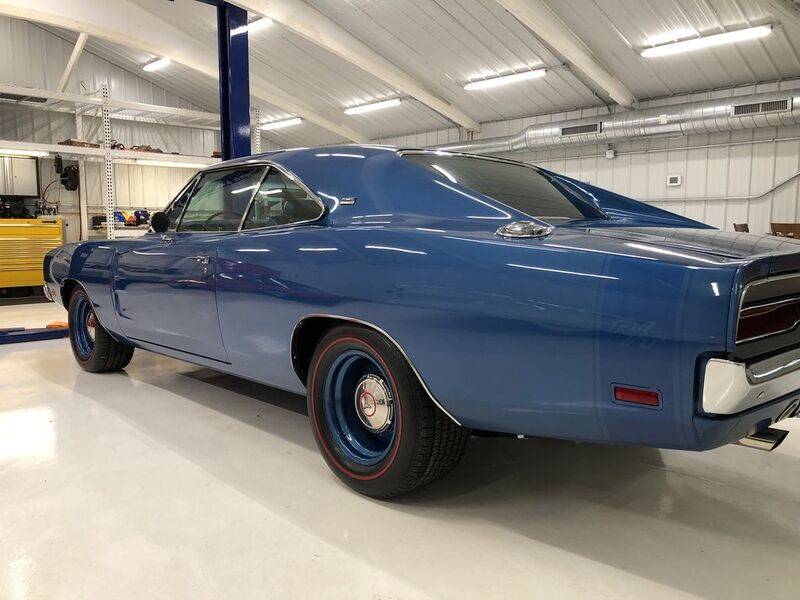

    I decided to start a thread detailing the work I've been doing with my 69 Charger.

    Though it has more of a stock look I suppose it's a bit of a restomod with disc brakes, overdrive trans and becoming more so now that I'm rebuilding the engine and switching it to fuel injection.

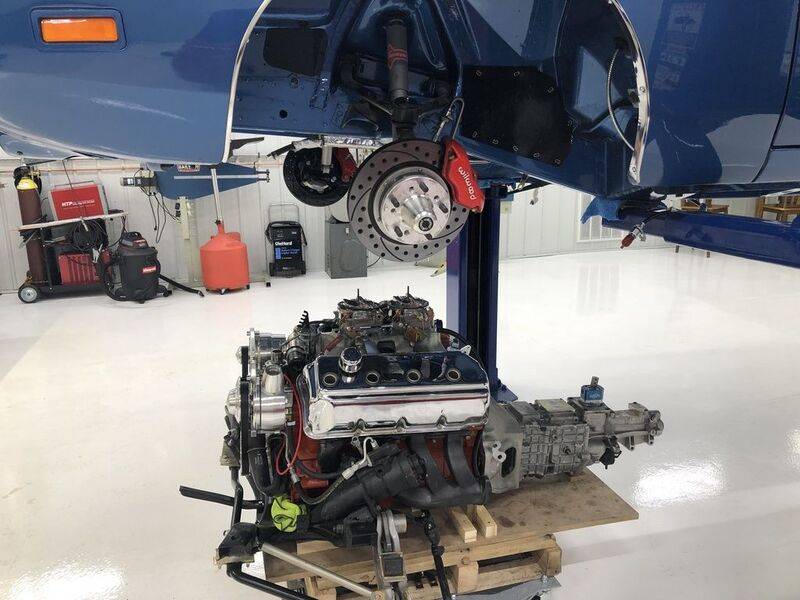

    I thought the engine rebuild would be rather straightforward but it has proven a bit tedious.

    It was a "crate" MP 426 with a comp cam, not enough valvespring and floating the valves at 5900rpm/405rwhp.

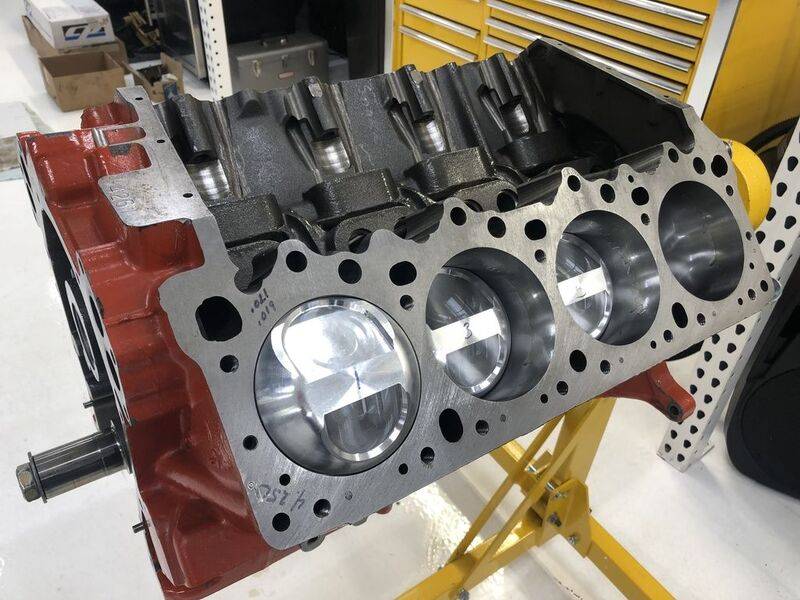

    Now it's .060 over, ported iron heads, solid roller (raised redline on tach to match), working on getting it to 13-1 compression, Holley HP efi, coil on plug, flex fuel and E85.

    TKO600 which I swapped the .64 overdrive out for a .82. Dana that I swapped the 3.55's for 4.10's.

    I'll update as I make progress :)


    • Like Like x 18
    • Thanks! Thanks! x 1
    • Agree Agree x 1
    • 70chall440

      70chall440 Well-Known Member

      Messages:
      2,977
      Likes Received:
      4341
      Joined:
      Feb 11, 2018
      Location:
      Yelm, Washington
      Local Time:
      11:54 AM
      Beautiful car, I have to admit that usually I am not a huge 2nd gen Charger fan (don't hate them, just am not super enamored with them) but this car really speaks to me, it looks so clean and understated. I love the pistol grip inside, the shade of blue, the steel wheels, and of course the Hemi. I would add the door hemi emblems if it were mine.

      • Agree Agree x 3
      • Thanks! Thanks! x 1
      • INTMD8

        INTMD8 Well-Known Member

        Messages:
        283
        Likes Received:
        237
        Joined:
        Apr 17, 2017
        Location:
        Lake Villa IL
        Local Time:
        1:54 PM
        Thank you I appreciate it!

        • Like Like x 1
        • Jesse6869

          Jesse6869 Well-Known Member

          Messages:
          371
          Likes Received:
          199
          Joined:
          Jun 8, 2019
          Location:
          Vacaville/
          Local Time:
          11:54 AM
          Love the seats where did u have them done

          • Like Like x 2
          • 91r/t

            91r/t FBBO Gold Member FBBO Gold Member

            Messages:
            2,497
            Likes Received:
            3293
            Joined:
            May 7, 2011
            Location:
            Buffalo, NY
            Local Time:
            1:54 PM
            What he said above! Add the emblems to the doors. Also what are those seats outta? They looks badass!

            • Like Like x 1
            • INTMD8

              INTMD8 Well-Known Member

              Messages:
              283
              Likes Received:
              237
              Joined:
              Apr 17, 2017
              Location:
              Lake Villa IL
              Local Time:
              1:54 PM

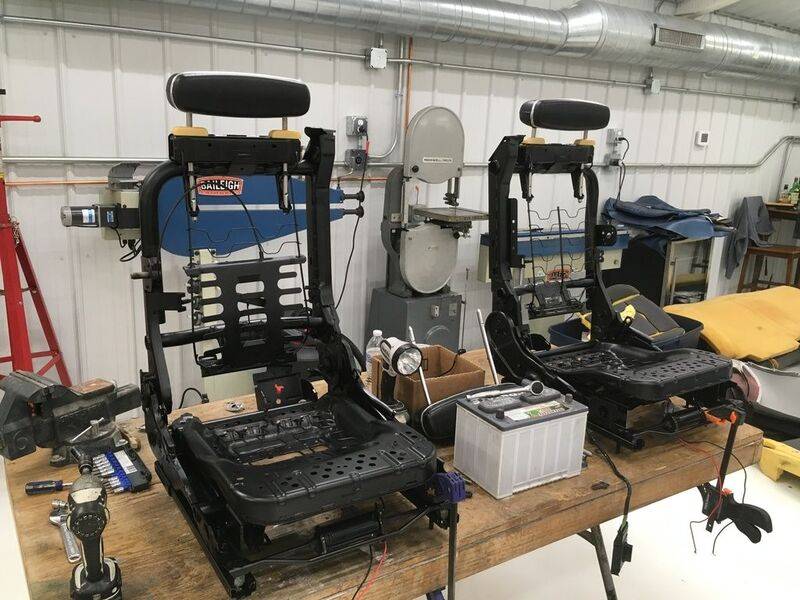

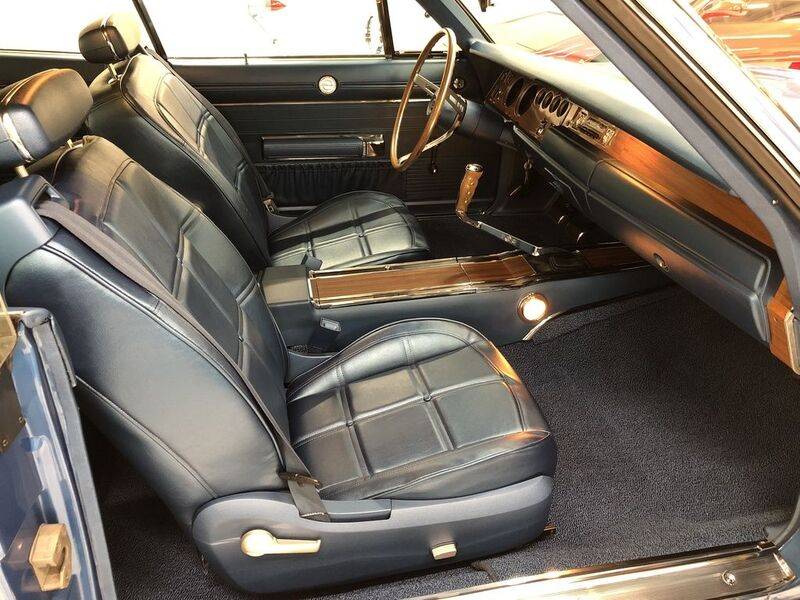

              Thanks guys. The seats are from a 2013 Chrysler 200 convertible.

              I made brackets to mount them. Modified them to accept original head rests. Added bracing to bolt through the subframe connectors and had them reupholstered locally.


              • Like Like x 3
              • 65wgn440

                65wgn440 Well-Known Member

                Messages:
                543
                Likes Received:
                495
                Joined:
                Aug 16, 2016
                Location:
                Toledo, Ohio
                Local Time:
                2:54 PM
                I have a couple customer's with Sebring convertibles and I have told a few people that they are perfect retro-fit candidates, mainly because of nice design and integral seat belts. Yours seem to be a continuation of Sebring design. Did yours have pyrotechnic tensioner assemblies, also ? Nice car. Always wanted to run a 12.5-13.0 to 1 engine on the street. Takes a real man !

                • Like Like x 2
                • Thanks! Thanks! x 1
                • INTMD8

                  INTMD8 Well-Known Member

                  Messages:
                  283
                  Likes Received:
                  237
                  Joined:
                  Apr 17, 2017
                  Location:
                  Lake Villa IL
                  Local Time:
                  1:54 PM
                  Yes mine had the pyrotechnic tensioners, I removed them from the reel and tossed them out before sending them out to have the webbing replaced.

                  Only downsides to the seats are the original brackets are riveted on and no fun to remove from the tracks, and they weigh a ton. Really comfortable though! Especially the seat belt, compared to stock.

                  There are a ton of E85 stations around me so that along with the flex fuel/efi setup makes the target compression a much easier decision.

                  If it wasn't so readily available and I had to buy drums of that or race fuel I wouldn't be going so high.

                  • Like Like x 1
                  • 67charger383

                    67charger383 Well-Known Member

                    Messages:
                    1,633
                    Likes Received:
                    3019
                    Joined:
                    Dec 13, 2019
                    Location:
                    Maryland
                    Local Time:
                    2:54 PM
                    With E85 or meth injection high compression is no problem! gas prices help too

                  • Jessejames

                    Jessejames Well-Known Member

                    Messages:
                    182
                    Likes Received:
                    194
                    Joined:
                    Mar 9, 2013
                    Location:
                    South Milwaukee Wi
                    Local Time:
                    1:54 PM
                    What are the wheel size on the rear? Could you get me the measurements with backspacing and size of the rim? Was there any wheel well modification on your car?
                    Thank you!
                    Looks great!

                  • INTMD8

                    INTMD8 Well-Known Member

                    Messages:
                    283
                    Likes Received:
                    237
                    Joined:
                    Apr 17, 2017
                    Location:
                    Lake Villa IL
                    Local Time:
                    1:54 PM
                    Thanks. There was no wheel well modification. There are very slight rub marks on the rear inner wheel housing and outer wheelhousing where it has a bump in it but not enough to mark up the tire.

                    245-60-15 and 295-50-15

                    Rear 15x10 5.5" backspace

                    Front 15x8 4" backspace

                    • Thanks! Thanks! x 1
                    • Imperial One

                      Imperial One FBBO Gold Member FBBO Gold Member

                      Messages:
                      434
                      Likes Received:
                      1176
                      Joined:
                      Aug 19, 2020
                      Location:
                      Canada
                      Local Time:
                      2:54 PM
                      That is a GREAT looking car. Best of luck with your project.

                      • Agree Agree x 1
                      • musekmkr

                        musekmkr Well-Known Member

                        Messages:
                        73
                        Likes Received:
                        41
                        Joined:
                        Jul 1, 2020
                        Location:
                        Philadelphia
                        Local Time:
                        2:54 PM
                        Yes. Very nice. Love those seats. They mesh perfectly!

                        • Agree Agree x 2
                        • INTMD8

                          INTMD8 Well-Known Member

                          Messages:
                          283
                          Likes Received:
                          237
                          Joined:
                          Apr 17, 2017
                          Location:
                          Lake Villa IL
                          Local Time:
                          1:54 PM
                          Thank you!

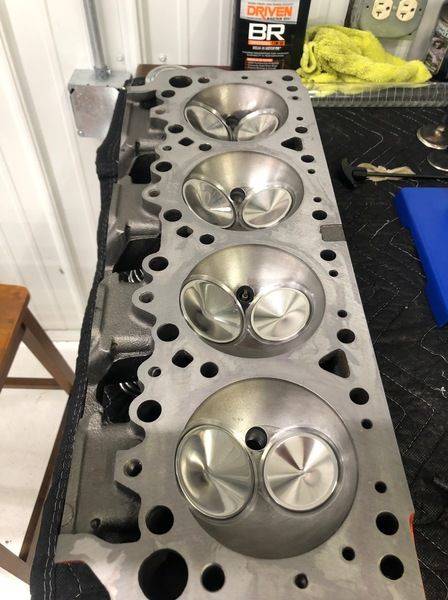

                          So turns out having a valve job done and also new valves (with I now realize have a deeper dish) gained a few cc's. Had the heads milled .015 (asked for .030 but they were nervous about removing the valve seat). Now the final compression is only 12.4-1. Not what I was aiming for but probably still enough to not be a slug. 4 points higher than where I started at least :)


                          • Like Like x 3
                          • INTMD8

                            INTMD8 Well-Known Member

                            Messages:
                            283
                            Likes Received:
                            237
                            Joined:
                            Apr 17, 2017
                            Location:
                            Lake Villa IL
                            Local Time:
                            1:54 PM
                            I used Cometic .027 thick gaskets with a 4.335 (measured) bore. Part number is C5454-027

                            Listed for 4.28 bore, I guess they usually go for a little more radial clearance but I didn't want that so these tightened that up on my 4.31 bores.

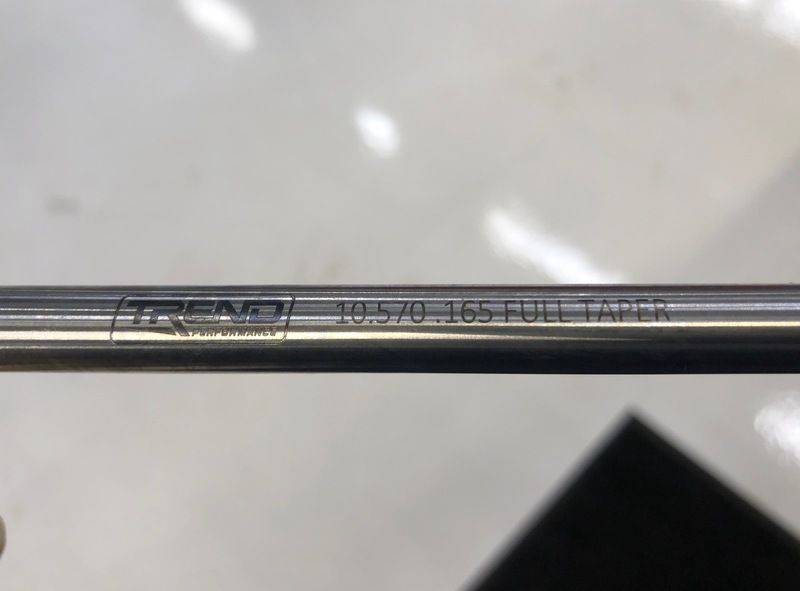

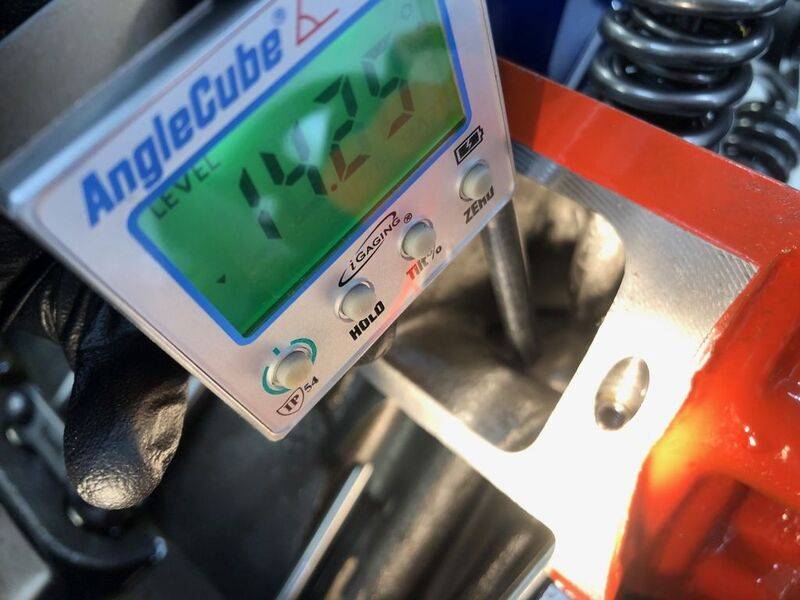

                            Valvetrain is Cam Motion low lash solid roller, Morel black mamba lite lifters, Trend tapered pushrods, PSI CT1225 valve springs, Xceldyne titanium locks and retainers.


                            • Like Like x 1
                            • Geff McCarthy

                              Geff McCarthy FBBO Gold Member FBBO Gold Member

                              Messages:
                              163
                              Likes Received:
                              60
                              Joined:
                              Aug 5, 2019
                              Location:
                              Portland OR
                              Local Time:
                              11:54 AM
                              I wonder why you removed the pyro tensioners on these superb seats...?
                              Shoulder belt tensioners were invented for ejection seats, to align the spine to reduce forward flexion and anterior lip spine compression fractures.
                              Here, i guess they decrease your chance of facial contact with dash, as belts are loose, and stretch under load.
                              I really like your adaptation of later MOPAR seats with integral belts, and may use this solution in my 63SF!

                            • INTMD8

                              INTMD8 Well-Known Member

                              Messages:
                              283
                              Likes Received:
                              237
                              Joined:
                              Apr 17, 2017
                              Location:
                              Lake Villa IL
                              Local Time:
                              1:54 PM
                              Thank you. The tensioners are electronically activated, not inertia so they wouldn't function without the SRS from the vehicle they were taken from.

                            • INTMD8

                              INTMD8 Well-Known Member

                              Messages:
                              283
                              Likes Received:
                              237
                              Joined:
                              Apr 17, 2017
                              Location:
                              Lake Villa IL
                              Local Time:
                              1:54 PM

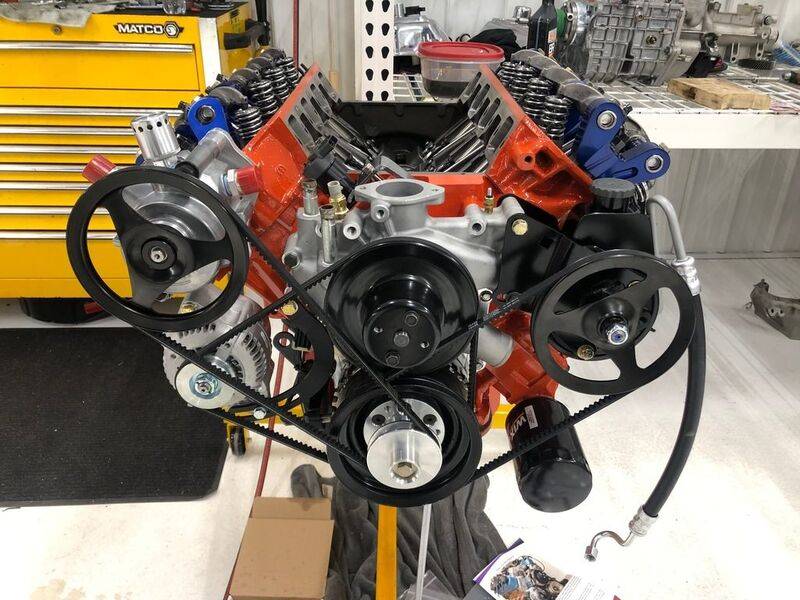

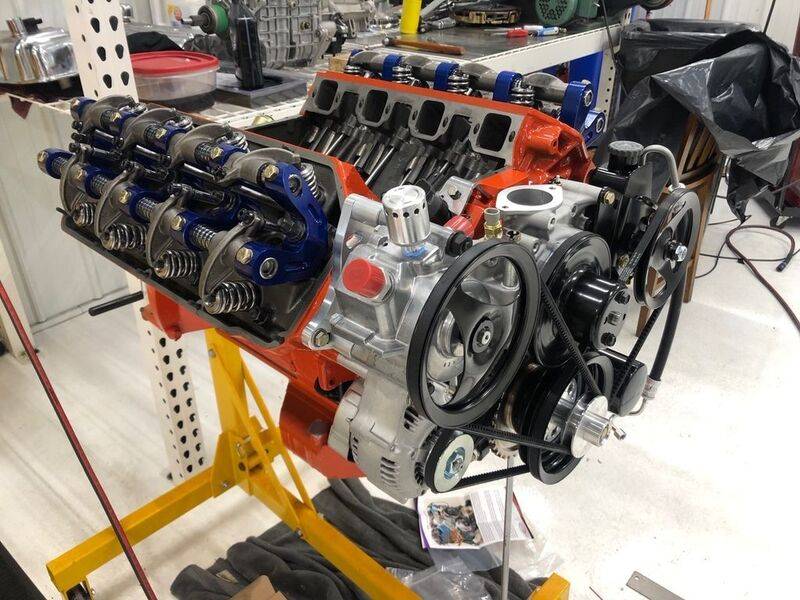

                              I've been working on the accessories.
