69 charger vacuum hose mounting hole

Kilrbee

Well-Known Member
Local time
1:04 AM
Joined
May 12, 2014
Messages
243
Reaction score
113
Location
Wisconsin

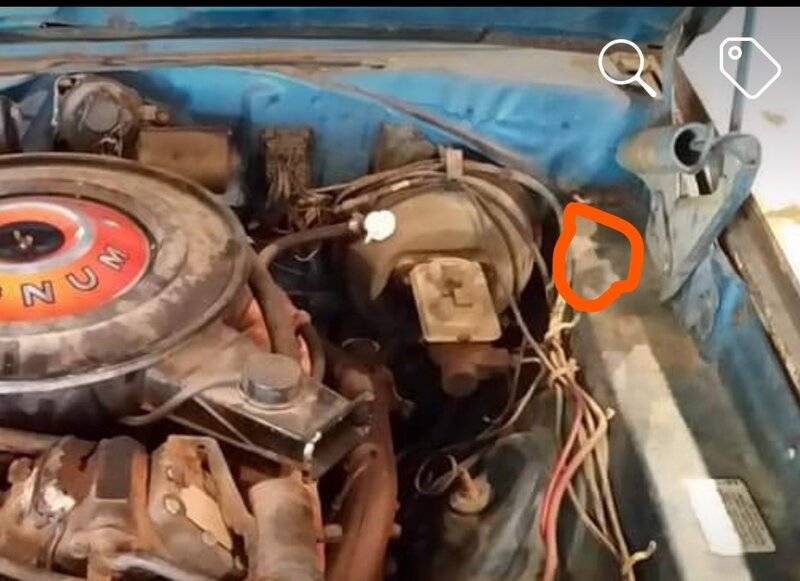

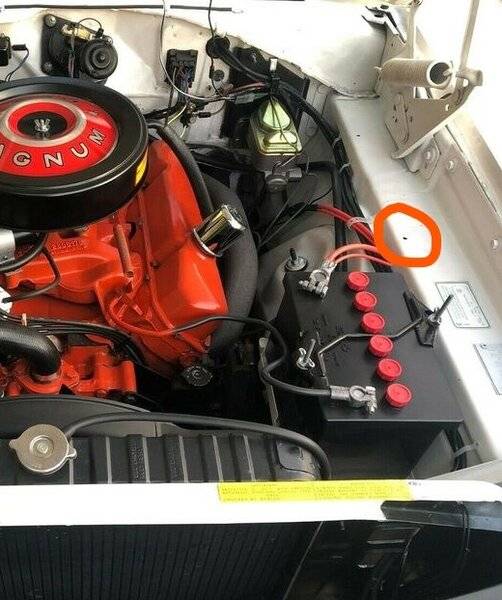

Does anyone have the measurements for the 69 Charger headlight vacuum hose mounting clip hole location? My body guy welded mine up and I would like to locate it as close as possible. I circled the general area in the attached pic. TIA. :drinks:
charger drill hole.jpg


QOTHL

FBBO Gold Member
FBBO Gold Member
Local time
2:04 AM
Joined
Sep 13, 2017
Messages
6,293
Reaction score
7,310
Location
Planet Mopar
I've got 6" from the firewall and 3/4" from the inner edge of the inner fender to the center of the hole.


Kilrbee

Well-Known Member
Local time
1:04 AM
Joined
May 12, 2014
Messages
243
Reaction score
113
Location
Wisconsin

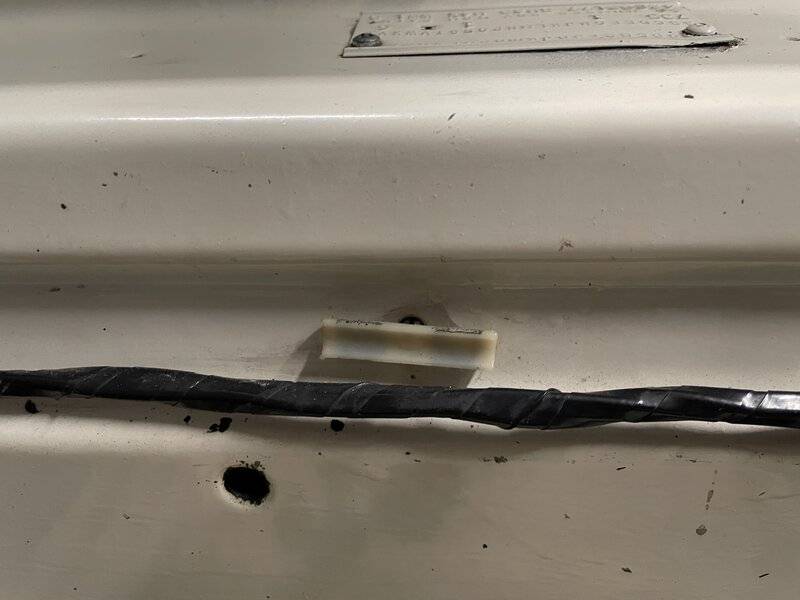

Is there supposed to be two holes for the headlight hoses or is there an difference between plants?

CHARGER HOSE HOLE.jpg


Richard Cranium

FBBO Gold Member
FBBO Gold Member
Local time
1:04 AM
Joined
Feb 20, 2012
Messages
41,143
Reaction score
112,617
Location
Maskachusetts

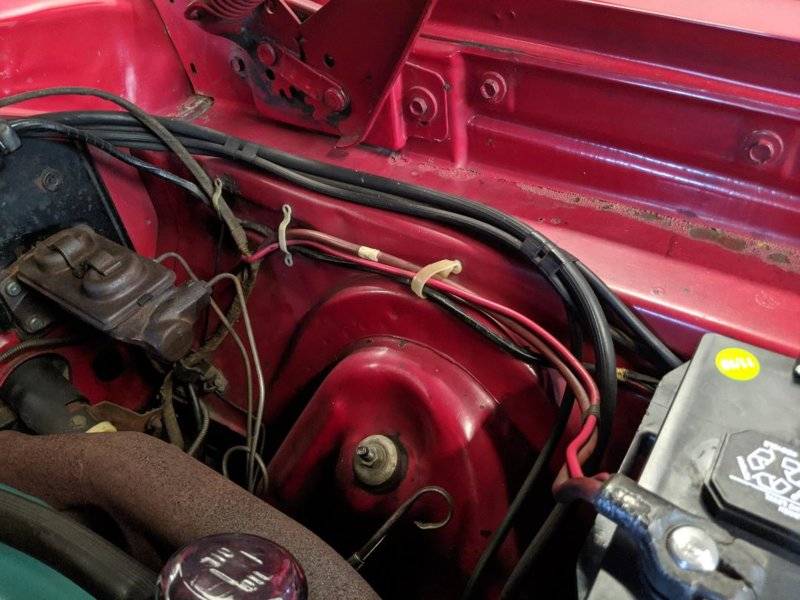

This is my survivor Charger. If you need dimensions, I can post them on Sunday. I'm on vacation right now.





Kilrbee

Well-Known Member
Local time
1:04 AM
Joined
May 12, 2014
Messages
243
Reaction score
113
Location
Wisconsin
Thank you! I believe there is a dimple there I can use for reference to locate the hole. :thumbsup::thankyou:


Richard Cranium

FBBO Gold Member
FBBO Gold Member
Local time
1:04 AM
Joined
Feb 20, 2012
Messages
41,143
Reaction score
112,617
Location
Maskachusetts

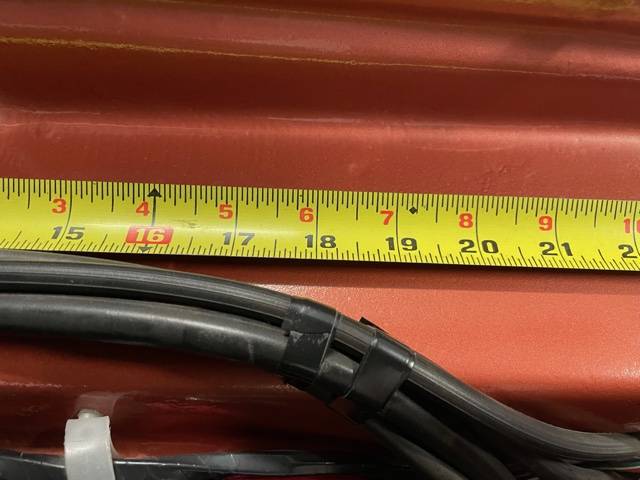

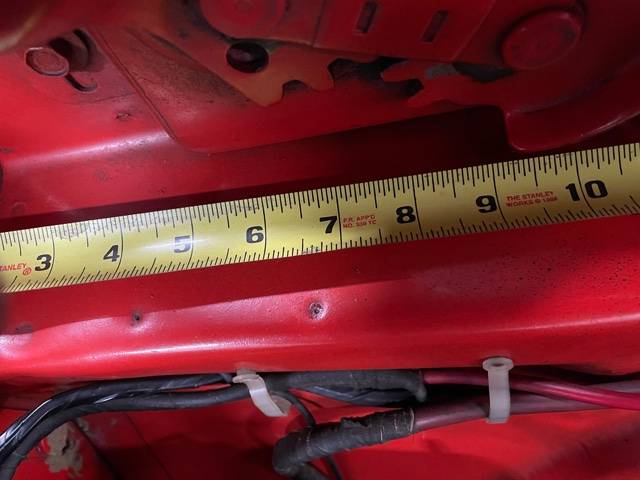

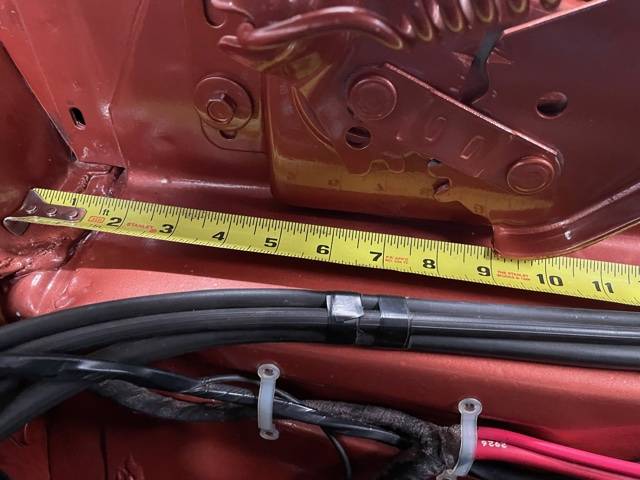

The holes are at about 6 1/2" and 18 1/2"......

image0 (1).jpeg

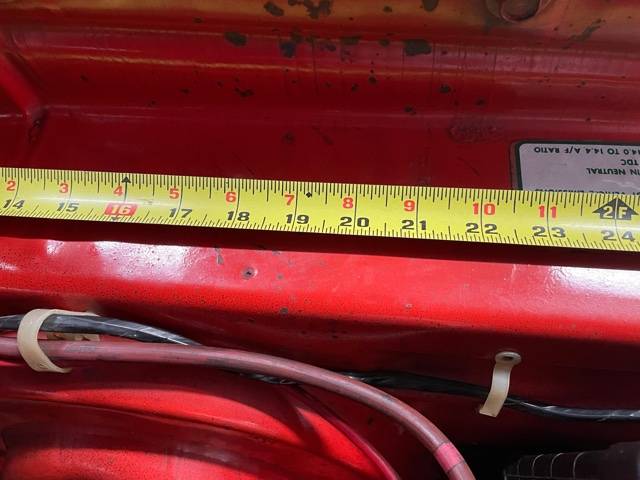

Here's the dimples in those same locations on my 69 Road Runner.....







Kilrbee

Well-Known Member
Local time
1:04 AM
Joined
May 12, 2014
Messages
243
Reaction score
113
Location
Wisconsin
Great! Got holes drilled and hoses installed. Thank you everyone for the help!:thumbsup::thankyou:


Kilrbee

Well-Known Member
Local time
1:04 AM
Joined
May 12, 2014
Messages
243
Reaction score
113
Location
Wisconsin
Yes, QOTHL also responded. Revised.... Thank you both! :thumbsup:


Richard Cranium

FBBO Gold Member
FBBO Gold Member
Local time
1:04 AM
Joined
Feb 20, 2012
Messages
41,143
Reaction score
112,617
Location
Maskachusetts

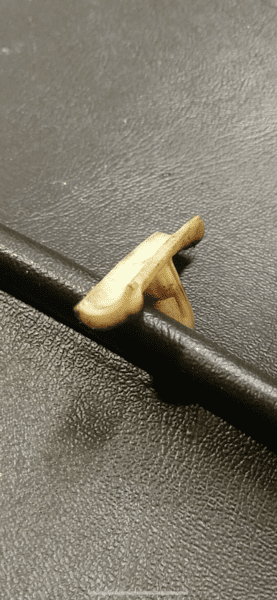

I found nos ones years ago. Can’t pop them out too easily now to measure.

R/T Specialties sells one that’s similar, but not exact. Since you never see it, it doesn’t matter.
