69 Super Bee parking brake help

Brakes, Steering & Suspension

  1. 440beep

    440beep FBBO Gold Member FBBO Gold Member

    My Photo Garage
    Messages:
    1,009
    Likes Received:
    343
    Joined:
    Aug 6, 2012
    Location:
    NW Indiana
    Local Time:
    6:20 AM

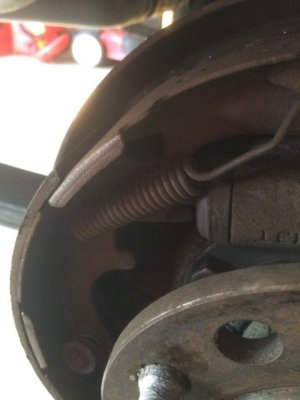

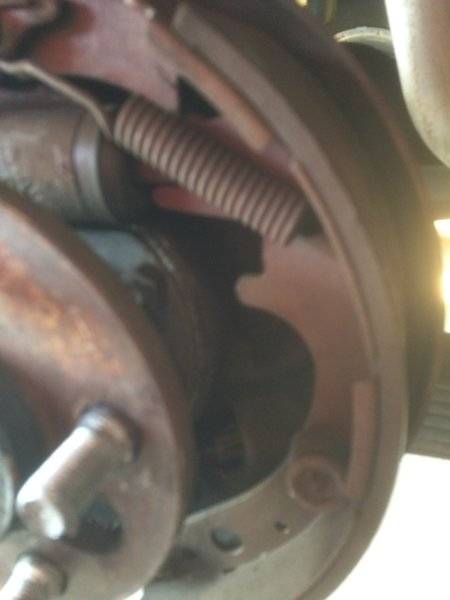

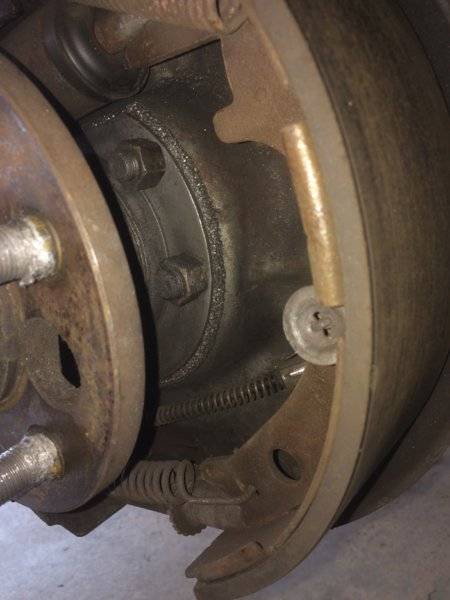

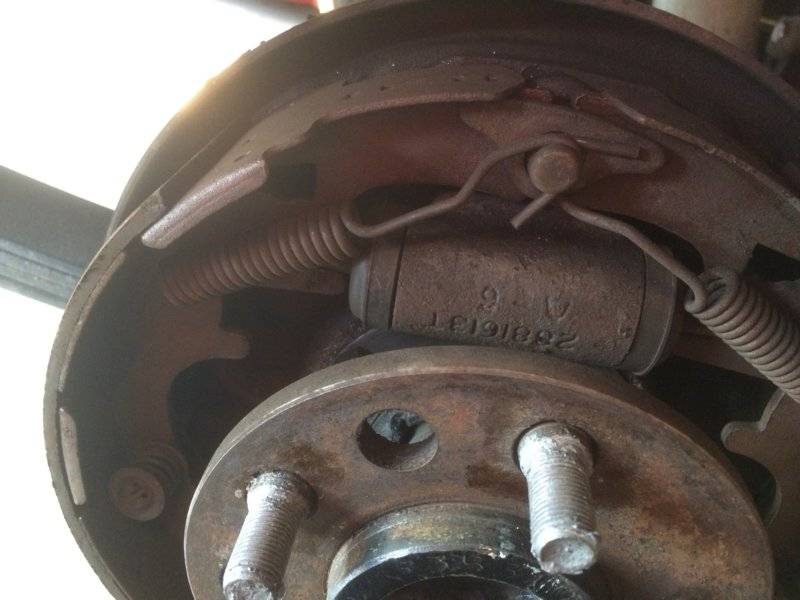

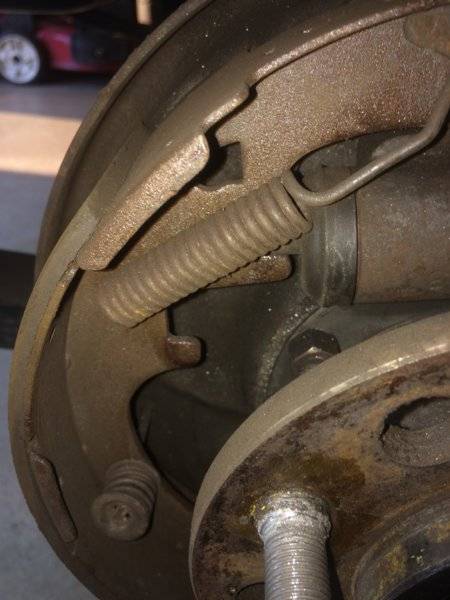

    Hopefully the attached photos provide enough detail for people to see what parking brake pieces are missing from the rear drum brakes. I've never dealt with drum brakes before, so not sure what pieces of the parking brake is missing.

    TIA!

    IMG_0930.JPG IMG_0931.JPG IMG_0932.JPG IMG_0934.JPG IMG_0935.JPG

  2. Bill Monk

    Bill Monk FBBO Gold Member FBBO Gold Member

    My Photo Garage
    Messages:
    1,188
    Likes Received:
    1073
    Joined:
    Feb 27, 2017
    Location:
    West Virginia
    Local Time:
    7:20 AM
    Looks like your strut bars are missing from what I can see in the pictures. Send Justin (moparnation74) a pm, he had some a while back for sale. Not sure if he still has them.



    • Thanks! Thanks! x 2
    • Agree Agree x 1
    • Bill Monk

      Bill Monk FBBO Gold Member FBBO Gold Member

      My Photo Garage
      Messages:
      1,188
      Likes Received:
      1073
      Joined:
      Feb 27, 2017
      Location:
      West Virginia
      Local Time:
      7:20 AM

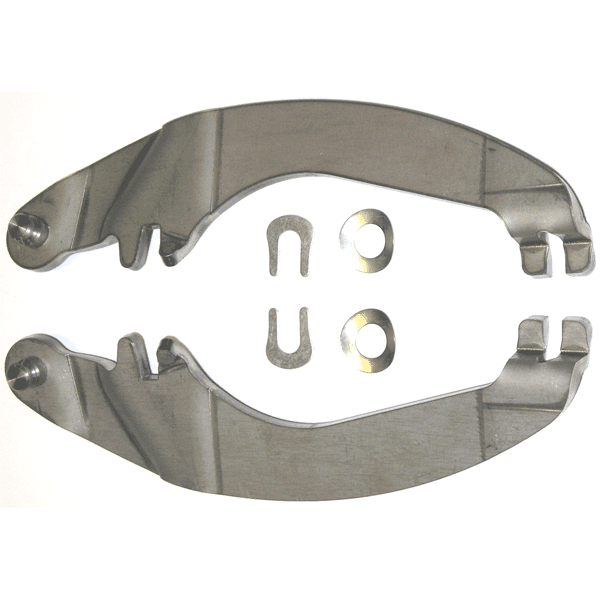

      Strut bars are the photo on top

      • Thanks! Thanks! x 1
      • 440beep

        440beep FBBO Gold Member FBBO Gold Member

        My Photo Garage
        Messages:
        1,009
        Likes Received:
        343
        Joined:
        Aug 6, 2012
        Location:
        NW Indiana
        Local Time:
        6:20 AM
        So I need the parts in both photos? Besides the strut bars, what are the other parts called?


      • Bill Monk

        Bill Monk FBBO Gold Member FBBO Gold Member

        My Photo Garage
        Messages:
        1,188
        Likes Received:
        1073
        Joined:
        Feb 27, 2017
        Location:
        West Virginia
        Local Time:
        7:20 AM
        Levers but it looks like you have it, just missing the bars

        Last edited: Aug 10, 2018 at 1:28 PM
      • Bill Monk

        Bill Monk FBBO Gold Member FBBO Gold Member

        My Photo Garage
        Messages:
        1,188
        Likes Received:
        1073
        Joined:
        Feb 27, 2017
        Location:
        West Virginia
        Local Time:
        7:20 AM
        I took a closer look at the pictures, you need both

        • Thanks! Thanks! x 1
        • Bill Monk

          Bill Monk FBBO Gold Member FBBO Gold Member

          My Photo Garage
          Messages:
          1,188
          Likes Received:
          1073
          Joined:
          Feb 27, 2017
          Location:
          West Virginia
          Local Time:
          7:20 AM

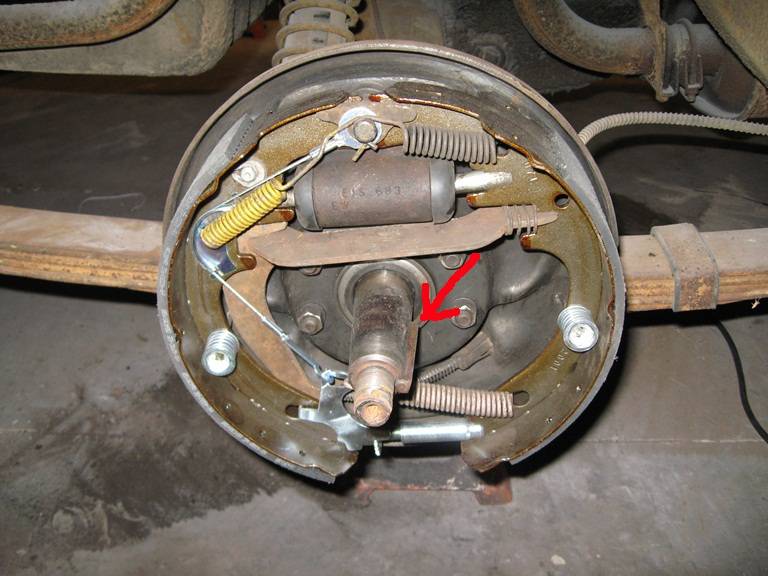

          Disregard the red arrow, it was just a clear picture so you can see the lever and strut bar


          Last edited: Aug 10, 2018 at 1:27 PM
          • Thanks! Thanks! x 1
          • 440beep

            440beep FBBO Gold Member FBBO Gold Member

            My Photo Garage
            Messages:
            1,009
            Likes Received:
            343
            Joined:
            Aug 6, 2012
            Location:
            NW Indiana
            Local Time:
            6:20 AM
            Whoooaah! There's a lot going on in there. Glad I've got the FSM to get me through it (hopefully).

          • eddie102870

            eddie102870 FBBO Gold Member FBBO Gold Member

            My Photo Garage
            Messages:
            69
            Likes Received:
            159
            Joined:
            Aug 11, 2016
            Location:
            Alabama
            Local Time:
            6:20 AM
            i just put disc brakes on my send me a address and ill send you the ones that came off my car.

            • Like Like x 2
            • Thanks! Thanks! x 1
            • 440beep

              440beep FBBO Gold Member FBBO Gold Member

              My Photo Garage
              Messages:
              1,009
              Likes Received:
              343
              Joined:
              Aug 6, 2012
              Location:
              NW Indiana
              Local Time:
              6:20 AM
              PM sent


              • Like Like x 1
