70 RR Rallye cluster removal

General Mopar Tech Discussions

  1. The Son-in-Law

    The Son-in-Law Member

    Messages:
    11
    Likes Received:
    19
    Joined:
    Apr 22, 2019
    Location:
    SE PA
    Local Time:
    6:59 PM

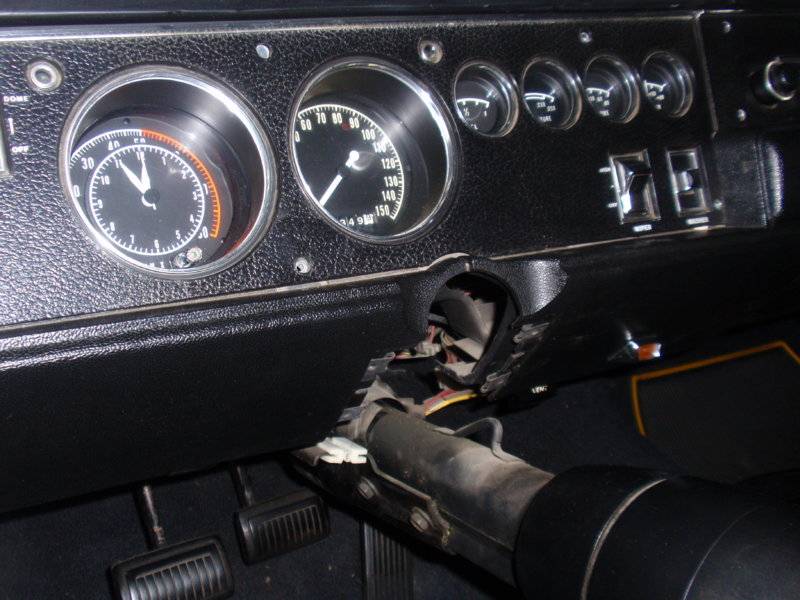

    I'm working on removing the Rallye Tach/Clock to see if I can get the clock back to working order and have reached a roadblock in removing the cluster.

    I was able to drop the steering column, thanks to a previous thread.

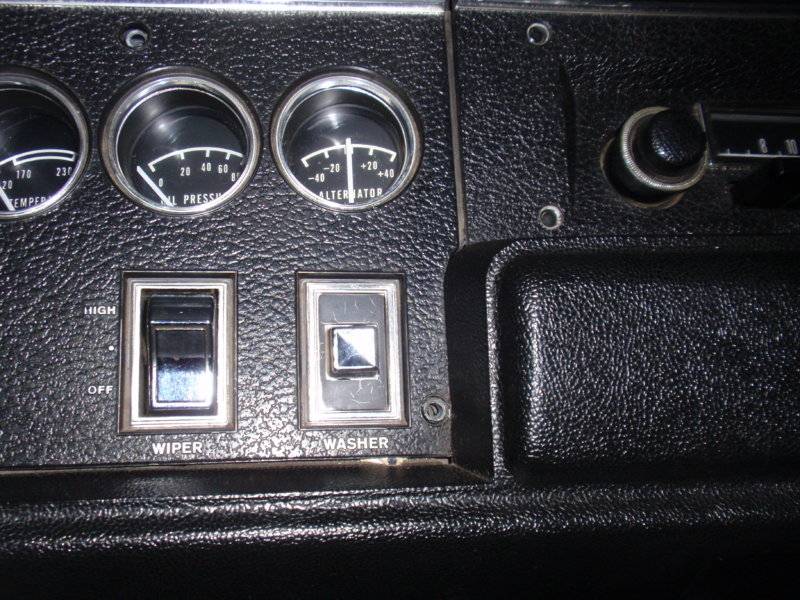

    I removed the five screws from the cluster face, and four screws from the radio face. The left side of the cluster moves pretty freely, but the right side is still tight behind the lower trim piece under the radio. P1020521.JPG

    Do I need to remove the lower trim pieces to get the cluster out? Unfortunately, the service manual does not have the Rallye cluster removal instructions.

  2. Beekeeper

    Beekeeper FBBO Gold Member FBBO Gold Member

    Messages:
    2,132
    Likes Received:
    1437
    Joined:
    Jul 4, 2012
    Location:
    Rogersville,TN.
    Local Time:
    5:59 PM
    Assuming you have everything disconnected from the cluster the tab behind the radio bezel is keeping it from coming straight out.

    • Thanks! Thanks! x 1
    • Agree Agree x 1
    • The Son-in-Law

      The Son-in-Law Member

      Messages:
      11
      Likes Received:
      19
      Joined:
      Apr 22, 2019
      Location:
      SE PA
      Local Time:
      6:59 PM
      That's what it feels like and looks like, I'm just hesitant to force it for fear of cracking the old plastic.

    • Hemirunner

      Hemirunner Well-Known Member

      Messages:
      4,223
      Likes Received:
      4593
      Joined:
      Jul 12, 2011
      Location:
      Down South
      Local Time:
      5:59 PM
      Both the radio bezel and the lower plastic piece are easy to remove. The lower has screws that can be accessed from under the dash. Pulling out the ash tray and tray receiver will give more access. Cluster should then pull right out.

      • Thanks! Thanks! x 1
      • Agree Agree x 1
      • davek

        davek FBBO Gold Member FBBO Gold Member

        Messages:
        2,409
        Likes Received:
        1799
        Joined:
        Oct 14, 2017
        Location:
        columbia
        Local Time:
        6:59 PM

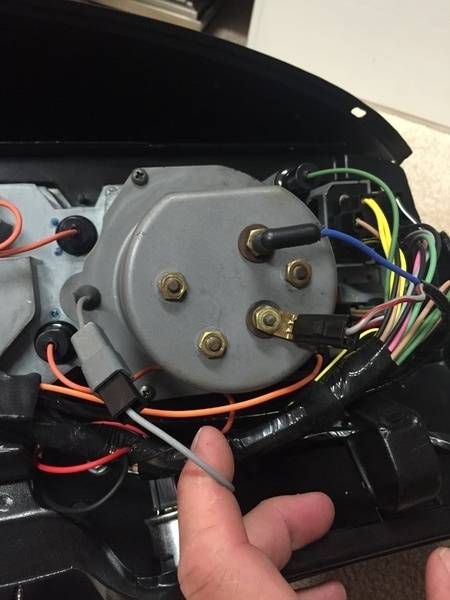

        I believe it is 2 screws that holds tack in. Why pull cluster if you only need the tack out. Fixing my clock and just going to pull tac.I did dash harness this year and yep it was a pain to pull cluster. img_2855-jpg.jpg

        • Thanks! Thanks! x 2
        • superbeedave

          superbeedave Well-Known Member

          Messages:
          152
          Likes Received:
          30
          Joined:
          Jul 22, 2009
          Location:
          Cincinnati, Ohio
          Local Time:
          5:59 PM
          Heck I was able to take my old clock out and install a new repro tach/clock without pulling the cluster in my 69 Superbee. I have had the cluster
          out probably 4 times in 23 years I have had the car so that's why I new it would come out without pulling the whole dash cluster out.

          • Thanks! Thanks! x 1
          • The Son-in-Law

            The Son-in-Law Member

            Messages:
            11
            Likes Received:
            19
            Joined:
            Apr 22, 2019
            Location:
            SE PA
            Local Time:
            6:59 PM
            Well, I'm too far down the road for that. I have pulled the cluster and found that wiring from the tac is securely pinched between two pieces of the steering column support bracket. I was able to disconnect the wires at the back of the tac and removed the three mounting screws.

            Does the time set knob pull off? How do I pull the tac from the cluster with the time set knob poking through the plastic face?

            Again, thanks for the help.

          • superbeedave

            superbeedave Well-Known Member

            Messages:
            152
            Likes Received:
            30
            Joined:
            Jul 22, 2009
            Location:
            Cincinnati, Ohio
            Local Time:
            5:59 PM
            Well on the old clock I had was missing the knob so it was easy to pull straight out from behind. The new tic toc tack had a small
            screw on the end of the knob and I'm not sure how the factory original tachs were rather or not they had a small screw inside the
            knob that you just unscrew it and it comes off. The two or three screws was all that was holding it in the cluster and those you can get to
            with a long phillips of course the knob has to be off before it can come out.

          • kiwigtx

            kiwigtx International Mod Staff Member FBBO Gold Member

            Messages:
            17,296
            Likes Received:
            33101
            Joined:
            Jun 12, 2012
            Location:
            Tomorrow, NZ
            Local Time:
            12:59 PM
            Can we assume that you removed the Driver's seat for more access under the dash?

          • The Son-in-Law

            The Son-in-Law Member

            Messages:
            11
            Likes Received:
            19
            Joined:
            Apr 22, 2019
            Location:
            SE PA
            Local Time:
            6:59 PM

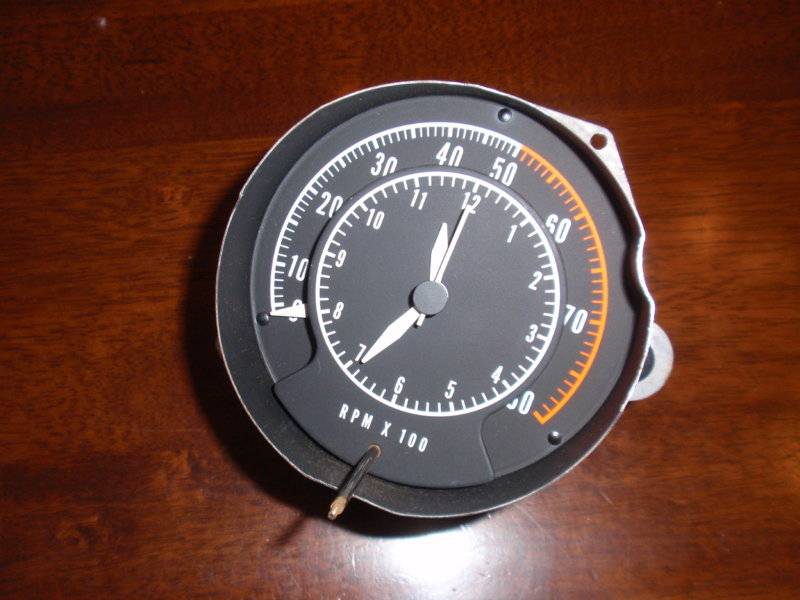

            SUCCESS! Now to see if I can get it working.

            This is all new to me. I was never that interested in cars. But things change when your father-in-law passes something like this to you. Grateful for the Mopar and grateful for your assistance.

          • kiwigtx

            kiwigtx International Mod Staff Member FBBO Gold Member

            Messages:
            17,296
            Likes Received:
            33101
            Joined:
            Jun 12, 2012
            Location:
            Tomorrow, NZ
            Local Time:
            12:59 PM
            I'm going to suggest that you take that to a reputable clock repair shop - unless of course you have the necessary skills to DIY.

            Install a quartz movement and use the same hands etc....the clock will go forever and be reasonably accurate for longer.

            • Thanks! Thanks! x 1
            • Agree Agree x 1
            • davek

              davek FBBO Gold Member FBBO Gold Member

              Messages:
              2,409
              Likes Received:
              1799
              Joined:
              Oct 14, 2017
              Location:
              columbia
              Local Time:
              6:59 PM
              many say the points will burn again and the clock will stop. Do the digital since you already have it out.

              • Thanks! Thanks! x 1
              • Agree Agree x 1
              • The Son-in-Law

                The Son-in-Law Member

                Messages:
                11
                Likes Received:
                19
                Joined:
                Apr 22, 2019
                Location:
                SE PA
                Local Time:
                6:59 PM


                Thanks again to everyone for their input. Once I got inside, I found it was simply a broken main spring. The contacts were in the open position and were in pristine condition. So I decided to re-loop the spring and keep the original parts in place. To keep the contacts in good condition, I plan to keep it unplugged unless I want to show it off. Back to life after about 40 years.

                I also found that the dimmer switch had been bypassed at some point, with a paper clip used to jump around it. I got that back in order and installed new instrument panel bulbs, so I now have dimmable lights and an operable dome light switch. I hope to stay out of the dash for a long time.

                • Like Like x 1
                • Thanks! Thanks! x 1
                • davek

                  davek FBBO Gold Member FBBO Gold Member

                  Messages:
                  2,409
                  Likes Received:
                  1799
                  Joined:
                  Oct 14, 2017
                  Location:
                  columbia
                  Local Time:
                  6:59 PM
                  glad it all worked out

                  • Thanks! Thanks! x 1
                  • Beekeeper

                    Beekeeper FBBO Gold Member FBBO Gold Member

                    Messages:
                    2,132
                    Likes Received:
                    1437
                    Joined:
                    Jul 4, 2012
                    Location:
                    Rogersville,TN.
                    Local Time:
                    5:59 PM
                    Thanks for following up on your thread:thumbsup:
