71-74 B Gauges in a Magnum/Cordoba

MAGNUM GT XS22L9R

Well-Known Member
Local time
12:32 PM
Joined
Oct 19, 2009
Messages
471
Reaction score
73
Location
Orlando Florida area
:violent4:
Just for fun I put together some gauges from my friends
1971 Charger into my extra Magnum Dash. Has anyone
here done this and did they work? They fit almost perfectly?
I didn't have the older style Tachometer, still in the Charger
so kept mine in all pics.

Magnum GT/Chrysler 300 Rallye Dash with 78-79 140mph Certified Speedo & gauges:

Magnum GT/Chrysler 300 Rallye Dash with 71-74 150mph Speedometer & gauges:

_______________________

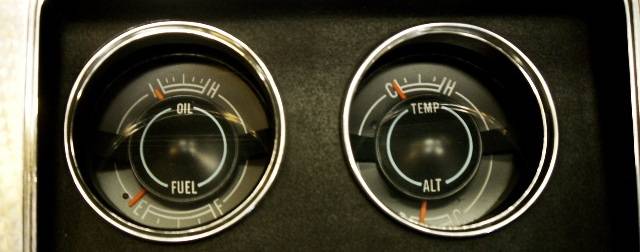

Magnum GT/Chrysler 300 Rallye Dash with 78-79 gauges:

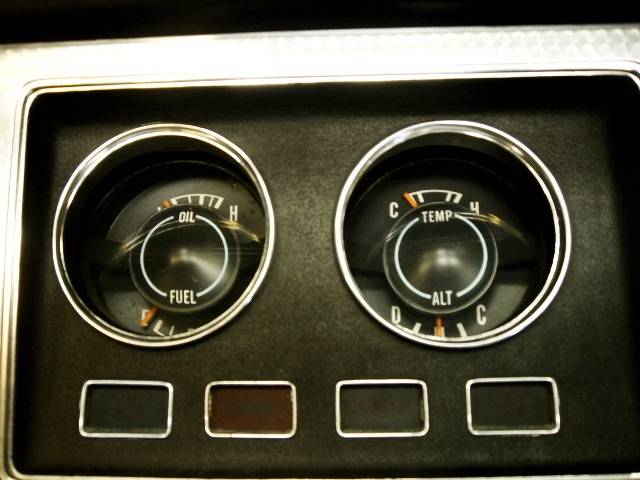

Magnum GT/Chrysler 300 Rallye Dash with 71-74 gauges:

_______________________

1971-74 Charger/RoadRunner Rallye Dash:


Both 71-74 & 75-79 dashes are similar in layout! :icon_idea:


old tired rebel

Well-Known Member
Local time
11:32 AM
Joined
Sep 25, 2009
Messages
1,771
Reaction score
154
Interesting, You need to pop it in your Magnum and see if it works.


MAGNUM GT XS22L9R

Well-Known Member
Local time
12:32 PM
Joined
Oct 19, 2009
Messages
471
Reaction score
73
Location
Orlando Florida area

Well the speedometer looks the same on the back and should fit. I
did check the smaller gauges and they do work. I'm sure that the
older Tachometer will work with no problem, both were SB V8's.
The Speedo worked in the Charger so I guess all that would be
needed is making sure the right gears are in place to get the
correct readings?

My friend only has one dash with a tachometer, the other two both
have clocks. The 71 dash I'm turning into a Digital Dash and
restoring the other with the tach for his 72 Charger Rallye clone.
I'm keeping the extra set of gauges for myself. The 150mph
speedometer looks great in the newer dash! Might be a little hard
to find a matching Tach for it, maybe I can find a bad one and put
newer guts in the back of it? :D I also picked up a T-handle Slap-
stick shifter and linkages.



Thanks

Last edited:

426Hemiman

Active Member
Local time
12:32 PM
Joined
Jul 20, 2012
Messages
43
Reaction score
21
Location
Charlotte, NC
I am curious as to how well this has worked out for you over the years since this posting. I have located a complete rally cluster from 71-74 Charger and thinking seriously of doing the same project on my Cordoba. Would you please tell me of any points I should be aware of?

Thanks,
Dave


dodge1972

Well-Known Member
Local time
10:32 AM
Joined
Aug 3, 2015
Messages
420
Reaction score
68
Location
Aurora, CO
Chris,
Noted your still working at your craft. Putting together some really cool magnum options. Keep up posted and still active on the Forum. I'm still building my black 78 Magnum with your red interior.
Robert


MagnumFan

Active Member
Local time
12:32 PM
Joined
Oct 17, 2012
Messages
28
Reaction score
2
Location
Ohio
Yes, I like it's appearance. Only thing, I believe the 71-74 gauges are more expensive to buy I would suppose, so why would you want to use even older ones. I do wonder how the amp gauge works as I believe they may be hooked up in a different way? Shunt vs direct wire?


73runner

Well-Known Member
Local time
12:32 PM
Joined
Mar 6, 2013
Messages
393
Reaction score
100
Location
Coral Gables
Would be good to see in a Magnum! More in character with its sporting image than in a Doba.


JP2

New Member
Local time
12:32 PM
Joined
Sep 7, 2017
Messages
1
Reaction score
0
Location
Colonie, NY
:violent4:
Just for fun I put together some gauges from my friends
1971 Charger into my extra Magnum Dash. Has anyone
here done this and did they work? They fit almost perfectly?
I didn't have the older style Tachometer, still in the Charger
so kept mine in all pics.

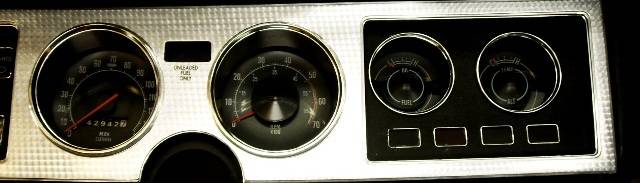

Magnum GT/Chrysler 300 Rallye Dash with 78-79 140mph Certified Speedo & gauges:
View attachment 473042

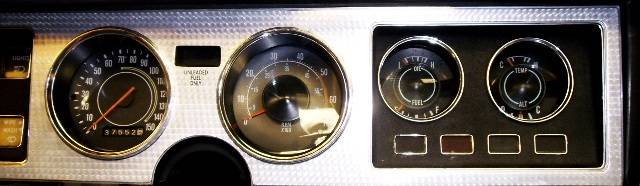

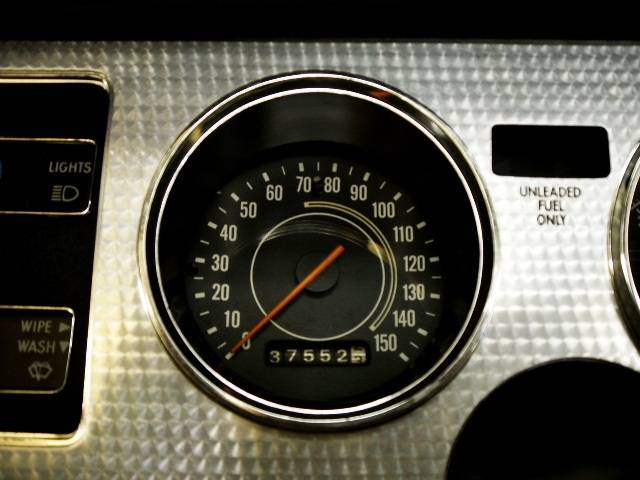

Magnum GT/Chrysler 300 Rallye Dash with 71-74 150mph Speedometer & gauges:
View attachment 473043
_______________________

Magnum GT/Chrysler 300 Rallye Dash with 78-79 gauges:

Magnum GT/Chrysler 300 Rallye Dash with 71-74 gauges:
View attachment 473044
_______________________

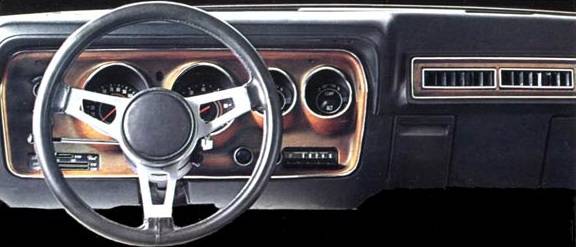

1971-74 Charger/RoadRunner Rallye Dash:
View attachment 473045

Both 71-74 & 75-79 dashes are similar in layout! :icon_idea:

I'm looking to change my gauges in my 1975 Cordoba.
I want to add a tachometer in place of the temp/fuel gauge larger gauge and replace the smaller the oil pressure and Alt. gauges with Fuel and Oil and Temp and Alt. in the original spot in the dash.
Do you have the Part numbers of the gauges that I will need?
or the sizes of the gauges. I would like to get all the parts before I take the dash apart.
The picture you show will work for me. also do the gauges fit in place of the original gauges?
Thanks
JP2


streetmachine

FBBO Gold Member
FBBO Gold Member
Local time
11:32 AM
Joined
Jul 30, 2013
Messages
422
Reaction score
301
Location
Northwest, Montana
Here's another curious question. I'm wondering the underdash reproduction wiring harness for a '73-'74 charger would work on the early Cordobas? Just a thought.


75Cordoba

Member
Local time
12:32 PM
Joined
Jan 16, 2021
Messages
12
Reaction score
10
Location
Englewood, Fl USA
I know your post is dated but have a question regarding dash panel. I have a 75 Cordoba with the factory dash and would love to have the Spedo and a Tach in the same cluster. What did you have to do/change to get the cluster to work correctly? From the looks of it the Magnum GT dash panel looks to be a good fit. I would just like to customize my car to my liking without putting in a universal tach under the dash or on the floor console. Any help is much appreciated.

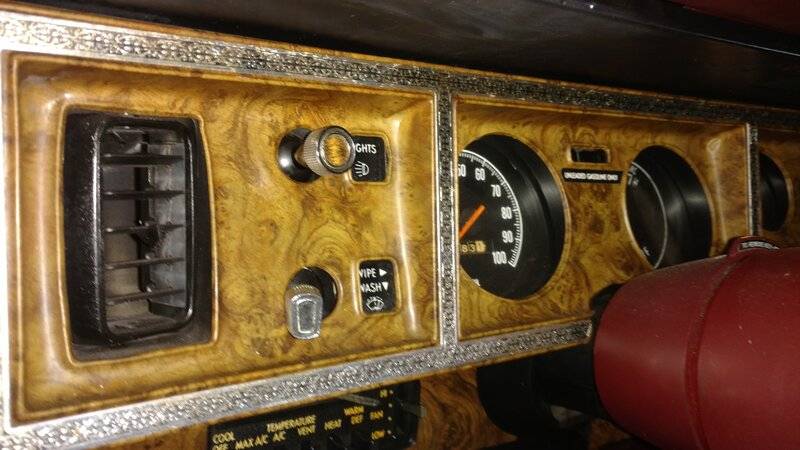

IMG_20220116_141648303.jpg IMG_20220116_141656402.jpg


rumblefish360

Well-Known Member
Local time
11:32 AM
Joined
Jun 30, 2008
Messages
4,851
Reaction score
2,695
Location
Florida
I know your post is dated but have a question regarding dash panel. I have a 75 Cordoba with the factory dash and would love to have the Spedo and a Tach in the same cluster. What did you have to do/change to get the cluster to work correctly? From the looks of it the Magnum GT dash panel looks to be a good fit. I would just like to customize my car to my liking without putting in a universal tach under the dash or on the floor console. Any help is much appreciated.

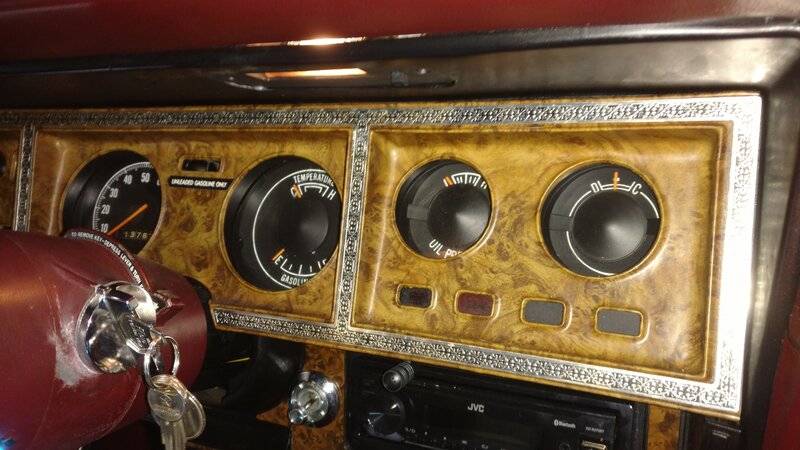

View attachment 1224981 View attachment 1224983
He hasn’t been here since 2017.
Show me the back of the tach.
When I did my ‘79 Magnum, they back of the tach was studs that slid into the conte ring line of the dash.


Nacho-RT74

FBBO Gold Member
FBBO Gold Member
Local time
6:32 PM
Joined
Oct 8, 2012
Messages
5,309
Reaction score
1,928
Location
Valencia, España
I never check the late B board, but this thread capted my attention on the LATES REPLY box. Using the 71/74 ammeter makes a full diff world of the charging system wiring, because 75 and lates gets a shunt on engine bay and ammeter is a remote gauge using the printed circuit board, not anymore a full load gauge with straight wires ( 12 gauge ) to the ammeter like earliers.

How did you proceed with this? Keeping the earlier ammeter won't get any noticeable reading on the gauge with late wiring.

Last edited:
