'71-'74 dash vent removal?

Interior

  1. 71charger_fan

    71charger_fan Well-Known Member

    Messages:
    717
    Likes Received:
    1586
    Joined:
    Jul 19, 2008
    Location:
    Frederick, Maryland
    Local Time:
    6:47 AM

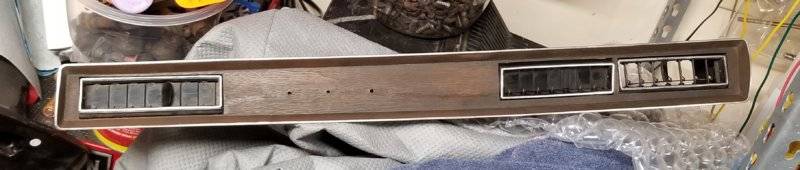

    Are the vents int he dash insert in the '71 to '74 cars removable in a non-destructive way? I bought an extra insert from a member and want to experiment with putting a vinyl wrap on it but need to get the vents out of my way first.
    20191129_162642 (1).jpg

  2. 71SandbugCharger

    71SandbugCharger FBBO Gold Member FBBO Gold Member

    Messages:
    517
    Likes Received:
    429
    Joined:
    Jun 5, 2012
    Location:
    California
    Local Time:
    4:47 AM
    There are little tabs that hold it then in place. Challenge is after so many years, things are brittle and metal is stuck. Hopefully, someone will chime in and provide a good way to remove them. You could make a template for the wrap and mask off the vents.
    I gave up trying, and decided since I had painted my dash black, it would look better black than the carbon fiber I have elsewhere.

    good luck!


  3. 71charger_fan

    71charger_fan Well-Known Member

    Messages:
    717
    Likes Received:
    1586
    Joined:
    Jul 19, 2008
    Location:
    Frederick, Maryland
    Local Time:
    6:47 AM

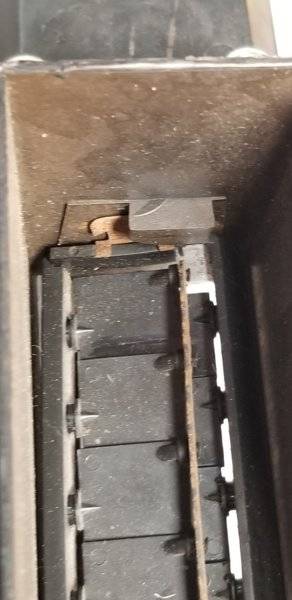

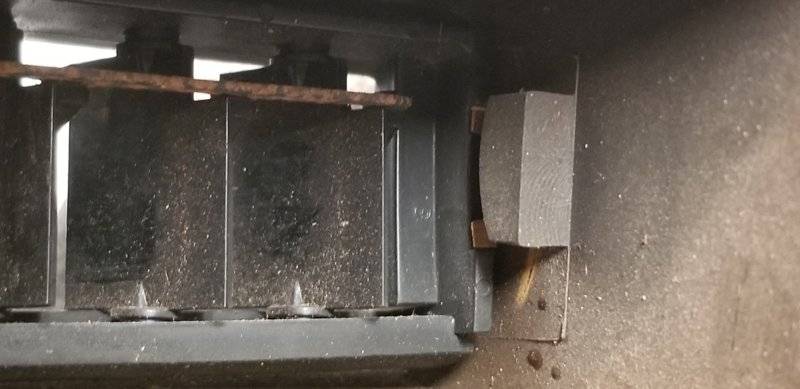

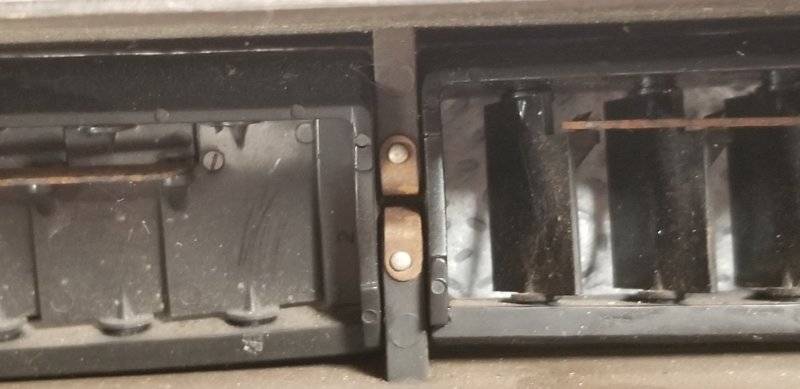

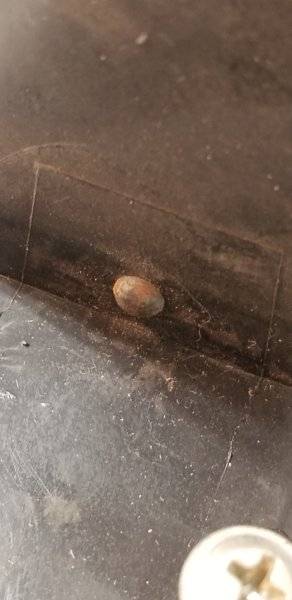

    Here's the back of the vents. I'm tempted to try and push the metal pins through.
    20191201_181510.jpg 20191201_181523.jpg 20191201_181538.jpg 20191201_181618.jpg

  4. moparmarks

    moparmarks FBBO Gold Member FBBO Gold Member

    Messages:
    4,920
    Likes Received:
    1693
    Joined:
    Jul 31, 2011
    Location:
    Western Colorado
    Local Time:
    5:47 AM
    Yes you can push out the little pins and they come right apart. I use a 90* awe to push them out.

    • Agree Agree x 1
    • 71charger_fan

      71charger_fan Well-Known Member

      Messages:
      717
      Likes Received:
      1586
      Joined:
      Jul 19, 2008
      Location:
      Frederick, Maryland
      Local Time:
      6:47 AM
      I've tried pushing the pins through and they won't budge. Given the age of the piece, I'm very afraid of breaking the piece.

    • 71charger_fan

      71charger_fan Well-Known Member

      Messages:
      717
      Likes Received:
      1586
      Joined:
      Jul 19, 2008
      Location:
      Frederick, Maryland
      Local Time:
      6:47 AM

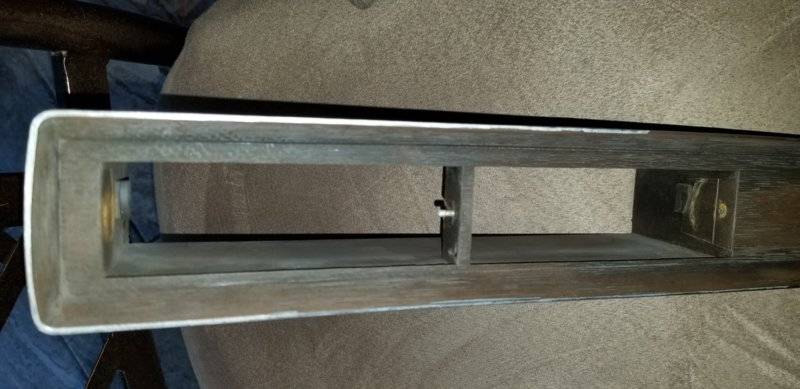

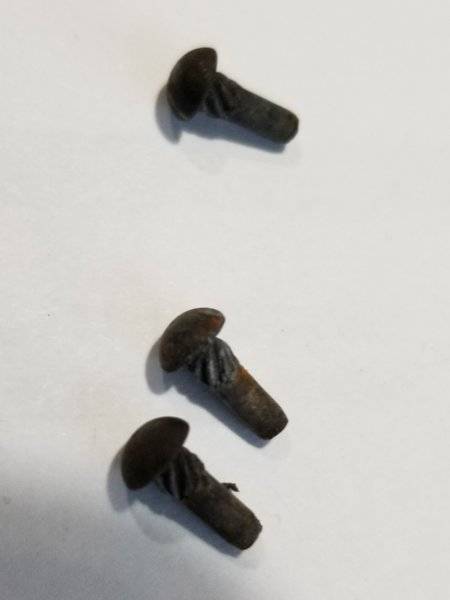

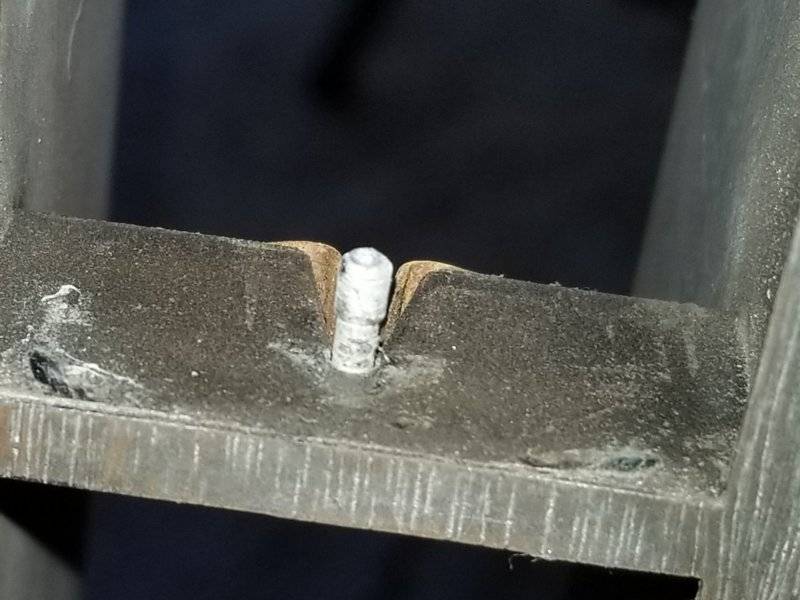

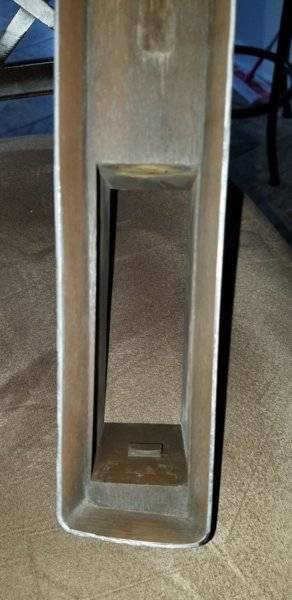

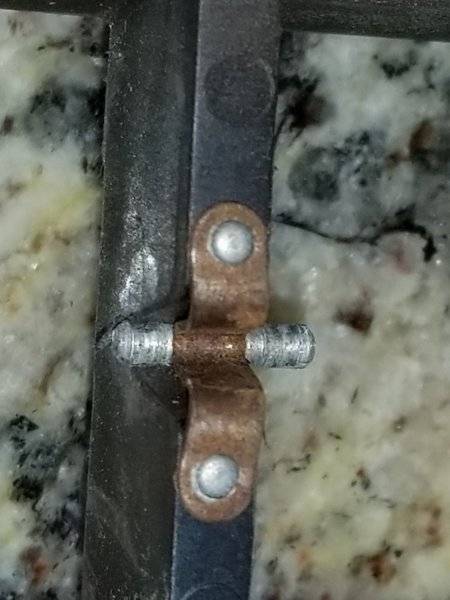

      Today, I decided the vents were either coming out or I was breaking the piece. I tried and failed three times yesterday to wrap it with the vents in it. The two pins on the ends I was able to put a small socket over the heads and start them out with a pair of pliers. The middle pins I was able to knock out with a small hammer and thin drift. So, they do come apart, but the design of the pins makes it a little difficult to just push them through.
      20191222_152003.jpg 20191222_154333.jpg 20191222_154135.jpg 20191222_154158.jpg 20191222_154359.jpg

      • Like Like x 1
      • moparmarks

        moparmarks FBBO Gold Member FBBO Gold Member

        Messages:
        4,920
        Likes Received:
        1693
        Joined:
        Jul 31, 2011
        Location:
        Western Colorado
        Local Time:
        5:47 AM
        Glad to see progress. Maybe a little WD40 would help.

      • pioneer61

        pioneer61 Well-Known Member

        Messages:
        65
        Likes Received:
        24
        Joined:
        Sep 28, 2019
        Location:
        tulsa
        Local Time:
        6:47 AM
        i gave you a like because of this statement "I decided the vents were either coming out or I was breaking the piece. I tried and failed three times yesterday". i finally figured out how to remove a 72 Charger Brougham door pull strap using the Joe Pesci "Casino" method. . after having spent $50 on shop literature.

      • 71charger_fan

        71charger_fan Well-Known Member

        Messages:
        717
        Likes Received:
        1586
        Joined:
        Jul 19, 2008
        Location:
        Frederick, Maryland
        Local Time:
        6:47 AM

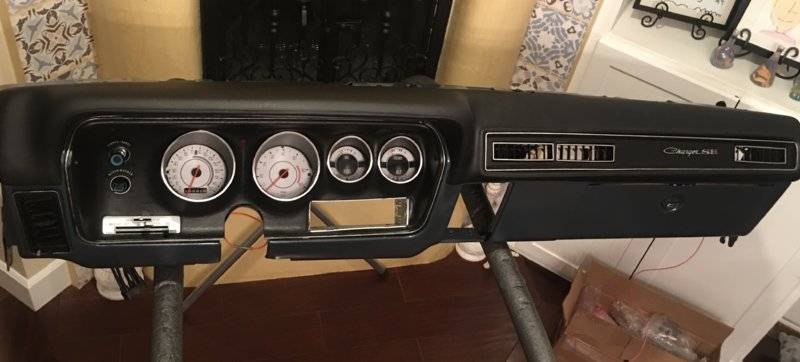

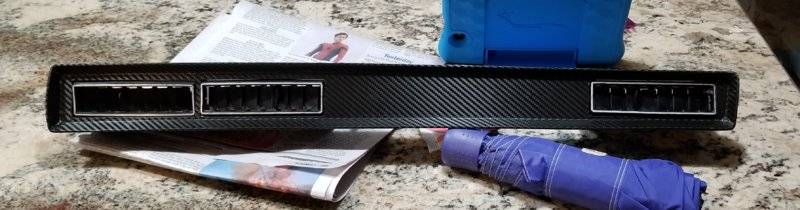

        Charger dash panel.jpg

        • Like Like x 2
        • AKcharger

          AKcharger Member

          Messages:
          16
          Likes Received:
          32
          Joined:
          Nov 11, 2019
          Location:
          Spring Hill FL USA
          Local Time:
          7:47 AM
