71 b body A/C vacuum controls

[jonny0666]

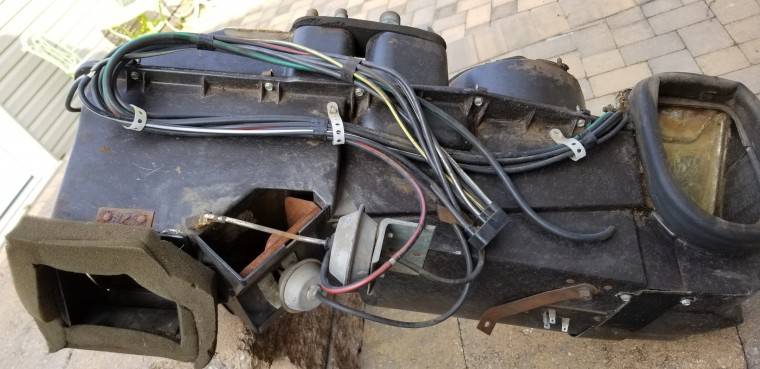

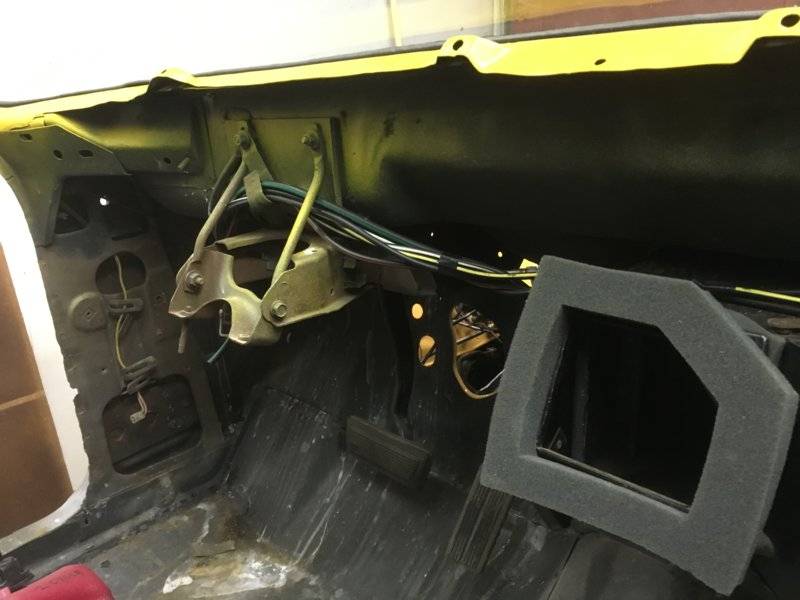

So I’m reassembling my 71 roadrunner dash and I’m looking for the vacuum line harness to the actual heater box assembly. I see the vacuum switch from the controls everywhere, but haven’t found the distribution lines that clip on and go to the actuators. Any ideas as to anyplace I can find one? If not, at least a diagram for the distribution? Thanks.



[71charger_fan]

The vacuum diagram is in the factory service manual. It wouldn't be hard to just make what you need. I'd scan and post the appropriate diagram but my FSM is in the car which has gone for paint.



[rrTor-Red]

As 71charger says and here is more pictures for ya



[moparmarks]

I have some junk 71-4 a/c boxes. I'll check if they have the lines and if any are 71's.



[jonny0666]

Thanks all. @moparmarks thanks, let me know. I would be willing to work a deal. Thanks.



[bee71]

As 71charger says and here is more pictures for ya

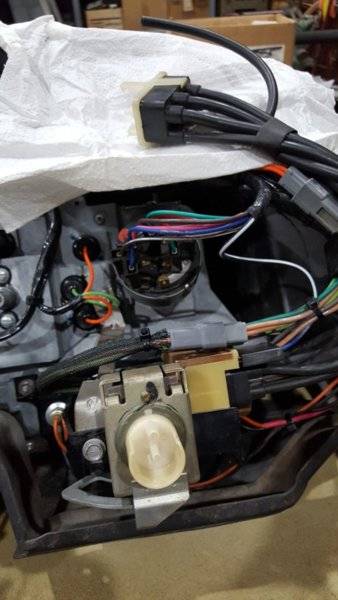

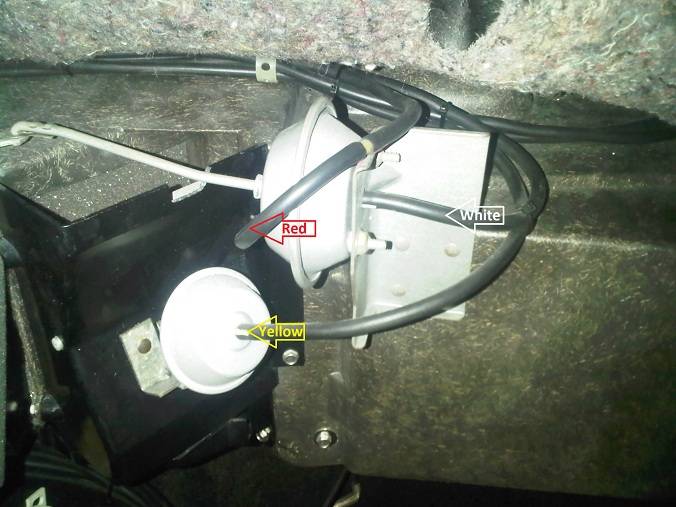

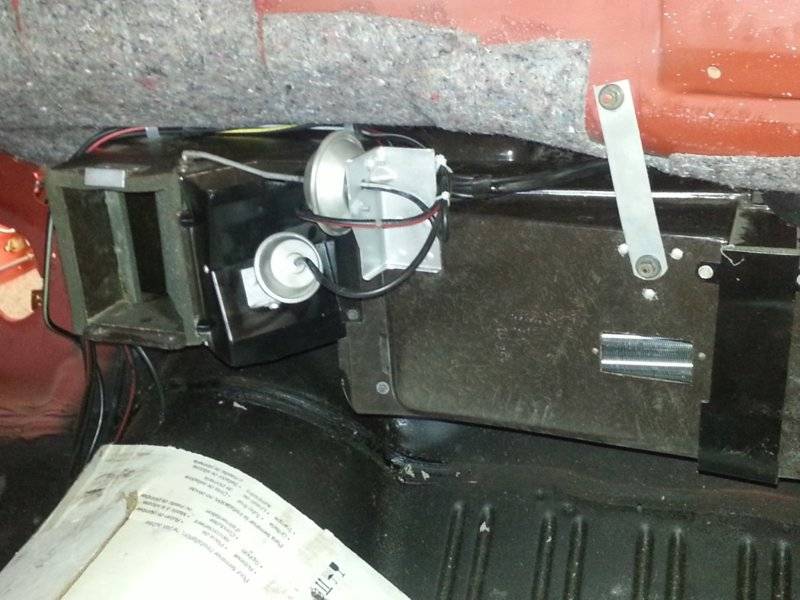

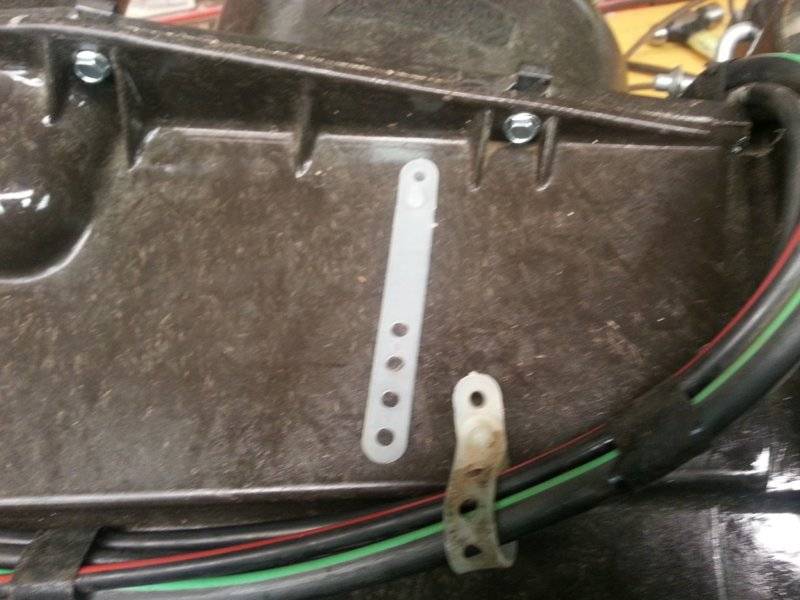

View attachment 890150 View attachment 890151 View attachment 890152 View attachment 890153

Can you post and label the other pots and lines for me? Thanks.



[YY1]

Pretty sure I have that hose cluster.

Might be a while before I can dig it out, though.



[moparmarks]

I didn't have a 71 hose set, just 72-4 ones. 71 has an extra line for the water valve as where 72-4 the water valve is cable controlled.



[jonny0666]

Hey guys. Thanks for all the info and offers. @moparmark thanks for checking. Luckily I dug through my mound of parts and found the harness from my parts car. It wasn’t horrible and was able to salvage it.



[rrTor-Red]

Can you post and label the other pots and lines for me? Thanks.

I can't. My box is installed in the car.
