71 GTX Air Grabber Switch wiring schematic


Active Member
Local time
9:31 PM
Mar 28, 2023
Reaction score
Brampton, Ontario
Hi all,
does anyone have the wiring schematic for the under dash mounted air grabber switch? I checked the manual but it doesn't seem to have it.
Here U go..

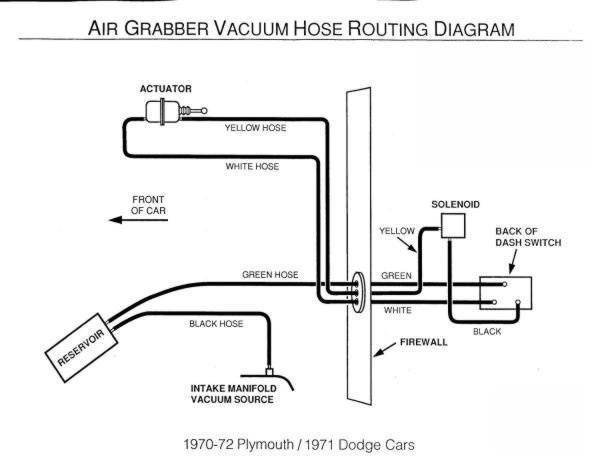

Diagram shows the vacuum hose layout, the single wire from the solenoid goes to a 12V+ switched by the ignition switch..

Just my $0.02...

Wiring? The solenoid lead? One green wire with a bullet connector, connects to the yellow tree-way accessory tap in the dash harness near the radio.
The orange title lamp wire connects to the orange three-way tap near the heater controls.
Last edited:
thank you so much. I had the hose schematic already, was hoping there would be a seperate one for the wiring on the under dash air grabber switch.
