*73-74* What Small Block Oil Pan Are You Running???

1971 - 1974 Mopars

  1. 74Beeper

    74Beeper Well-Known Member

    Messages:
    222
    Likes Received:
    140
    Joined:
    Aug 15, 2015
    Location:
    Fargo, ND
    Local Time:
    5:37 PM
    Wondering what small block oil pan you guys are running in your 73-74? I currently have an 8 quart Milodon and have all sorts of clearance issues with k-frame and steering center link. Looking to make a change but it would be nice to hear from other small block guys what works best or what they had to do to get good fitment. Anyone have the Milodon 6 quart road race pan or the 7 quart street strip?

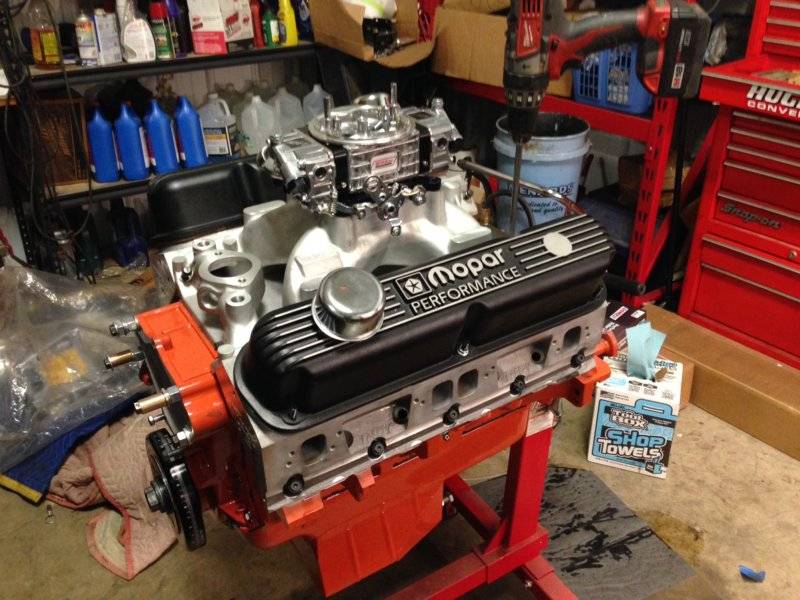

    BTW..... My "little" 440ci R3 small block makes over 700hp and spins up to 7500rpm so, a stock pan is just not an option..... IMG_0579.JPG

    • Like Like x 1
    • 71Beeper

      71Beeper Well-Known Member

      Messages:
      171
      Likes Received:
      83
      Joined:
      Nov 28, 2010
      Location:
      Stoney Creek, Ontario
      Local Time:
      6:37 PM
      • Thanks! Thanks! x 1
      • 74Beeper

        74Beeper Well-Known Member

        Messages:
        222
        Likes Received:
        140
        Joined:
        Aug 15, 2015
        Location:
        Fargo, ND
        Local Time:
        5:37 PM
      • Kernel Sanders

        Kernel Sanders Well-Known Member

        Messages:
        795
        Likes Received:
        201
        Joined:
        Dec 13, 2008
        Location:
        Ottawa, Ontario, Canada
        Local Time:
        6:37 PM
        Keep in mind kframe/oil pan clearance is tighter 73 and up because of the kframe/suspension redesign.

        • Thanks! Thanks! x 1
        • 74Beeper

          74Beeper Well-Known Member

          Messages:
          222
          Likes Received:
          140
          Joined:
          Aug 15, 2015
          Location:
          Fargo, ND
          Local Time:
          5:37 PM
          I know.... It sucks

          • Agree Agree x 2
          • 71Beeper

            71Beeper Well-Known Member

            Messages:
            171
            Likes Received:
            83
            Joined:
            Nov 28, 2010
            Location:
            Stoney Creek, Ontario
            Local Time:
            6:37 PM
            I had a 76 F-Body Volare Road runner. Had the same spool mounted k-frame as the 73-up B-Body.
            Mine had a 360 in it.
            I 'm sure the Kevco pan will work just fine with your application.
            Don't forget to update your k-member mounts with the solid ones from Firm feel.

          • 74Beeper

            74Beeper Well-Known Member

            Messages:
            222
            Likes Received:
            140
            Joined:
            Aug 15, 2015
            Location:
            Fargo, ND
            Local Time:
            5:37 PM
            Thanks for the reply..... She’s been solid mounted for a while now and full of Firm Feel goodies.

            • Like Like x 1
            • jogirob

              jogirob Well-Known Member

              Messages:
              238
              Likes Received:
              84
              Joined:
              Aug 16, 2018
              Location:
              California
              Local Time:
              3:37 PM
              A @#$@#! of an oil pan that's made me take off half the car apart just trying to get the damn thing off...with no success yet.
              360 engine stock oil pan on a 74 charger.

            • BlooDSMeaR

              BlooDSMeaR Well-Known Member

              Messages:
              109
              Likes Received:
              34
              Joined:
              Aug 28, 2017
              Location:
              Medford Oregon
              Local Time:
              3:37 PM
              OK guys what did you come up with? I have the Milidon 7 qt pan and I'm about to try to install it in my 73 roadrunner... looks grim. but its all I have

            • BlooDSMeaR

              BlooDSMeaR Well-Known Member

              Messages:
              109
              Likes Received:
              34
              Joined:
              Aug 28, 2017
              Location:
              Medford Oregon
              Local Time:
              3:37 PM
              An update on my experience with installing the Milodon 7 qt low profile oil pan.
              IT FITS!!! But I did need to notch the K frame on the passenger side next to the motor mount, just a 2" square section. Enough space to run my finger all the way around between the pan and frame. I hope the 500HP does not twist the engine around to much on stock motor mounts.
              My K-frame is beat to hell, and I plan on replacing it some time down the road. So I did not block it in. If I can get one race season on it I will be happy.

              • Like Like x 2
              • BlooDSMeaR

                BlooDSMeaR Well-Known Member

                Messages:
                109
                Likes Received:
                34
                Joined:
                Aug 28, 2017
                Location:
                Medford Oregon
                Local Time:
                3:37 PM
                OK new update... My steering rod that connects the right and left sides is hitting the oil pan on a hard right turn. I have been pondering on how to fix the issue. My Dad wants me to peen the oil pan with a hammer to ding it in. I am not so sure I want to do that. I have been thinking about a way to bend the linkage. Heat it up with a torch and use a vice to put more of a bend in it? I am going to the shop tonight I'll snap a couple of pics, to see what you guys think.

              • Kernel Sanders

                Kernel Sanders Well-Known Member

                Messages:
                795
                Likes Received:
                201
                Joined:
                Dec 13, 2008
                Location:
                Ottawa, Ontario, Canada
                Local Time:
                6:37 PM
                Id rather find a way to lift the engine a little than to modify any steering components... JMHO

                • Agree Agree x 1
                • BlooDSMeaR

                  BlooDSMeaR Well-Known Member

                  Messages:
                  109
                  Likes Received:
                  34
                  Joined:
                  Aug 28, 2017
                  Location:
                  Medford Oregon
                  Local Time:
                  3:37 PM
                  The back of the pan is vertical and the steering linkage hits dead center of the back. There is no possible way to lift the engine for clearance. What I did, was take the steering cross bar off and peened the oil pan in where it was touching a 1/4 inch. I now have clearance around the pan.

                  • Like Like x 1
                  • Agree Agree x 1
                  • Kernel Sanders

                    Kernel Sanders Well-Known Member

                    Messages:
                    795
                    Likes Received:
                    201
                    Joined:
                    Dec 13, 2008
                    Location:
                    Ottawa, Ontario, Canada
                    Local Time:
                    6:37 PM
                    well without the pics of where it was hitting I only had to guess it was the bottom of the pan at the back where most of peoples interference issues arise. :)

                    *except those trying to use big block 187 pans on 73 and up bbodies then its the K frame and the front of the oil pan sump. 971 pan is pretty much the only bigblock pan for 73 and up (without modifying the K that is)

                    Last edited: Sep 27, 2018
