74 Charger Dimmer Switch location help

1971 - 1974 Mopars

  1. Hijinx

    Hijinx FBBO Gold Member FBBO Gold Member

    Messages:
    195
    Likes Received:
    53
    Joined:
    Mar 5, 2018
    Location:
    New Jersey
    Local Time:
    4:40 AM
    Does anyone know the rough location of the headlight dimmer switch? Replaced my floors and re-doing the electrical now and when i got the car it was already missing...


  2. 493 Mike

    493 Mike FBBO Gold Member FBBO Gold Member

    Messages:
    3,324
    Likes Received:
    3658
    Joined:
    Dec 25, 2011
    Location:
    White Cloud, MI
    Local Time:
    4:40 AM
    Put it where it is comfortable for you. It is not critical unless it's a accurate restoration.
    Mike

  3. ODZKing

    ODZKing Well-Known Member

    Messages:
    1,737
    Likes Received:
    606
    Joined:
    Sep 2, 2013
    Location:
    Liverpool, NY
    Local Time:
    4:40 AM

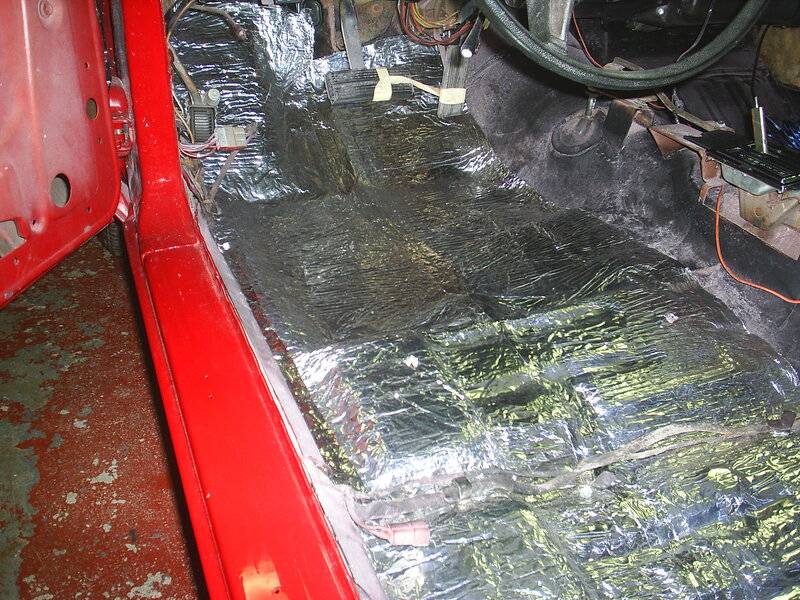

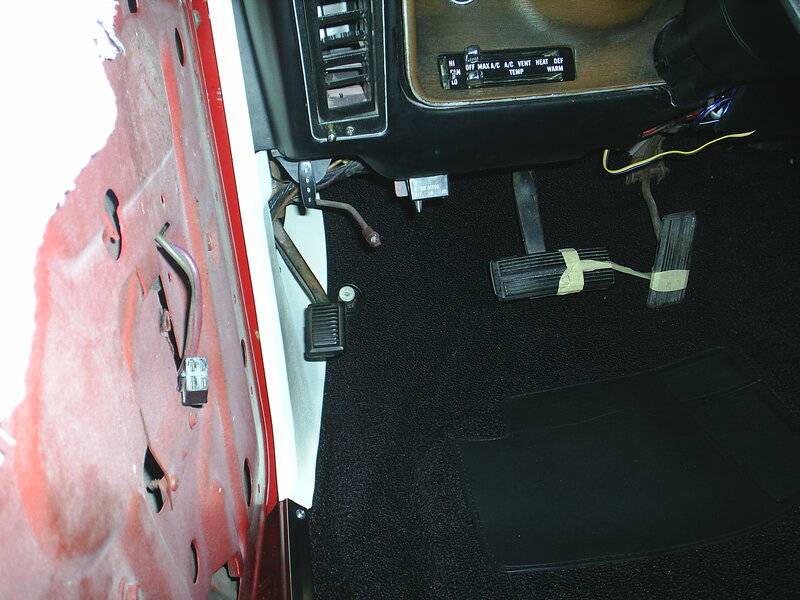

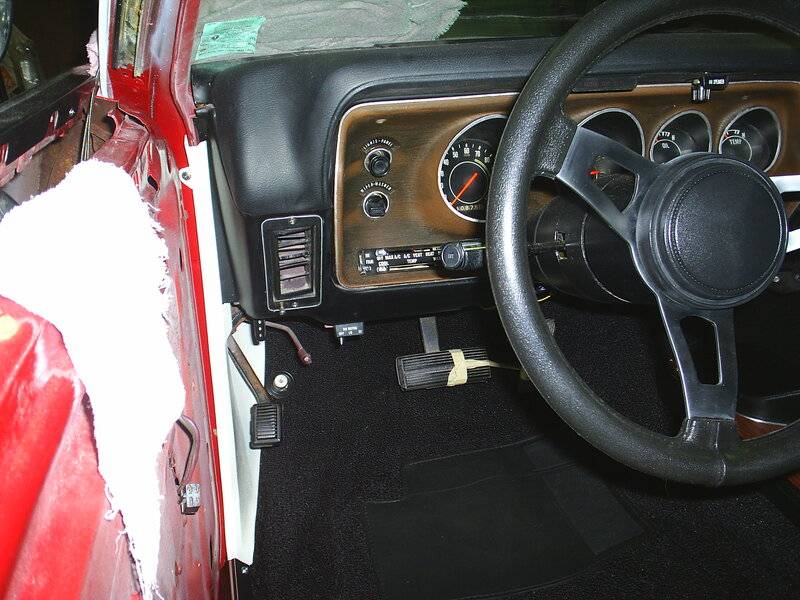

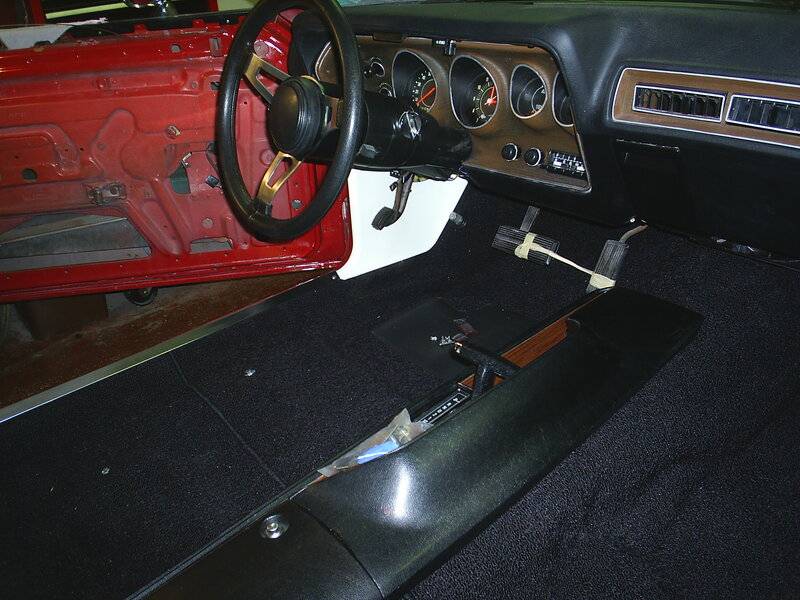

    My 73 factory floors, see if these help S4012033.JPG S4012074.JPG S4012089.JPG S4012090.JPG

    • Like Like x 1
    • Thanks! Thanks! x 1
    • dadsbee

      dadsbee FBBO Gold Member FBBO Gold Member

      Messages:
      9,475
      Likes Received:
      22693
      Joined:
      Jan 29, 2018
      Location:
      Midland Ontario, Canada
      Local Time:
      4:40 AM
      '68/9/'70 pans have a formed spot for it to sit, not there on the '71 ups?

    • E5charger

      E5charger Well-Known Member

      Messages:
      58
      Likes Received:
      25
      Joined:
      Feb 21, 2019
      Location:
      Winnipeg
      Local Time:
      3:40 AM
      If your new floor doesn't have the holes to screw it to, you should lay out your carpet. There is a grommet that it passes through, so you can mark the location and then install it. You want to be sure it matches with the carpet.

      • Like Like x 2
      • Thanks! Thanks! x 1
      • Nacho-RT74

        Nacho-RT74 FBBO Gold Member FBBO Gold Member

        Messages:
        4,640
        Likes Received:
        1582
        Joined:
        Oct 8, 2012
        Location:
        Valencia, España
        Local Time:
        10:40 AM

        • Thanks! Thanks! x 1
        • Hijinx

          Hijinx FBBO Gold Member FBBO Gold Member

          Messages:
          195
          Likes Received:
          53
          Joined:
          Mar 5, 2018
          Location:
          New Jersey
          Local Time:
          4:40 AM
          thank you all... think i am going to use the carpet trick mentioned above and see if it lines up with Nacho's image... not for nothing, but it would be an awesome idea to create a 'by year' catalog of images for all of these cars. Searchable of course.

        • Nacho-RT74

          Nacho-RT74 FBBO Gold Member FBBO Gold Member

          Messages:
          4,640
          Likes Received:
          1582
          Joined:
          Oct 8, 2012
          Location:
          Valencia, España
          Local Time:
          10:40 AM
          the carpet location could be sligthly off depening on the quality of carpet or how it fits to the new floor... to many variables. I can see top screw is right at the floor pan seam with firewall, and about the middle side to side of the blank area for the foot

          • Agree Agree x 1
          • Nacho-RT74

            Nacho-RT74 FBBO Gold Member FBBO Gold Member

            Messages:
            4,640
            Likes Received:
            1582
            Joined:
            Oct 8, 2012
            Location:
            Valencia, España
            Local Time:
            10:40 AM

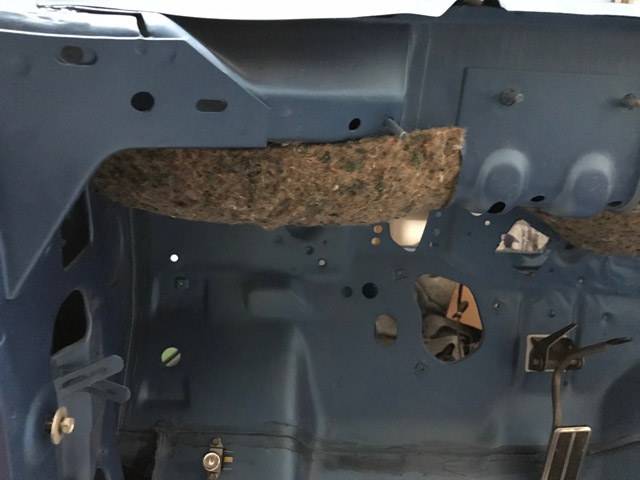

            BTW, this pics are from a members cars resto job. Dunno his screen name here but at 3rd gen board and DC board is CDN72SE... I saved to check for the firewall cotton insulator. I won't buy a repro of that, just will make it at home buying the material

          • Hijinx

            Hijinx FBBO Gold Member FBBO Gold Member

            Messages:
            195
            Likes Received:
            53
            Joined:
            Mar 5, 2018
            Location:
            New Jersey
            Local Time:
            4:40 AM
            @Nacho-RT74 On your picture, the accelerator pedal, what is the white square on it? foam gasket?

          • Nacho-RT74

            Nacho-RT74 FBBO Gold Member FBBO Gold Member

            Messages:
            4,640
            Likes Received:
            1582
            Joined:
            Oct 8, 2012
            Location:
            Valencia, España
            Local Time:
            10:40 AM
            it musg be a foam gasket, but I can't recall my car having it.

          • 493 Mike

            493 Mike FBBO Gold Member FBBO Gold Member

            Messages:
            3,324
            Likes Received:
            3658
            Joined:
            Dec 25, 2011
            Location:
            White Cloud, MI
            Local Time:
            4:40 AM
            I think that foam seals the cable to hole gap.
            Mike

          • Bb70charger500

            Bb70charger500 FBBO Gold Member FBBO Gold Member

            Messages:
            9,504
            Likes Received:
            9494
            Joined:
            May 2, 2014
            Location:
            fl.
            Local Time:
            4:40 AM
            That seal keeps exhaust out you got the bolt holes there it seals it all up

          • Nacho-RT74

            Nacho-RT74 FBBO Gold Member FBBO Gold Member

            Messages:
            4,640
            Likes Received:
            1582
            Joined:
            Oct 8, 2012
            Location:
            Valencia, España
            Local Time:
            10:40 AM
            Is no more than a regular body paint gasket IMHO
