74 Charger Splash Shields Help

[Hijinx]

Anyone have images of all the different splash shield placements? All of that was missing on my car and I'm not finding much online or in the manuals... specifically the radiator splash shields, inner fenders etc.

thanks for your time...



[terrywalker]

Anyone have images of all the different splash shield placements? All of that was missing on my car and I'm not finding much online or in the manuals... specifically the radiator splash shields, inner fenders etc.

thanks for your time...

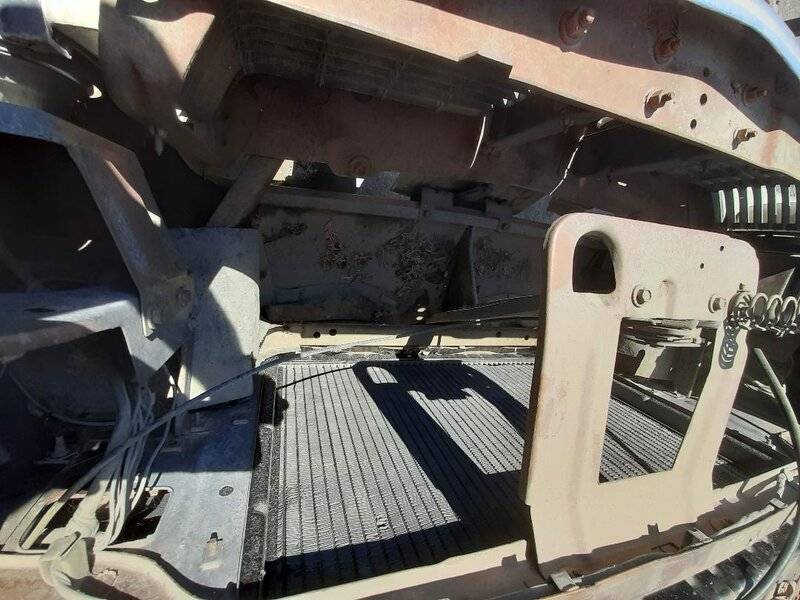

Let's see if I can help out some. I have a 74 Charger that has the splash shields installed. I have a couple of photos of the rubber ones that seal around the front side of the radiator as this was an A/C car. I'm not near the car now but can get more photos later today or in the next couple of days. These rubber seal attach to hole along the lower radiator support.
Terry



[moparmarks]

Nacho-RT74 will probably chime in.
I too have a 74 in the yard that I can get pics of later.



[Nacho-RT74]

We have been already talking about that via PM. I'm telling him these go here, and folds up to frame rail. Frame rail get holes to fit these. My car didn't have these either but I bought them to install them when reassembling my car. I just never have saved pics of these areas when I found them on the web. For some reason not all cars got them

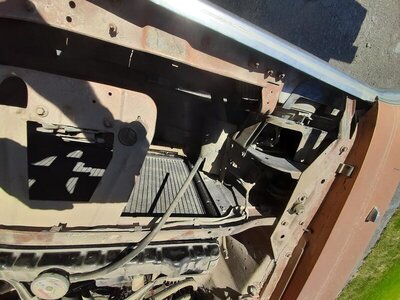

Either like this ( pretty sure like this )

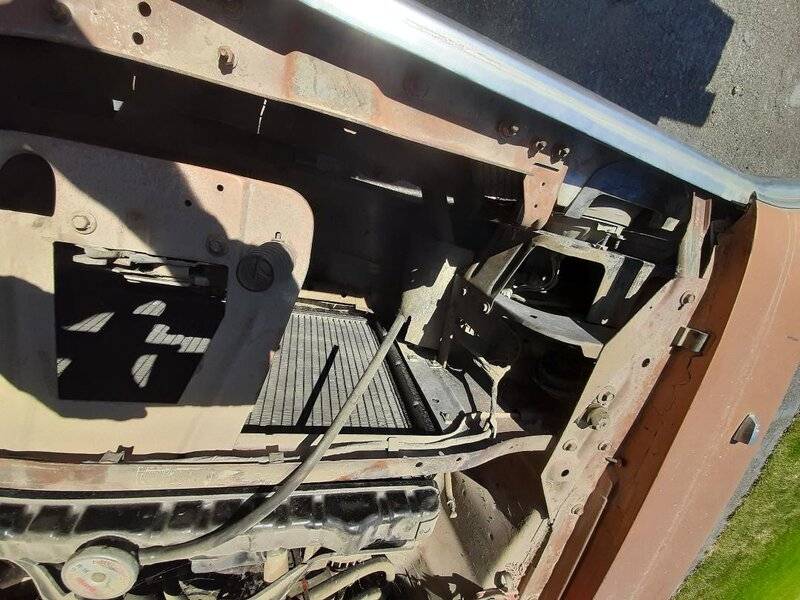

or like this, But I didn't worry because I know will figure it out when times comes

then aside these, the fender gets some other inside and also the metallic splash shield with front valence too
