8 3/4 setup / thoughts on wear pattern?

[Twalker]

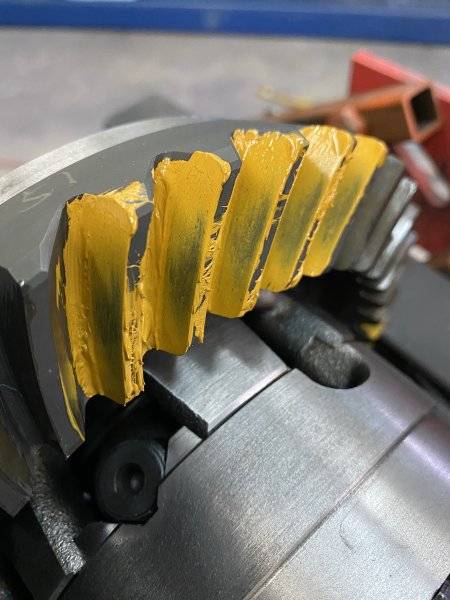

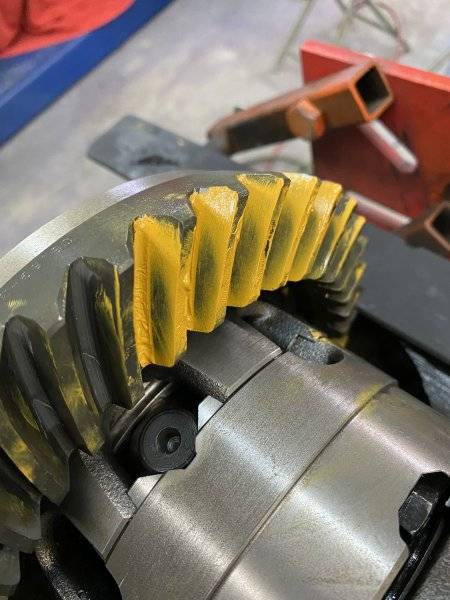

Looking for your thoughts on this pattern…new gears and pinion, all new bearings and races, new sure grip, crush sleeve eliminator.



[SRT_Blubyu]

In my opinion it looks like the pinion might be a little too deep.. (toward the toe on the drive side and heal coast side).. increase the backlash? maybe being picky.. ha.



[Twalker]

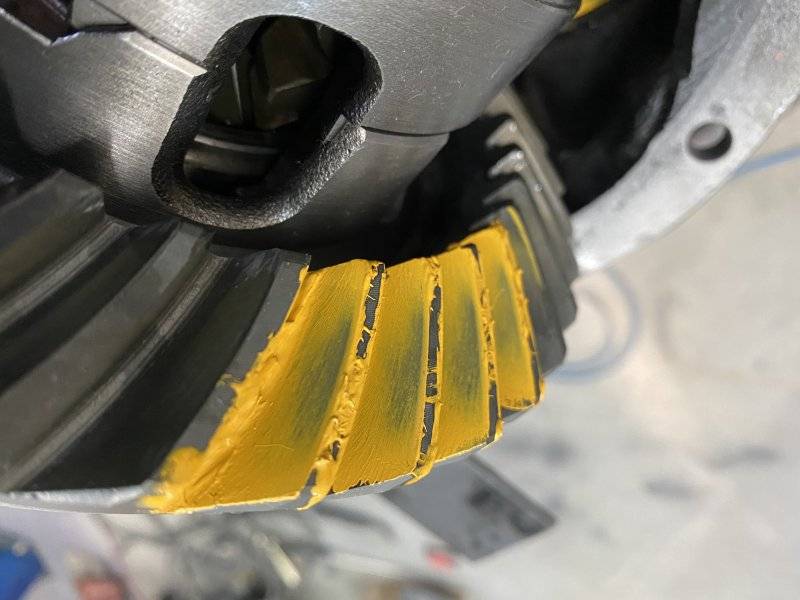

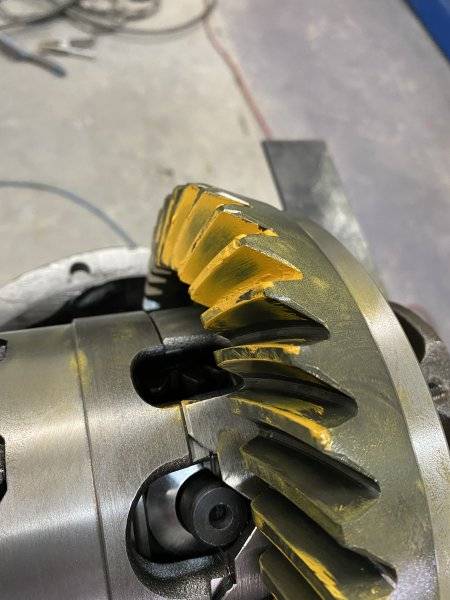

This is with .005 less in pinion shim, thoughts?



[NoCar2023]

IMO-The first pics looked good.



[roadrunnerh]

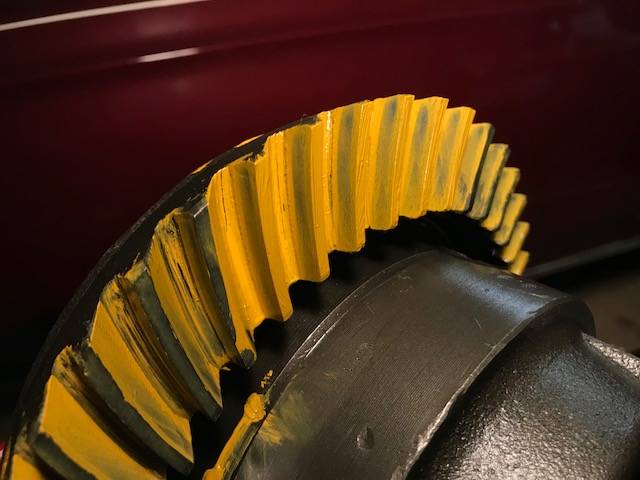

Here's where I ended up while setting up my 3.23/8.75 back in 2018. No noises or issues of any kind.
Check your FSM for good examples.



[SRT_Blubyu]

Found this it might help…

Gearing Contact Patterns



[SRT_Blubyu]

Heres another one.. more in depth maybe..

https://www.richmondgear.com/wp-content/uploads/pdfs/richmond/cat-32.pdf



[NoCar2023]

Here is good video from Weber State.https://www.google.com/url?sa=t&sou...wqsBegQIBhAF&usg=AOvVaw047xaP0j4F7rPiQC0XalTb



[NoCar2023]

They have some great content on youtube. I just attended John Kelleys EV boot camp course.
Great guy, an excellent facility.
