AMD 71 Charger quarter install. Very happy

1971 - 1974 Mopars

  1. Fm3 Dart

    Fm3 Dart Well-Known Member

    Messages:
    155
    Likes Received:
    101
    Joined:
    Mar 12, 2016
    Location:
    Canada
    Local Time:
    3:54 AM

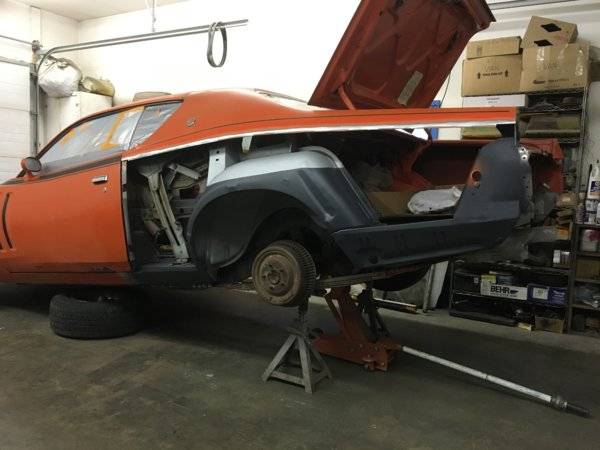

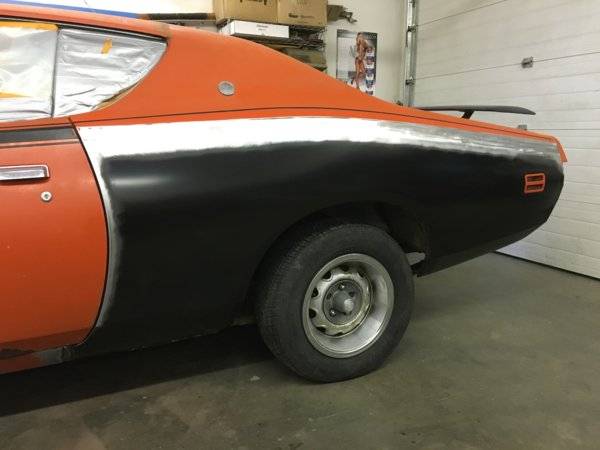

    Thought I would share a little info with other 71 Charger owners that may need quarter panels.
    I just completed the installation of and AMD quarter skin on this 71. 72 would be the same situation.
    On this car, I elected to use an AMD quarter skin, rather than a full quarter. Reason being, I didn't want to disturb the lead at the roof seam, or remove the back glass etc, plus the upper was all good, so I decided to leave as much original intact and undisturbed.
    I used a new AMD trunk extension and reinforcement bracket as well. These panels are heavy gauge metal, just like original. They have the same flanges and dimensions as the originals too. I butt welded the new panel in place and metal finished the weld joint. No body filler required. The fit of this panel was excellent. The door gap, rear valance, quarter extension and wheelhouse fit was spot on. I cut the new panel 1 1/2 inches below the body line to keep the factory body line in place. I will re-lead the rocker joint as the factory did.
    I could not be happier with the fit and quality of the panel. The marker light opening is accurate, and the flanges have crisp bends just like the original panel.
    hats off to Auto Metal Direct for these awesome parts for our 71-72 Chargers!

    IMG_3298.JPG IMG_3343.JPG

    • Like Like x 5
    • Thanks! Thanks! x 2
    • Agree Agree x 1
    • eldubb440

      eldubb440 more miracles than Jesus FBBO Gold Member

      Messages:
      6,950
      Likes Received:
      15915
      Joined:
      Jul 17, 2008
      Location:
      South Jersey USA
      Local Time:
      5:54 AM
      nice job... I have the same thing going on with a 70 Bee

      • Agree Agree x 1
      • gary h

        gary h Well-Known Member

        Messages:
        355
        Likes Received:
        306
        Joined:
        Aug 30, 2015
        Location:
        USA
        Local Time:
        4:54 AM
        Looks Good !

      • Charger21

        Charger21 Well-Known Member

        Messages:
        118
        Likes Received:
        58
        Joined:
        Feb 4, 2014
        Location:
        Iowa
        Local Time:
        4:54 AM
        Thank you for sharing!

      • Montclaire

        Montclaire Well-Known Member

        Messages:
        1,527
        Likes Received:
        417
        Joined:
        Nov 15, 2011
        Location:
        Scranton, PA
        Local Time:
        4:54 AM
        They can release new roof skins any day now...

      • mr. b

        mr. b Well-Known Member

        Messages:
        4,532
        Likes Received:
        1593
        Joined:
        May 5, 2011
        Location:
        jeannette pa
        Local Time:
        5:54 AM
        nice work looks great

      • 451Mopar

        451Mopar Well-Known Member

        Messages:
        2,433
        Likes Received:
        1746
        Joined:
        Oct 25, 2011
        Location:
        Aurora, CO
        Local Time:
        3:54 AM
        Nice to see a quality stamping. When I did my '71 the lower quarter ans spots around the wheel opening were rusted.
        Only aftermarket quarters I could find in the late 1980's were JC Whitney and they may have well been flat sheets of steel (Junk.)
        I ended up cutting them up for patch panels after shaping them to be close to what they should have been.

      • 69bronzeT5

        69bronzeT5 Well-Known Member

        Messages:
        63
        Likes Received:
        29
        Joined:
        Jul 20, 2008
        Location:
        Mission, British Columbia
        Local Time:
        4:54 AM
        Looks awesome Ken! Maybe one day you can do the metal work on my '71 R/T :D


        -Cody-

      • cdkmbjones

        cdkmbjones Well-Known Member

        Messages:
        210
        Likes Received:
        49
        Joined:
        Nov 14, 2014
        Location:
        LI, New York
        Local Time:
        5:54 AM

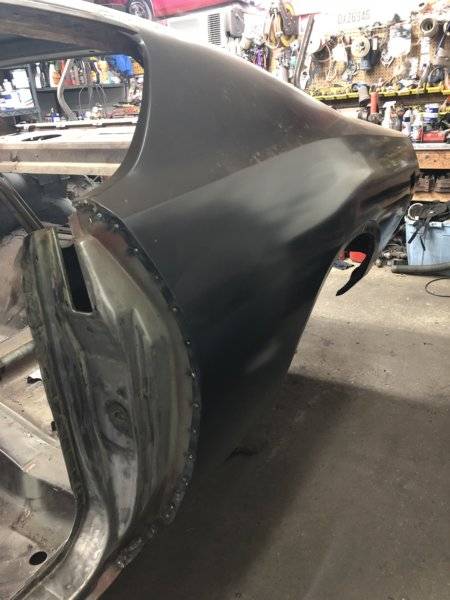

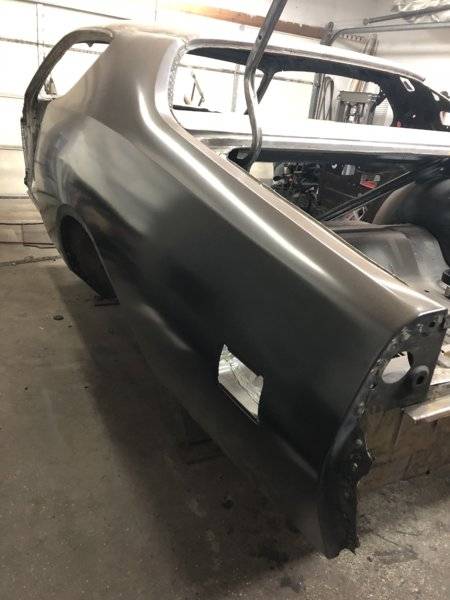

        Nice work, I am in the process of doing a total restoration on my 71 440-6 Superbee. I have the car mounted on a rotisserie and just finished the front and rear full floor pans. Then I swapped it back onto the scissor lift to keep the car square while I cut out and replaced the full trunk pan and extensions. Then I moved onto the drivers side full quarter replacement and today the passenger full quarter. ALL was with the use of AMD quality replacement panels and the fitment was excellent . In the past I would have only addressed the minor rust spots with pieces of metal. But with the quality of the AMD stampings it was a no brainer to do this car right. Here is a pic of the drivers quarter after it was spot welded into place and after I cleaned, primed, applied sound deadner and painted the insides of the panel and structure prior to welding to ensure complete coverage and uniformity of the paint once the panels are in place and it’s impossible to reach certain areas

        EB4B4A00-5B63-4B35-9270-2A098286370D.jpeg 24B43E2D-469B-4C8B-8F63-5850F7E01EFD.jpeg

      • Fm3 Dart

        Fm3 Dart Well-Known Member

        Messages:
        155
        Likes Received:
        101
        Joined:
        Mar 12, 2016
        Location:
        Canada
        Local Time:
        3:54 AM
        Looks great! For years we could not get any body panels for our 71 Chargers or the 71 Plymouths either. So nice that AMD chose to make panels for them!

      • cdkmbjones

        cdkmbjones Well-Known Member

        Messages:
        210
        Likes Received:
        49
        Joined:
        Nov 14, 2014
        Location:
        LI, New York
        Local Time:
        5:54 AM

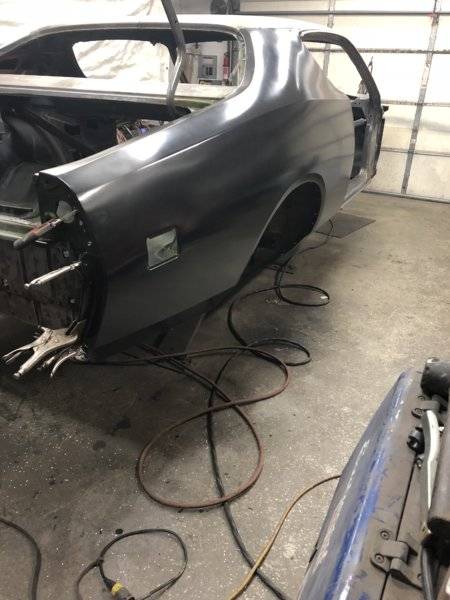

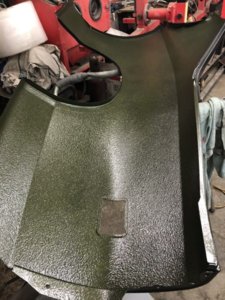

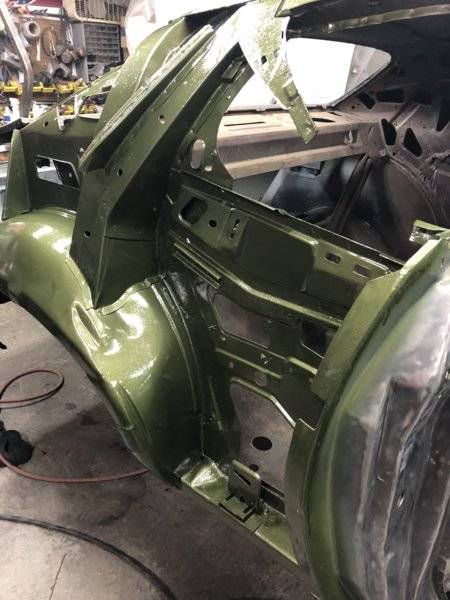

        I agree - I am going full bore on this project: today installed the passenger side quarter. Yesterday I prepped the panel, sprayed the sound deadner, painted the inside of the panel and the structure. Today installed and tacked into position, tomorrow final spot welding. Just so you know- AMD is in production with a repo of the air grabber (ram charger) hood! I spoke with them and they are doing final work on it now and it should be available by June. My car has the N96 ram charger hood but you may want to check it out

        C82B5366-1890-469C-A1D9-26B1E1EE1A8A.jpeg DEAE4D7F-28B8-43B3-9BCC-A0501FD8DD8D.jpeg A0891CAD-D823-4A1D-9C35-EBFD545454F4.jpeg

      • Fm3 Dart

        Fm3 Dart Well-Known Member

        Messages:
        155
        Likes Received:
        101
        Joined:
        Mar 12, 2016
        Location:
        Canada
        Local Time:
        3:54 AM

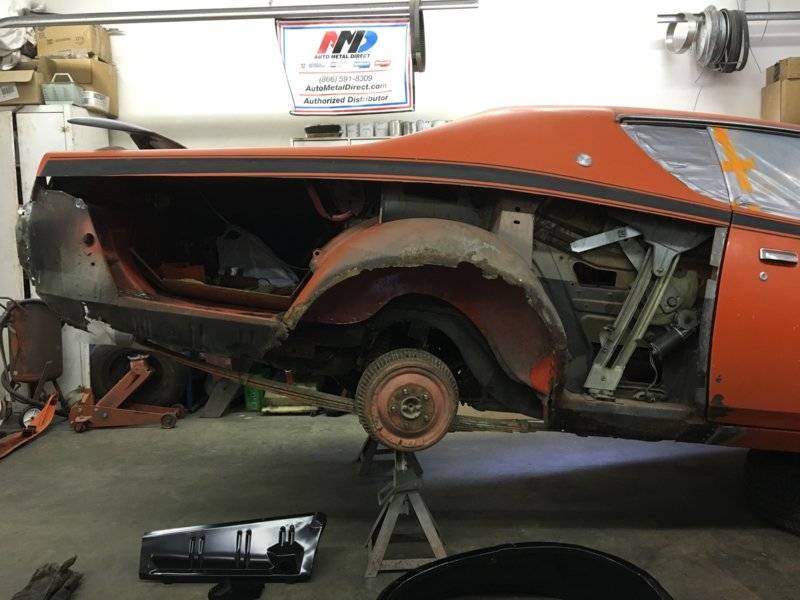

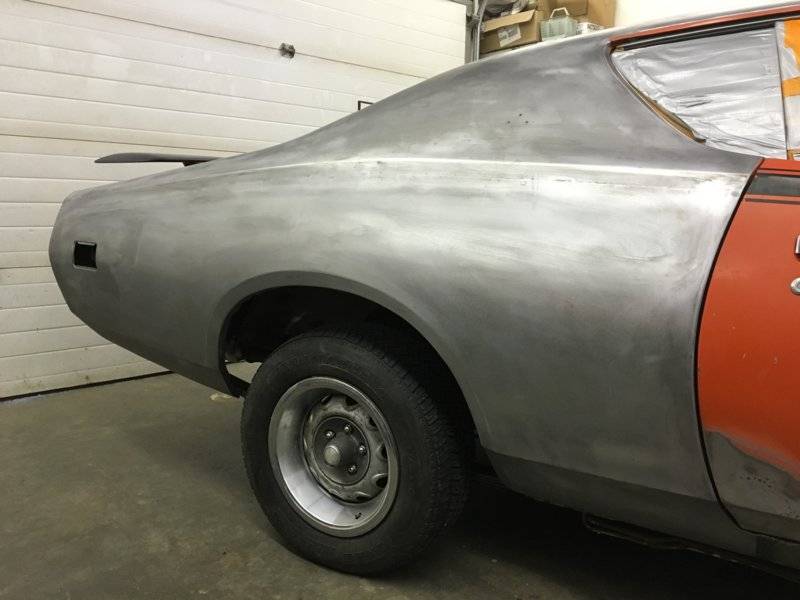

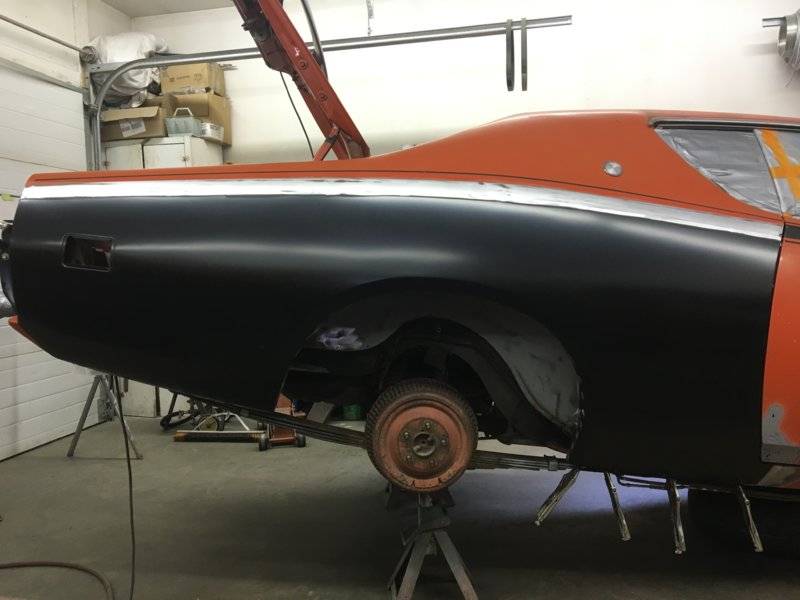

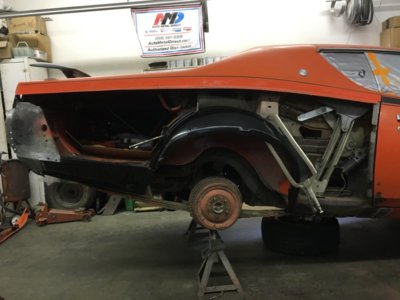

        Some photos of the other side too. Used AMD quarter skin, outer wheelhouse, trunk extension, and the small filler piece behind the quarter extension (by the trunk lid). Fit of the AMD quarter skin was fantastic. Door gap is dead on. Virtually nothing for filler required to smooth the butt weld. Thanks Auto Metal Direct for making these much needed panels.

        IMG_3682.JPG IMG_3721.JPG IMG_3887.JPG IMG_4113.JPG

        • Thanks! Thanks! x 1
        • gary h

          gary h Well-Known Member

          Messages:
          355
          Likes Received:
          306
          Joined:
          Aug 30, 2015
          Location:
          USA
          Local Time:
          4:54 AM
          Great News, A lot of cars will be saved.

        • chargervert

          chargervert Well-Known Member

          Messages:
          4,008
          Likes Received:
          5827
          Joined:
          Jul 31, 2008
          Location:
          Rhode Island
          Local Time:
          4:54 AM
          Many years ago at Carlisle,I was talking to a guy from AMD at Stephens Performance spot. He was showing me the prototype fenders for second generation Chargers. I asked him if he wanted to make sheetmetal for third gen Chargers and Road Runners,he said that he would like to make them if he could get some nice used or NOS panels to template them from. I said that a friend of mine is a big 71 b body enthuiest and had many pieces of NOS sheetmetal that he could template from. I said that I would go get my friend,and I introduced them,the rest is history! My friend repeatedly test fitted the panels for the third gen B bodies,and has offered many of his parts to be templated for production. Pretty much every piece AMD offers for third gen B bodies he has been involved in. My NOS 70 Charger front valence was also the template for the ones AMD sells too. We also test fitted many E body parts too.

        • Wile E Coyote

          Wile E Coyote Super Genius

          Messages:
          126
          Likes Received:
          123
          Joined:
          Nov 24, 2009
          Location:
          Friendsville, TN
          Local Time:
          5:54 AM
          Thanks so much for the info and sharing pictures!
