Anchor transmission mount is crap

Engine, Trans & Driveline

  1. Paul_G

    Paul_G Well-Known Member

    Messages:
    1,686
    Likes Received:
    2676
    Joined:
    Dec 24, 2013
    Location:
    Surprise, Arizona
    Local Time:
    3:05 AM
    I put a new trans mount in my 73 when I rebuilt the drive train, 4 speed trans, strong 383 engine, there seemed to be few choices. I went with the most common one, Anchor, 2512 or 2525 was the part number regardless of brand.

    Going through the gears I could here something thumping under the car. Came to the conclusion the trans was banging around in the crap trans mount. Yesterday I put an Energy Suspensions, 5.1101R, Poly mount. It uses the existing steel mount, must remove the old rubber and press in the poly isolators.

    What a huge difference. I was leery of the poly causing harshness and vibration, but it is barely noticeable. The shifts are much smoother since the tail of the trans is staying in place. It's a little more work to install the poly mount. In my opinion it is the best choice given the less than poor quality of the available rubber mounts.

    • Thanks! Thanks! x 5
    • Like Like x 3
    • #41

      #41 Well-Known Member

      Messages:
      403
      Likes Received:
      672
      Joined:
      Oct 18, 2012
      Location:
      WA
      Local Time:
      3:05 AM
      The replacement stock style mounts all seem to fail pretty quick these days in a car that is driven with even just a little spirit. They all seem to be junk.

      • Agree Agree x 3
      • Like Like x 1
      • 451Mopar

        451Mopar Well-Known Member

        Messages:
        2,433
        Likes Received:
        1746
        Joined:
        Oct 25, 2011
        Location:
        Aurora, CO
        Local Time:
        4:05 AM
        Had some Anchor engine mounts that were junk too.

        • Agree Agree x 2
        • Like Like x 1
        • ruffcut

          ruffcut FBBO Gold Member FBBO Gold Member

          Messages:
          469
          Likes Received:
          629
          Joined:
          Dec 26, 2016
          Location:
          northwestern pa
          Local Time:
          6:05 AM
          I had new Anchor engine mounts also, and thought they were cheap junk. RUFFCUT

          • Like Like x 1
          • Agree Agree x 1
          • 66383

            66383 FBBO Gold Member FBBO Gold Member

            Messages:
            2,534
            Likes Received:
            1838
            Joined:
            Jan 19, 2018
            Location:
            calvert city, ky
            Local Time:
            5:05 AM
            Mine were junk too! :cursin:

            • Agree Agree x 1
            • dadsbee

              dadsbee FBBO Gold Member FBBO Gold Member

              Messages:
              9,186
              Likes Received:
              21697
              Joined:
              Jan 29, 2018
              Location:
              Midland Ontario, Canada
              Local Time:
              6:05 AM

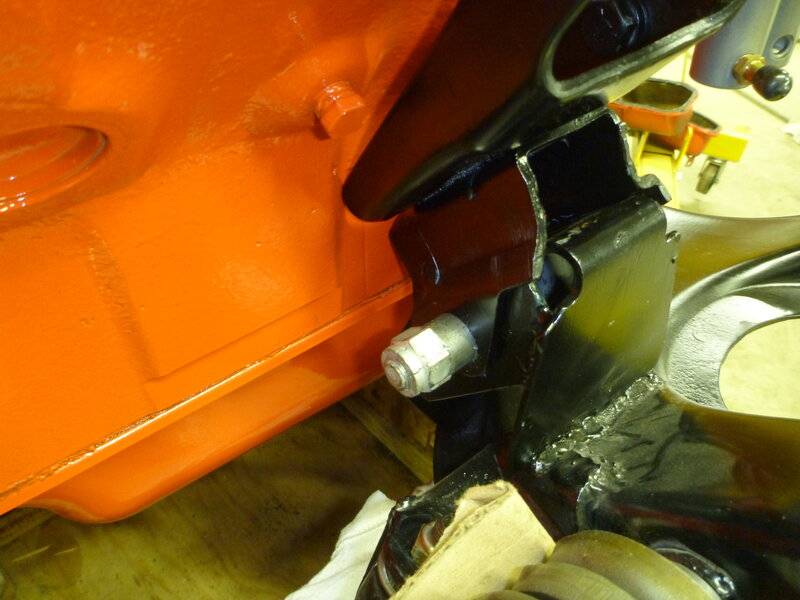

              Mine haven't failed in 42 years... :thumbsup:
              beerestoration2017 110.JPG

              • Like Like x 2
              • Agree Agree x 2
              • Thanks! Thanks! x 1
              • 440Coronet500

                440Coronet500 Well-Known Member

                Messages:
                1,134
                Likes Received:
                1495
                Joined:
                Jun 27, 2019
                Location:
                Mi
                Local Time:
                6:05 AM
                I only use urethane transmission mounts. Much stiffer than the rubber mounts. 440'

              • biomedtechguy

                biomedtechguy Accelerati Rapidus Maximus FBBO Gold Member

                Messages:
                24,666
                Likes Received:
                35613
                Joined:
                Mar 28, 2014
                Location:
                South Louisiana
                Local Time:
                5:05 AM
                Lol...
                Those are solid steel mounts, right?
                That would be a concern, although my 70 Roadrunner is a cacophony of noises. Between the "M-22 Rock Crusher" type of gear noise I get from my Passon Performance 855 5 speed, in the lower gears, which I graciously accept given its reported "conservative" 700 Ft Lbs torque handling capability, the lumpy cam and often open header dumps, still adding even more noise w/poly trans mount....
                When I added a poly trans mount and poly motor mounts to the 2.6 litre turbo 4 in my 89 Mitsubishi Chrysler Conquest TSi it went from no real noise to sounding like a blender full of nuts and bolts.

              • Paul_G

                Paul_G Well-Known Member

                Messages:
                1,686
                Likes Received:
                2676
                Joined:
                Dec 24, 2013
                Location:
                Surprise, Arizona
                Local Time:
                3:05 AM
              • Paul_G

                Paul_G Well-Known Member

                Messages:
                1,686
                Likes Received:
                2676
                Joined:
                Dec 24, 2013
                Location:
                Surprise, Arizona
                Local Time:
                3:05 AM
                I put a urethane mount on my 72 when I switched to the 46RH overdrive trans. Did not like the NVH at all. It is using a GM style flat mount retrofitted to the stock cross member. That urethane mount felt like one step softer then a solid block of steel. I went back with a rubber mount, lifetime warranty from Oreilly. I change it about every two years.

              • biomedtechguy

                biomedtechguy Accelerati Rapidus Maximus FBBO Gold Member

                Messages:
                24,666
                Likes Received:
                35613
                Joined:
                Mar 28, 2014
                Location:
                South Louisiana
                Local Time:
                5:05 AM
                I just happened to be watching an old episode of Hot Rod Garage and they used an Energy Suspensions trans mount bushing too...

              • ckessel

                ckessel Well-Known Member

                Messages:
                1,321
                Likes Received:
                1102
                Joined:
                Apr 23, 2015
                Location:
                Los Osos Ca.
                Local Time:
                3:05 AM
                I wonder if the filler is the same as what's on a balancer between the outer ring and the hub. Reason I'm asking is there is a place that will re-do the elastomer ring on balancers. They are somewhere up in Nor-Cal if I remember correctly. Might be something to approach them with as the rubber in the replacement mounts blow.

              • 440Coronet500

                440Coronet500 Well-Known Member

                Messages:
                1,134
                Likes Received:
                1495
                Joined:
                Jun 27, 2019
                Location:
                Mi
                Local Time:
                6:05 AM
                The elastomer in a torsional vibration damper is tuned to the resonant frequency of the rotating assembly. A damper dampens vibration. The transmission mount is an isolator. Isolatars isolate vibration, there's a big difference. 440'

                • Agree Agree x 1
                • F4R/T

                  F4R/T Well-Known Member

                  Messages:
                  1,090
                  Likes Received:
                  1376
                  Joined:
                  Jun 17, 2020
                  Location:
                  Illinois
                  Local Time:
                  5:05 AM
                  Be nice to find made in USA mounts that are quality as I would pay up for them especially if they hold up! Rubber is preferred due to noise and vibration.

                  • Agree Agree x 1
                  • transman

                    transman Active Member

                    Messages:
                    39
                    Likes Received:
                    23
                    Joined:
                    Sep 3, 2012
                    Location:
                    Western Canada
                    Local Time:
                    3:05 AM
                    Anchor mounts are to the best of my knowledge made off shore. If you look at them, the rubber is painted. Look at a quality mount, and the rubber is not painted. When I worked in the industry, we had a hard time convincing customers that a $4.00 mount wasn't the same quality wise as a $10.00 mount.

                  • Paul_G

                    Paul_G Well-Known Member

                    Messages:
                    1,686
                    Likes Received:
                    2676
                    Joined:
                    Dec 24, 2013
                    Location:
                    Surprise, Arizona
                    Local Time:
                    3:05 AM
                    How tell the difference between a $4 part and a $10 one with so much reboxing going on? Some even use the same part number.

                  • transman

                    transman Active Member

                    Messages:
                    39
                    Likes Received:
                    23
                    Joined:
                    Sep 3, 2012
                    Location:
                    Western Canada
                    Local Time:
                    3:05 AM
                    Yes, I know the problem. We didn't purchase mounts in boxes, we bought in bulk. If there is a Transtar transmission parts distributor near you, check with them and see what they've got. There is a company called W.I.T. that sells transmission parts. Might be an idea to check with them also. Other than that, I guess the only other options is the poly mount. It does tick me off though that everything comes down to "how cheap". It only further solidifies "you only get what you pay for".

                    • Agree Agree x 1
                    • MoparDanMan

                      MoparDanMan FBBO Gold Member FBBO Gold Member

                      Messages:
                      572
                      Likes Received:
                      662
                      Joined:
                      Jan 22, 2020
                      Location:
                      Outa Here
                      Local Time:
                      6:05 AM
                    • kreauto

                      kreauto Member

                      Messages:
                      9
                      Likes Received:
                      0
                      Joined:
                      Mar 20, 2015
                      Location:
                      Kreamer Pa 17833
                      Local Time:
                      6:05 AM

                    • kreauto

                      kreauto Member

                      Messages:
                      9
                      Likes Received:
                      0
                      Joined:
                      Mar 20, 2015
                      Location:
                      Kreamer Pa 17833
                      Local Time:
                      6:05 AM
                      I didn’t know Jamie was selling any of his five speeds yet? Last I heard he was taking orders but not shipping yet. How long to get one?
