    Looking for A01 light group option of 70 Charger B body in working condition. I believe they were same in 69-71 and maybe other years. Dash wiring sub harness with ignition key light, map light, ashtray light, trunk light, hood mounted turn signal indicators.

  2. moparmarks

    moparmarks FBBO Gold Member FBBO Gold Member

    Messages:
    6,178
    Likes Received:
    2395
    Joined:
    Jul 31, 2011
    Location:
    Western Colorado
    Local Time:
    7:42 AM
    68-70 for most of it. Ignition switch light is different for 70.

  3. WM23M9

    WM23M9 FBBO Gold Member FBBO Gold Member

    Messages:
    299
    Likes Received:
    175
    Joined:
    Feb 28, 2020
    Location:
    Kansas City, MO
    Local Time:
    8:42 AM
    Map light, trunk light, courtesy lights, under hood light?
    All new harnesses, lenses?

  4. QuickBpBp

    QuickBpBp FBBO Gold Member FBBO Gold Member

    Messages:
    5,639
    Likes Received:
    11072
    Joined:
    Oct 14, 2010
    Location:
    SE PA
    Local Time:
    9:42 AM

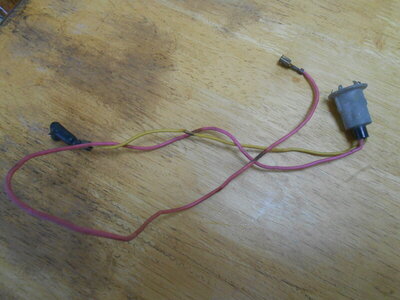

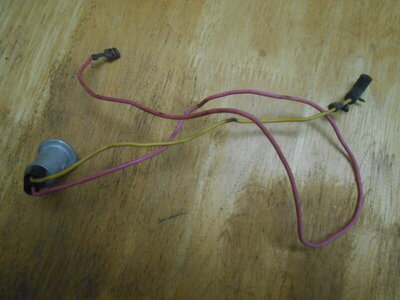

    I got this light harness forget what it's for but came with a b-body Map light kit... $15 shipped if it's one you need..

    DSCN2026.JPG DSCN2027.JPG

  5. moparmarks

    moparmarks FBBO Gold Member FBBO Gold Member

    Messages:
    6,178
    Likes Received:
    2395
    Joined:
    Jul 31, 2011
    Location:
    Western Colorado
    Local Time:
    7:42 AM
    I'll check as I might have the harness that plugs into dash harness and some other things.

  6. Robby442

    Robby442 Member

    Messages:
    15
    Likes Received:
    5
    Joined:
    Nov 5, 2019
    Location:
    Doylestown,Pa
    Local Time:
    9:42 AM
    I don't believe any company reproduces this A01 Option. It included ashtray, glove box, trunk and map lights as well as ignition light w/time delay, hood-mounted turn signal indicators and headlamp on warning buzzer. Don't think underhood light was part of it. Do you have or can reproduce?

    • Agree Agree x 2
    • moparmarks

      moparmarks FBBO Gold Member FBBO Gold Member

      Messages:
      6,178
      Likes Received:
      2395
      Joined:
      Jul 31, 2011
      Location:
      Western Colorado
      Local Time:
      7:42 AM
      4-sp cars also got the reverse light on the dash.
      No under hood light.

      • Agree Agree x 1
      • Robby442

        Robby442 Member

        Messages:
        15
        Likes Received:
        5
        Joined:
        Nov 5, 2019
        Location:
        Doylestown,Pa
        Local Time:
        9:42 AM
        Great. Thanks. Maybe, send pictures too of what you have when you find it.

      • moparmarks

        moparmarks FBBO Gold Member FBBO Gold Member

        Messages:
        6,178
        Likes Received:
        2395
        Joined:
        Jul 31, 2011
        Location:
        Western Colorado
        Local Time:
        7:42 AM
        I have a 68 in the yard with the AO1 stuff that I need to pull. Has the harness, map light and g/box light. Probably have a trunk light too. I found a ignition switch light that will fit the 70 column. Will probably be Monday before I can pull them and I'll get pictures for you.

        • Like Like x 1
        • Robby442

          Robby442 Member

          Messages:
          15
          Likes Received:
          5
          Joined:
          Nov 5, 2019
          Location:
          Doylestown,Pa
          Local Time:
          9:42 AM

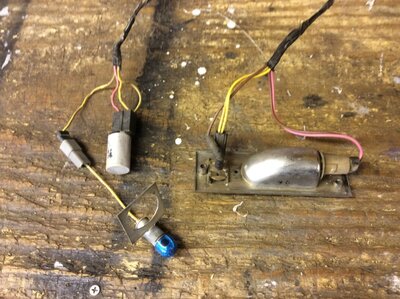

          I am looking forward to hearing from you and viewing any photos you can send me. I'm hoping that 68 will have everything and uncut harness wires. I attached a picture of a 69 ignition light(found on internet) and as you stated the 70 is different. Either way it appears in the picture there is some type of diode/relay(?) attached to the ignition light portion.

          1969 Dodge Charger Map and ignition light adn wiring.JPG

        • moparmarks

          moparmarks FBBO Gold Member FBBO Gold Member

          Messages:
          6,178
          Likes Received:
          2395
          Joined:
          Jul 31, 2011
          Location:
          Western Colorado
          Local Time:
          7:42 AM
          That is the time delay relay for the ignition switch light and yep that is the 68-9 light.

          • Agree Agree x 1
          • WM23M9

            WM23M9 FBBO Gold Member FBBO Gold Member

            Messages:
            299
            Likes Received:
            175
            Joined:
            Feb 28, 2020
            Location:
            Kansas City, MO
            Local Time:
            8:42 AM
            No sir, you'd be right though.
            My bad. Been while since Ive owned an A01 car. Im sure the crew here can "Hook you Up"! (Literally)

          • moparmarks

            moparmarks FBBO Gold Member FBBO Gold Member

            Messages:
            6,178
            Likes Received:
            2395
            Joined:
            Jul 31, 2011
            Location:
            Western Colorado
            Local Time:
            7:42 AM
            I got the harness pulled from the 68. I also dug through my stuff and found three 1970 B dash harnesses that have the AO1 harness. That is as far as I got. I want to check and compare the 70 ones which I'll today.
            So I do have the harness, map and g/box light. Still looking for the trunk and ashtray lights and trying to make sure I have the right i/switch light.

          • moparmarks

            moparmarks FBBO Gold Member FBBO Gold Member

            Messages:
            6,178
            Likes Received:
            2395
            Joined:
            Jul 31, 2011
            Location:
            Western Colorado
            Local Time:
            7:42 AM

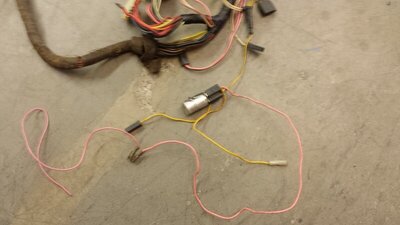

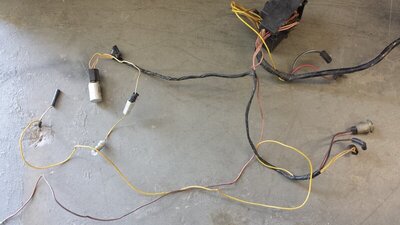

            Ok here is what I've found. I have two 68 AO1 harnesses and they have the map light included.


          • moparmarks

            moparmarks FBBO Gold Member FBBO Gold Member

            Messages:
            6,178
            Likes Received:
            2395
            Joined:
            Jul 31, 2011
            Location:
            Western Colorado
            Local Time:
            7:42 AM
            I also have two 1970 ones and they do not have the map light included. Looks like the map light harness that QuickBpBp has would work for 70.
            So looks like 1970 is probably another one year only thing. I know 71 is different.


          • Robby442

            Robby442 Member

            Messages:
            15
            Likes Received:
            5
            Joined:
            Nov 5, 2019
            Location:
            Doylestown,Pa
            Local Time:
            9:42 AM
            Thanks for the photos and info. I'm thinking maybe getting one 69 harness(which has map light) and one 70 harness to cover my bases. Just to make sure on the following: 1) Does the 70 harness have the correct 70 ignition switch(appears so?) 2) Does it also have the ashtray light and trunk light? 3) Also, since not familiar, doesn't the map light have a pot metal base(attaches to dash-example previous post) that bulb twists into and wires connect to that for on/off capability? If so, do you have the base from either 68 or 70 dash parts?

          • moparmarks

            moparmarks FBBO Gold Member FBBO Gold Member

            Messages:
            6,178
            Likes Received:
            2395
            Joined:
            Jul 31, 2011
            Location:
            Western Colorado
            Local Time:
            7:42 AM
            I'm working at yard today and will round up everything I have and get more pictures.

          • Robby442

            Robby442 Member

            Messages:
            15
            Likes Received:
            5
            Joined:
            Nov 5, 2019
            Location:
            Doylestown,Pa
            Local Time:
            9:42 AM
            Ok, thanks. We're getting our warmup in northeast starting Tuesday. If when you send the photos you could respond to the 3 questions too that would be appreciated.

          • moparmarks

            moparmarks FBBO Gold Member FBBO Gold Member

            Messages:
            6,178
            Likes Received:
            2395
            Joined:
            Jul 31, 2011
            Location:
            Western Colorado
            Local Time:
            7:42 AM

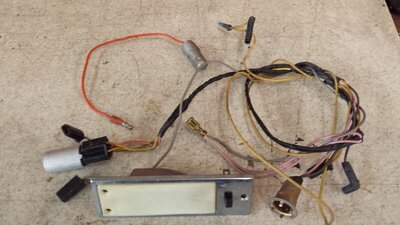

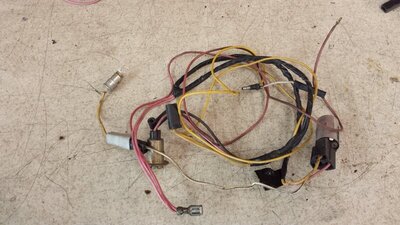

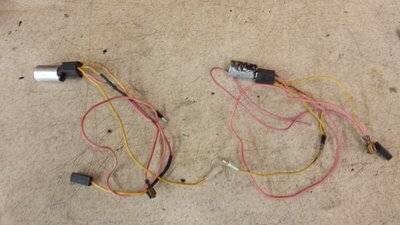

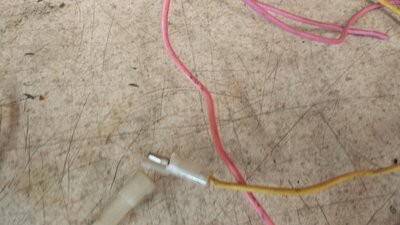

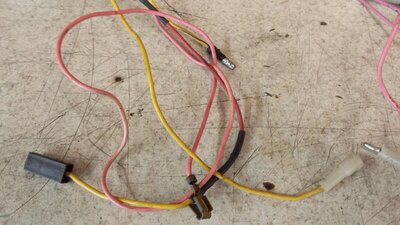

            Here is what I could round up.

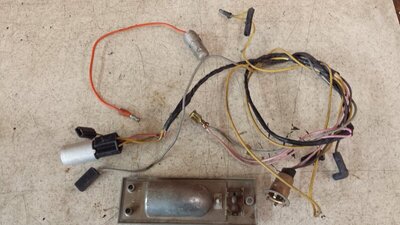

            68 AO1 harness including the map light.
            69 AO1 harness missing the map light.
            7O AO1 harness good but the round connector is broken
            70 AO1 harness good connectors but has been spliced.
            68 ashtray light.

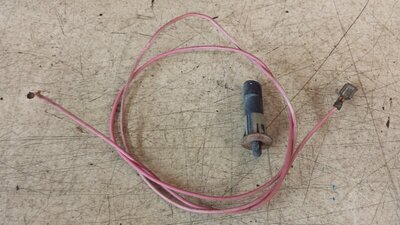

            68 G/box light but the wire came out of light.
            Sorry I don't have a trunk light. Think that 66-70 are the same.
            Also I don't have a 70 ignition switch light which I think is 70 only.
            Everything for 71 is different.

            20210306_161115.jpg 20210306_161123.jpg 20210306_161134.jpg 20210306_161217.jpg 20210306_161222.jpg 20210306_161227.jpg 20210306_161145.jpg
