Back window trim clip locations

Exterior Body, Paint, Trim, Chrome

  1. pro-streeter

    pro-streeter Well-Known Member

    Messages:
    258
    Likes Received:
    100
    Joined:
    Jul 26, 2010
    Location:
    Spokane wa
    Local Time:
    12:04 PM
    Replaced the Dutchmen and quarters.
    Need a picture or diagram for the number of rear window trim clips and approximate placement.
    Thanks in advance

  2. zyzzyx

    zyzzyx FBBO Gold Member FBBO Gold Member

    Messages:
    1,135
    Likes Received:
    1064
    Joined:
    Aug 5, 2011
    Location:
    Lisle, Illinois
    Local Time:
    12:04 PM
    What kind and year of car?

  3. pro-streeter

    pro-streeter Well-Known Member

    Messages:
    258
    Likes Received:
    100
    Joined:
    Jul 26, 2010
    Location:
    Spokane wa
    Local Time:
    12:04 PM
    1970 road runner

  4. zyzzyx

    zyzzyx FBBO Gold Member FBBO Gold Member

    Messages:
    1,135
    Likes Received:
    1064
    Joined:
    Aug 5, 2011
    Location:
    Lisle, Illinois
    Local Time:
    12:04 PM
    I can give you dimensions off of my 68 GTX? Same glass, Same trim?

  5. pro-streeter

    pro-streeter Well-Known Member

    Messages:
    258
    Likes Received:
    100
    Joined:
    Jul 26, 2010
    Location:
    Spokane wa
    Local Time:
    12:04 PM
    That would be awesome if you would working on that stuff today

  6. zyzzyx

    zyzzyx FBBO Gold Member FBBO Gold Member

    Messages:
    1,135
    Likes Received:
    1064
    Joined:
    Aug 5, 2011
    Location:
    Lisle, Illinois
    Local Time:
    12:04 PM

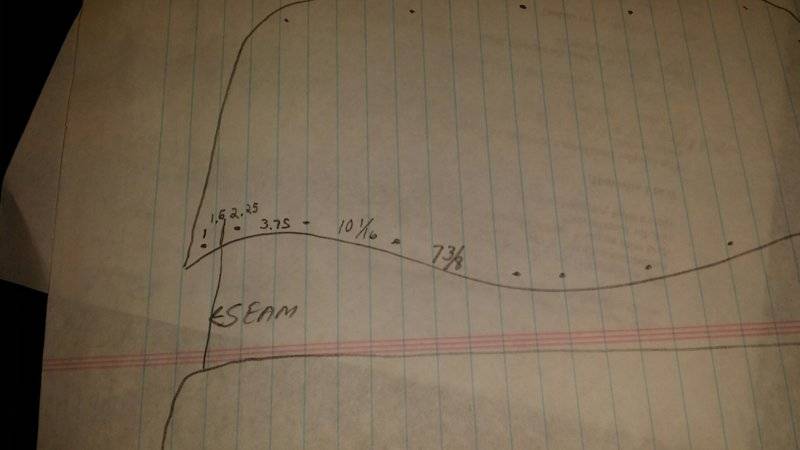

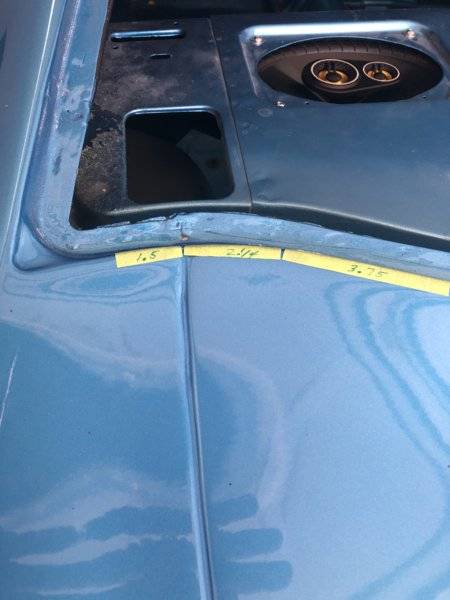

    I'm a Machinist, so what I did was take a set of dividers and took the measurements to the
    center of each hole from the seam on that rear panel. They are all the same height! The first hole is 1-1/2" to the left of the seam.
    The second hole is 2-1/4" to the right of the seam. The third hole is 3-3/4" to the right of hole # 2. The fourth hole is 10-1/16" to the right of hole #3. The fifth hole is 7-3/8" to the right of hole #4. It's the same measuring from right to left also. The idea is to miss the center
    where the left and right moldings slide into one another.

    • Like Like x 1
    • Thanks! Thanks! x 1
    • zyzzyx

      zyzzyx FBBO Gold Member FBBO Gold Member

      Messages:
      1,135
      Likes Received:
      1064
      Joined:
      Aug 5, 2011
      Location:
      Lisle, Illinois
      Local Time:
      12:04 PM
      If you need anything else, let me know!

    • pro-streeter

      pro-streeter Well-Known Member

      Messages:
      258
      Likes Received:
      100
      Joined:
      Jul 26, 2010
      Location:
      Spokane wa
      Local Time:
      12:04 PM

    • pro-streeter

      pro-streeter Well-Known Member

      Messages:
      258
      Likes Received:
      100
      Joined:
      Jul 26, 2010
      Location:
      Spokane wa
      Local Time:
      12:04 PM
      Thank you my friend this is very very helpful

    • zyzzyx

      zyzzyx FBBO Gold Member FBBO Gold Member

      Messages:
      1,135
      Likes Received:
      1064
      Joined:
      Aug 5, 2011
      Location:
      Lisle, Illinois
      Local Time:
      12:04 PM
      You're Very Very Welcome! That's what we're supposed to do!

      • Agree Agree x 1
      • Grady Cain

        Grady Cain Well-Known Member

        Messages:
        886
        Likes Received:
        1131
        Joined:
        Feb 28, 2017
        Location:
        NW CT
        Local Time:
        1:04 PM
      • pro-streeter

        pro-streeter Well-Known Member

        Messages:
        258
        Likes Received:
        100
        Joined:
        Jul 26, 2010
        Location:
        Spokane wa
        Local Time:
        12:04 PM

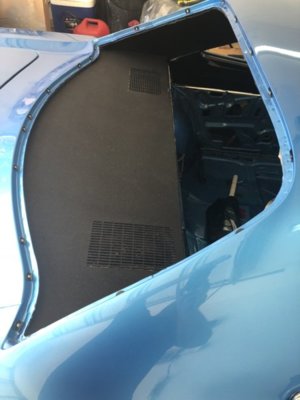

        Came out great thanks again

        A0DBA908-79F9-49D9-BD4F-53ACE2877B69.jpeg 2CAEE6FE-CC25-4FCD-A59D-C92C4EF1A4C8.jpeg

        • Thanks! Thanks! x 1
        • zyzzyx

          zyzzyx FBBO Gold Member FBBO Gold Member

          Messages:
          1,135
          Likes Received:
          1064
          Joined:
          Aug 5, 2011
          Location:
          Lisle, Illinois
          Local Time:
          12:04 PM
          Let me know how everything fits when the moldings are on. Who did you purchase the clip
          kit from? What's the paint code???? Looks nice!

        • pro-streeter

          pro-streeter Well-Known Member

          Messages:
          258
          Likes Received:
          100
          Joined:
          Jul 26, 2010
          Location:
          Spokane wa
          Local Time:
          12:04 PM
          Clips came from parts mix on eBay. I will keep you updated on the install possibly this week still. The color is surf blue. Thanks again

        • pro-streeter

          pro-streeter Well-Known Member

          Messages:
          258
          Likes Received:
          100
          Joined:
          Jul 26, 2010
          Location:
          Spokane wa
          Local Time:
          12:04 PM

        • pro-streeter

          pro-streeter Well-Known Member

          Messages:
          258
          Likes Received:
          100
          Joined:
          Jul 26, 2010
          Location:
          Spokane wa
          Local Time:
          12:04 PM

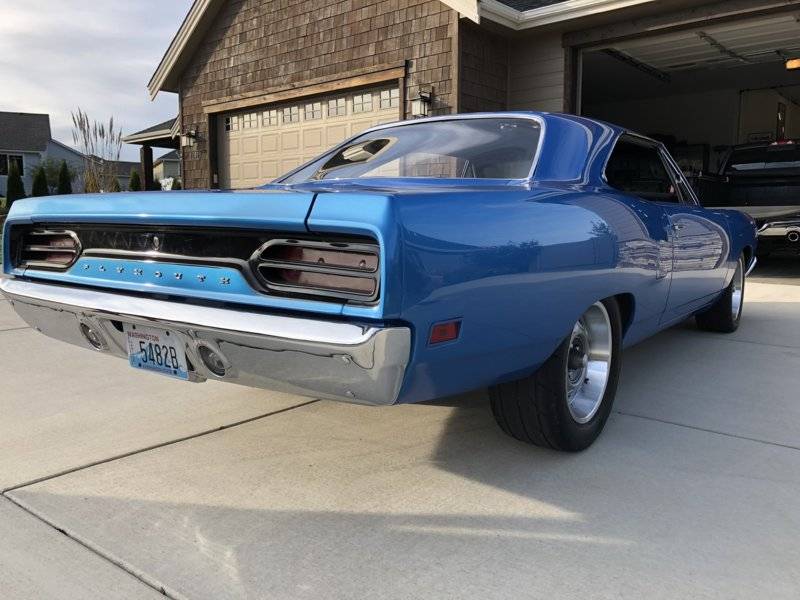

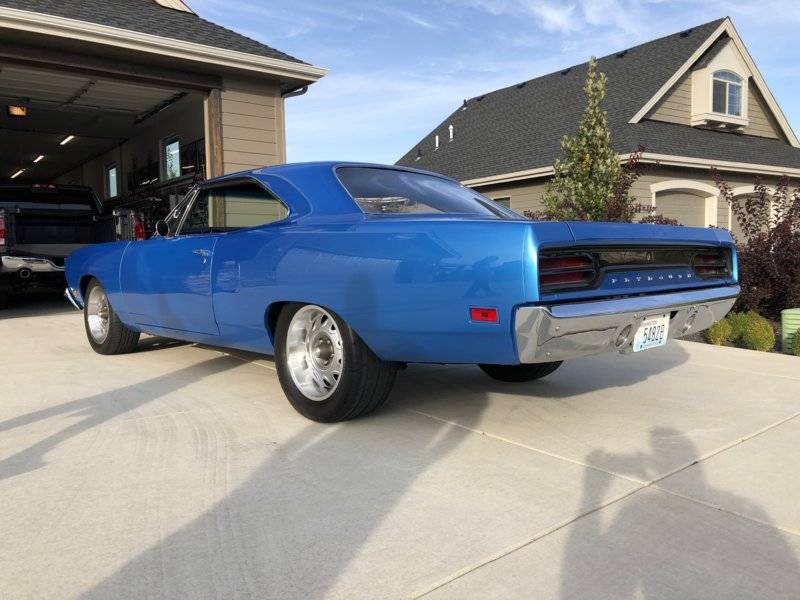

          All done and looks great. Should have taken a closer pictures of the tear window trim
          Thanks for all the help

          05E296EE-EAC5-453F-98D4-4053A2BE93B4.jpeg 7AAA66C7-60B0-4C08-9EBD-D7C4DE67A295.jpeg

          • Like Like x 2
          • Ghostrider 67

            Ghostrider 67 FBBO Gold Member FBBO Gold Member

            Messages:
            17,917
            Likes Received:
            30374
            Joined:
            Oct 16, 2014
            Location:
            Salisbury, Vermont
            Local Time:
            1:04 PM
